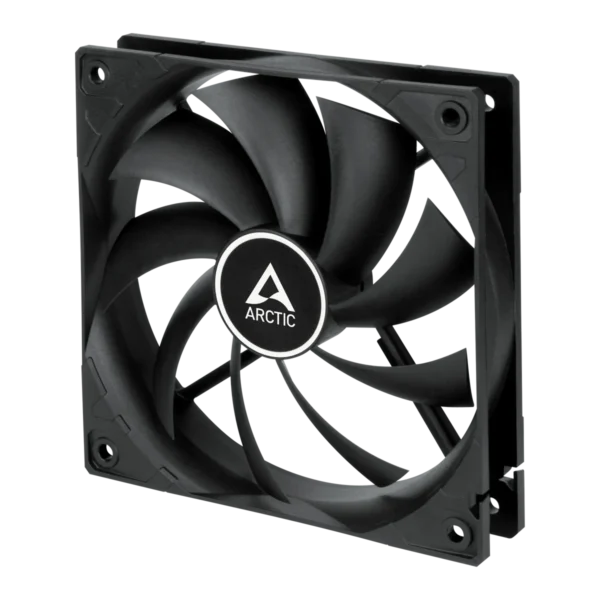

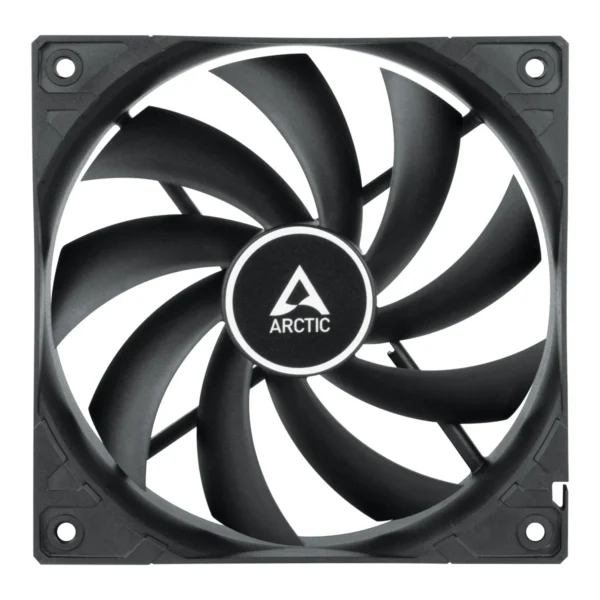

ARCTIC F12 PWM Black 120mm Case Fan 5-Pack with Fluid Dynamic Bearing and 230-1350 RPM – ACFAN00145A
₱1,520.00Original price was: ₱1,520.00.₱1,330.00Current price is: ₱1,330.00.
Complete 5-Pack Bundle: Includes five ARCTIC F12 PWM 120mm case fans, providing a comprehensive, matching cooling solution for your entire PC chassis.
Advanced PWM Control: Dynamically adjusts fan speeds from 230 to 1350 RPM based on motherboard temperatures, featuring a passive 0 RPM mode when the PWM signal drops below 5%.
Ultra-Quiet Motor: Utilizes advanced sinus-magnetizing technology to eliminate 95% of commutation vibrations compared to standard DC motors for virtually silent operation.
Fluid Dynamic Bearing: Features an integrated oil capsule to prevent lubricant leakage, ensuring whisper-quiet performance and a significantly longer service life.
Optimized Impeller Design: Engineered to deliver a robust airflow of 53 CFM (90.1 m³/h) and 1.0 mmH2O static pressure for highly efficient case ventilation.
Flexible Two-Way Installation: Can be mounted to either draw cool air into the system or exhaust warm air out, adapting perfectly to any airflow configuration.
Model Identification: ACFAN00145A
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ARCTIC F12 PWM Black 120mm Case Fan 5-Pack with Fluid Dynamic Bearing and 230-1350 RPM - ACFAN00145A
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
The ARCTIC F12 PWM case fan is meticulously engineered to deliver superior cooling performance while remaining completely unobtrusive in your workspace or gaming environment. Even at low speeds, the operating sound of the newly developed ARCTIC motor is barely noticeable. This exceptional acoustic performance is achieved through advanced sinus-magnetizing technology, which ensures the new motor creates only about five percent of the vibration typically produced by the commutation of a regular DC motor without a filter. As a result, you can enjoy a peaceful computing experience without the distracting hum or structural rattle associated with conventional cooling fans.
Perfect Case Fan Regulation with PWM
Precision is essential when managing system thermals, and the ARCTIC F12 PWM excels with its pulse-width modulation (PWM) capabilities. This advanced feature allows your motherboard to intelligently and dynamically adjust the fan speed anywhere between 230 and 1350 RPM based on real-time temperature readings. When your system is under heavy load, the fans smoothly ramp up to provide the necessary cooling; when the system is idle, they spin down—even dropping to an absolute 0 RPM standstill when the PWM signal falls below five percent. This guarantees optimal cooling performance when you need it and absolute silence when you do not.
Long Service Life with Fluid Dynamic Bearing
Reliability and longevity are at the core of the ARCTIC F12 PWM’s internal architecture. Equipped with a premium Fluid Dynamic Bearing (FDB), this fan utilizes a specialized oil capsule that completely prevents lubricant leakage. This sophisticated bearing technology ensures that the fan operates as quietly as a traditional sleeve bearing but boasts a significantly extended service life. Backed by an impressive six-year manufacturer guarantee, these fans are subjected to rigorous long-term testing under adverse conditions, ensuring they deliver outstanding durability and consistent thermal performance year after year.
Innovative Design for Efficient Two-Way Ventilation
Optimizing your system’s airflow has never been easier thanks to the F12 PWM’s highly adaptable and innovative design. The carefully sculpted fan blades and precision-engineered impeller are focused on minimizing noise levels while simultaneously maximizing airflow delivery (up to 53 CFM) and static pressure (1.0 mmH2O). Furthermore, the versatile, standard-sized 120mm frame allows for flexible two-way installation. You can mount the fans to draw cool, fresh air into your computer case or flip them to blow warm, exhausted air out, providing you with the ultimate freedom to create a highly efficient, customized ventilation layout for your specific chassis.
ARCTIC F12 PWM (Black) 120mm Case Fan 5-Pack Specifications
General Information
Brand
ARCTIC
Model Name
F12 PWM (Black)
Variant / Bundle
5-Pack
SKU / Part Number
ACFAN00145A
Manufacturer Warranty
6 Years
Performance Specifications
Fan Speed Range
230–1350 RPM (PWM controlled)
0 RPM below 5% PWM signal
Airflow Capacity
53 CFM | 90.1 m³/h
Static Pressure
1.0 mmH2O
Ambient Operating Temperature
0–40 °C
Design & Electrical Characteristics
Fan Bearing Type
Fluid Dynamic Bearing (FDB)
Typical Voltage
12 V DC
Start-Up Voltage
5 V DC
Current Rating
0.21 A
Cable Length
400 mm
Connector Type
4-Pin Connector
Physical Dimensions & Weight
Fan Dimensions (Per Unit)
120 (L) x 120 (W) x 25 (H) mm
Net Weight (Per Unit)
105 g
Package Contents
5 x F12 PWM Fans, Mounting Screws
Packaging Weight
1 kg
Packaging Dimensions (L×W×H)
16 × 15 × 15 cm
