ARCTIC P12 Max 120 mm High-Speed PWM Fan Fluid Dynamic Bearing Black Single Fan – ACFAN00280A
In Stock
In Stock
Add to Wishlist
Add to Wishlist
- 120 mm PWM fan, available as single or 5-pack (SKU: ACFAN00280A, ACFAN00293A)
- High static pressure for heatsinks, radiators, and filters
- Wide 400—3300 rpm range with 0 rpm mode for silent operation
- Fluid dynamic bearing for low noise and durability
- 6-year warranty for reliable performance
Description
The ARCTIC P12 Max case fan delivers exceptional cooling performance with a wide speed range of 400 to 3300 rpm, optimized for high static pressure to excel on heatsinks, radiators, and filtered environments. This 120 mm fan features a closed fan wheel design for enhanced pressure stability, ensuring uniform force distribution and low-vibration operation even at high speeds. PWM control allows dynamic speed adjustments, including a 0 rpm mode below 2% PWM for silent operation during idle periods. The fluid dynamic bearing ensures near-silent performance at low speeds and robust durability, complemented by rubber pads to minimize vibrations. Backed by a 6-year warranty, the ARCTIC P12 Max combines powerful airflow with quiet efficiency, making it ideal for enthusiasts and professionals seeking top-tier cooling for high-performance PC builds.
| Specification | P12 Max (Single Fan) | P12 Max (5 Pack) |
|---|---|---|
| SKU | ACFAN00280A | ACFAN00293A |
| Brand | ARCTIC | |
| Colour | Black | |
| Fan Speed | 400—3300 rpm (PWM controlled), 0 rpm below 2% PWM | |
| Airflow | 81.04 cfm | 137.69 m³/h | |
| Static Pressure | 4.35 mmH2O | |
| Noise Level | 0.6 Sone | |
| Operating Ambient Temperature | 0—40 °C | |
| Warranty | 6 Years | |
| Fan Frame | Standard | |
| Control Type | PWM | |
| Connector | 4-Pin PWM Connector | |
| Fan Bearing | Fluid Dynamic Bearing | |
| Typical Voltage | 12 V DC | |
| Start Up Voltage | 3.9 V DC | |
| Current | 0.29 A | |
| Cable Length | 400 mm | |

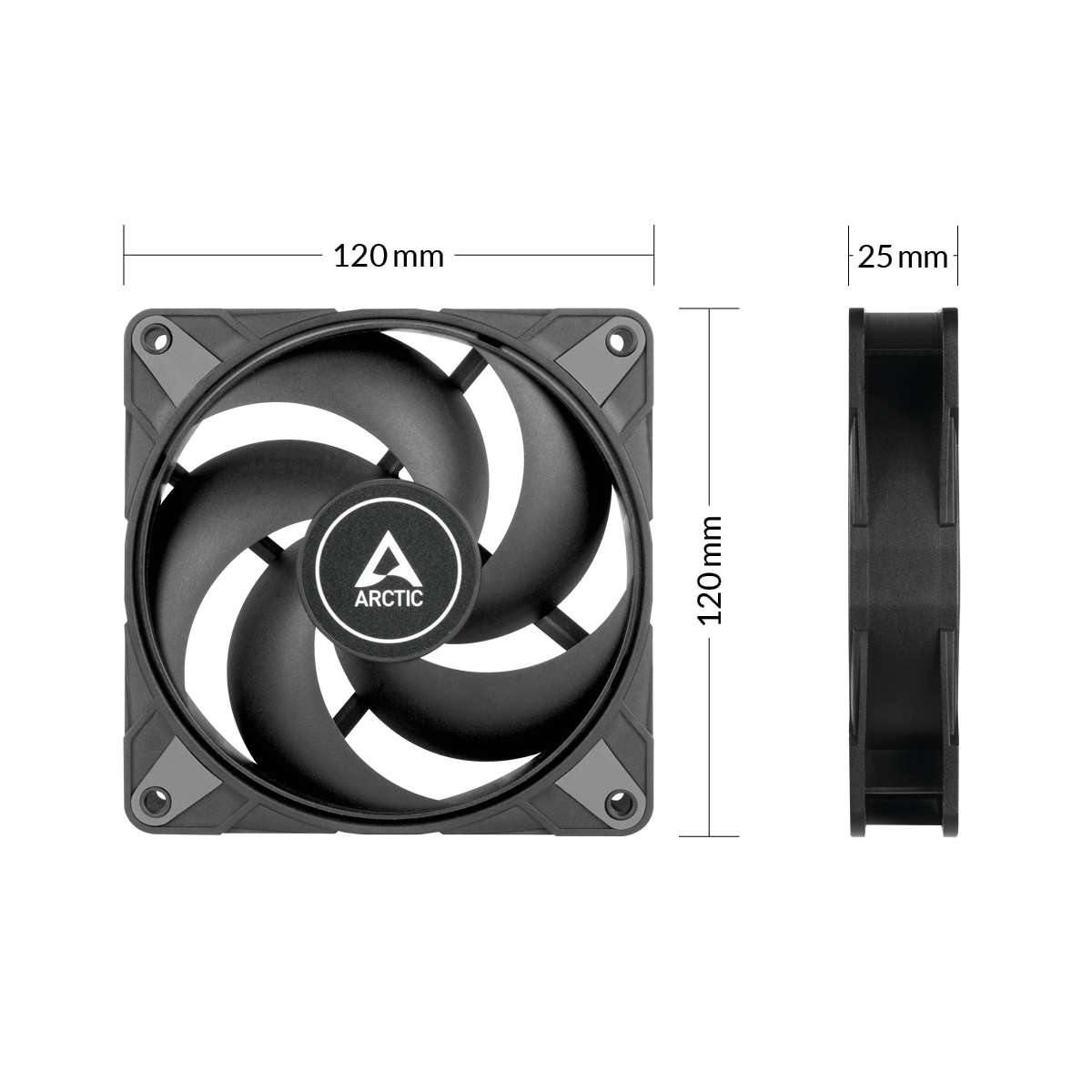

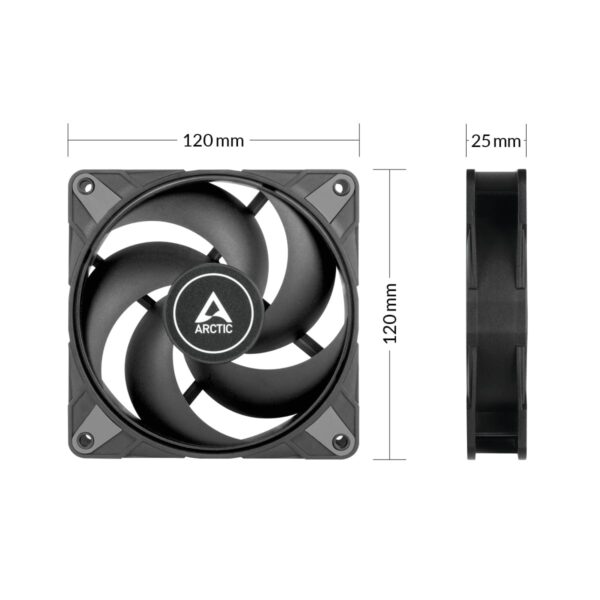

| Size (L x W x H) | 120 x 120 x 25 mm | |
| Weight | 184 g | |
Additional information
| Weight | 0.214 kg |
|---|---|
| Dimensions | 13 × 13 × 4 cm |
| Brand | ARCTIC |
