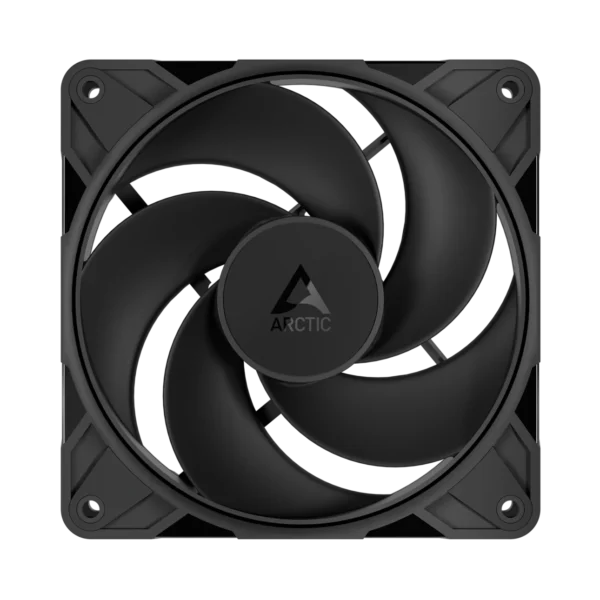

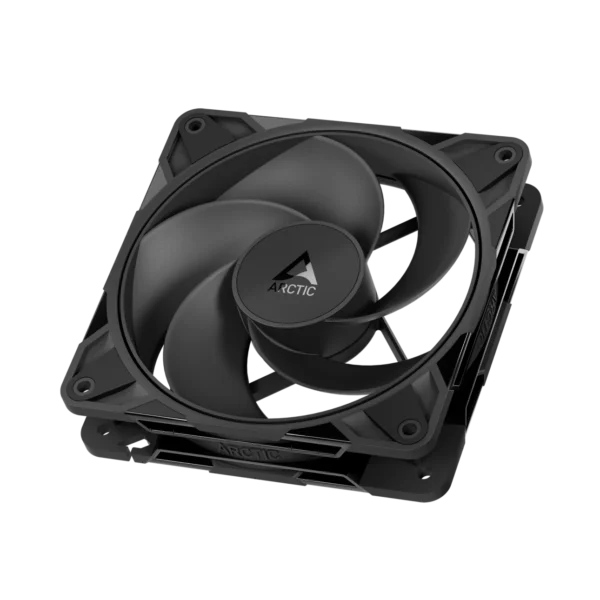

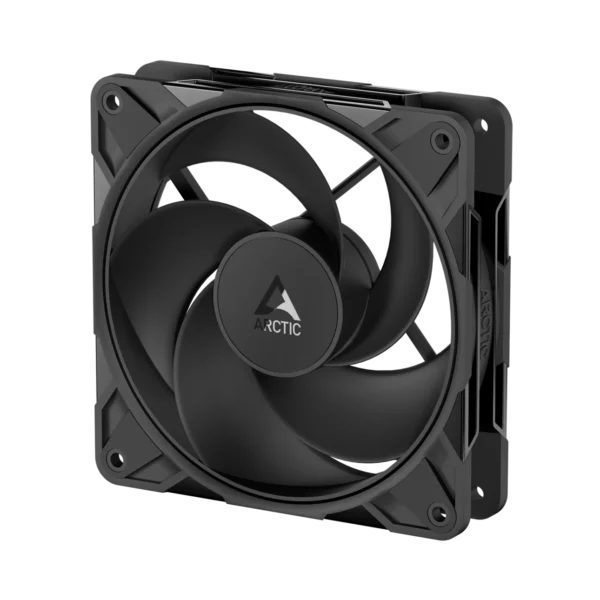

ARCTIC P12 Pro Reverse 120mm PWM PST Static Pressure Case Fan 3000 RPM Black – ACFAN00331A
₱660.00Original price was: ₱660.00.₱580.00Current price is: ₱580.00.
Reversed Airflow Design: Specially engineered to pull air from the back side, displaying the clean front fan face when used as a case intake.
High Static Pressure: Generates a powerful 4.50 mm H2O static pressure, making it highly effective for radiators and restrictive mesh filters.
Flexible PWM Speed Range: Adjustable speeds from 500 to 3000 rpm, featuring a passive 0 rpm standstill mode when the PWM signal is below 5%.
Robust Airflow Output: Pushes up to 73 CFM (124.03 m³/h) of air with minimal aerodynamic turbulence.
Advanced SOTA Microcontroller: Actively reduces motor noise, compensates for load fluctuations, and provides electrical protection.
Fluid Dynamic Bearing: Hydrodynamic bearing with an extended shaft ensures reduced vibration and whisper-quiet operation.
PST Daisy-Chain Support: Integrated 4-pin plug and socket cable allows synchronized multi-fan control from a single header.
SKU Identification: ACFAN00331A
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ARCTIC P12 Pro Reverse 120mm PWM PST Static Pressure Case Fan 3000 RPM Black - ACFAN00331A
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
The ARCTIC P12 Pro Reverse represents a breakthrough in modern case cooling, explicitly designed for users who demand both peak thermal performance and immaculate aesthetics. Unlike standard fans that expose unsightly rear struts and wiring when used as intake, this reversed airflow design pulls cool air directly from the back side. This makes the P12 Pro Reverse the perfect solution for glass-paneled chassis, front intakes, and bottom radiator mounts, ensuring you always see the clean, attractive side of the fan without compromising on cooling capability.
High Static Pressure for Maximum Cooling Efficiency
Engineered for restriction-heavy environments, the P12 Pro Reverse boasts an immense static pressure of 4.50 mm H2O. This capability allows the fan to push its robust 73 CFM (124.03 m³/h) airflow effortlessly through densely packed radiators, fine mesh dust filters, and restrictive perforated panels. By featuring minimum gap dimensions between the fan blades and the outer frame, ARCTIC ensures maximum airflow efficiency, converting rotational energy directly into extreme cooling performance.
Advanced Aerodynamics and Whisper-Quiet Operation
Delivering more power does not mean accepting more noise. The fan’s architecture features a trumpet-shaped intake and teardrop-shaped spokes that seamlessly direct airflow while minimizing flow losses, turbulence, and aerodynamic noise. Operating at a whisper-quiet 25 dB(A) even under load, the P12 Pro Reverse benefits from an optimized Fluid Dynamic Bearing (FDB) paired with an extended shaft. This hydrodynamic combination improves pressure distribution and eliminates vibrations, ensuring silent operation throughout the fan’s lifespan.
State-of-the-Art Control and Automated Precision
Equipped with a cutting-edge SOTA microcontroller, the fan actively reduces motor noise, flawlessly compensates for electrical load fluctuations, and protects your motherboard against inrush currents and reverse polarity. Furthermore, the impeller undergoes a highly advanced automated measuring and balancing process where balancing compound is applied with pinpoint accuracy to guarantee flawlessly smooth rotation. With its wide PWM control range from 500 to 3000 RPM—and a 0 RPM passive mode below 5% PWM—it offers absolute silence when idling and explosive cooling performance when demanded.
Simplified Cable Management with PST Technology
ARCTIC’s proprietary PWM Sharing Technology (PST) removes the headache of cable clutter and motherboard header limitations. The included 400 mm cable features an 80 mm daisy-chain splitter, allowing multiple fans to be linked together in series and synchronized seamlessly through a single PWM header. Backed by a 6-year manufacturer warranty, the P12 Pro Reverse guarantees long-lasting satisfaction and unmatched reliability under extreme conditions.
ARCTIC P12 Pro Reverse 120mm PWM PST Case Fan Specifications
General Information
Brand
ARCTIC
Product Name
P12 Pro Reverse
SKU / Part Number
ACFAN00331A
Variant & Colour
Single Fan | Black
Manufacturer Warranty
6 Years
Operating Ambient Temperature
0–40 °C
Performance Specifications
Fan Speed
500–3000 rpm (PWM Controlled)
0 rpm active below 5% PWM
Airflow Capacity
73 cfm | 124.03 m³/h
Static Pressure
4.50 mm H2O
Airflow Direction
Reversed Airflow (Designed for air intake from the back side)
Fan Design & Electrical Characteristics
Fan Bearing Type
Fluid Dynamic Bearing (Hydrodynamic bearing with extended shaft)
Typical Voltage
12 V DC
Start-Up Voltage
3.5 V DC
Current Rating
0.4 A
Cable Length
400 mm + 80 mm Daisy-Chain Cable
Connector Type
4-Pin Fan Plug + 4-Pin Socket (PST)
Advanced Technologies & Mechanics
Microcontroller
SOTA Microcontroller (Reduces motor noise, compensates for load fluctuations, protects against inrush currents/reverse polarity)
Precision Balancing
Automated measuring and balancing process with pinpoint balancing compound accuracy
Aerodynamic Design
Trumpet-shaped intake and teardrop-shaped spokes; Minimum gap dimensions
Physical Dimensions & Weight
Dimensions
120 (L) x 120 (W) x 27 (H) mm
Net Weight
172 g
Packaging Weight
1 kg
Packaging Dimensions (L×W×H)
15 × 15 × 6 cm
