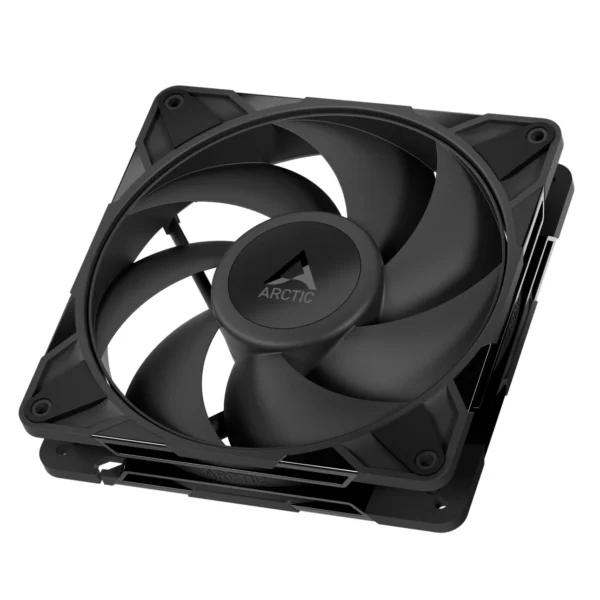

ARCTIC P14 Pro PST 140mm PWM Static Pressure Case Cooling Fan Fluid Dynamic Bearing 2500 RPM – ACFAN00314A
₱710.00Original price was: ₱710.00.₱620.00Current price is: ₱620.00.
High Static Pressure Performance: Engineered with a focused airstream (5.2 mmH2O static pressure) ideal for radiators and mesh filters.
Flexible PWM Speed Range: Adjustable speeds from 400 to 2500 rpm with a complete 0 rpm passive standstill mode below 5% PWM signal.
Massive Airflow Output: Pushes up to 110 CFM (186 m³/h) of robust airflow capacity.
Advanced Fluid Dynamic Bearing: Hydrodynamic bearing with an extended shaft ensures reduced vibration and extended lifespan.
Automated Two-Plane Balancing: Precision manufacturing eliminates wobble for exceptionally smooth and quiet operation.
PST Daisy-Chain Control: Integrated 4-pin plug and socket cable allows synchronized multi-fan control from a single header.
Extended Durability: Backed by an industry-leading 6-year manufacturer warranty.
SKU Identification: ACFAN00314A
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
ARCTIC P14 Pro PST 140mm PWM Static Pressure Case Cooling Fan Fluid Dynamic Bearing 2500 RPM - ACFAN00314A
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
The ARCTIC P14 Pro PST is engineered specifically to deliver outstanding cooling performance in environments characterized by high air resistance. Thanks to its high static pressure reaching 5.2 mmH2O, this 140mm fan forces airflow effectively through tight spaces, dense radiator fins, perforated chassis panels, and restrictive mesh filters. Whether you are building an advanced liquid-cooled system or optimizing airflow in a compact computer case, the P14 Pro PST ensures uncompromised thermal efficiency where conventional fans struggle.
Advanced Fluid Dynamic Bearing and Extended Shaft Design
Durability and whisper-quiet acoustics form the core of the P14 Pro architecture. The fan features an optimized bearing-shaft design that combines a hydrodynamic fluid dynamic bearing with an extended impeller shaft. This precision engineering significantly improves pressure distribution across moving parts, minimizing mechanical friction and reducing vibrations to guarantee extended service life and smooth operation across demanding workloads.
Automated Two-Plane Balancing and SOTA Microcontroller Integration
Precision manufacturing ensures optimal rotational stability and acoustic refinement. Every P14 Pro fan undergoes an automated two-level measuring and balancing process where balancing mass is applied with pinpoint accuracy at two different depth levels to eliminate wobble. Furthermore, an integrated state-of-the-art SOTA microcontroller actively reduces motor noise, smoothly compensates for electrical load fluctuations, and protects against inrush currents and reverse polarity.
Maximum Power, Minimum Gap Dimensions, and Synchronized Control
Redefined for an optimal balance between high performance and smooth operation, the revised fan blade design benefits from automated manufacturing with minimal tolerances, creating a particularly small gap between the impeller and the frame for maximum airflow efficiency. Delivering a massive airflow capacity of up to 110 CFM (186 m³/h) across a flexible PWM-controlled speed range from 400 to 2500 rpm—including a complete 0 rpm passive standstill mode below 5% PWM signal—the fan provides immense cooling capacity while maintaining ultra-quiet operation at just 25 dB(A).
PST Technology for Synchronized PWM Fan Control
Cable management and multi-fan coordination are simplified effortlessly through ARCTIC’s proprietary PWM Sharing Technology (PST). Featuring an integrated 4-pin fan plug and an additional 4-pin socket on an 80 mm daisy-chain cable extension connected to the primary 400 mm cable, multiple fans can be linked in series and controlled synchronously using a single motherboard header. Backed by an industry-leading 6-year manufacturer warranty, the ARCTIC P14 Pro PST stands as the ultimate choice for reliable, high-performance PC cooling.
ARCTIC P14 Pro PST 140mm PWM Static Pressure Case Fan Specifications
General Information
Brand
ARCTIC
Product Name & Variant
P14 Pro PST (140 mm PWM Fan with Cable Splitter)
SKU / Model Number
ACFAN00314A
Manufacturer Warranty
6 Years
Operating Ambient Temperature
0–40 °C
Net Weight (Fan Only)
242 g
Dimensions (Fan Unit)
140 (L) x 140 (W) x 27 (H) mm
Performance Specifications
Fan Speed Range
400–2500 rpm, PWM controlled (0 rpm below 5% PWM)
Airflow Capacity
110 cfm | 186 m³/h
Static Pressure
5.2 mmH2O
Fan Design & Electrical Characteristics
Fan Bearing Type
Fluid Dynamic Bearing (FDB) with Extended Shaft
Typical Voltage
12 V DC
Start-Up Voltage
5 V DC
Current Rating
0.35 A
Cable Length & Configuration
400 mm + 80 mm Daisy-Chain Cable
Connector Type
4-Pin Fan Plug + 4-Pin Socket (PST)
Packaging Weight
1 kg
Packaging Dimensions (L×W×H)
17 × 17 × 6 cm
Brand
ARCTIC
