- AM4 socket with AMD B550 chipset, supports up to 128GB DDR4 (up to 4733+ MHz OC) across 4 DIMM slots.
- One PCIe 4.0 x16, one PCIe 3.0 x16, and two PCIe 3.0 x1 slots, supports AMD CrossFireX for GPUs.
- Storage options include 1 Hyper M.2 (PCIe Gen4x4), 4 SATAIII, and RAID 0/1/10 for flexibility.
- Connectivity with Gigabit LAN, Intel 802.11ac WiFi + BT 4.2, USB 3.2 Gen1, HDMI 2.1 (4K 60Hz), and Nahimic audio.
- ATX form factor with XXL Aluminum Heatsinks, Premium 50A Chokes, and supports Windows 10/11 64-bit.
Description

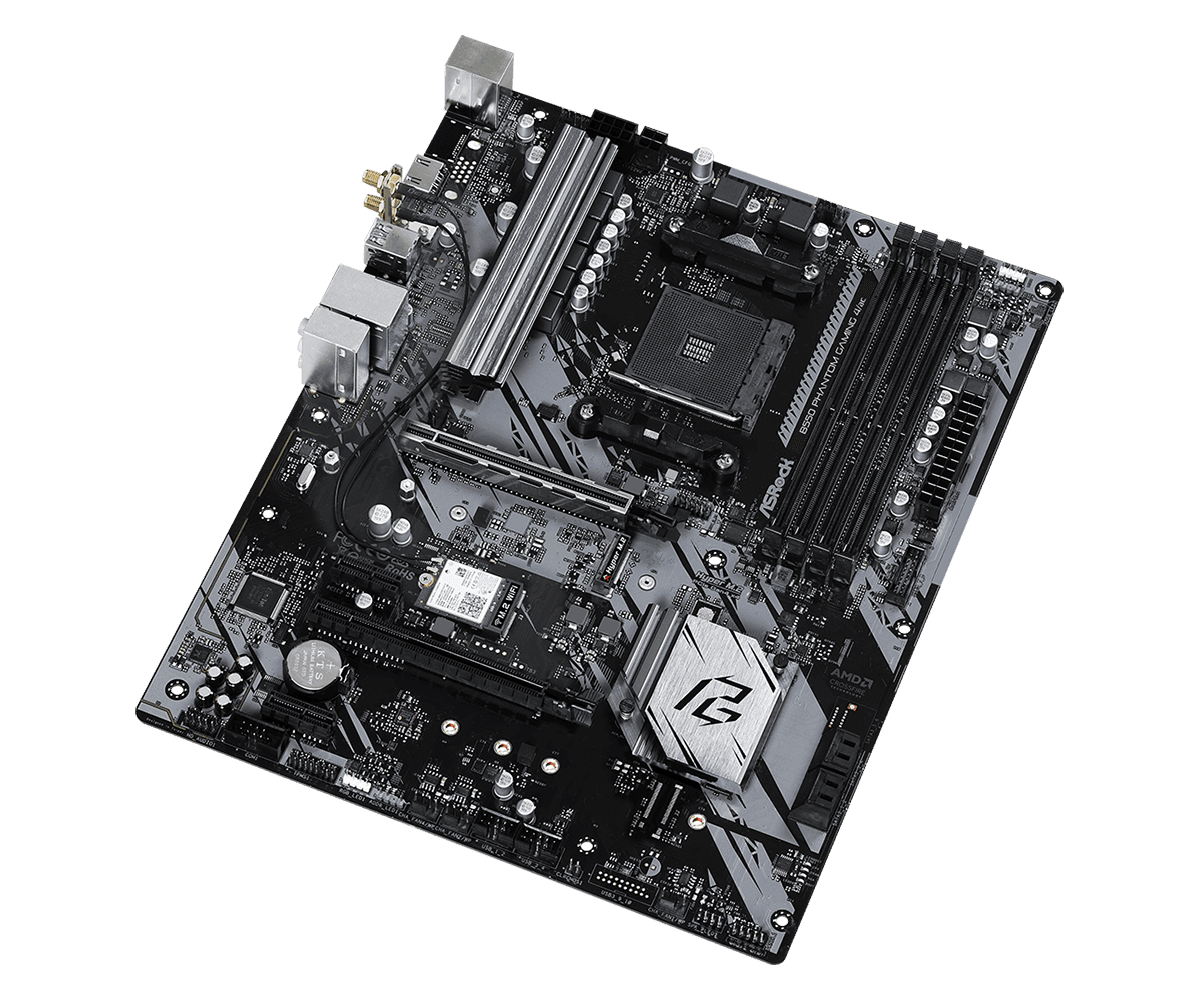

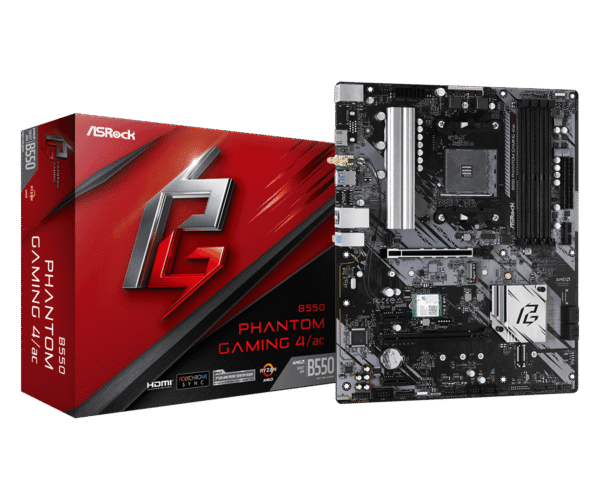

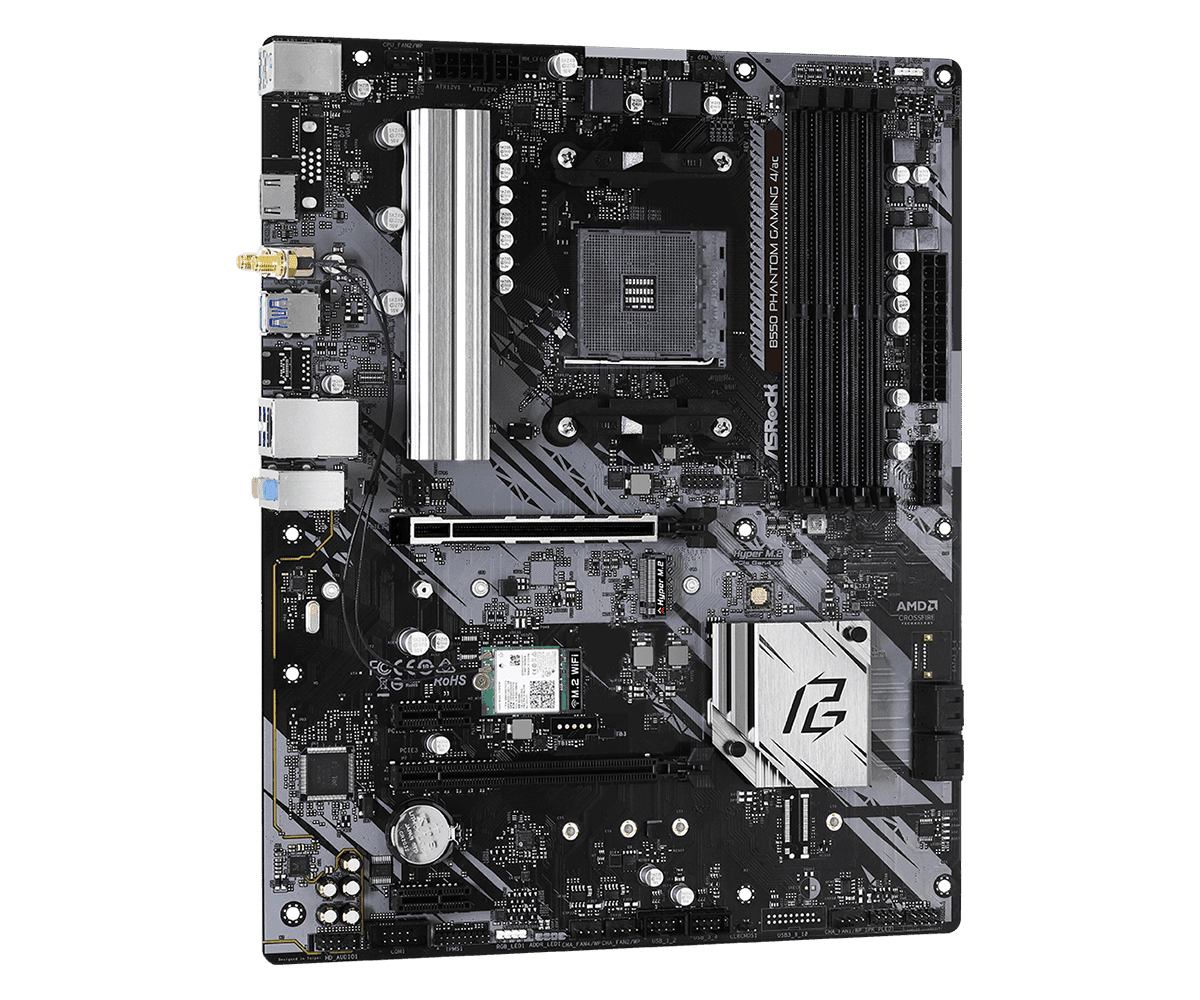

Enhance your gaming setup with the ASRock B550 Phantom Gaming 4/ac, an ATX motherboard designed for AMD Ryzen processors on the AM4 socket, powered by the AMD B550 chipset for top-tier performance and connectivity. Supporting up to 128GB of DDR4 memory across four DIMM slots with dual-channel architecture (up to 4733+ MHz OC), this board delivers fast performance for gaming, streaming, and multitasking. It features one PCIe 4.0 x16 and one PCIe 3.0 x16 slot, plus two PCIe 3.0 x1 slots, supporting AMD CrossFireX for high-performance GPU setups like the Radeon RX 9070 XT. With one Hyper M.2 (PCIe Gen4x4) and four SATAIII ports, it offers robust storage options with RAID 0/1/10. Connectivity includes Gigabit LAN, Intel 802.11ac WiFi (2.4/5GHz) + Bluetooth 4.2, eight USB 3.2 Gen1 ports, and premium 7.1 CH HD Audio with Nahimic, enhanced by ASRock Super Alloy features like XXL Aluminum Alloy Heatsinks and Premium 50A Power Chokes. Ideal for Windows 10/11 64-bit, this gaming-focused motherboard, launched in 2020 and still relevant in 2025, is perfect for enthusiasts, backed by ASRock’s quality engineering and wireless capabilities.
| Specification | Details |
|---|---|
| Product Name | ASRock B550 Phantom Gaming 4/ac |
| CPU | Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors (Not compatible with AMD Athlon Processors) |
| Chipset | AMD B550 |
| Memory Channel | Dual |
| DIMM Slots | 4 |
| Max Memory | 128GB |
| Memory Support | DDR4 up to 4733+ (OC), ECC & non-ECC, un-buffered memory, Supports Extreme Memory Profile (XMP), 15μ Gold Contact in DIMM Slots |
| PCI-E x16 | 2 (1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16) |
| PCI-E x1 | 2 |
| SATAIII | 4 |
| M.2 Slot | 1 (Hyper M.2, PCIe Gen4x4 for Vermeer/Matisse, Gen3x4 for Cezanne/Renoir/Picasso) |
| RAID | 0/1/10 |
| TPM (header) | 1 (SPI TPM Header) |
| USB 3.2 Ports (Front) | 2 (Gen1, Type A) |
| USB 3.2 Ports (Rear) | 6 (Gen1, Type A) |
| USB 2.0 Ports (Front) | Not specified |
| Audio Ports (Rear) | 7.1 CH HD Audio (Realtek ALC1220/ALC1200 Audio Codec), Nahimic Audio |
| HDMI | 1 (HDMI 2.1, max resolution 4K x 2K @ 60Hz, supports HDR, HDCP 2.3, Auto Lip Sync, Deep Color, HBR Audio, 4K UHD playback) |
| DirectX | 12 |
| CrossFire | AMD CrossFireX |
| CPU Support | AMD Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors (Not compatible with AMD Athlon Processors), Digi Power design, 8 Power Phase design |
| LAN | Gigabit LAN (Realtek RTL8111H, 10/100/1000 Mb/s, supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE) |
| Wireless LAN | Intel 802.11ac WiFi (2.4/5GHz) + Bluetooth 4.2, supports high-speed wireless up to 433Mbps |
| Cooling | XXL Aluminum Alloy Heatsink |
| Unique Features | ASRock Super Alloy (XXL Aluminum Alloy Heatsink, Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB), ASRock Steel Slot Gen4, ASRock Hyper M.2 (PCIe Gen4x4), ASRock POST Status Checker (PSC), ASRock Full Spike Protection (USB, Audio, LAN Ports), ASRock Live Update & APP Shop |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI, Supports Plug and Play, ACPI 5.1, Jumperfree, SMBIOS 2.3, Voltage Multi-adjustment (CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP) |
| Graphics | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU (actual support may vary by CPU), DirectX 12, Pixel Shader 5.0, Shared memory default 2GB (max 16GB with 32GB system memory), Supports HDMI 2.1 features (HDR, HDCP 2.3, 4K UHD playback, Auto Lip Sync, Deep Color, HBR Audio) |
| Audio | 7.1 CH HD Audio (Realtek ALC1220/ALC1200 Audio Codec), Nahimic Audio, Premium Blu-ray Audio, Surge Protection, PCB Isolate Shielding, Individual PCB Layers for R/L Audio Channel |
| Connectors | 1 x COM Port Header, 1 x SPI TPM Header, 1 x Power LED and Speaker Header, 2 x RGB LED Headers (up to 12V/3A, 36W), 2 x Addressable LED Headers (up to 5V/3A, 15W), 1 x CPU Fan Connector (4-pin, max 1A/12W), 1 x CPU/Water Pump Fan Connector (4-pin, Smart Fan Speed Control), 4 x Chassis/Water Pump Fan Connectors (4-pin, Smart Fan Speed Control, max 2A/24W per connector), 1 x 24-pin ATX Power Connector, 1 x 8-pin 12V Power Connector, 1 x 4-pin 12V Power Connector, 1 x Front Panel Audio Connector, 2 x USB 2.0 Headers (4 ports, ESD Protection), 1 x USB 3.2 Gen1 Header (2 ports, ESD Protection) |

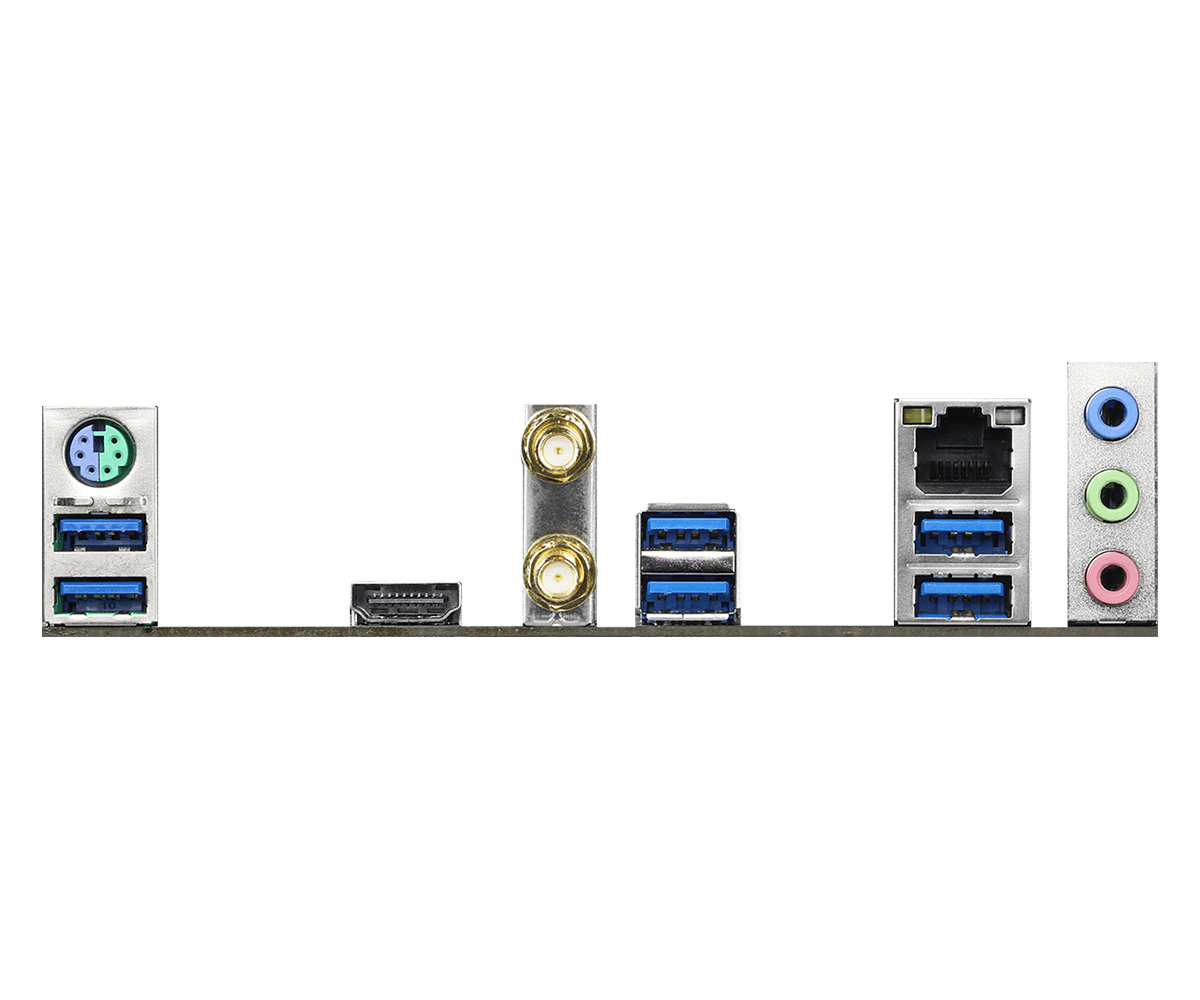

| Rear Panel I/O | 2 x Antenna Ports, 1 x PS/2 Mouse/Keyboard Port, 1 x HDMI Port, 6 x USB 3.2 Gen1 Ports (ESD Protection), 1 x RJ-45 LAN Port (ACT/LINK LED and SPEED LED), HD Audio Jacks (Line in / Front Speaker / Microphone) |
| Software | ASRock Motherboard Utility (Phantom Gaming Tuning), ASRock Polychrome SYNC, ASRock Key Master (downloadable from ASRock Live Update & APP Shop) |
| UEFI | ASRock Full HD UEFI, ASRock Instant Flash |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | I/O Shield, 2 x SATA Data Cables, 2 x ASRock WiFi 2.4/5 GHz Antennas, 1 x Screw for M.2 Socket |
| Hardware Monitor | Temperature Sensing (CPU, CPU/Water Pump, Chassis/Water Pump Fans), Fan Tachometer (CPU, CPU/Water Pump, Chassis/Water Pump Fans), Quiet Fan (Auto adjust chassis fan speed by CPU temperature), Fan Multi-Speed Control (CPU, CPU/Water Pump, Chassis/Water Pump Fans), Voltage Monitoring (+12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, +1.8V, VDDP) |
| Form Factor | ATX, 12.0-in x 9.6-in (30.5 cm x 24.4 cm), Solid Capacitor design, 2oz Copper PCB |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | FCC, CE, ErP/EuP ready (requires ErP/EuP ready power supply) |
Additional information
| Weight | 1.7 kg |
|---|---|
| Dimensions | 31 × 29 × 8 cm |
| Brand | ASROCK |
| Desktop RAM | DDR4 |
| Socket | AM4 CPU |
