Asrock B550M-HDV Micro ATX AM4 DDR4 Motherboard - 90-MXBDJ0-A0UAYZ

Asrock B550M-HDV Micro ATX AM4 DDR4 Motherboard – 90-MXBDJ0-A0UAYZ

₱4,495.00

Asrock B550M-HDV Micro ATX AM4 motherboard for Ryzen 3000/4000/5000 series CPUs
Supports DDR4 up to 4733+ (OC), max 64GB, with XMP profiles
PCIe 4.0 x16 slot, Hyper M.2 (PCIe Gen4x4), 4 SATA3 with RAID 0/1/10
7.1 CH HD audio (Realtek ALC887/897), Gigabit LAN (Realtek RTL8111H)
Triple monitor support: HDMI 2.1 (4K@60Hz), DVI-D, D-Sub
6 x USB 3.2 Gen1, ASRock Super Alloy, Full Spike Protection

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱4,200 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

SKU: Asrock B550M-HDV Categories: Motherboards, AMD AM4 Motherboards Tag: ASROCK

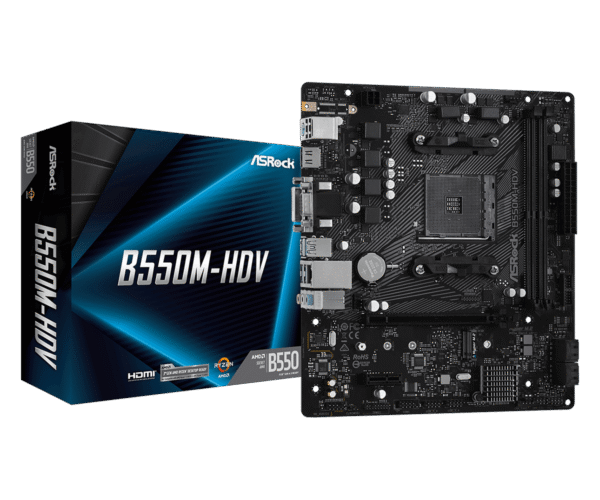

Asrock B550M-HDV Micro ATX AM4 Motherboard

Build a budget-friendly yet powerful PC with the Asrock B550M-HDV Micro ATX AM4 Motherboard, compatible with AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series processors. Featuring a 6 power phase design and support for DDR4 memory up to 4733+ (OC) with a max capacity of 64GB, this board ensures reliable performance for gaming and multitasking. It includes a PCIe 4.0 x16 slot and a Hyper M.2 (PCIe Gen4x4) slot for lightning-fast storage, alongside 4 SATA3 ports with RAID 0, 1, and 10 support. The Realtek ALC887/897 7.1 CH HD audio delivers immersive sound, while the Gigabit LAN (Realtek RTL8111H) ensures stable connectivity. With triple monitor support via HDMI 2.1 (4K@60Hz), DVI-D, and D-Sub, plus 6 USB 3.2 Gen1 ports, this Micro ATX board (9.0″ x 7.9″) offers versatility for compact builds. Note: Availability may vary by region—check with your local dealer.

Specification	Details
CPU Support	AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000, and 5000 G-Series Desktop Processors (Not compatible with AMD Athlon™ Processors)
Power Phase	6 Power Phase Design
Chipset	AMD B550
Memory	2 x DDR4 DIMM Slots, Dual Channel, up to 4733+ (OC), Max. 64GB, Supports XMP, ECC/non-ECC, un-buffered memory
BIOS	256Mb AMI UEFI Legal BIOS with GUI support, Plug and Play, ACPI 5.1 wake up events, jumperfree, SMBIOS 2.3, Voltage Multi-adjustment
Slots	1 x PCIe 4.0 x16 (x16 mode with Vermeer/Matisse, x16 mode with Cezanne/Renoir, x8 mode with Picasso), 1 x PCIe 3.0 x1
Graphics	Integrated AMD Radeon Vega Series Graphics (varies by CPU), HDMI 2.1 (4K@60Hz), DVI-D (1920x1200@60Hz), D-Sub (1920x1200@60Hz), Supports Triple Monitor, HDR, HDCP 2.3
Storage	4 x SATA3 6.0 Gb/s (RAID 0, 1, 10), 1 x Hyper M.2 (PCIe Gen4x4 & SATA3, up to 64 Gb/s with Vermeer/Matisse, 32 Gb/s with Cezanne/Renoir/Picasso)
Audio	7.1 CH HD Audio (Realtek ALC887/897 Audio Codec), Surge Protection
LAN	Gigabit LAN (Realtek RTL8111H), Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE
USB	6 x USB 3.2 Gen1 (2 Front, 4 Rear), 6 x USB 2.0 (4 Front via headers, 2 Rear), All ports with ESD Protection
Rear Panel I/O	1 x PS/2 Mouse/Keyboard, 1 x D-Sub, 1 x DVI-D, 1 x HDMI, 2 x USB 2.0, 4 x USB 3.2 Gen1, 1 x RJ-45 LAN, HD Audio Jacks
Connectors	1 x SPI TPM Header, 1 x COM Port Header, 1 x Chassis Intrusion/Speaker Header, 1 x CPU Fan (4-pin), 2 x Chassis Fan (4-pin), 1 x 24-pin ATX Power, 1 x 4-pin 12V Power, 1 x Front Panel Audio, 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header
Software	ASRock Motherboard Utility (A-Tuning), ASRock Live Update & APP Shop
UEFI	ASRock Full HD UEFI, Instant Flash
Accessories	I/O Shield, 2 x SATA Data Cables, 1 x Screw for M.2 Socket
Hardware Monitor	Temperature Sensing (CPU, Chassis Fans), Fan Tachometer, Quiet Fan, Fan Multi-Speed Control, CASE OPEN detection, Voltage monitoring
Form Factor	Micro ATX: 9.0-in x 7.9-in (23.0 cm x 20.1 cm), Solid Capacitor design
OS	Microsoft Windows® 10 64-bit / 11 64-bit
Certifications	FCC, CE, ErP/EuP ready (requires ErP/EuP ready power supply)
