ASRock B550M Phantom Gaming 4 Micro ATX AMD B550 AM4 Socket DDR4 128GB PCIe 4.0 Motherboard – B550M PHANTOM GAMING 4
Original price was: ₱6,100.00.₱5,695.00Current price is: ₱5,695.00.
- Supports AMD Ryzen 3000, 4000 G-Series, and 5000 Series processors for versatile performance
- Hyper M.2 (PCIe Gen4x4) delivers NVMe SSD speeds up to 64 Gb/s, perfect for gaming
- Super Alloy design with 50A Power Choke and 2oz Copper PCB for enhanced durability
- Supports up to 128GB DDR4 memory with overclocking up to 4733+ MHz for high-speed tasks
- HDMI 2.1 and DisplayPort 1.4 with 5K and 4K UHD support for exceptional visuals
- Supports AMD Quad CrossFireX for multi-GPU configurations
- 7.1 CH HD Audio with surge protection for immersive sound
- Micro ATX form factor (9.6 x 9.6 inches) ideal for compact builds
In stock
Price Drop Alerts & Price History
We'll notify you the moment the price hits your target.
💡 Suggested alert: ₱5,400 [ Use this ]
Want to track and manage your alerts? Sign in or create an account.
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified

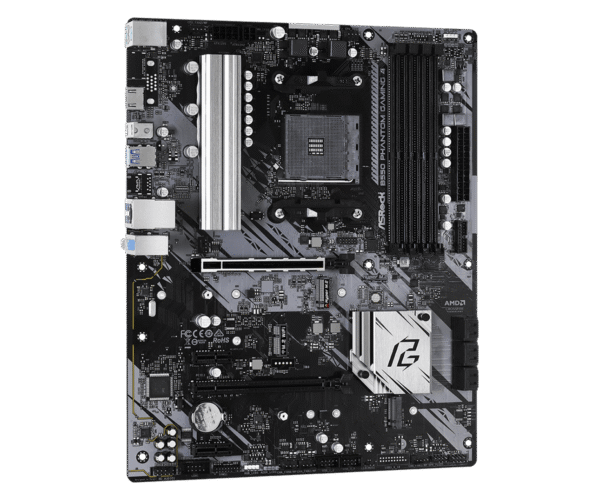

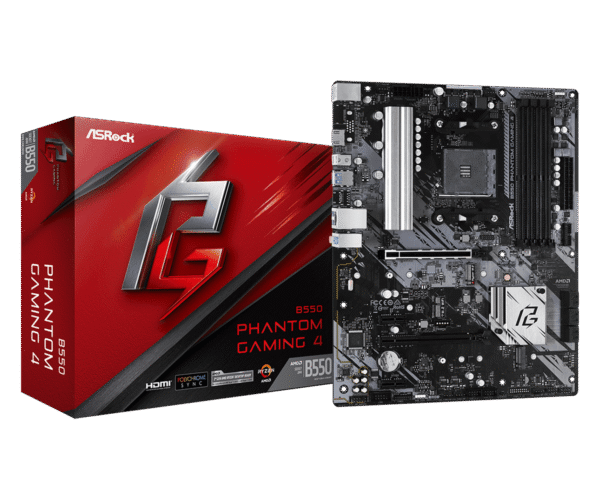

ASRock B550M Phantom Gaming 4 Micro ATX Motherboard – Power-Packed Performance
The ASRock B550M Phantom Gaming 4 motherboard offers a perfect blend of performance and value in a Micro ATX form factor, tailored for AMD Ryzen enthusiasts. Built with the AMD B550 chipset, this board supports Ryzen 3000, 4000 G-Series, and 5000 Series processors, ensuring compatibility with the latest AM4 socket CPUs. Its standout feature, the ASRock Hyper M.2 slot with PCIe Gen4x4 support, delivers blazing-fast NVMe SSD speeds up to 64 Gb/s, making it a top choice for gamers and power users seeking rapid storage performance. The ASRock Super Alloy construction, featuring a Premium 50A Power Choke and 2oz Copper PCB, provides exceptional stability and heat dissipation for reliable operation.
This motherboard excels with its robust design, including a Sapphire Black PCB and High Density Glass Fabric PCB, enhancing both durability and aesthetics. With support for up to 128GB of DDR4 memory and extreme overclocking capabilities reaching 4733+ MHz with select APUs, it caters to users who demand high-speed multitasking and gaming prowess. The dual graphics output via HDMI 2.1 and DisplayPort 1.4 supports up to 5K resolution at 120Hz and 4K UHD playback with HDR, delivering stunning visuals for immersive experiences.
Connectivity is enhanced with multiple USB 3.2 Gen1 ports and support for AMD Quad CrossFireX, offering flexibility for multi-GPU setups. The 7.1 CH HD Audio powered by Realtek ALC887/897 codecs ensures rich sound quality, while Full Spike Protection safeguards all ports. Designed for compact yet powerful builds, the ASRock B550M Phantom Gaming 4 combines cutting-edge features with a sleek Phantom Gaming aesthetic, making it an ideal foundation for your next gaming rig.
| Feature | Specification |
|---|---|
| Unique Feature | ASRock Super Alloy: Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB, 2oz Copper PCB ASRock Hyper M.2 (PCIe Gen4x4) ASRock Full Spike Protection (for all USB, Audio, LAN Ports) ASRock Live Update & APP Shop |
| CPU | Supports AMD AM4 Socket Ryzen 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors (Please refer to CPU support list for details) Digi Power design 8 Power Phase design |
| Chipset | AMD B550 |
| Memory | Dual Channel DDR4 Memory Technology 4 x DDR4 DIMM Slots AMD Ryzen series CPUs (Vermeer): DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series CPUs (Matisse): DDR4 4533+(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series APUs (Cezanne): DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series APUs (Renoir): DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC) / 3200 / 2933 / 2667 / 2400 / 2133 ECC & non-ECC, un-buffered memory AMD Ryzen series APUs (Picasso): DDR4 3333+(OC) / 3200(OC) / 2933 / 2667 / 2400 / 2133 non-ECC, un-buffered memory Max. capacity of system memory: 128GB Supports Extreme Memory Profile (XMP) memory modules 15μ Gold Contact in DIMM Slots Note: For Ryzen Series APUs (Picasso, Cezanne, and Renoir), ECC is only supported with PRO CPUs. Due to OS limitations, actual memory size may be less than 4GB under 32-bit Windows OS. For 64-bit Windows OS with 64-bit CPU, there is no such limitation. |
| BIOS | 256Mb AMI UEFI Legal BIOS with GUI support Supports "Plug and Play" ACPI 5.1 compliance wake up events Supports jumperfree SMBIOS 2.3 support CPU, CPU VDDCR_SOC, DRAM, +1.8VSB, Voltage Multi-adjustment |
| Graphics | Integrated AMD Radeon Vega Series Graphics in Ryzen Series APU (Actual support may vary by CPU) DirectX 12, Pixel Shader 5.0 Shared memory default 2GB, max shared memory supports up to 16GB (requires 32GB system memory installed) Dual graphics output: HDMI and DisplayPort 1.4 ports by independent display controllers Supports HDMI 2.1 with max. resolution up to 4K x 2K (4096x2160) @ 60Hz Supports DisplayPort 1.4 with max. resolution up to 5K (5120x2880) @ 120Hz Supports Auto Lip Sync, Deep Color (12bpc), xvYCC, and HBR (High Bit Rate Audio) with HDMI 2.1 Port (Compliant HDMI monitor required) Supports HDR (High Dynamic Range) with HDMI 2.1 Supports HDCP 2.3 with HDMI 2.1 and DisplayPort 1.4 Ports (Picasso supports HDCP 2.2 with HDMI 2.0 Port) Supports 4K Ultra HD (UHD) playback with HDMI 2.1 and DisplayPort 1.4 Ports Supports Microsoft PlayReady |
| Audio | 7.1 CH HD Audio (Realtek ALC887/897 Audio Codec) Supports Surge Protection |
| LAN | PCIE x1 Gigabit LAN 10/100/1000 Mb/s Realtek RTL8111H Supports Wake-On-LAN Supports Lightning/ESD Protection Supports Energy Efficient Ethernet 802.3az Supports PXE |
| Slots | AMD Ryzen series CPUs (Vermeer and Matisse): 2 x PCI Express x16 Slots (PCIE1: Gen4x16 mode; PCIE3: Gen3 x4 mode) AMD Ryzen series APUs (Cezanne and Renoir): 2 x PCI Express x16 Slots (PCIE1: Gen3x16 mode; PCIE3: Gen3 x4 mode) AMD Ryzen series APUs (Picasso): 2 x PCI Express x16 Slots (PCIE1: Gen3x8 mode; PCIE3: Gen3 x4 mode) 1 x PCI Express 3.0 x1 Slot Supports AMD Quad CrossFireX and CrossFireX Supports NVMe SSD as boot disks |
| Storage | 4 x SATA3 6.0 Gb/s Connectors, support RAID (RAID 0, RAID 1, and RAID 10), NCQ, AHCI, and Hot Plug 1 x Hyper M.2 Socket (M2_1), supports M Key type 2280 M.2 PCI Express module up to Gen4x4 (64 Gb/s) (with Vermeer, Matisse) or Gen3x4 (32 Gb/s) (with Cezanne, Renoir, and Picasso) 1 x M.2 Socket (M2_2), supports M Key type 2280 M.2 SATA3 6.0 Gb/s module and M.2 PCI Express module up to Gen3 x2 (16 Gb/s) Note: Supports NVMe SSD as boot disks. NVMe SSD is not supported with AMD Athlon 3000G Processors |
| Connector | 1 x SPI TPM Header 1 x Power LED and Speaker Header 2 x RGB LED Headers (Support up to 12V/3A, 36W LED Strip) 2 x Addressable LED Headers (Support up to 5V/3A, 15W LED Strip) 1 x CPU Fan Connector (4-pin) (Supports CPU fan of max 1A (12W) fan power) 3 x Chassis/Water Pump Fan Connectors (4-pin) (Smart Fan Speed Control) (Supports water cooler fan of max 2A (24W) fan power) 1 x 24 pin ATX Power Connector 1 x 8 pin 12V Power Connector 1 x Front Panel Audio Connector 2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection) 2 x USB 3.2 Gen1 Headers (Support 4 USB 3.2 Gen1 ports) (Supports ESD Protection) Note: CHA_FAN1/WP, CHA_FAN2/WP, and CHA_FAN3/WP can auto-detect 3-pin or 4-pin fans |
| Rear Panel I/O | 1 x PS/2 Mouse/Keyboard Port 1 x HDMI Port 1 x DisplayPort 1.4 4 x USB 3.2 Gen1 Ports (Supports ESD Protection) 2 x USB 2.0 Ports (Supports ESD Protection) 1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED) HD Audio Jacks: Line in / Front Speaker / Microphone |
| Software and UEFI | Software: ASRock Motherboard Utility (A-Tuning), ASRock Polychrome SYNC UEFI: ASRock Full HD UEFI, ASRock Instant Flash Note: These utilities can be downloaded from ASRock Live Update & APP Shop |
| Support CD | Drivers, Utilities, AntiVirus Software (Trial Version), Google Chrome Browser and Toolbar |
| Accessories | I/O Shield 2 x SATA Data Cables 2 x Screws for M.2 Sockets |
| Hardware Monitor | Temperature Sensing: CPU, Chassis/Water Pump Fans Fan Tachometer: CPU, Chassis/Water Pump Fans Quiet Fan (Auto adjust chassis fan speed by CPU temperature): CPU, Chassis/Water Pump Fans Fan Multi-Speed Control: CPU, Chassis/Water Pump Fans Voltage monitoring: +12V, +5V, +3.3V, CPU Vcore, CPU VDDCR_SOC, DRAM, VPPM, +1.8V |
| Form Factor | Micro ATX Form Factor: 9.6-in x 9.6-in, 24.4 cm x 24.4 cm Solid Capacitor design 2oz Copper PCB |
| OS | Microsoft Windows 10 64-bit / 11 64-bit |
| Certifications | FCC, CE ErP/EuP ready (ErP/EuP ready power supply required) |
| Weight | 1.7 kg |
|---|---|
| Dimensions | 31 × 29 × 8 cm |
| Brand | ASROCK |
| Desktop RAM | DDR4 |
| Socket | AM4 CPU |
