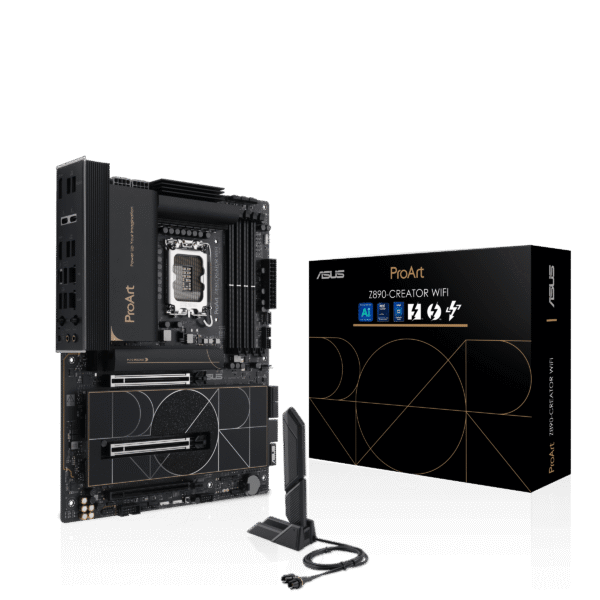

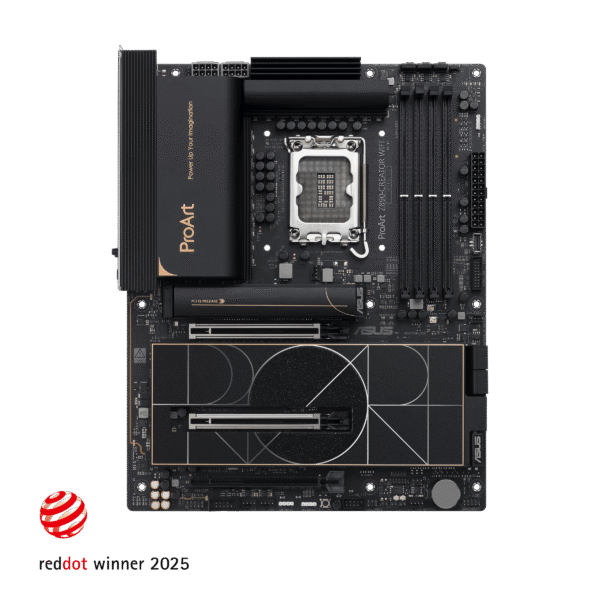

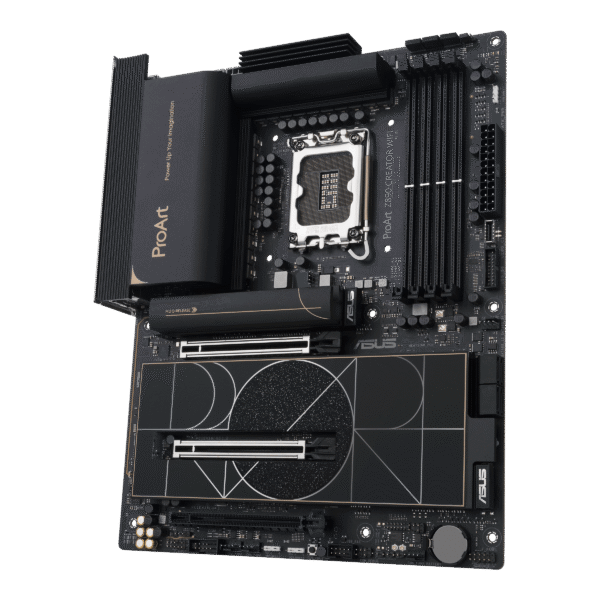

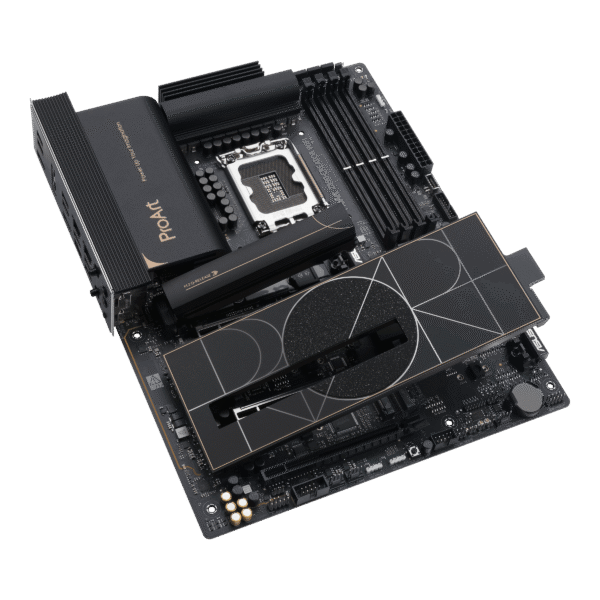

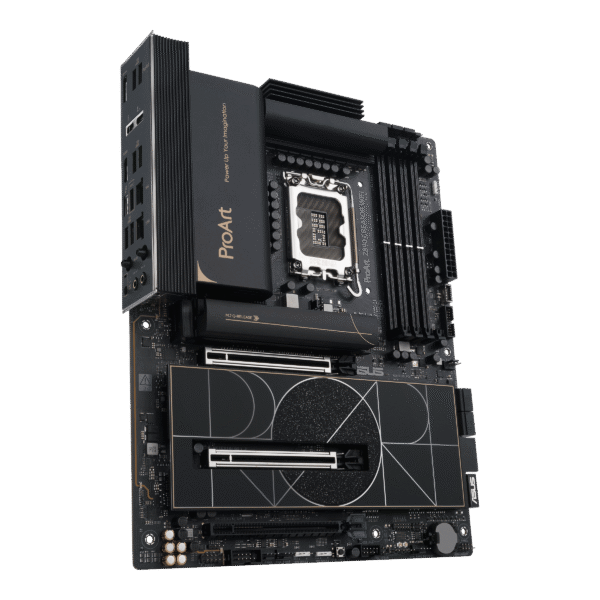

Elevate your creative workflow with the ASUS ProArt Z890-CREATOR WIFI, an ATX motherboard designed for Intel® Core™ Ultra Series 2 processors. Built with the Intel® Z890 chipset, it supports up to 256GB of DDR5 memory at speeds up to 9066+MT/s (OC), delivering exceptional performance for rendering, editing, and AI-driven tasks. Two PCIe 5.0 x16 slots ensure compatibility with next-gen graphics cards, while five M.2 slots, including one PCIe 5.0, offer lightning-fast storage up to 16GB/s. The dual Thunderbolt 5 ports provide up to 80Gbps bandwidth, supporting dual 8K displays for professional-grade visuals. A robust 16+1+2+2 power stage VRM with ProCool II connectors ensures stable power delivery for CPUs like the Core Ultra 9 285K. Advanced cooling with M.2 and VRM heatsinks maintains optimal temperatures during intensive workloads. Connectivity shines with Wi-Fi 7, 10Gb and 2.5Gb Ethernet, and a Thunderbolt 4 port for versatile device integration. The Realtek ALC1220P audio delivers immersive 7.1-channel sound at 32-Bit/192kHz. The ProArt Creator Hub with Pantone utilities streamlines color management and workflow optimization. DIY-friendly features like M.2 Q-Latch, PCIe Slot Q-Release Slim, and BIOS FlashBack simplify assembly. With a sleek black and gold design, the ASUS ProArt Z890-CREATOR WIFI is the ultimate choice for creators seeking performance and elegance.
4 x DDR5 DIMM, up to 256GB, 9066+MT/s (OC), Non-ECC Un-buffered, CUDIMM, Dual Channel, XMP, AEMP III, DIMM Fit, DIMM Flex
Graphics
1 x HDMI (4K@60Hz, HDMI 2.1), 2 x Thunderbolt 5 USB Type-C (2 x 8K@60Hz or 1 x 8K + 1 x 4K@60Hz), 1 x Thunderbolt 4 USB Type-C (8K@60Hz), 1 x DisplayPort (Input only)
Expansion Slots
CPU: 2 x PCIe 5.0 x16 (x16 or x8/x8); Chipset: 1 x PCIe 4.0 x16 (x4 mode)
Storage
CPU: 1 x M.2 (2242/2260/2280/22110, PCIe 5.0 x4, M.2_1), 1 x M.2 (2242/2260/2280, PCIe 4.0 x4, M.2_2); Chipset: 2 x M.2 (2242/2260/2280, PCIe 4.0 x4, M.2_3, M.2_4), 1 x M.2 (2242/2260/2280, PCIe 4.0 x4 & SATA, M.2_5); 4 x SATA 6Gb/s; RAID 0/1/5/10
Ethernet
1 x Marvell® AQtion 10Gb, 1 x Intel® 2.5Gb, ASUS LANGuard
Wireless
2x2 Wi-Fi 7 (802.11be, 2.4/5/6GHz, 320MHz, up to 5.8Gbps), Bluetooth 5.4
USB
Rear: 2 x Thunderbolt 5 Type-C, 1 x Thunderbolt 4 Type-C, 6 x USB 10Gbps Type-A, 1 x USB 2.0 Type-A; Front: 1 x USB 20Gbps Type-C, 1 x USB 5Gbps header (2 ports), 1 x USB 2.0 header (2 ports)
Audio
Realtek ALC1220P 7.1, 120 dB SNR playback, 113 dB SNR input, 32-Bit/192 kHz, Gold-plated jacks, Premium capacitors
Back Panel I/O

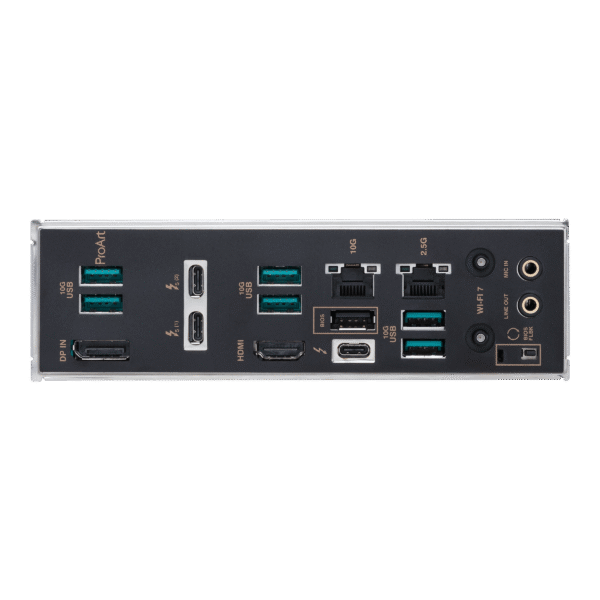

2 x Thunderbolt 5 Type-C, 1 x Thunderbolt 4 Type-C, 6 x USB 10Gbps Type-A, 1 x USB 2.0 Type-A, 1 x DisplayPort (Input), 1 x HDMI, 1 x Wi-Fi module, 1 x 10Gb Ethernet, 1 x 2.5Gb Ethernet, 2 x Gold-plated audio jacks, 1 x BIOS FlashBack button
Internal I/O Connectors
1 x 24-pin ATX, 2 x 8-pin +12V, 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 5 x 4-pin Chassis Fan, 5 x M.2, 4 x SATA 6Gb/s, 1 x USB 20Gbps Type-C, 1 x USB 5Gbps header, 1 x USB 2.0 header, 3 x Addressable Gen 2 headers, 1 x Clear CMOS, 1 x COM Port, 1 x CPU Over Voltage jumper, 1 x Chassis Intrusion, 1 x Front Panel Audio, 1 x SPI TPM, 1 x System Panel, 1 x Thermal Sensor
Special Features
ASUS 5X PROTECTION III (DIGI+ VRM, ESD Guards, LANGuard, Overvoltage, SafeSlot, Stainless-steel I/O), ASUS Q-Design (M.2 Q-Latch, Q-Release, Q-Slide, Q-Release Slim, Q-Antenna, Q-Connector, Q-Dashboard, Q-DIMM, Q-LED), ASUS Thermal Solution (M.2 heatsink backplate, VRM heatsink), ASUS EZ DIY (BIOS FlashBack, Clear CMOS, ProCool II, Pre-mounted I/O shield, SafeDIMM), Aura Sync, 24/7 Reliability, ASUS Control Center Express
Software Features
ASUS: Armoury Crate (Aura Creator, Aura Sync, Fan Xpert 4, Power Saving), Driver Hub, GlideX, CPU-Z, CreatonFirst, ProArt Creator Hub, TurboV Core, Thunderbolt Share, USB Wattage Watcher, Adobe Creative Cloud (Trial), Norton 360 Deluxe (60 Days), WinRAR (40 Days); UEFI: AI Overclocking Guide, CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey, NPU Boost
BIOS
256 Mb Flash ROM, UEFI AMI BIOS, AI Overclocking Guide, ASUS CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey, NPU Boost
Manageability
WOL by PME, PXE
Accessories

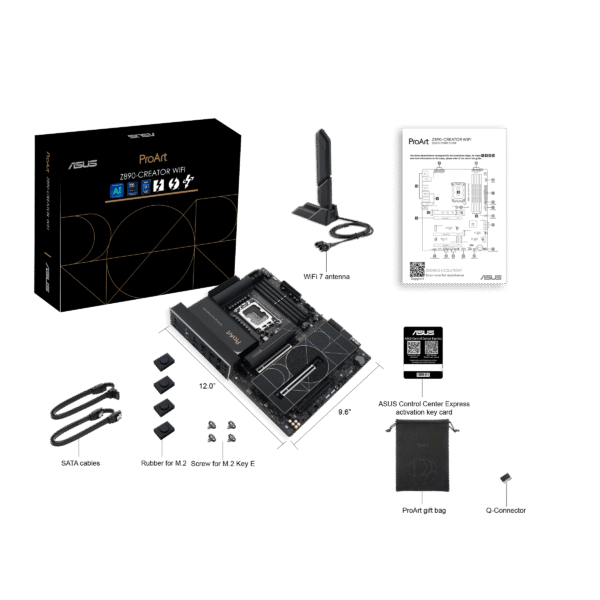

2 x SATA 6Gb/s cables, 1 x ASUS WiFi Q-Antenna, 1 x Q-Connector, 2 x M.2 Q-Latch packages, 2 x M.2 rubber packages, 1 x ProArt accessory bag, 1 x ACC Express activation key card, 1 x Quick start guide
Operating System
Windows® 11 (22H2 & later)
Form Factor
ATX, 30.5 x 24.4 cm
Notes
Thunderbolt 5 requires Windows 11 24H2; Wi-Fi 7 requires Windows 11 24H2 for full functions; Check CPU/Memory support at www.asus.com; PCIe bifurcation at https://www.asus.com/support/FAQ/1037507/
Packaging Weight
2.6 kg
Packaging Dimensions (L×W×H)
37 × 28 × 8 cm
Brand
Asus
Desktop RAM
DDR5
Socket
LGA 1851 CPU
