ROG SupremeFX 7.1 audio with ESS ES9219 DAC, 32-Bit/384kHz
2 x PCIe 5.0 x16 slots, Extreme OC Kit, ASUS Q-Design, 5″ LCD display
AI Overclocking, AI Cooling II, Aura Sync, Polymo Lighting II
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

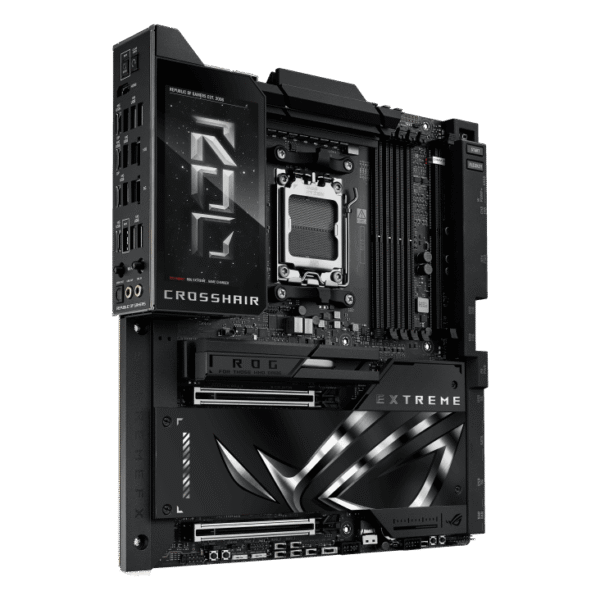

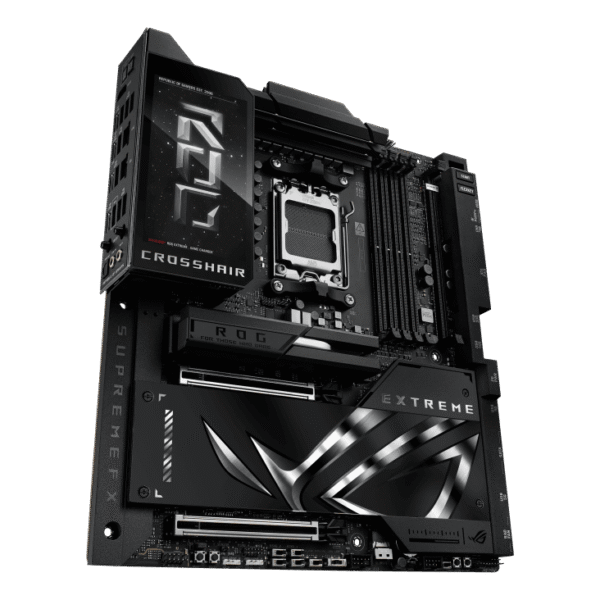

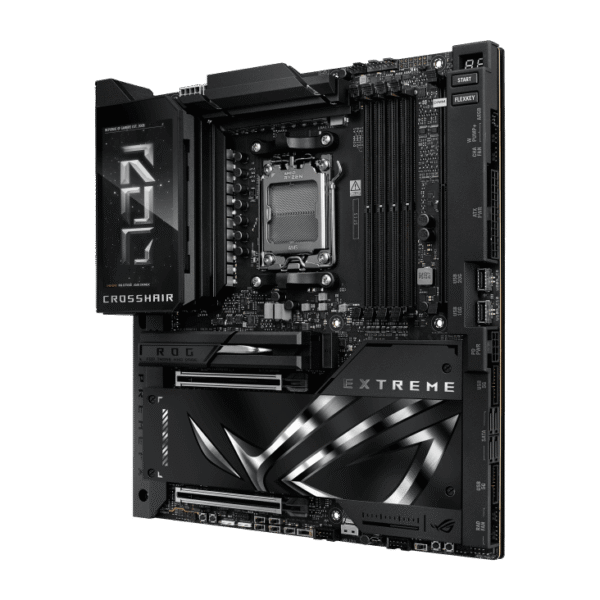

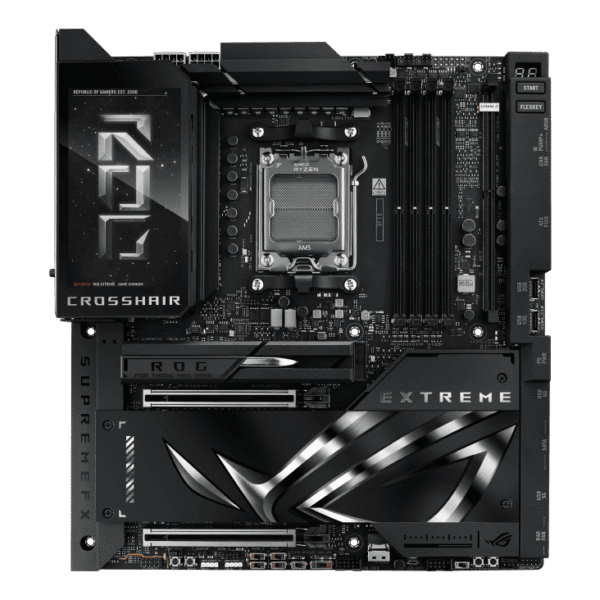

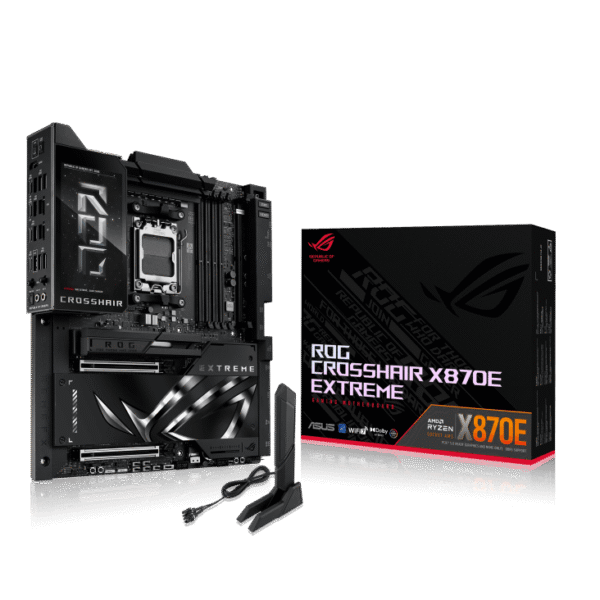

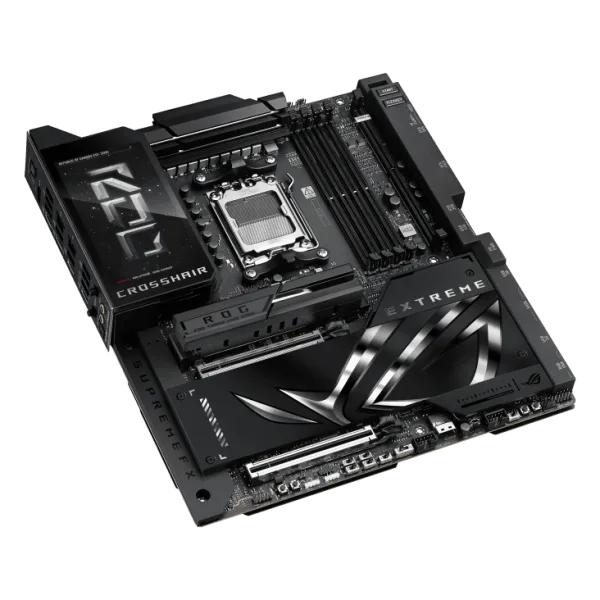

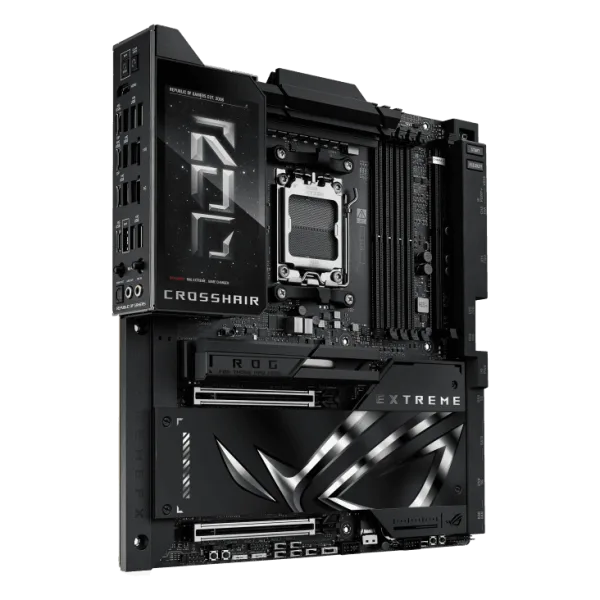

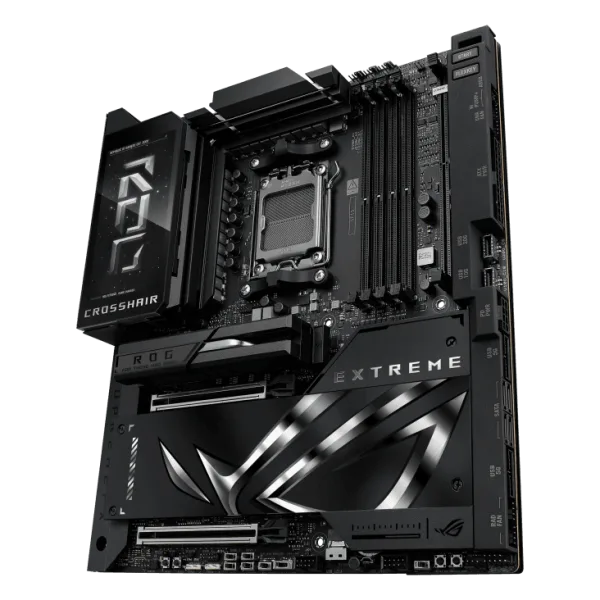

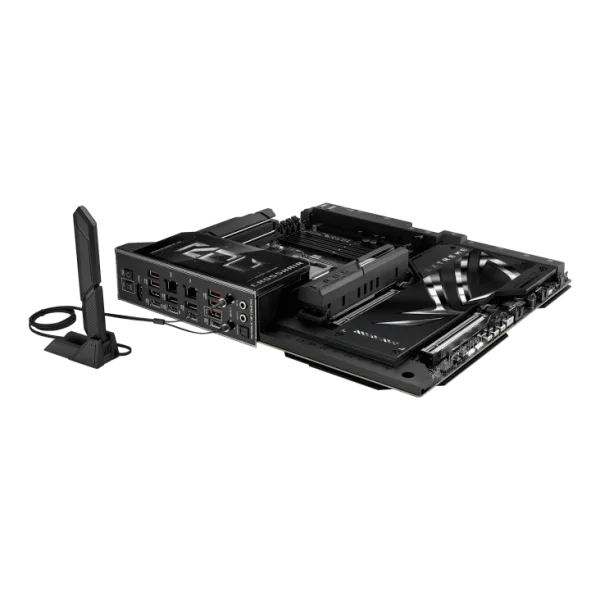

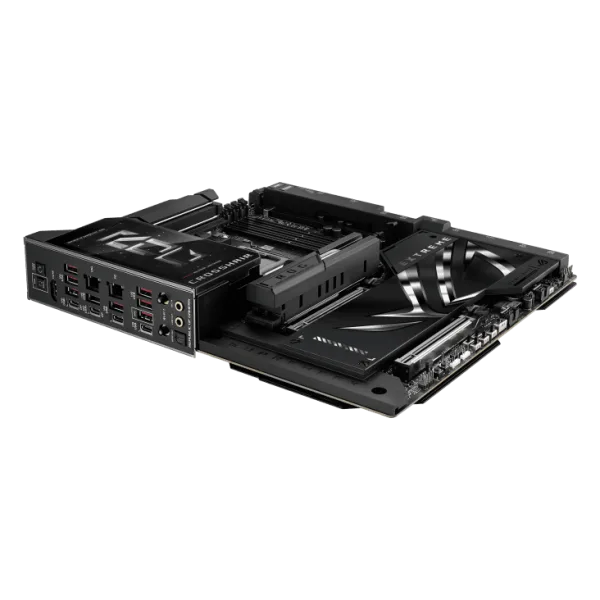

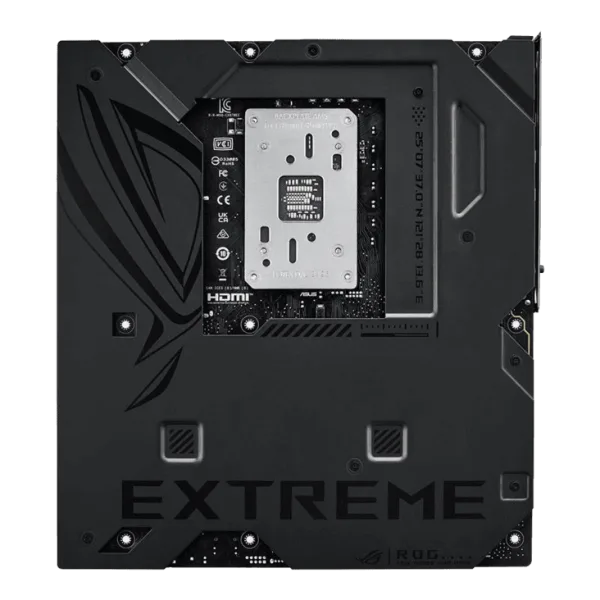

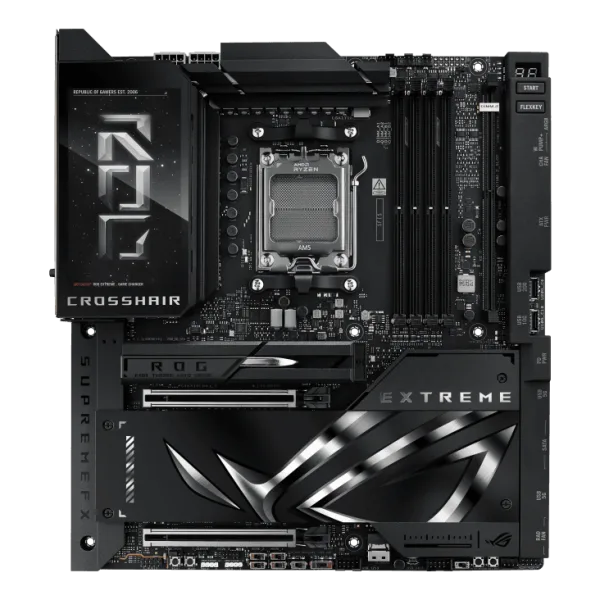

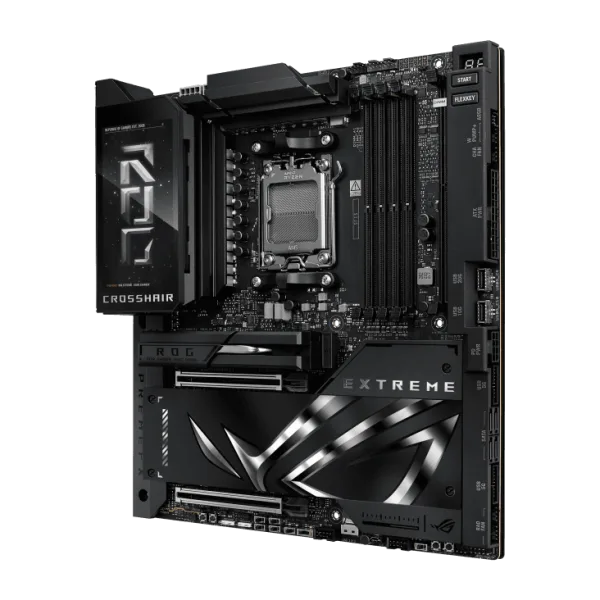

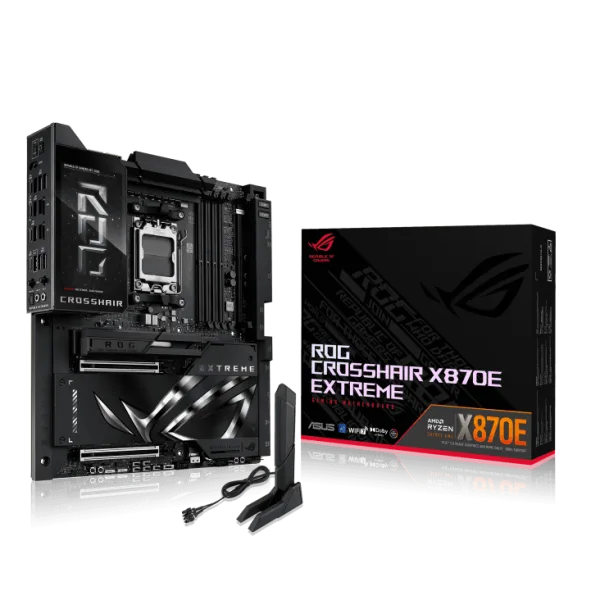

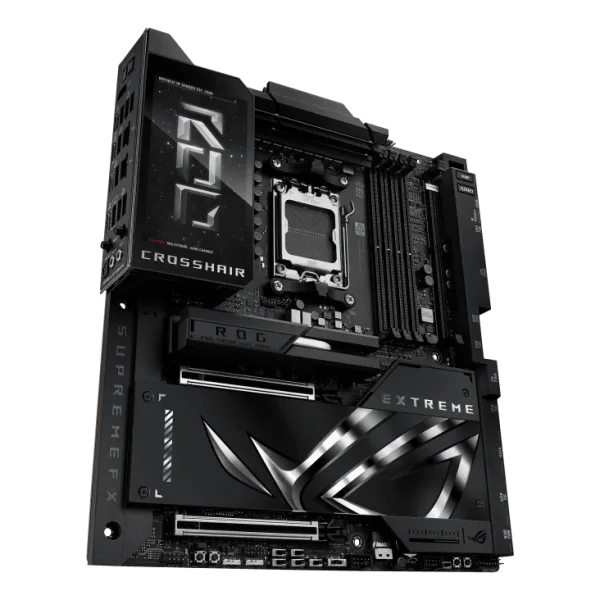

ASUS ROG Crosshair X870E Extreme AM5 E-ATX Motherboard
Unleash unparalleled performance with the ASUS ROG Crosshair X870E Extreme, a flagship E-ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. Powered by the AMD X870E chipset, it supports up to 256GB of DDR5 memory with speeds up to 9000+(OC) via EXPO, AEMP, and NitroPath DRAM Technology, ideal for gaming, AI workloads, and overclocking. Five M.2 slots (three PCIe 5.0 x4, two PCIe 4.0 x4), a SlimSAS connector, and four SATA 6Gb/s ports with RAID 0/1/5/10 offer expansive storage. Connectivity includes dual USB4 (40Gbps) Type-C ports, 10 USB 10Gbps ports, Wi-Fi 7 (up to 6.5Gbps), and dual Ethernet (5Gb Realtek, 10Gb Marvell). ROG SupremeFX ALC4082 with ESS ES9219 QUAD DAC delivers 7.1 surround sound up to 32-Bit/384kHz. Two PCIe 5.0 x16 slots support high-end GPUs like the ASUS Dual Radeon RX 7600 EVO. Features like Extreme OC Kit, ASUS Q-Design, AI Overclocking, and a 5-inch LCD display enhance usability, while Aura Sync RGB and Polymo Lighting II add stunning aesthetics. Perfect for enthusiasts seeking a future-proof, AI-ready platform. Learn more.
Specification
Details
Model
ROG CROSSHAIR X870E EXTREME
CPU
AMD Socket AM5 for Ryzen™ 9000, 8000, 7000 Series Desktop Processors
Chipset
AMD X870E
Memory
4 x DIMM, max. 256GB, DDR5 up to 9000+(OC), ECC/Non-ECC, Dual Channel, EXPO™, AEMP, NitroPath DRAM
Graphics
1 x HDMI 2.1 (4K@60Hz), 2 x USB4 (40Gbps) Type-C (4K@60Hz DisplayPort 1.4a)
Expansion Slots
2 x PCIe 5.0 x16 (x16 or x8/x8, Ryzen 9000/7000), 2 x PCIe 4.0 x16 (x8 or x4, Ryzen 8000)
Storage
5 x M.2 (3 x PCIe 5.0 x4, 2 x PCIe 4.0 x4), 1 x SlimSAS (PCIe 4.0 x4), 4 x SATA 6Gb/s, RAID 0/1/5/10
Ethernet
1 x Realtek 5Gb, 1 x Marvell AQtion 10Gb, ASUS LANGuard
Wireless & Bluetooth
Wi-Fi 7 (802.11be, 2.4/5/6GHz, up to 6.5Gbps), Bluetooth v5.4
USB
Rear: 2 x USB4 (40Gbps) Type-C, 10 x USB 10Gbps (8 x Type-A, 2 x Type-C)
Front: 1 x USB 20Gbps Type-C (60W), 1 x USB 10Gbps Type-C, 4 x USB 5Gbps, 4 x USB 2.0

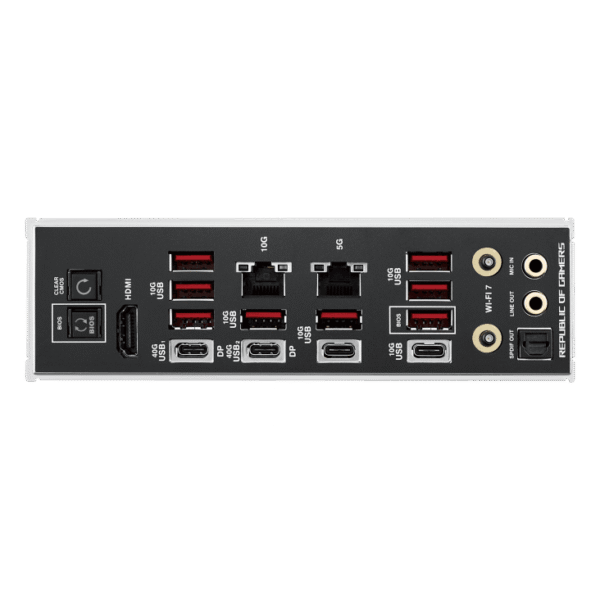

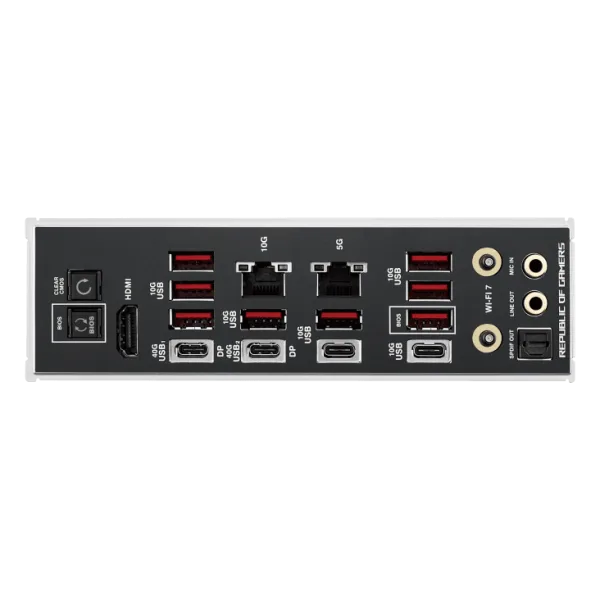

2 x USB4 Type-C, 10 x USB 10Gbps, 1 x HDMI, Wi-Fi Module, 1 x 5Gb Ethernet, 1 x 10Gb Ethernet, 2 x LED audio jacks, 1 x S/PDIF out, BIOS FlashBack, Clear CMOS
Internal I/O Connectors
1 x CPU Fan, 1 x CPU OPT Fan, 2 x Chassis Fan, 2 x Radiator Fan, 2 x W_PUMP+, 1 x VRM Fan, 3 x M.2, 1 x DIMM.2, 1 x SlimSAS, 4 x SATA, USB headers, ARGB headers, others
Special Features
Extreme OC Kit, Extreme Engine Digi+, ASUS Q-Design, ASUS Thermal Solution, ASUS EZ DIY, Aura Sync, Dual BIOS, 5" LCD Display, USB 20Gbps with Quick Charge
Software Features
ROG CPU-Z, Dolby Atmos, Armoury Crate, ASUS AI Advisor, Turbo Vcore, USB Wattage Watcher, more
BIOS
2 x 256 Mb Flash ROM, UEFI AMI BIOS
Accessories

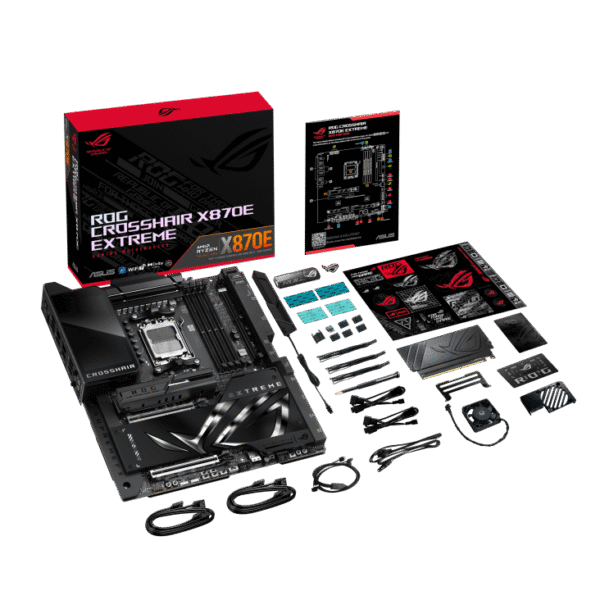

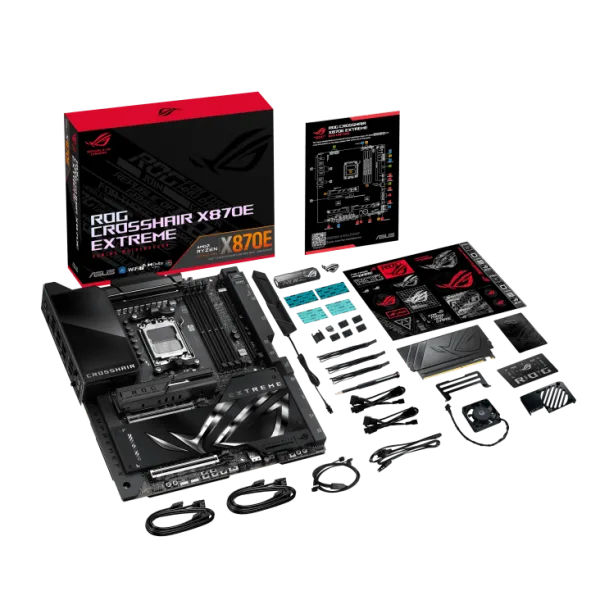

ARGB/fan splitter cables, ROG Q-DIMM.2 with heatsink, DDR5 Fan holder, ROG Fan Kit, WiFi Q-Antenna, Q-Connector, ROG stickers, USB drive, more
Operating System
Windows 11
Form Factor
E-ATX, 12 x 10.9 inch (30.5 x 27.7 cm)
Weight
5.5 kg
Dimensions
40 × 33 × 13 cm
Brand
Asus
Desktop RAM
DDR5
Socket
AM5 CPU
