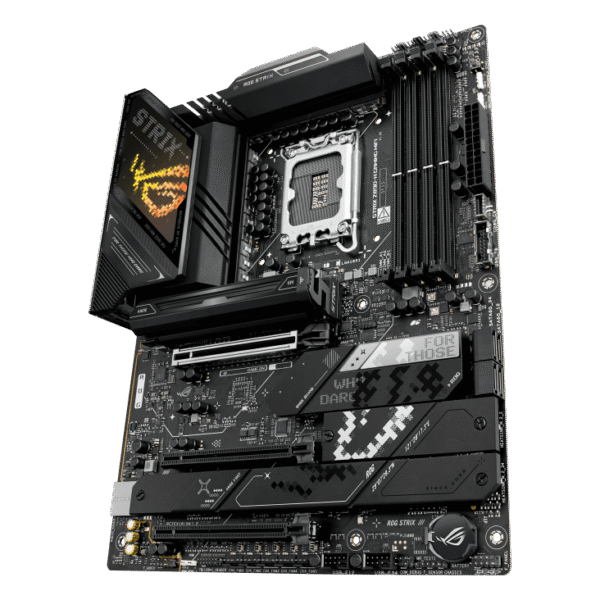

ASUS ROG STRIX Z890-H GAMING WIFI ATX Intel Z890 LGA 1851 DDR5 PCIe 5.0 Motherboard – ROG STRIX Z890-H GAMING WIFI
Original price was: ₱29,800.00.₱25,795.00Current price is: ₱25,795.00.
- ASUS ROG STRIX Z890-H GAMING WIFI ATX for Intel® Core™ Ultra Series 2
- DDR5 9066+MT/s (OC), up to 256GB, Intel® Z890 chipset
- PCIe 5.0 x16, 4 x M.2 (1 x PCIe 5.0), 4 x SATA 6Gb/s
- Dual Thunderbolt 4, Wi-Fi 7, 5Gb LAN, Dolby Atmos audio
- 16+1+2+2 VRM, M.2 Q-Latch, PCIe Q-Release Slim, AI Overclocking
- Polymo Lighting, Aura Sync, ASUS AI Advisor, NPU Boost
In stock
Price Drop Alerts & Price History
We'll notify you the moment the price hits your target.
💡 Suggested alert: ₱24,500 [ Use this ]
Want to track and manage your alerts? Sign in or create an account.
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
Unleash your gaming potential with the ASUS ROG STRIX Z890-H GAMING WIFI, an ATX motherboard engineered for Intel® Core™ Ultra Series 2 processors. Powered by the Intel® Z890 chipset, it supports up to 256GB of DDR5 memory at speeds up to 9066+MT/s (OC), delivering blazing-fast performance for gaming and AI-driven applications. The PCIe 5.0 x16 slot ensures compatibility with next-gen graphics cards, while four M.2 slots, including one PCIe 5.0, offer ultra-fast storage up to 16GB/s. Dual Thunderbolt 4 ports provide 40Gbps connectivity, supporting up to 8K displays for immersive visuals. A robust 16+1+2+2 power stage VRM with ProCool II connectors ensures stable power delivery for CPUs like the Core Ultra 9 285K. Advanced cooling with M.2 and VRM heatsinks keeps temperatures in check during intense sessions. Wi-Fi 7 and Realtek 5Gb Ethernet deliver unparalleled networking speeds. The Realtek ALC1220P audio with Savitech SV3H712 AMP and Dolby Atmos support creates a cinematic soundscape. Polymo Lighting and Aura Sync offer customizable aesthetics, while AI Overclocking, NPU Boost, and ASUS AI Advisor optimize performance effortlessly. DIY-friendly features like M.2 Q-Latch, PCIe Slot Q-Release Slim, and BIOS FlashBack simplify builds. The ASUS ROG STRIX Z890-H GAMING WIFI combines cutting-edge technology and striking design for elite gaming rigs.
| Specification | Details |
|---|---|
| Model | ROG STRIX Z890-H GAMING WIFI |
| CPU | LGA1851: Intel® Core™ Ultra Processors (Series 2); Supports Intel® Turbo Boost Technology 2.0, Turbo Boost Max 3.0 |
| Chipset | Intel® Z890 Chipset |
| Memory | 4 x DDR5 DIMM, up to 256GB, 9066+MT/s (OC), Non-ECC Un-buffered, CUDIMM, Dual Channel, XMP, AEMP III, DIMM Fit, DIMM Flex |
| Graphics | 1 x HDMI (4K@60Hz, HDMI 2.1), 1 x DisplayPort (8K@60Hz, DisplayPort 1.4), 2 x Thunderbolt 4 USB Type-C (8K@60Hz or 4K@60Hz x2) |
| Expansion Slots | CPU: 1 x PCIe 5.0 x16 (x16 or x8/x4/x4); Chipset: 2 x PCIe 4.0 x16 (x4 mode) |
| Storage | CPU: 1 x M.2 (2242/2260/2280/22110, PCIe 5.0 x4, M.2_1), 1 x M.2 (2280, PCIe 4.0 x4, M.2_2); Chipset: 1 x M.2 (2280/22110, PCIe 4.0 x4, M.2_3), 1 x M.2 (2242/2260/2280, PCIe 4.0 x4 & SATA, M.2_4); 4 x SATA 6Gb/s; RAID 0/1/5/10 |
| Ethernet | 1 x Realtek 5Gb, ASUS LANGuard |
| Wireless | 2x2 Wi-Fi 7 (802.11be, 2.4/5/6GHz, 160MHz, up to 2.9Gbps), Bluetooth 5.4 |
| USB | Rear: 2 x Thunderbolt 4 Type-C, 1 x USB 20Gbps Type-C (30W PD), 4 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A; Front: 1 x USB 20Gbps Type-C, 1 x USB 5Gbps header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Audio | Realtek ALC1220P 7.1, Savitech SV3H712 AMP, 120 dB SNR playback, 113 dB SNR input, 32-Bit/192 kHz, SupremeFX Shielding, Gold-plated jacks, S/PDIF out |

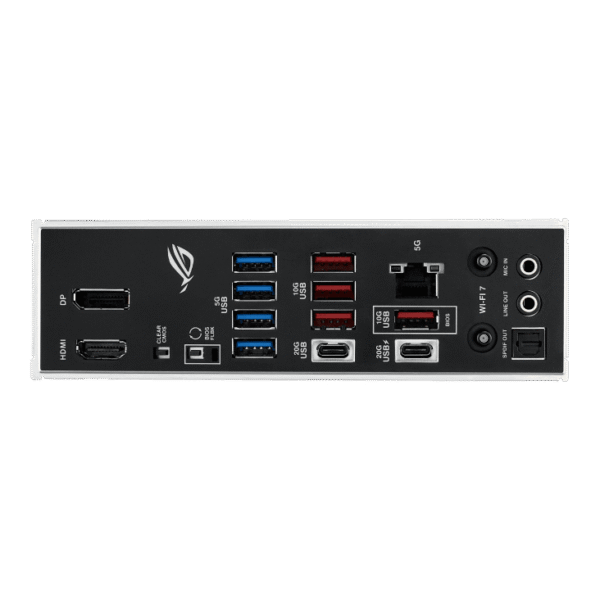

| Back Panel I/O | 2 x Thunderbolt 4 Type-C, 1 x USB 20Gbps Type-C (30W PD), 4 x USB 10Gbps Type-A, 4 x USB 5Gbps Type-A, 1 x DisplayPort, 1 x HDMI, 1 x Wi-Fi module, 1 x 5Gb Ethernet, 2 x Gold-plated audio jacks, 1 x S/PDIF out, 1 x BIOS FlashBack button, 1 x Clear CMOS button |
| Internal I/O Connectors | 1 x 24-pin ATX, 2 x 8-pin +12V, 1 x 4-pin CPU Fan, 1 x 4-pin CPU OPT Fan, 1 x 4-pin AIO Pump, 5 x 4-pin Chassis Fan, 4 x M.2, 4 x SATA 6Gb/s, 1 x USB 20Gbps Type-C, 1 x USB 5Gbps header, 2 x USB 2.0 headers, 3 x Addressable Gen 2 headers, 1 x Chassis Intrusion, 1 x CPU Over Voltage jumper, 1 x Front Panel Audio, 1 x Start button, 1 x System Panel, 1 x Thermal Sensor, 1 x Thunderbolt (USB4) header |
| Special Features | Extreme Engine Digi+ (5K Black metallic capacitors), ASUS Q-Design (M.2 Q-Latch, Q-Release, Q-Slide, PCIe Slot Q-Release Slim, Q-Antenna, Q-Dashboard, Q-LED, Q-Slot), ASUS Thermal Solution (M.2 heatsink backplate, VRM heatsink), ASUS EZ DIY (BIOS FlashBack, Clear CMOS, ProCool II, Pre-mounted I/O shield, SafeSlot, SafeDIMM), Aura Sync, 30W PD Fast Charge |
| Software Features | ROG: CPU-Z, Dolby Atmos; ASUS: Armoury Crate (AIDA64 Extreme, Aura Creator, Aura Sync, Fan Xpert 4, GameFirst, HWiNFO, Power Saving, AI Advisor, Driver Hub, GlideX, USB Wattage Watcher, TurboV Core), Adobe Creative Cloud (Trial), Norton 360 for Gamers (60 Days), WinRAR (40 Days); UEFI: AI Overclocking Guide, NPU Boost, CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey, FlexKey |
| BIOS | 256 Mb Flash ROM, UEFI AMI BIOS, AI Overclocking Guide, NPU Boost, CrashFree BIOS 3, EZ Flash, EZ Mode, MyHotkey, FlexKey |
| Manageability | WOL by PME, PXE |
| Accessories | 2 x SATA 6Gb/s cables, 1 x Thermal pad for M.2 22110, 1 x ASUS WiFi Q-Antenna, 1 x Cable ties package, 1 x M.2 Q-Latch package, 1 x ROG key chain, 1 x ROG Strix stickers, 4 x M.2 rubbers, 1 x Quick start guide |
| Operating System | Windows® 11 (22H2 & later) |
| Form Factor | ATX, 30.5 x 24.4 cm |
| Notes | Wi-Fi 7 requires Windows 11 24H2 for full functions; Windows 10 supports Wi-Fi 6E only; Check CPU/Memory support at www.asus.com; PCIe bifurcation at https://www.asus.com/support/FAQ/1037507/ |
| Weight | 2.6 kg |
|---|---|
| Dimensions | 37 × 28 × 8 cm |
| Brand | Asus |
| Desktop RAM | DDR5 |
| Socket | LGA 1851 CPU |
