- Compact mATX mini tower with dual tempered glass panels for 270-degree build view and modern aesthetic appeal
- Full-scale cooling supports 360mm radiators, up to 9 fans, and pre-installed 3x ARGB PWM fans with motherboard sync
- RTX 50 series ready with 425mm GPU clearance, vertical airflow layout, and mesh top/bottom for optimal thermals
- High-speed USB 3.2 Gen 2×2 Type-C (20Gbps), ATX PSU support, and space-efficient design for minimalist high-performance setups
- Available SKUs: Black E490-KHNN-S00C, White E490-WHNN-S00
Description

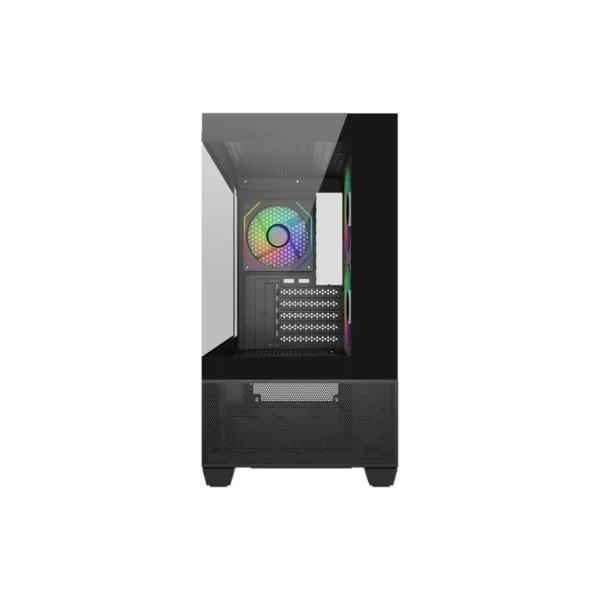

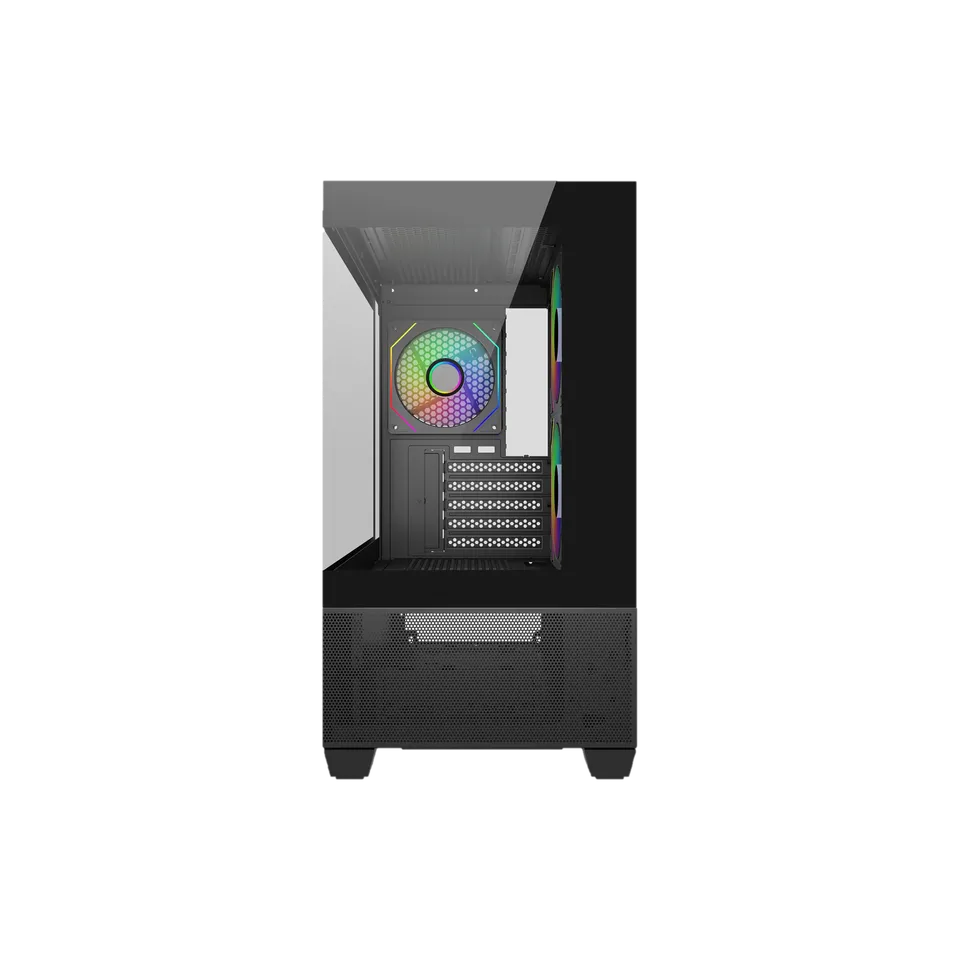

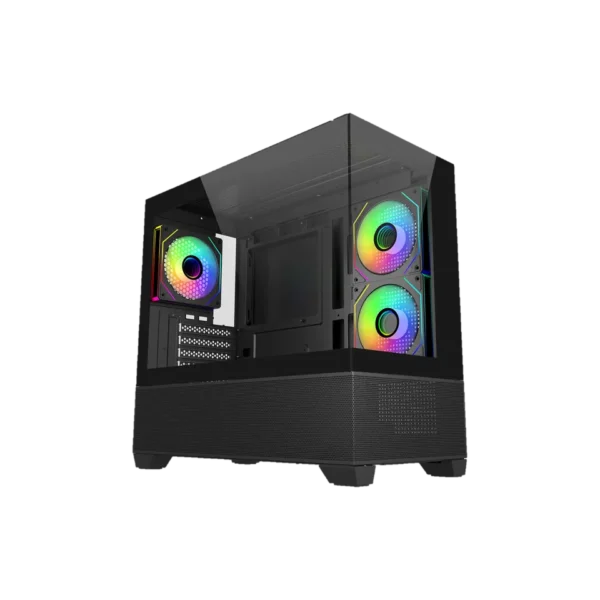

The Cooler Master Elite 490 Black is a compact micro-ATX mini tower case that packs bold capabilities into a sleek 39.16L chassis, showcasing dual tempered glass panels on the front and left side for a stunning 270-degree panoramic view of ARGB lighting and hardware. Engineered for high-performance cooling in tight spaces, it supports up to 360mm radiators on top or bottom, nine fans with vertical bottom-to-top airflow optimization, and pre-installed three ARGB PWM fans including reverse side-mount blades for enhanced intake and daisy-chain motherboard sync. Ready for RTX 50 series GPUs with 425mm clearance, 170mm CPU coolers, and ATX PSUs up to 250mm, this modern build features extensive mesh ventilation on top and bottom for superior thermals, while the high-speed I/O panel delivers USB 3.2 Gen 2×2 Type-C at 20Gbps alongside dual USB 3.0 ports, making it an ideal minimalist solution for gamers seeking uncompromised cooling, connectivity, and aesthetics without the bulk of full-size cases.
table {
border-collapse: collapse;
width: 100%;
table-layout: fixed;
}
th, td {
border: none;
border-bottom: 1px solid #f5f5f5;
padding: 12px 8px;
text-align: left;
vertical-align: top;
word-wrap: break-word;
}
th {
background-color: #f5f5f5;
font-weight: bold;
}
tr:last-child td {
border-bottom: none;
}
@media (max-width: 768px) {
th, td {
padding: 8px 4px;
font-size: 14px;
}
}
| Specification | Black (E490-KHNN-S00) | White (E490-WHNN-S00) |
|---|---|---|
| Model Number | E490-KHNN-S00 | E490-WHNN-S00 |
| Color(s) | Black / White | |
| Materials - Front Panel | Tempered Glass | |
| Material - Side Panel (Left) | Tempered Glass | |
| Material - Side Panel (Right) | Steel | |
| Dimensions (L x W x H) | 434 x 218 x 414 mm (Incl. Protrusions), 430 x 218 x 395 mm (Excl. Protrusions) | |
| Volume | 39.16 L (Liters Incl. Protrusions) | |
| Motherboard Support | ITX / Micro ATX | |
| Expansion Slots | 5 | |
| 5.25" Drive Bays | 0 | |
| 3.5" Drive Bays | 1 (Max. 2) | |
| 2.5" Drive Bays | 1 | |
| I/O Panel - USB Ports | 1 x USB Type C 20Gbps, 2 x USB 3.0 | |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo | |
| Pre-installed Fans - Rear | 1x 120mm ARGB PWM | |
| Pre-installed Fans - Side Mount | 2x 120mm ARGB PWM reverse fan | |
| Fan Support - Top | 2x 140mm / 3x 120mm | |
| Fan Support - Rear | 1x 120mm | |
| Fan Support - Side Mount | 2x 120mm | |
| Fan Support - Bottom | 3x 120mm | |
| Radiator Support - Top | 120 / 240 / 360 (Max height 45mm) | |
| Radiator Support - Bottom | 120 / 240 / 360mm | |
| Radiator Support - Side Mount | 120 / 240mm | |
| Clearance - CPU Cooler | 170mm | |
| Clearance - PSU | 250mm | |
| Clearance - Graphics Card | 425mm | |
| Power Supply Support | ATX | |
| Warranty | 2 years | |
| Size | Mini Tower | |
| Series | Elite Series | |
Additional information
| Weight | 5.8 kg |
|---|---|
| Dimensions | 54 × 55 × 27 cm |
| Brand | Cooler Master |
