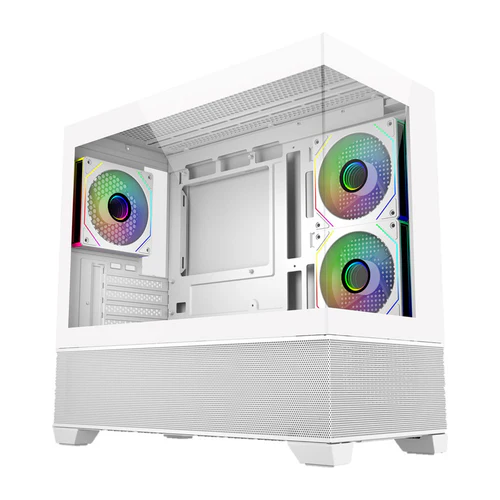

Cooler Master Elite 490 White Compact Micro-ATX Case with Dual Tempered Glass and 360mm Radiator Support – E490-WHNN-S00
In Stock
In Stock
Add to Wishlist
Add to Wishlist
Complete Your Build
This item: Cooler Master Elite 490 White Compact Micro-ATX Case with Dual Tempered Glass and 360mm Radiator Support - E490-WHNN-S00
In Stock
Original price was: ₱3,550.00.₱3,095.00Current price is: ₱3,095.00.
Original price was: ₱3,550.00.₱3,095.00Current price is: ₱3,095.00.
1 × Ocypus GAMMA F12 ELITE ARGB Chassis Fan 120mm 56 CFM 1.8mm H2O Black 3 in 1 - GAMMA-F12-BK3AM00E-GL
In Stock
Original price was: ₱900.00.₱810.00Current price is: ₱810.00.
Original price was: ₱1,600.00.₱1,485.00Current price is: ₱1,485.00.
1 × Thermal Grizzly Minus Pad 8 (120 x 20 x 1 mm, 2X Pieces, Minus Pad 8) - TG-MP8-120-20-10-2R
In Stock
Original price was: ₱995.00.₱900.00Current price is: ₱900.00.
- Compact white mATX mini tower with dual tempered glass panels for 270-degree illuminated build visibility and clean modern look
- Advanced cooling with 360mm radiator support, up to 9 fans, and pre-installed 3x ARGB PWM fans with daisy-chain sync
- RTX 50 ready featuring 425mm GPU space, vertical mesh-ventilated airflow, and bottom-to-top thermal optimization
- Ultra-fast USB 3.2 Gen 2×2 Type-C (20Gbps) I/O, ATX compatibility, and efficient layout for performance-driven compact setups
- Available SKUs: Black E490-KHNN-S00, White E490-WHNN-S00
Description
The Cooler Master Elite 490 White is a sleek micro-ATX mini tower case blending compact design with powerful features in a pristine white finish, highlighted by dual tempered glass front and side panels offering a 270-degree panoramic showcase for ARGB effects and components. Optimized for space-constrained environments yet delivering full-scale performance, it accommodates 360mm radiators top or bottom, up to nine fans in a vertical airflow configuration, and comes with three pre-installed ARGB PWM fans including reverse-blade side mounts for superior intake and seamless motherboard synchronization. Built RTX 50 series compatible with expansive 425mm GPU clearance, 170mm for CPU coolers, and 250mm PSU support, enhanced by mesh top and bottom panels for unrestricted ventilation, this chassis elevates connectivity through a front I/O with USB 3.2 Gen 2×2 Type-C reaching 20Gbps speeds plus dual USB 3.0 ports, ideal for minimalist builders pursuing high-end cooling and modern aesthetics in a versatile 39.16L volume.
table {
border-collapse: collapse;
width: 100%;
table-layout: fixed;
}
th, td {
border: none;
border-bottom: 1px solid #f5f5f5;
padding: 12px 8px;
text-align: left;
vertical-align: top;
word-wrap: break-word;
}
th {
background-color: #f5f5f5;
font-weight: bold;
}
tr:last-child td {
border-bottom: none;
}
@media (max-width: 768px) {
th, td {
padding: 8px 4px;
font-size: 14px;
}
}
| Specification | Black (E490-KHNN-S00) | White (E490-WHNN-S00) |
|---|---|---|
| Model Number | E490-KHNN-S00 | E490-WHNN-S00 |
| Color(s) | Black / White | |
| Materials - Front Panel | Tempered Glass | |
| Material - Side Panel (Left) | Tempered Glass | |
| Material - Side Panel (Right) | Steel | |
| Dimensions (L x W x H) | 434 x 218 x 414 mm (Incl. Protrusions), 430 x 218 x 395 mm (Excl. Protrusions) | |
| Volume | 39.16 L (Liters Incl. Protrusions) | |
| Motherboard Support | ITX / Micro ATX | |
| Expansion Slots | 5 | |
| 5.25" Drive Bays | 0 | |
| 3.5" Drive Bays | 1 (Max. 2) | |
| 2.5" Drive Bays | 1 | |
| I/O Panel - USB Ports | 1 x USB Type C 20Gbps, 2 x USB 3.0 | |
| I/O Panel - Audio In / Out | 1x 3.5mm Combo | |
| Pre-installed Fans - Rear | 1x 120mm ARGB PWM | |
| Pre-installed Fans - Side Mount | 2x 120mm ARGB PWM reverse fan | |
| Fan Support - Top | 2x 140mm / 3x 120mm | |
| Fan Support - Rear | 1x 120mm | |
| Fan Support - Side Mount | 2x 120mm | |
| Fan Support - Bottom | 3x 120mm | |
| Radiator Support - Top | 120 / 240 / 360 (Max height 45mm) | |
| Radiator Support - Bottom | 120 / 240 / 360mm | |
| Radiator Support - Side Mount | 120 / 240mm | |
| Clearance - CPU Cooler | 170mm | |
| Clearance - PSU | 250mm | |
| Clearance - Graphics Card | 425mm | |
| Power Supply Support | ATX | |
| Warranty | 2 years | |
| Size | Mini Tower | |
| Series | Elite Series | |
Additional information
| Weight | 5.8 kg |
|---|---|
| Dimensions | 43 × 22 × 40 cm |
| Brand | Cooler Master |
