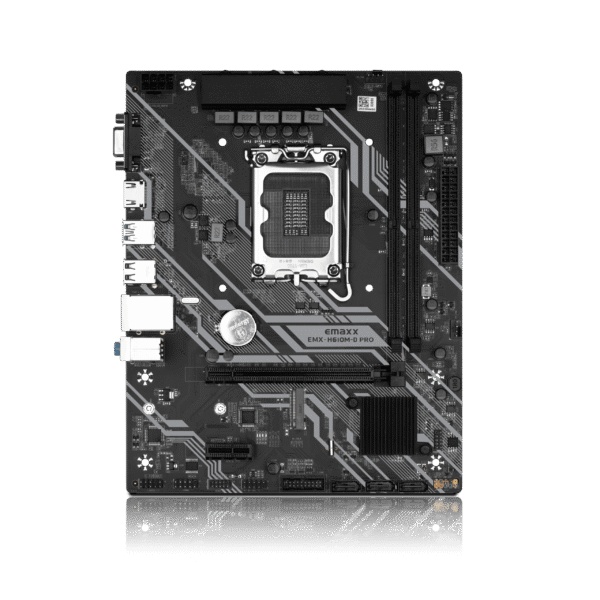

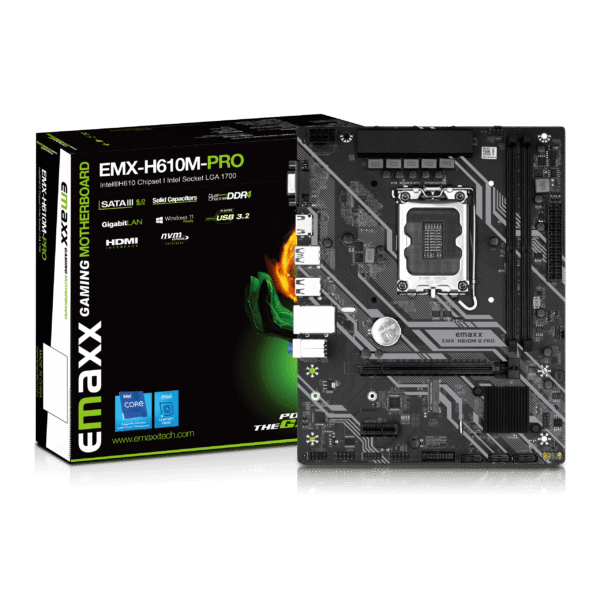

EMAXX EMX-H610M-PRO Motherboard, Intel H610 Chipset, LGA 1700 Socket, Micro-ATX Form Factor


- Intel® H610 chipset providing stable and efficient performance
- Supports Intel® 12th and 13th generation processors with LGA 1700 socket
- Dual DDR4 slots with up to 64GB RAM support for smooth multitasking
- 1 x M.2 Slot (M.2 X4 3.0) and 3 x SATA 3.0 ports for fast and ample storage options
- Expansion capabilities with 1 x PCIEX16 4.0 and 1 x PCIEX1 3.0 slots
- Comprehensive connectivity options including 2 x USB 3.2, 4 x USB 2.0, HDMI, VGA, and Ethernet
- Onboard 5.1 Channel HD Audio for immersive sound experience
- Micro ATX form factor for compact PC builds with full features
Description
The EMAXX EMX-H610M-PRO Motherboard is designed to offer excellent performance and reliable features for your computing needs. With the Intel® H610 chipset, it provides the ideal foundation for building a stable and efficient system. This motherboard supports the latest Intel® 12th and 13th generation processors through the LGA 1700 socket, making it a versatile option for modern builds.
Featuring dual DDR4 memory slots, the EMAXX EMX-H610M-PRO can accommodate up to 64GB of high-speed RAM, ensuring smooth multitasking and improved system responsiveness. It also supports high-performance PCIe storage devices, thanks to its M.2 Slot (M.2 X4 3.0), allowing for rapid data access and faster boot times. Additionally, the three SATA 3.0 interfaces provide ample storage options for your drives.
This motherboard includes two PCIe slots (PCIEX16 4.0 and PCIEX1 3.0), allowing you to expand your system’s capabilities with high-speed expansion cards such as graphics cards, network adapters, or sound cards. The form factor is micro ATX, making it ideal for compact builds while still providing a comprehensive range of connectivity options.
Connectivity is another strength of the EMAXX EMX-H610M-PRO, with two USB 3.2 ports and four USB 2.0 ports, enabling fast data transfer and the connection of multiple peripherals. The rear panel also features an HDMI and VGA port for connecting displays, as well as an Ethernet port for stable and fast network connections. Onboard 5.1 Channel HD Audio ensures rich and immersive sound quality for all your media needs.
Whether you’re building a workstation or a home PC, the EMAXX EMX-H610M-PRO Motherboard combines all the necessary features and performance for a successful system build. With easy installation, versatile connectivity, and reliable performance, it’s an excellent choice for your next PC upgrade or new build.
Specification | Details |
---|---|
Chipset | Intel® H610 high-speed chipset |
Processor Socket | Intel Socket LGA 1700 |
CPU Generation | 12th/13th generation processor |
CPU Overclocking Support | Not supported |
Memory Slots | Dual DDR4, 2 DIMM slots |
Storage | 3 x SATA 3.0 interfaces, 1 x M.2 Slot (M.2 X4 3.0) supporting 2242/2280 PCIe X4/X2 channel SSD |
Expansion Slots | 1 x PCIEX16 4.0, 1 x PCIEX1 3.0 |
Internal Power Connectors | 1 x 24-Pin Power Connector, 1 x 4-Pin/8-Pin Power Connector |
Cooling | 1 x CPU Fan, 1 x System Fan |
Internal Headers | 1 x Front Panel Header, 1 x Front Audio Header, 1 x Header Comport, 1 x Clear CMOS Jumper, 1 x USB 3.0 Header (Front), 1 x USB 2.0 Header (Front) |
Form Factor | Micro ATX Form Factor, Dimensions: 225mm x 180mm |
Rear Panel Connectors | 2 x USB 3.2 Ports, 4 x USB 2.0 Ports, 1 x HDMI Port, 1 x VGA Port, 1 x LAN Port, 3 x Audio Jacks |
Onboard Features | Onboard Gigabit Ethernet LAN, Onboard 5.1 Channel HD Audio |
Included Accessories | 1 x EMX-H610M-D Motherboard, 1 x Quick Installation Guide, 2 x SATA cables, 1 x Driver and Utility DVD, 1 x I/O Shield |
SKU | EMX-H610M-PRO |
Additional information
Weight | 1 kg |
---|---|
Dimensions | 28 × 27 × 6 cm |
Brand | Emaxx |
Socket | LGA 1700 CPU |
Desktop RAM | DDR5 |
