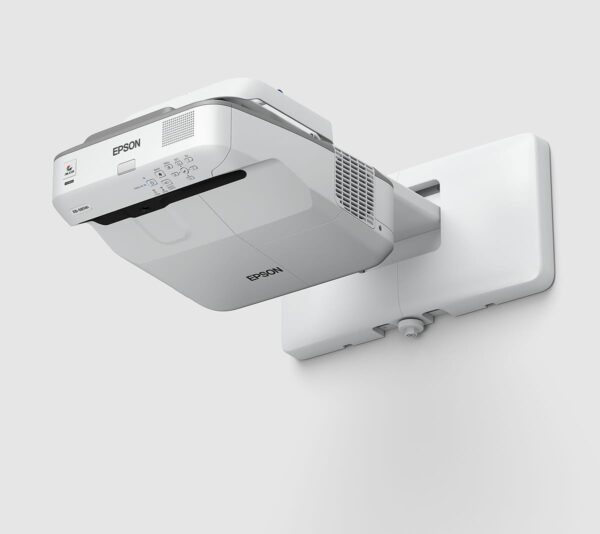

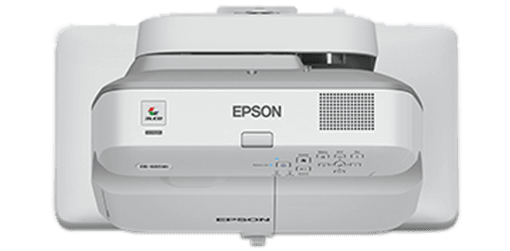

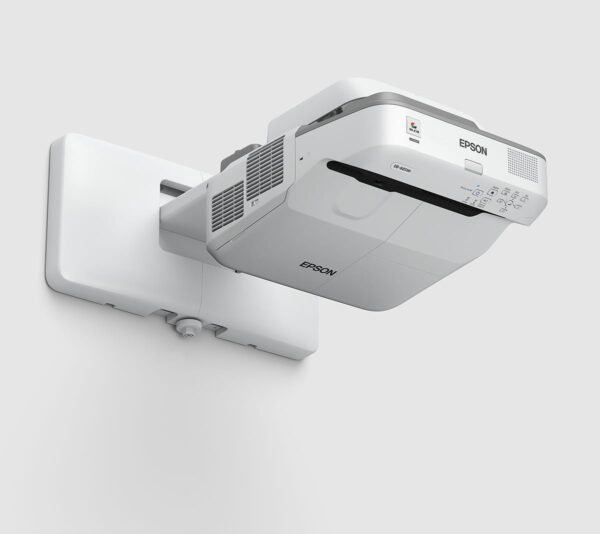

Epson EB-685W WXGA 3LCD Ultra-Short Throw Projector 3500 Lumens – V11H744052
Original price was: ₱89,290.00.₱77,649.00Current price is: ₱77,649.00.
- 3,500 lumens white and colour brightness
- WXGA resolution up to 100 inches
- 10,000-hour lamp life in Eco mode
- Ultra-short-throw design
- PC-free interactive whiteboard
- Supports 16:9 and 4:3 aspect ratios
- Multi-PC projection for up to 50 devices
- HDMI with MHL and wireless connectivity
- SKU: V11H744052
In stock
Price Drop Alerts & Price History
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
Epson EB-685W WXGA 3LCD Ultra-Short Throw Projector
The Epson EB-685W enhances presentations with a WXGA ultra-short-throw projection, delivering vivid images up to 100 inches with 3,500 lumens of white and colour brightness through 3LCD technology. Designed for classrooms and meeting spaces, it minimizes shadows and glare, ensuring clear visuals from any angle. The 10,000-hour lamp life in Eco mode reduces maintenance costs, while auto-brightness adjustment optimizes energy efficiency based on ambient light. With versatile connectivity, including three HDMI ports with MHL support, it seamlessly integrates with various devices for effortless content sharing. The iProjection app enables wireless projection from mobile devices, and multi-PC projection supports up to 50 devices for collaborative displays. PC-free whiteboard functionality enhances interactivity, making this projector ideal for dynamic, cost-effective presentations.
| Specification | Epson EB-685W |
|---|---|
| SKU | V11H744052 |
| Projection Technology | RGB liquid crystal shutter projection system (3LCD) |
| LCD | Size: 0.59” (D9 C2 Fine) Native Resolution: WXGA |
| Brightness | White Light Output: 3,500 lm (Normal), 2,900 lm (Eco) Colour Light Output: 3,500 lm |
| Contrast Ratio | 14,000:1 |
| Lamp | Type: 250W UHE Life: 5,000 hours (Normal), 10,000 hours (Eco), 9,000 hours (Eco2) |
| Projection Lens | Type: Not specified F-Number: Not specified Focal Length: Not specified Zoom Ratio: Not specified Throw Ratio: Not specified |
| Screen Size (Projected Distance) | 60”–100” [35.4–60.1 cm], 74.3” screen at 44.3 cm |
| Geometric Correction | Vertical/Horizontal Keystone: ±3° / ±3° Quick Corner: Yes |
| Connectivity | Network: Wired LAN (RJ45 x 1, 100Mbps), Wireless (Optional ELPAP10) Analog Input: D-Sub 15Pin (2, Blue), Composite (RCA x 1, Yellow) Digital Input: HDMI (3, HDMI1 with MHL) Output: D-Sub 15Pin (1, Black, shared with Computer2) Audio Input: Stereo Mini Jack (3) Audio Output: Stereo Mini Jack (1) Microphone Input: 1 Control I/O: RS-232C (D-Sub 9pin x 1) Others: USB Type A (1, for USB Memory, USB Document Camera, Firmware Update, Copy OSD Settings), USB Type B (1, for USB Display, Mouse, K/B, Control, Firmware Update, Copy OSD Settings) |
| Wireless Specifications | Optional Wireless LAN (ELPAP10) Supported Speed: IEEE 802.11b (11 Mbps), IEEE 802.11g (54 Mbps), IEEE 802.11n (130 Mbps) Security: WPA/WPA2-Personal |
| Operating Temperature | Single Use: 5–40 °C [41–104 °F] (0–2,286 m), 5–35 °C [41–95 °F] (over 2,286 m) Multi-projection Use: 5–35 °C [41–95 °F] (0–2,286 m), 5–30 °C [41–86 °F] (over 2,286 m) 20%–80% Humidity, No Condensation |
| Operating Altitude | 0–3,000 m (High Altitude Mode over 1,500 m) |
| Start-Up Period | About 8 seconds, Warm-up Period: 30 seconds |
| Cool Down Period | Instant Off |
| Direct Power On/Off | Yes |
| Power Supply Voltage | 100–240 V AC ±10%, 50/60 Hz |
| Power Consumption | Standby: 0.37 W (Network Off) |
| Dimensions Excluding Feet (W x H x D) | 367 x 149 x 400 mm |
| Weight | Approx. 5.7 kg |
| Fan Noise | Normal: 35 dB, Eco: 30 dB, Eco2: 29 dB |
| Air Filter | Type: Electrostatic Filter Maintenance Cycle: 5,000 hours (Normal), 10,000 hours (Eco) |
| Internal Speaker | Sound Output: 16W Mono |
| Weight | 8.8 kg |
|---|---|
| Dimensions | 54 × 49 × 26 cm |
| Brand | Epson |
