Epson EB-L690E WUXGA 3LCD Laser Projector 6500 Lumens – V11HB25080

Original price was: ₱290,440.00.Current price is: ₱252,560.00.

6,500 lumens white and colour brightness
WUXGA with 4K enhancement up to 500 inches
30,000-hour laser light source
1.6x optical zoom and wide lens shift
Supports 16:10, 16:6, and 21:9 aspect ratios
Wi-Fi 6, Miracast, and AirPlay 2 connectivity

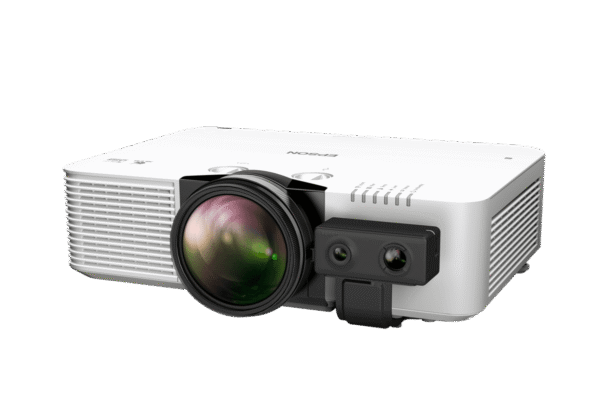

Geometric correction and ELPEC01 camera support
360° projection flexibility
SKU: V11HB25080

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱239,900 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

SKU: V11HB25080 Category: Projector Tag: Epson

Epson EB-L690E WUXGA 3LCD Laser Projector

The Epson EB-L690E delivers exceptional performance with a WUXGA display enhanced by 4K technology, projecting vibrant images up to 500 inches across various aspect ratios, including 16:10, 16:6, and 21:9. Utilizing 3LCD technology, it provides 6,500 lumens of equal white and colour brightness for clear visuals in high-ambient light environments. Its 1.6x optical zoom and wide lens shift ensure flexible installation in settings like classrooms, conference rooms, and hybrid workspaces. The 30,000-hour laser light source minimizes maintenance, while Wi-Fi 6, Miracast, and AirPlay 2 enable seamless content sharing. With geometric correction tools and compatibility with the optional ELPEC01 camera, it supports advanced multi-projection setups, offering remote management through the Epson Projector Management Connected app for versatile, high-impact displays.

Specification	Epson EB-L690E
SKU	V11HB25080
Projection Technology	RGB liquid crystal shutter projection system (3LCD Reflective, 3-chip technology)
LCD	Size: 0.74” wide panel (Reflective HTPS) Pixel Number: 2,073,600 dots (1920 x 1080) x 3 Native Resolution: 1080p Aspect Ratio: Native 16:9 (4:3 resize, compatible with 4:3 and 2.35:1)
Brightness	White Light Output: 6,500 lm (Normal), 4,550 lm (Eco) Colour Light Output: 6,500 lm
Contrast Ratio	Over 5,000,000:1 (Absolute Black: Full White 1,500 lm / Full Black 0 lm)
Light Source	Type: Laser Diode (41.9 mW Output) Life: 20,000 hours (Eco), 30,000 hours (Extended)
Projection Lens	Type: 1.6x Optical Zoom / Focus (Manual) F-Number: Not specified Focal Length: Not specified Zoom Ratio: 1.0 – 1.6 (Optical Zoom) Throw Ratio: Not specified
Screen Size (Projected Distance)	Standard: 80” diagonal [2.39–3.90 m] Zoom Wide: 50”–500” [1.49–14.94 m] Zoom Tele: 50”–500” [2.44–24.35 m] Supports 16:10, 16:6, 21:9
Geometric Correction	Vertical/Horizontal Keystone: ±30° / ±30°
Projection Orientation	360° Free

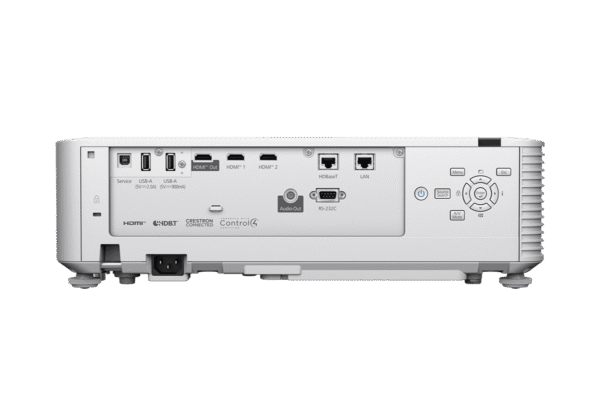

Connectivity	USB: USB Type A (2, Port 1: PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, or 5V/2A Power Supply; Port 2: PC Free, Document Camera, Firmware Update, Copy OSD Settings, Content Playback, ELPEC01, or 5V/0.9A Power Supply), USB Type B (1, Firmware Update, Copy OSD Settings) Network: Wired LAN (RJ45 x 1, 100Mbps), Wireless LAN (Built-in) Digital Input: Not specified Digital Output: HDMI Out (1, HDCP 2.3, supports HDMI1 input) Audio Output: Stereo Mini (1) Control I/O: RS-232C (1, D-Sub 9pin)
Wireless Specifications	Built-in Wireless LAN Infrastructure: IEEE 802.11a (5GHz, 54 Mbps), IEEE 802.11b (2.4GHz, 11 Mbps), IEEE 802.11g (2.4GHz, 54 Mbps), IEEE 802.11n (2.4GHz/5GHz, 72.2/150 Mbps), IEEE 802.11ac (5GHz, 325 Mbps), IEEE 802.11ax Simple AP (Wi-Fi Direct): IEEE 802.11a (5GHz, 54 Mbps), IEEE 802.11g (2.4GHz, 54 Mbps), IEEE 802.11n (2.4GHz/5GHz, 72.2/150 Mbps), IEEE 802.11ac (5GHz, 325 Mbps), IEEE 802.11ax Security: Infrastructure: Open, WPA2/WPA3-PSK, WPA2/WPA3-EAP (PEAP, EAP-TLS), Simple AP: WPA2-PSK (AES) Miracast: Wi-Fi CERTIFIED Miracast R2, H.264 (AVC) Codec AirPlay 2: Supported Codecs: H.264 (AVC), H.265 (HEVC), AV1, VP9, MPEG-2, MPEG-4
Operating Temperature	Single Use: 0–45 °C [32–113 °F] (0–2,286 m), 0–40 °C [32–104 °F] (over 2,286 m) Multi-projection Use: 0–40 °C [32–104 °F] (0–2,286 m), 0–35 °C [32–95 °F] (over 2,286 m) 20%–80% Humidity, No Condensation
Operating Altitude	0–3,048 m (High Altitude Mode over 1,500 m)
Start-Up Period	12 seconds (Epson Logo), Warm-up Period: 30 seconds, Quick Start-Up: Less than 8 seconds (Display)
Cool Down Period	Instant Off
Direct Power On/Off	Yes
Power Supply Voltage	100–240 V AC ±10%, 50/60 Hz
Power Consumption (220-240V)	Laser Diode: 399 W (Normal), 295 W (Extended) Standby: 2.4 W (Network On), 0.4 W (Network Off)
Dimensions Excluding Feet (W x H x D)	440 x 122 x 304 mm
Weight	Approx. 8.2 kg
Fan Noise	Normal: 32 dB, Eco: 25 dB
Air Filter	Type: Electrostatic Filter Maintenance Cycle: 20,000 hours (Normal), 30,000 hours (Extended)
Internal Speaker	Sound Output: 10W Monaural
Colour Modes	Dynamic, Bright Cinema, Natural, Cinema, Adobe RGB, Digital Cinema, 3D Dynamic, 3D Cinema
