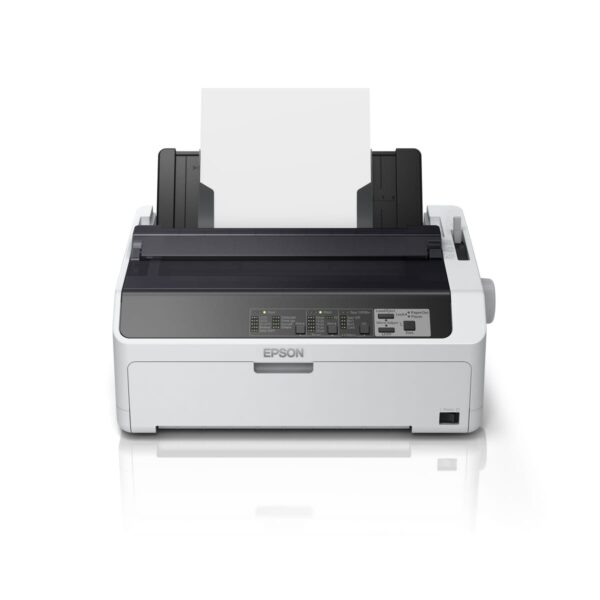

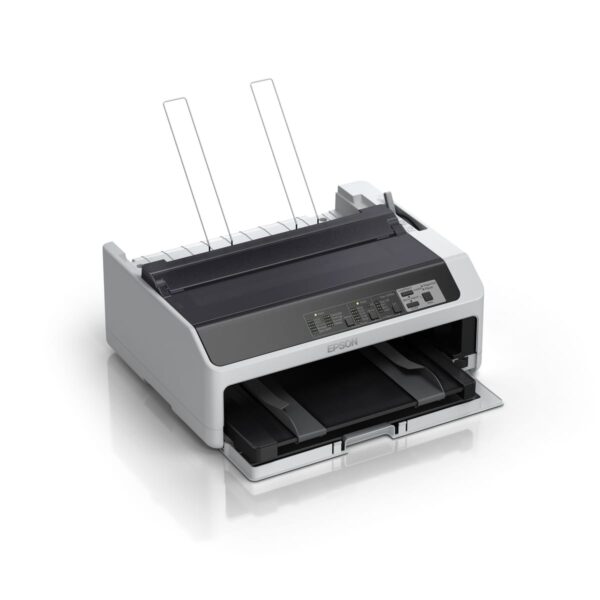

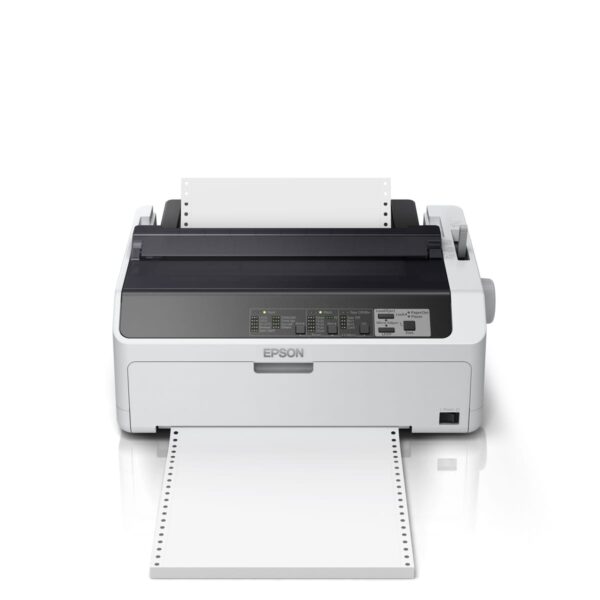

Epson LQ-590IIN 24-Pin Dot Matrix Printer 550 cps Ethernet USB 2.0 Parallel – LQ-590IIN

Original price was: ₱48,290.00.Current price is: ₱41,995.00.

Ultra high-speed printing up to 550 cps for efficient document output
24-pin design supports up to 7-part forms for versatile printing
Reliable with 25,000 POH MTBF and 400 million stroke printhead life
Built-in Ethernet, USB 2.0, and parallel for seamless connectivity
Supports cut sheets, continuous paper, envelopes, labels, and roll paper
SKU: LQ-590IIN

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱39,800 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

SKU: LQ-590IIN Categories: Dot Matrix, Printers Tag: Epson

Epson LQ-590IIN Dot Matrix Printer Description

The Epson LQ-590IIN dot matrix printer elevates business printing with its high-performance 24-pin design, delivering exceptional speed and reliability. Capable of reaching up to 550 characters per second in ultra high-speed draft mode, this printer efficiently processes invoices, receipts, and multi-part forms up to seven layers. Its robust build ensures long-lasting performance with a 25,000 power-on hours mean time before failure and a 400-million-stroke printhead life. The integrated Ethernet connectivity provides seamless network integration, enhancing workflow efficiency across multiple devices. With a 128 KB memory buffer, the LQ-590IIN handles complex print jobs effortlessly, supporting diverse media types including cut sheets, continuous paper, envelopes, labels, cards, and roll paper. Enhanced by versatile character sets, scalable fonts, and barcode printing capabilities, this printer delivers superior print quality and adaptability for demanding business environments.

Feature	Specification
Model	Epson LQ-590IIN
SKU	LQ-590IIN
Printing Technology	Impact dot matrix
Number of Pins	24 pins
Print Speed	Ultra High Speed Draft: 550 cps (10 cpi) High Speed Draft: 487 cps (10 cpi) / 584 cps (12 cpi) Draft: 366 cps (10 cpi) / 439 cps (12 cpi) NLQ: 121 cps (10 cpi) / 145 cps (12 cpi)
Print Direction	Bi-directional
Control Code	ESC/P2, IBM PPDS
Control Panel	6 switches, 10 LEDs
Character Sets	1 Italic and 7 graphical character tables: Italic table, PC437 (US, Standard Europe), PC850 (Multilingual), PC860 (Portuguese), PC865 (Nordic), PC863 (Canadian-French), PC858, ISO 8859-15
Bitmap Fonts	Epson Draft, Roman, Sans Serif: 10, 12, 15 cpi
Scalable Fonts	Epson Roman, Sans Serif, Roman T, Sans Serif H: 10.5pt., 8pt. - 32pt. (every 2pt.)
Barcodes	EAN-13, EAN-8, Interleaved 2 of 5, UPC-A, UPC-E, Code 39, Code 128, POSTNET
Paper Path	Manual Insertion: Front or Rear in, Top out Push Tractor: Front or Rear in, Top out Pull Tractor: Front, Rear, or Bottom in, Top out
Paper Media	Cut Sheet (Single Sheet): Entry: Front/Rear Length: 100 - 364 mm (3.9 - 14.3”) Width: 100 - 257 mm (3.9 - 10.1”) Thickness: 0.065 - 0.14 mm (0.0025 - 0.0055”) Cut Sheet (Multi-part Forms): Entry: Front Length: 100 - 364 mm (3.9 - 14.3”) Width: 100 - 257 mm (3.9 - 10.1”) Thickness: 0.12 - 0.46 mm (0.0047 - 0.018”) Copies: 1 Original + 5 copies Continuous Paper (Single Sheet / Multi-part): Entry: Front, Rear, Bottom Length: 101.6 - 558.8 mm (4.0 - 22.0”) Width: 101.6 - 254 mm (4.0 - 10.0”) Thickness: 0.065 - 0.49 mm (0.0025 - 0.019”) Copies: Original + 6 copies Envelope (No.6): Entry: Rear Length: 92 mm (3.6”) Width: 165 mm (6.5”) Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205”) Envelope (No.10): Entry: Rear Length: 105 mm (4.1”) Width: 241 mm (9.5”) Thickness: 0.16 - 0.52 mm (0.0063 - 0.0205”) Label (Base Sheet): Entry: Bottom Length: 101.6 - 558.8 mm (4.0 - 22.0”) Width: 100 - 148 mm (3.9 - 5.8”) Thickness: 0.16 - 0.19 mm (0.0063 - 0.0075”) Card: Entry: Front, Rear Length: 100 - 148 mm (3.9 - 5.8”) Width: 100 - 148 mm (3.9 - 5.8”) Thickness: 0.22 mm (0.0087”) Roll Paper: Entry: Rear Diameter: 127 mm (5”) Width: 216 mm (8.5”) Thickness: 0.07 - 0.09 mm (0.0028 - 0.035”)
Line Spacing	4.23 mm (1/6”) or programmable in increments of 0.0706 mm (1/360”)
Reliability	Printhead Life: 400 million strokes/wire MVBF: 50 million lines (except print head) MTBF: 25,000 POH (25% Duty)
Input Data Buffer	128 KB
Interface	USB 2.0, Bi-directional parallel (IEEE-1284 nibble mode supported), Serial, 100base-Tx wired LAN
Printable Columns	10 cpi: 80 columns
Ribbon Cartridge	Fabric Ribbon Cartridge (Black), Approx. 5 million characters
Operating Systems	Microsoft Windows XP / Vista / 7 / 8 / 10
Utilities	Epson Status Monitor 3, Epson Setting Utility (Microsoft Windows XP / Vista / 7 / 8 / 10)
Options	Single Bin Cut Sheet Feeder C12C806372, Pull Tractor Unit C12C933761, Ribbon Cartridge C13S015589, High Capacity Cut Sheet Feeder C12C806382
Environmental Conditions	Temperature: 5 - 35 °C, Humidity: 10 - 80% RH
Acoustic Noise	55 dB
What's in the Box	Main Unit, CD-ROM, Set-up Manual, AC Power Cable, Ribbon Cartridge, Guide Stacker, Wing, Tractor
