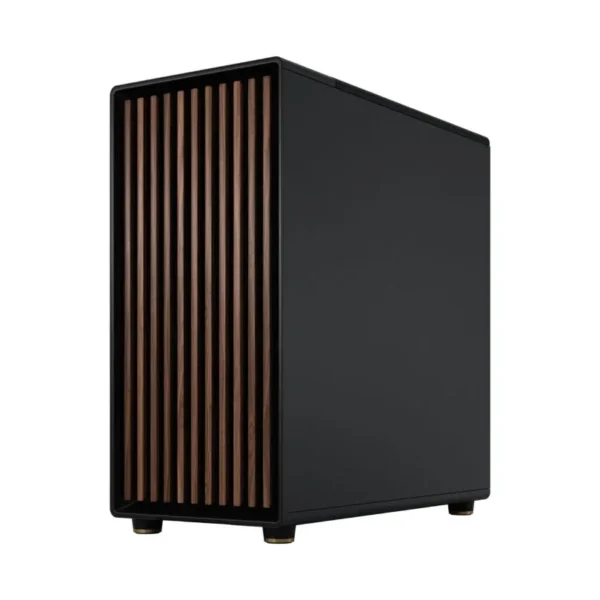

Fractal Design North XL Charcoal Black E-ATX Mid-Tower PC Case – FD-C-NOR1X-01
Original price was: ₱12,520.00.₱10,895.00Current price is: ₱10,895.00.
- Sophisticated Natural Design: Features an elegant front panel crafted from FSC-certified oak or walnut, complemented by sleek alloy details and a faux leather pull tab.
- Generous E-ATX Form Factor: A highly spacious interior layout designed to seamlessly accommodate large E-ATX motherboards and massive modern graphics cards up to 413 mm in length.
- Exceptional Pre-Installed Cooling: Gets your build off to a flying start with three high-performance 140 mm Aspect PWM fans included right out of the box.
- Extreme Radiator Support: Engineered for extreme thermal performance with massive liquid cooling clearances, supporting up to a 420 mm front radiator and a 360 mm top radiator.
- Reverse Connector Compatibility: The unique RC version is specifically designed to support hidden-connector motherboards, providing a completely cable-free internal aesthetic.
- High-Speed Front Connectivity: Modern top I/O panel features a lightning-fast USB 3.2 Gen 2×2 Type-C port delivering up to 20Gbps transfer speeds.
- Builder-Friendly Accessibility: Enjoy an intuitive assembly experience with tool-less, easily removable top and side panels, plus extensive integrated cable management features.
- SKUs: FD-C-NOR1X-01, FD-C-NOR1X-02, FD-C-NOR1X-03, FD-C-NOR1X-04, FD-C-NOR1X-05, FD-C-NOR1X-06
Out of stock
Restock & Price Alerts
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
A Transformative Design for the Modern Living Space
The Fractal Design North XL represents a paradigm shift in how gaming PC cases integrate into a modern environment. Moving away from overly aggressive, plastic-heavy aesthetics, the North XL embraces a sophisticated, mid-century modern design language. Highlighting this luxurious approach is a breathtaking front panel featuring authentic, FSC-certified wood bars crafted from either premium oak or elegant walnut. This natural aesthetic is beautifully complemented by a tactile faux leather tab and meticulously crafted sleek alloy details in steel or brass. The result is a highly capable chassis that doesn’t just house your high-end gaming components, but genuinely acts as a stylish, complementary piece of furniture for your living space, studio, or professional office.
Massive Cooling Capabilities and Superior Airflow Engineering
Beneath its elegant exterior lies an uncompromising airflow engine designed to keep the most powerful modern hardware running at peak performance. The North XL takes advantage of natural ventilation mechanics through its open wooden front panel and a stylishly integrated mesh top panel. To ensure you have a tremendous head start on your ultimate build, Fractal Design includes three powerful 140 mm Aspect PWM fans pre-installed right out of the box. For water-cooling enthusiasts pushing extreme thermal limits, the expanded generous chassis format effortlessly supports massive front radiators up to 420 mm and top radiators up to 360 mm, ensuring your CPU and GPU temperatures remain exceptionally low during intensive gaming and creative workloads.
Uncompromised Hardware Compatibility and Build Versatility
The “XL” moniker isn’t just for show; this case is purpose-built to house the largest, most power-hungry components on the market. The highly intuitive, spacious interior layout makes the most of your building experience by easily accommodating massive E-ATX motherboards. Gamers can install incredibly long graphics cards up to 413 mm in length, or up to 380 mm if utilizing a thick 420 mm front liquid cooling radiator. Furthermore, Fractal caters to the cutting edge of PC building with the North XL RC (Reverse Connector) version. This specialized variant offers flawless compatibility with the newest hidden-connector ATX and mATX motherboards, allowing builders to route virtually all power and data cables out of sight for an incredibly pristine, wire-free visual finish.
Intuitive Building Experience and Lightning-Fast Connectivity
Fractal Design is renowned for builder-friendly engineering, and the North XL is a masterclass in accessibility. Gaining entry to the chassis is entirely tool-less and remarkably easy; simply remove the side panels, unclip the front, and pop off the top panel using the integrated faux leather tab. Managing your system’s wiring is a breeze thanks to fixed cable straps, ample routing space, and strategically placed grommets. To keep you connected to modern high-speed peripherals, the sophisticated front I/O panel boasts three easily accessible USB ports, including a blazing-fast USB 3.2 Gen 2×2 Type-C interface capable of incredibly rapid data transfer speeds up to 20Gbps, ensuring your battle station is fully equipped for the future.
| Fractal Design North XL Detailed Specifications | |
|---|---|
| General Information | |
| Brand | Fractal Design |
| Model Name | North XL |
| Color Theme | Charcoal Black (Also available in Chalk White) |
| Primary SKU | FD-C-NOR1X-01 |
| Warranty | 2 Years |
| Motherboard & Component Compatibility | |
| Motherboard Support (Mesh & TG Versions) | E-ATX (up to 330 mm) / ATX / mATX / Mini-ITX |
| Motherboard Support (RC Version) | ATX and mATX with rear-facing connectors / Mini-ITX |
| Power Supply Type | ATX |
| Storage & Expansion | |
| Dedicated 2.5" Drive Mounts | 2 |
| Combined 3.5"/2.5" Drive Mounts | 2 Included |
| 5.25" Drive Mounts | 0 |
| Expansion Slots | 7 |
| Hardware Clearances | |
| GPU Max Length | Up to 413 mm (with front fan mounted) Up to 380 mm (with a 33 mm-thick 420/360 mm front mounted radiator) |
| CPU Cooler Max Height | Mesh Version: 155 mm with Fan Bracket / 185 mm without TG Version: 185 mm RC Version: 169 mm |
| PSU Max Length | 1 HDD Tray: 290 mm max 2 HDD Trays: 175 mm max |
| Cable Routing Space | 29 mm (Mesh & TG Version) 45 mm (RC Version) |
| Cooling & Ventilation | |
| Pre-Installed Fans | 3 x Aspect 140 mm PWM fans (Front) |
| Total Fan Mounts (Mesh Version) | 9 x 120 mm OR 8 x 140 mm |
| Total Fan Mounts (TG Version) | 7 x 120 mm OR 6 x 140 mm |
| Total Fan Mounts (RC Version) | 7 x 120 mm OR 5 x 140 mm |
| Front Fan Support | 3 x 120 mm / 3 x 140 mm |
| Top Fan Support | 3 x 120 mm / 2 x 140 mm / 2 x 180 mm |
| Rear Fan Support | 1 x 120/140 mm (Mesh & TG Version) 1 x 120 mm (RC Version) |
| Front Radiator Support | Up to 420 mm / 360 mm |
| Top Radiator Support | Up to 280 mm / 360 mm |
| Rear Radiator Support | 120 mm / 140 mm (Mesh & TG), 120 mm (RC) |
| Design, Interface & Materials | |
| Front Interface (I/O) | 1x USB 3.2 Gen 2x2 Type-C (20 Gbps) 2x USB 3.0 Audio & Mic |
| Left Side Panel | Mesh (Mesh Version) OR Tempered Glass (TG & RC Version) |
| Right Side Panel | Steel |
| Dust Filters | Front, PSU |
| Design Details | FSC-certified wood (oak/walnut front), Faux leather tab, Sleek steel or brass alloy details |
| Cable Management | Fixed cable straps included. Cable routing grommets (Mesh & TG only, absent in RC) |
| Physical Dimensions & Weights | |
| Case Dimensions (L x W x H) | 503 x 240 x 509 mm |
| Case Dimensions (w/o protrusions) | 490 x 240 x 490 mm |
| Net Weight | 9.7 kg (Mesh) / 9.5 kg (TG) / 9.7 kg (RC) |
| Package Dimensions | 604 x 355 x 608 mm |
| Gross Weight | 11.9 kg (Mesh) / 11.7 kg (TG) / 11.6 kg (RC) |
| SKUs & Identifiers | |
| Charcoal Black (Mesh) | Product Code: FD-C-NOR1X-01 | UPC: 843276106539 |
| Charcoal Black TGD (Tempered Glass Dark) | Product Code: FD-C-NOR1X-02 | UPC: 843276106546 |
| Chalk White (Mesh) | Product Code: FD-C-NOR1X-03 | UPC: 843276106553 |
| Chalk White TGC (Tempered Glass Clear) | Product Code: FD-C-NOR1X-04 | UPC: 843276106560 |
| RC Charcoal Black TG Dark | Product Code: FD-C-NOR1X-05 | UPC: 843276109462 |
| RC Chalk White TG Clear | Product Code: FD-C-NOR1X-06 | UPC: 843276109479 |
| Weight | 11.9 kg |
|---|---|
| Dimensions | 61 × 36 × 61 cm |
| Brand | Fractal Design |
