Gigabyte AORUS NVIDIA GeForce RTX 5080 XTREME WATERFORCE 16G GDDR7 256-bit PCIe 5.0 Graphics Card – GV-N5080AORUSX W-16GD
Receive instant alert when this product becomes available!


- Powered by NVIDIA’s advanced architecture for top-tier performance
- 16GB GDDR7 memory with 256-bit interface and 32 Gbps memory clock
- 360 mm aluminum radiator with 3x 120mm ARGB fans for advanced cooling
- Supports up to 4 displays with 3x DisplayPort 2.1a and 1x HDMI 2.1b
- Compact size and 460 mm tube length for custom builds
- Optimized for DirectX 12 API and OpenGL 4.6
- Includes VGA manual, warranty notice, and AORUS identity stickers
- Recommended 850W PSU for reliable and stable operation
Description

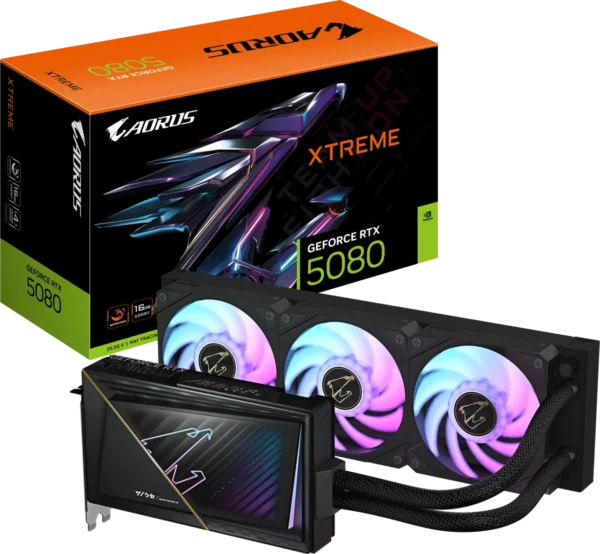

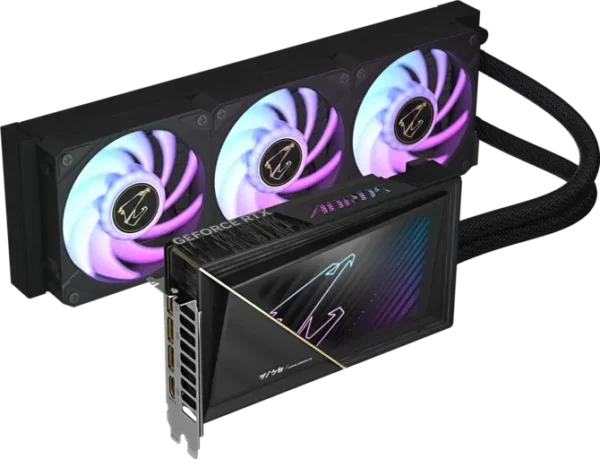

The AORUS NVIDIA GeForce RTX 5080 XTREME WATERFORCE 16G Graphics Card delivers exceptional performance and advanced cooling technology for gamers and creators. Designed with a 360 mm aluminum radiator and 3x 120mm ARGB fans, this GPU ensures optimal thermal performance for high-demand workloads.
Featuring 16GB of high-speed GDDR7 memory with a 256-bit interface and a memory clock of 32 Gbps, the WATERFORCE provides seamless multitasking and outstanding gaming experiences. The PCIe 5.0 interface and support for resolutions up to 7680 x 4320 make this card ready for the next generation of games and applications.

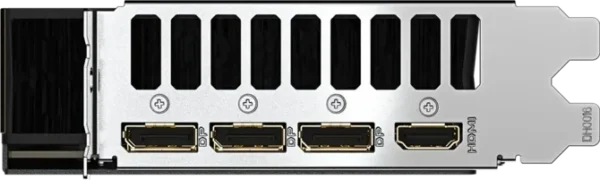

The WATERFORCE features 3x DisplayPort 2.1a and 1x HDMI 2.1b outputs, supporting up to four displays for an immersive and productive setup. Its 460 mm tube length and compact card size (L=220 mm, W=130 mm, H=40 mm) make it suitable for custom water-cooled builds.
With DirectX 12 API and OpenGL 4.6 compatibility, this GPU offers robust support for modern gaming and professional tasks. A recommended 850W PSU ensures stable and reliable performance for extended use.
Included accessories like the VGA manual, warranty notice, and AORUS identity stickers complete the package, making the AORUS RTX 5080 XTREME WATERFORCE 16G an excellent choice for enthusiasts who demand cutting-edge performance and aesthetics.
Specification | Details |
---|---|
Graphics Processing | GeForce RTX™ 5080 |
Core Clock | TBD |
CUDA® Cores | TBD |
Memory Clock | 32 Gbps |
Memory Size | 16GB |
Memory Type | GDDR7 |
Memory Bus | 256-bit |
Card Bus | PCIe 5.0 |
Digital Max Resolution | 7680 x 4320 |
Multi-View | 4 |
Card Size | L=220 mm, W=130 mm, H=40 mm |
PCB Form | ATX |
DirectX | DirectX 12 API |
OpenGL | OpenGL 4.6 |
Recommended PSU | 850W |
Power Connectors | 16-pin x1 |
Outputs | 3x DisplayPort 2.1a, 1x HDMI 2.1b |
Tube Length | 460 mm ± 1.5% |
Radiator | 360 mm aluminum radiator |
Fans | 3x 120mm ARGB fans |
Accessories | VGA manual, Warranty notice, 12V-2x6 to 3x PCIe 8pin adapter, AORUS identity stickers |
Additional information
Weight | 3.6 kg |
---|---|
Dimensions | 45 × 29 × 12 cm |
Brand | Gigabyte |
