GIGABYTE B550 AORUS ELITE AX V2 ATX AM4 Motherboard with DDR4 4733MHz, PCIe 4.0, and Wi-Fi 6 - GA-B550-AORUS-ELITE-AX-V2

GIGABYTE B550 AORUS ELITE AX V2 ATX AM4 Motherboard with DDR4 4733MHz, PCIe 4.0, and Wi-Fi 6 – GA-B550-AORUS-ELITE-AX-V2

Original price was: ₱11,400.00.Current price is: ₱9,995.00.

AMD AM4 socket supports Ryzen 5000/4000/3000 series processors
DDR4 memory up to 4733MHz (OC) with 128GB capacity
PCIe 4.0 x16 slot and dual M.2 slots for high-speed GPUs and SSDs
Dual-display support with DisplayPort 1.4 and HDMI 2.1
Wi-Fi 6, Bluetooth 5, and 2.5GbE LAN for fast connectivity
Realtek ALC1200 audio with S/PDIF Out for immersive sound
Smart Fan 5, RGB Fusion, and 5-year warranty for reliability

Out of stock

Restock & Price Alerts

We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!

🔓 Sign in to unlock full price history charts and manage your alerts.

SKU: GA-B550-AORUS-ELITE-AX-V2 Categories: AMD AM4 Motherboards, Motherboards Tag: Gigabyte

Elevate your gaming experience with the GIGABYTE B550 AORUS ELITE AX V2 (rev. 1.0) ATX Motherboard, engineered for AMD Ryzen 5000, 5000 G, 4000 G, 3000, and 3000 G-Series processors on the AM4 socket. Powered by the AMD B550 chipset, this motherboard supports DDR4 memory up to 4733MHz (OC) across four DIMM slots, delivering up to 128GB capacity for seamless multitasking and high-performance gaming. The PCIe 4.0 x16 slot ensures top-tier GPU compatibility, while dual M.2 slots with PCIe 4.0 support provide lightning-fast NVMe SSD speeds. Four SATA 6Gb/s ports with RAID 0, 1, and 10 configurations offer versatile storage options. Integrated Radeon graphics drive dual displays via DisplayPort 1.4 and HDMI 2.1, perfect for immersive gaming or productivity setups. Connectivity excels with Intel Wi-Fi 6 AX200, Bluetooth 5, and Realtek 2.5GbE LAN for lag-free online gaming. The Realtek ALC1200 codec with S/PDIF Out delivers rich 7.1-channel audio. Smart Fan 5 with multiple fan headers and water cooling support ensures efficient thermal management, while RGB Fusion with addressable LED headers adds vibrant customization. The 12+2 phases DrMOS VRM ensures stable power delivery for overclocking. Backed by a 5-year warranty, GIGABYTE APP Center, and Q-Flash Plus for effortless BIOS updates, this motherboard is ideal for gamers seeking a robust, feature-rich ATX platform.

Listed by Nievz · Netcodex Computer Center · Last updated April 14, 2026

Netcodex Computer Center first recorded pricing data on this model in January 2026. Every price check since this product was listed has returned the same figure: ₱9,995.00. The price chart on this listing is generated from the store's own pricing history, logged from the first day this product was available. If budget is a priority, a price-drop alert is available just below the Add to Cart button, though it is worth being realistic. The current PC hardware market is heavily influenced by AI-driven component demand, and a meaningful drop may be a while away or may not come at all. We do our best to keep prices competitive, and our price-beat policy covers you if you find a verified lower price from an authorized source.

Netcodex Computer Center operates as an authorized Gigabyte reseller in the Philippines, with all units shipped brand-new and backed by the official manufacturer warranty processed through our Cubao, Quezon City service center. The 7-day DOA policy means any confirmed defective unit gets a free 1-to-1 replacement, shipping included; orders go out to all Philippine regions via reliable courier partners. Support is staffed by working PC builders and technicians with over 25 years of combined IT experience, the same team that tunes Curve Optimizers and dials in RAM sub timings on custom builds. Payment is accepted via GCash, GGives, bank transfer, PayPal, all major credit cards (Mastercard, VISA, AMEX, JCB, Discover, Diners Club), installment plans, Billease, and Home Credit.

Specification	Details
Model	GA-B550-AORUS-ELITE-AX-V2
CPU	AMD Socket AM4, support for: AMD Ryzen™ 5000 Series / Ryzen™ 5000 G-Series / Ryzen™ 4000 G-Series / Ryzen™ 3000 Series / Ryzen™ 3000 G-Series Processors (Refer to GIGABYTE's CPU Support List)
Chipset	AMD B550
Memory	4 x DDR4 DIMM sockets supporting up to 128 GB (32 GB single DIMM capacity); Support for DDR4 4733(O.C.) / 4600(O.C.) / 4400(O.C.) / 4266(O.C.) / 4133(O.C.) / 4000(O.C.) / 3866(O.C.) / 3733(O.C.) / 3600(O.C.) / 3466(O.C) / 3400(O.C.) / 3200 / 2933 / 2667 / 2400 / 2133 MHz memory modules; Dual channel memory architecture; Support for ECC Un-buffered DIMM 1Rx8/2Rx8 (ECC mode support varies by CPU); Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16; Support for XMP memory modules (Refer to GIGABYTE's Memory Support List)
Onboard Graphics	Integrated Graphics Processor: 1 x DisplayPort, supporting 5120x2880@60 Hz (DisplayPort 1.4, HDCP 2.3, HDR); 1 x HDMI port, supporting 4096x2160@60 Hz (HDMI 2.1, HDCP 2.3, HDR); Maximum shared memory of 16 GB
Audio	Realtek® ALC1200 codec; High Definition Audio; 2/4/5.1/7.1-channel; Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbit/1 Gbit/100 Mbit)
Wireless Communication Module	Intel® Wi-Fi 6 AX200; WIFI a, b, g, n, ac with wave 2 features, ax, supporting 2.4/5 GHz Dual-Band; BLUETOOTH 5; Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate (Actual data rate may vary depending on environment and equipment)
Expansion Slots	CPU: 1 x PCI Express x16 slot (PCIEX16), AMD Ryzen™ 5000 Series and Ryzen™ 3000 Series support PCIe 4.0 x16 mode (Actual support may vary by CPU); AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series support PCIe 3.0 x16 mode (Install graphics card in PCIEX16 slot for optimum performance); Chipset: 1 x PCI Express x16 slot (PCIEX2), supporting PCIe 3.0 x2 mode; 1 x PCI Express x16 slot (PCIEX1_2), supporting PCIe 3.0 x1 mode; 1 x PCI Express x1 slot (PCIEX1_1), supporting PCIe 3.0 x1 mode
Storage Interface	CPU: 1 x M.2 connector (M2A_CPU), Socket 3, M key, type 2242/2260/2280/22110 SSDs: AMD Ryzen™ 5000 Series/3000 Series support SATA and PCIe 4.0 x4/x2 SSDs; AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series support SATA and PCIe 3.0 x4/x2 SSDs; Chipset: 1 x M.2 connector (M2B_SB), Socket 3, M key, type 2242/2260/2280/22110 SSDs, supporting SATA and PCIe 3.0 x4/x2 SSDs; 4 x SATA 6Gb/s connectors, support for RAID 0, RAID 1, and RAID 10
USB	CPU: AMD Ryzen™ 5000 Series/3000 Series support two USB 3.2 Gen 2 Type-A ports (red) on the back panel; AMD Ryzen™ 5000 G-Series/4000 G-Series/3000 G-Series support two USB 3.2 Gen 1 ports (red) on the back panel; 2 x USB 3.2 Gen 1 ports on the back panel; Chipset: 1 x USB Type-C™ port with USB 3.2 Gen 1 support, available through the internal USB header; 1 x USB 3.2 Gen 1 port on the back panel; 2 x USB 3.2 Gen 1 ports available through the internal USB header; 2 x USB 2.0/1.1 ports on the back panel; Chipset+USB 2.0 Hub: 4 x USB 2.0/1.1 ports available through the internal USB headers
Internal I/O Connectors	1 x 24-pin ATX main power connector; 1 x 8-pin ATX 12V power connector; 2 x M.2 Socket 3 connectors; 4 x SATA 6Gb/s connectors; 1 x CPU fan header; 1 x water cooling CPU fan header; 3 x system fan headers; 1 x CPU cooler LED strip/RGB LED strip header; 2 x addressable LED strip headers; 2 x RGB LED strip headers; 1 x front panel header; 1 x front panel audio header; 1 x USB Type-C™ port, with USB 3.2 Gen 1 support; 1 x USB 3.2 Gen 1 header; 2 x USB 2.0/1.1 headers; 1 x Trusted Platform Module (TPM) header (2x6 pin, for GC-TPM2.0_S module only); 1 x Clear CMOS jumper; All fan headers support AIO_Pump, Pump, and high-performance fan up to 2A/12V @ 24W

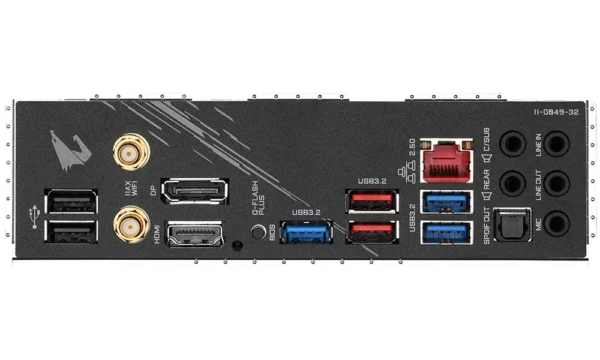

Back Panel Connectors	1 x DisplayPort; 1 x HDMI port; 2 x SMA antenna connectors (2T2R); 2 x USB 3.2 Gen 2 Type-A (red, for Ryzen 5000/3000 Series) or USB 3.2 Gen 1 ports (red, for Ryzen 5000 G/4000 G/3000 G-Series); 3 x USB 3.2 Gen 1 ports; 2 x USB 2.0/1.1 ports; 1 x Q-Flash Plus button; 1 x RJ-45 port; 1 x optical S/PDIF Out connector; 5 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage detection; Temperature detection; Fan speed detection; Water cooling flow rate detection; Overheating warning; Fan fail warning; Fan speed control (Whether fan speed control is supported depends on the fan installed)
BIOS	1 x 256 Mbit flash; Use of licensed AMI UEFI BIOS; PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	Support for APP Center (Applications may vary by motherboard model): @BIOS, EasyTune, RGB Fusion, Smart Backup, System Information Viewer; Support for Q-Flash Plus; Support for Q-Flash
Bundled Software	Norton® Internet Security (OEM version); LAN bandwidth management software
Operating System	Support for Windows 11 64-bit; Support for Windows 10 64-bit
Form Factor	ATX Form Factor; 30.5cm x 24.4cm
Remark	Due to different Linux support conditions provided by chipset vendors, download Linux drivers from chipset vendors' website or 3rd party website; Most hardware/software vendors may no longer offer drivers for Win9X/ME/2000/XP; If drivers are available, GIGABYTE will update them on their website
