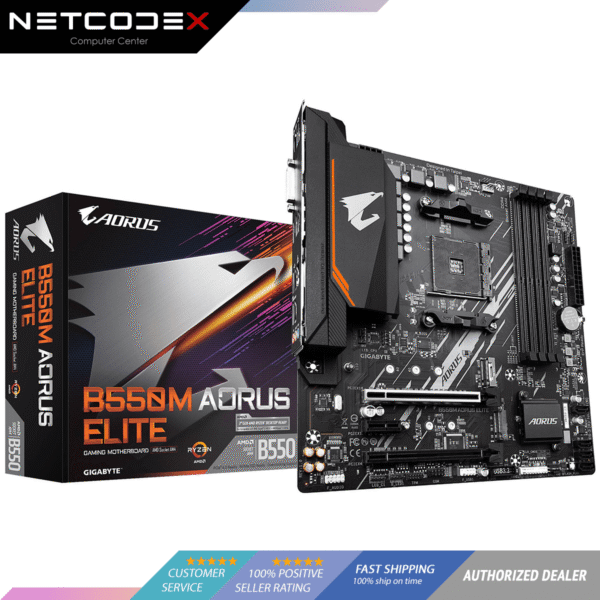

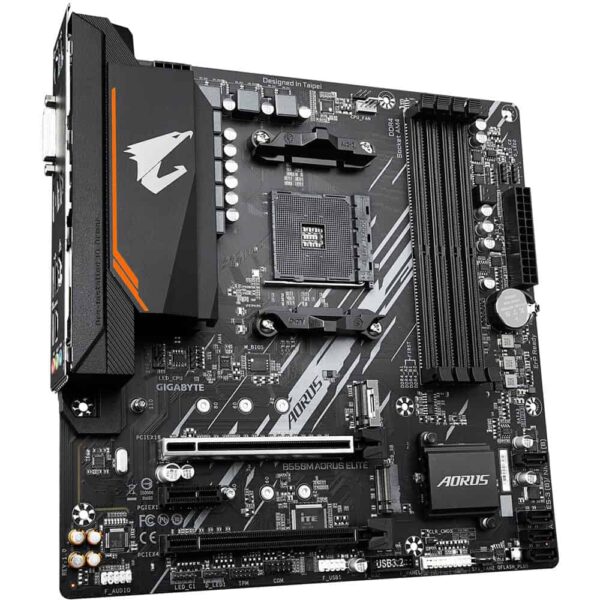

Gigabyte B550M AORUS ELITE AM4 Micro-ATX Motherboard with Pure Digital VRM Solution Dual PCIe 4.0/3.0 M.2 Connectors DDR4 PCIe 4.0 mATX for AMD Ryzen - GA-B550M-AORUS-ELITE
Gigabyte B550M AORUS ELITE AM4 Micro-ATX Motherboard with Pure Digital VRM Solution Dual PCIe 4.0/3.0 M.2 Connectors DDR4 PCIe 4.0 mATX for AMD Ryzen – GA-B550M-AORUS-ELITE

6,485.00

In stock

Add to cart

Gigabyte B550M AORUS ELITE AM4 Micro-ATX Motherboard with Pure Digital VRM Solution Dual PCIe 4.0/3.0 M.2 Connectors DDR4 PCIe 4.0 mATX for AMD Ryzen – GA-B550M-AORUS-ELITE

6,485.00

  • Micro-ATX Form Factor
  • AMD B550 Chipset | AM4 Socket
  • Supports 3rd Gen AMD Ryzen CPUs
  • 4 x Dual-Channel DDR4-4733 (OC)
  • 2 x M.2 | 4 x SATA III
  • 1 x PCIe 4.0 x16 | 1 x PCIe 3.0 x16 (x4)
  • Realtek ALC887 7.1-Channel HD Audio
  • Realtek Gigabit Ethernet LAN

In stock

ℹ️

For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.
💡 Suggested alert: ₱6,100 [ Use this ]
Want to track and manage your alerts?
  • Authorized
    Dealer
  • Nationwide
    Shipping
  • Store &
    RMA HUB
  • Expert
    Support
  • 7-Day DOA
    Protection
  • Community
    Trusted
  • Turnstile
    Protected
  • reCAPTCHA
    Secured
  • Tested &
    Verified
Build Your Custom PC
SKU: GA-B550M-AORUS-ELITE Categories: , Tag:

Gigabyte B550M AORUS ELITE AM4 Micro-ATX Motherboard with Pure Digital VRM Solution Dual PCIe 4.0/3.0 M.2 Connectors DDR4 PCIe 4.0 mATX for AMD Ryzen - GA-B550M-AORUS-ELITE
Gigabyte B550M AORUS ELITE AM4 Micro-ATX Motherboard with Pure Digital VRM Solution Dual PCIe 4.0/3.0 M.2 Connectors DDR4 PCIe 4.0 mATX for AMD Ryzen - GA-B550M-AORUS-ELITE

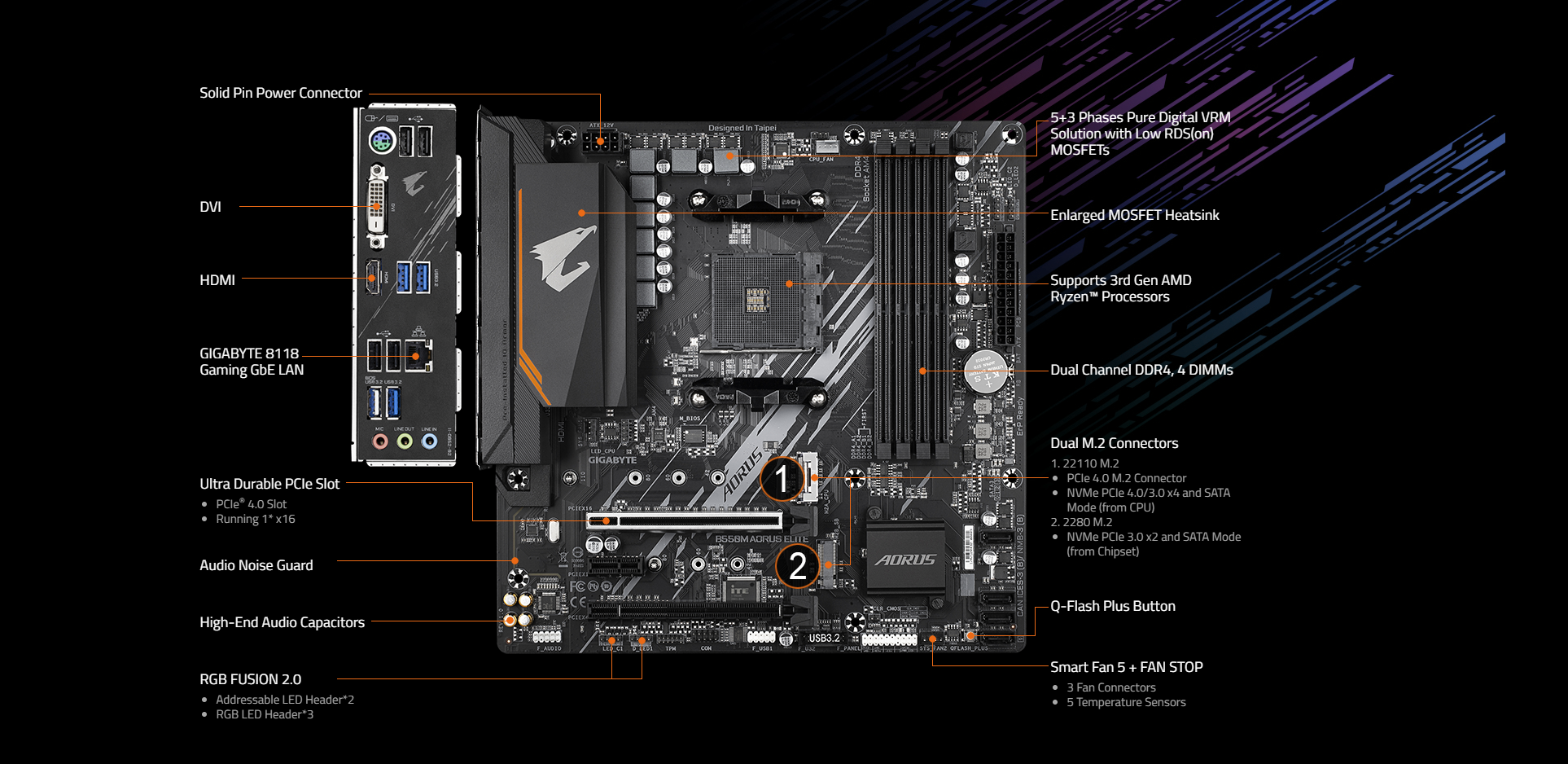

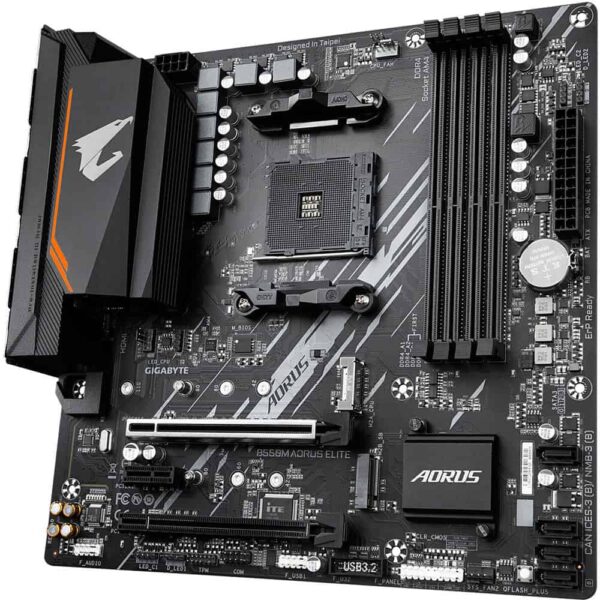

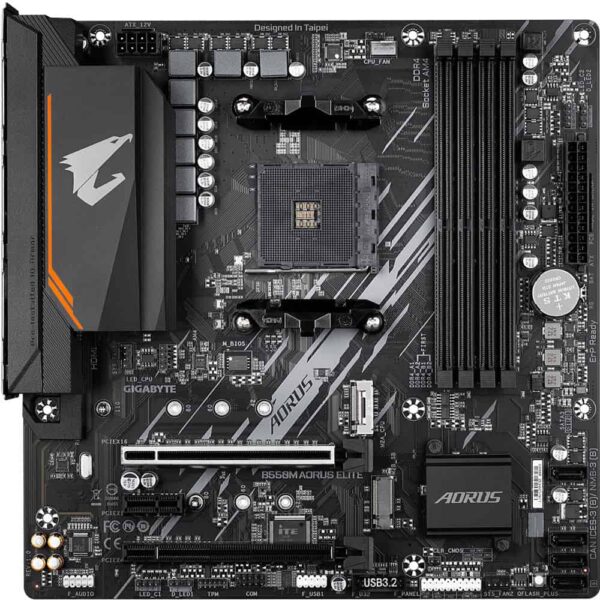

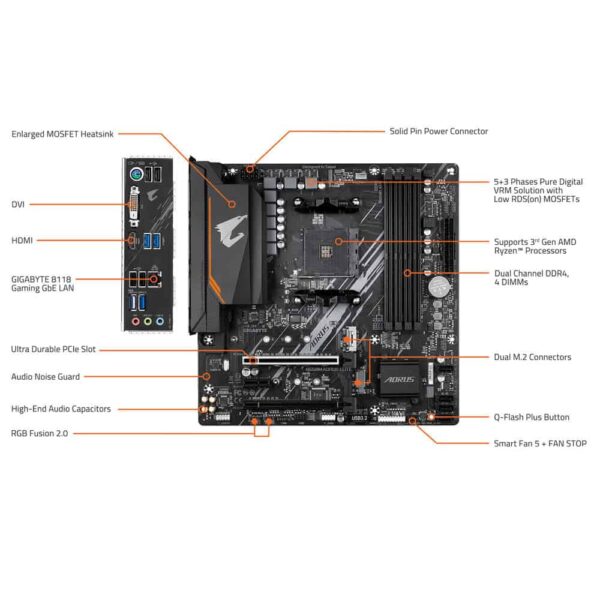

The Gigabyte BB550M AORUS ELITE AM4 Micro-ATX Motherboard is designed around the AMD B550 chipset, supporting 3rd Gen AMD Ryzen processors with an AM4 socket. It has four memory slots, supporting up to 128GB of dual-channel RAM, which can run at up to 4733 MHz (O.C.). This motherboard features a micro-ATX form factor, which fits in smaller cases. Other integrated features include Realtek Gigabit Ethernet, Realtek 7.1-channel audio support, RGB Fusion 2.0 support, and Gigabyte Q-Flash Plus.

General

ChipsetAMD B550
CPU SocketAM4

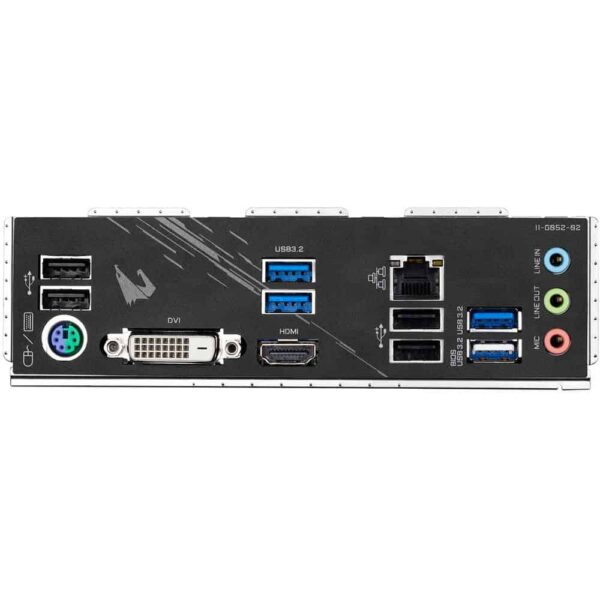

Back Panel I/O

USB4 x USB 3.1 / USB 3.2 Gen 1 Type-A4 x USB 2.0 Type-A
Display1 x HDMI1 x DVI-D
Audio3 x 3.5 mm
Ethernet / Controller1 x Realtek Gigabit
PS/21 x Combo

Memory

Memory Slots4 x 288-Pin
Memory SupportDDR4 2133, 2400, 2667, 2933, 3200, 3333, 3600, 4000, 4400, 4600, 4733 MHz
Maximum Capacity128 GB
Channel ArchitectureDual Channel
ECC SupportNon-ECC, ECC Unbuffered

Storage Expansion

SATA4 x SATA III
M.21 x M Key 2242, 2260, 2280, 22110 (PCIe 4.0 x4, PCIe 4.0 x2, PCIe 3.0 x2, PCIe 3.0 x4, SATA (Unspecified))1 x M Key 2242, 2260, 2280 (PCIe 3.0 x2, SATA (Unspecified))
RAID SupportRAID 0, 1, 10

Internal I/O

Expansion Slots1 x PCIe 4.0 x161 x PCIe 3.0 x16 (x4 mode)1 x PCIe 3.0 x1
Air Cooling1 x 4-Pin CPU2 x 4-Pin System
Power Connectors1 x 24-Pin Mainboard1 x 8-Pin ATX
SecurityTPM Module
LED Header5 x RGB
DiagnosticsClear CMOS, Flash BIOS
Legacy1 x Serial

BIOS

ROM256 Mb

Audio

Audio CodecRealtek ALC887 (7.1-Channel)

Software

Supported Operating SystemsWindows 10 (64-Bit)

Physical

Form FactorMicro-ATX
Dimensions9.6 x 9.6" / 24.4 x 24.4 cm

Weight2 kg
Dimensions30 × 30 × 6 cm
Socket

AM4 CPU

Desktop RAM

DDR4

Chipset

B550

Brand

Gigabyte
