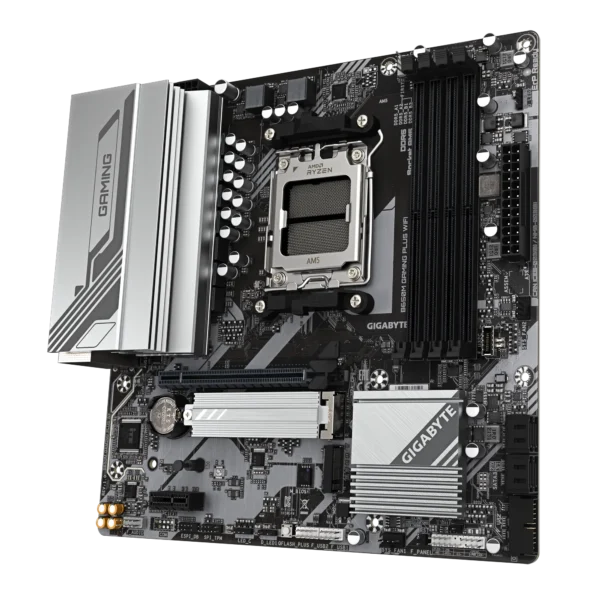

GIGABYTE B650M GAMING PLUS WIFI Micro-ATX AMD B650 AM5 DDR5 Motherboard – GA-B650M-GAMING-PLUS-WF
Original price was: ₱10,800.00.₱9,450.00Current price is: ₱9,450.00.
- GIGABYTE GA-B650M-GAMING-PLUS-WF Micro-ATX for AMD Ryzen™ 9000/8000/7000
- DDR5 8000MT/s (OC), up to 256GB, AMD B650 chipset
- PCIe 4.0 x16, 2 x M.2 (PCIe 4.0), 4 x SATA 6Gb/s
- Wi-Fi 6E/6, 2.5GbE LAN, Realtek audio, USB 3.2 Gen 1 Type-C
- 6+2+1 VRM, Q-Flash Plus, Triple-Display, Micro-ATX design
Out of stock
Restock & Price Alerts
We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!
Want to track and manage your alerts? Sign in or create an account.
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
Upgrade your compact gaming PC with the GIGABYTE GA-B650M-GAMING-PLUS-WF, a Micro-ATX motherboard tailored for AMD Ryzen™ 9000, 8000, and 7000 Series processors. Featuring the AMD B650 chipset, it supports up to 256GB of DDR5 memory at speeds up to 8000MT/s (OC), delivering robust performance. The PCIe 4.0 x16 slot supports high-end GPUs, while two M.2 slots (PCIe 4.0) offer storage speeds up to 64Gbps. A 6+2+1 phase VRM ensures stable power for CPUs like the Ryzen 5 9600X. Advanced cooling with M.2 Thermal Guard and VRM heatsinks keeps thermals low. Wi-Fi 6E, 2.5GbE LAN, and USB 3.2 Gen 1 Type-C provide fast connectivity. Unique triple-display support (2 x DisplayPort, 1 x HDMI) enhances versatility. Q-Flash Plus simplifies BIOS updates, and RGB Fusion 2.0 adds customizable aesthetics. Ideal for budget-friendly AMD Micro-ATX builds.
| Specification | Details |
|---|---|
| Model | GIGABYTE GA-B650M-GAMING-PLUS-WF |
| CPU | AM5: AMD Ryzen™ 9000/8000/7000 Series Processors |
| Chipset | AMD B650 Chipset |
| Memory | 4 x DDR5 DIMM, up to 256GB, 8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800 MT/s, Non-ECC Un-buffered, Dual Channel, AMD EXPO/XMP |
| Onboard Graphics | 2 x DisplayPort (3840x2160@144Hz, DP 1.4), 1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3), Triple-Display Support |
| Expansion Slots | CPU: 1 x PCIe 4.0 x16 (x16/x8/x4 mode, PCIEX16); Chipset: 1 x PCIe 3.0 x1 (PCIEX1) |
| Storage | CPU: 1 x M.2 (2580, PCIe 4.0 x4/x2, M2A_CPU); Chipset: 1 x M.2 (22110/2280, PCIe 4.0 x4/x2, M2C_SB); 4 x SATA 6Gb/s; RAID 0/1/10 (NVMe/SATA) |
| Audio | Realtek Audio CODEC, 7.1-channel |
| LAN | Realtek 2.5GbE (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless | Wi-Fi 6E (RTL8852CE, 2.4/5/6GHz, 11ax 160MHz) or Wi-Fi 6 (RTL8851BE, 2.4/5GHz, 11ax 80MHz), Bluetooth 5.3 |
| USB | Rear: 1 x USB 3.2 Gen 1 Type-C, 3 x USB 3.2 Gen 1, 2 x USB 2.0; Front: 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0 headers (4 ports) |
| Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin 12V, 1 x CPU Fan, 2 x System Fan, 2 x ARGB, 1 x RGB, 2 x M.2, 4 x SATA 6Gb/s, 1 x Front Panel, 1 x Front Panel Audio, 1 x USB 3.2 Gen 1 Type-C, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0 headers, 1 x TPM, 1 x Q-Flash Plus Button, 1 x Reset Jumper, 1 x Clear CMOS Jumper |
| Back Panel Connectors | 1 x PS/2 Keyboard/Mouse, 1 x USB 3.2 Gen 1 Type-C, 3 x USB 3.2 Gen 1, 2 x USB 2.0, 1 x HDMI, 2 x DisplayPort, 2 x SMA Antenna (2T2R for Wi-Fi 6E, 1T1R for Wi-Fi 6), 1 x RJ-45, 3 x Audio Jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage, Temperature, Fan Speed, Fan Fail Warning, Fan Speed Control |
| BIOS | 256 Mbit AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | GIGABYTE Control Center, Q-Flash, Q-Flash Plus |
| Bundled Software | Norton Internet Security (OEM), LAN Bandwidth Management |
| Operating System | Windows 11 64-bit, Windows 10 64-bit |
| Form Factor | Micro-ATX, 24.4 x 24.4 cm |
| Notes | Wi-Fi 6E requires Windows 11 for 6GHz; Check CPU/Memory support at www.gigabyte.com |
| Weight | 1.7 kg |
|---|---|
| Dimensions | 31 × 29 × 8 cm |
| Brand | Gigabyte |
| Desktop RAM | DDR5 |
| Socket | AM5 CPU |
