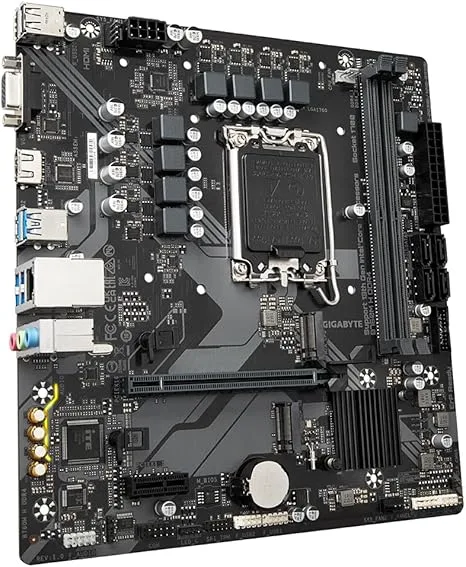

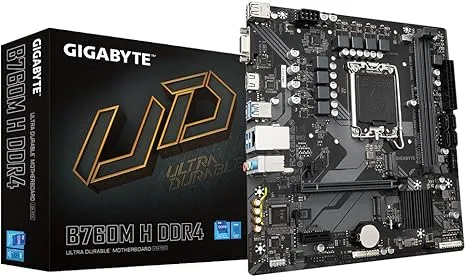

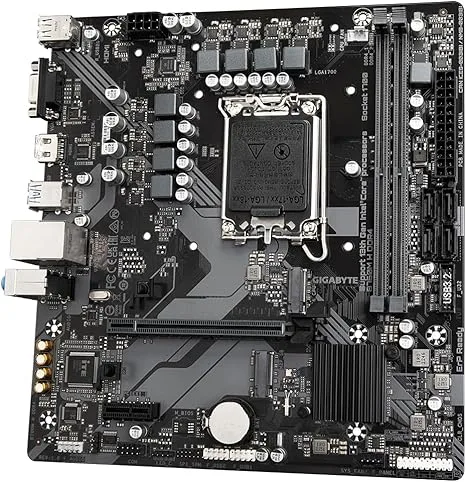

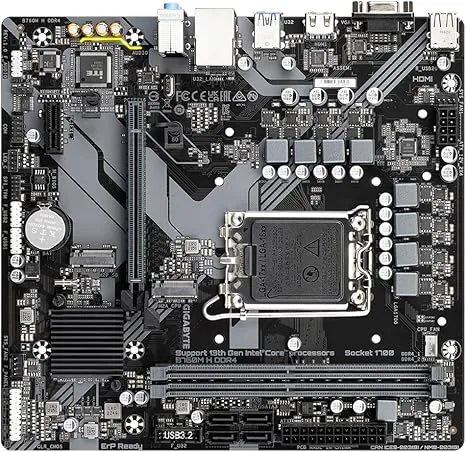

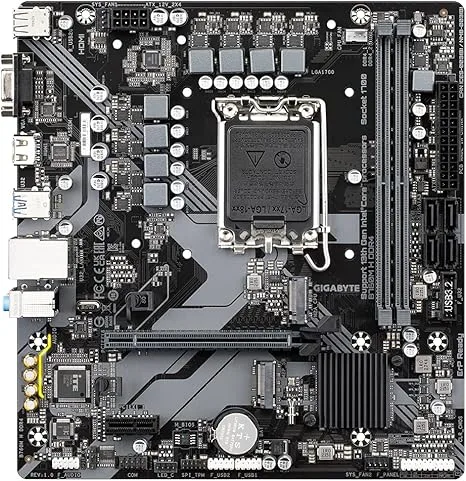

GIGABYTE B760M H DDR4 Motherboard, Intel B760 Chipset, LGA 1700 Socket, Micro-ATX Form Factor – GA-B760M-H-DDR4


- Supports Intel® Core™ 14th, 13th, and 12th Gen processors for powerful performance.
- Up to 64GB DDR4 memory at speeds up to 3200MHz for smooth multitasking.
- PCIe 4.0 x16 and M.2 slots for fast SSD storage and efficient expansion.
- Realtek® Audio CODEC for high-definition, multi-channel sound and S/PDIF out support.
- Multiple USB ports and Gigabit Ethernet for superior connectivity and performance.
- Supports HDMI 2.1 and D-Sub for clear and vibrant video output.
- Micro ATX form factor, ideal for compact builds without compromising performance.
Description
The GIGABYTE B760M H DDR4 motherboard is designed to offer exceptional performance and reliability, making it the perfect choice for users building a high-performance PC. With support for the latest 14th, 13th, and 12th generation Intel® Core™ processors, this motherboard ensures that your system can handle the most demanding tasks with ease.
Equipped with the Intel® B760 Express Chipset, this motherboard offers powerful connectivity, featuring PCIe 4.0 x16 slots and multiple M.2 connectors to support NVMe SSDs for lightning-fast storage speeds. The board also includes robust memory support with up to 64GB DDR4 memory at speeds of up to 3200MHz, ensuring smooth multitasking and system stability.
When it comes to graphics, the B760M H DDR4 does not disappoint. It provides support for Intel® HD Graphics, with outputs for D-Sub and HDMI, delivering crisp visuals and support for resolutions up to 4096×2160 at 60Hz. This makes it ideal for both casual users and gamers alike, offering a solid foundation for smooth graphics rendering and multitasking.
For audio, the motherboard features Realtek® Audio CODEC, providing high-definition, multi-channel sound for an immersive experience. Coupled with support for S/PDIF out, it allows you to enjoy a rich audio experience whether you’re gaming, streaming, or creating content.
The B760M H DDR4 also features a range of practical connectivity options, including multiple USB ports, Ethernet for stable networking, and advanced monitoring features. Whether you’re building a gaming rig, home office setup, or content creation workstation, the B760M H DDR4 offers the performance, connectivity, and reliability you need to stay ahead of the competition.
Specification | Details |
---|---|
Model | GIGABYTE B760M H DDR4 |
Chipset | Intel® B760 Express Chipset |
CPU | LGA1700 socket: Supports Intel® Core™ 14th, 13th, and 12th Gen, Pentium® Gold, Celeron® processors |
Memory | 2 x DDR4 DIMM sockets, Up to 64GB, Supports DDR4 3200/3000/2933/2666/2400/2133 MT/s |
Onboard Graphics | 1 x D-Sub, 1 x HDMI, max resolution 4096x2160@60Hz, Supports HDMI 2.1 |
Audio | Realtek® Audio CODEC, 2/4/5.1/7.1-channel audio, S/PDIF Out |
LAN | Realtek® GbE LAN chip, 1 Gbps/100 Mbps |
Expansion Slots | 1 x PCIe x16 slot (PCIe 4.0), 1 x PCIe x1 slot (PCIe 3.0) |
Storage Interface | 1 x M.2 connector (PCIe 4.0), 1 x M.2 connector (PCIe 4.0), 4 x SATA 6Gb/s connectors |
USB Ports | 6 x USB 3.2 Gen 1, 6 x USB 2.0/1.1, 4 on the back panel |
Internal I/O Connectors | 1 x 24-pin ATX, 1 x 8-pin ATX 12V, 1 x CPU fan header, 2 x system fan headers, 1 x RGB LED header, 2 x M.2 connectors |

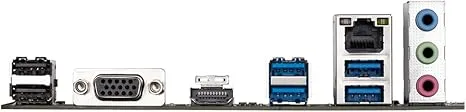

Back Panel Connectors | 2 x USB 2.0, 1 x D-Sub, 1 x HDMI, 4 x USB 3.2, 1 x RJ-45, 3 x audio jacks |
I/O Controller | iTE® I/O Controller Chip |
Operating System Support | Supports Windows 11 64-bit, Windows 10 64-bit |
Form Factor | Micro ATX, 23.0cm x 21.5cm |
Additional information
Weight | 1.7 kg |
---|---|
Dimensions | 31 × 29 × 8 cm |
Brand | Gigabyte |
Socket | LGA 1700 CPU |
Desktop RAM | DDR4 |
