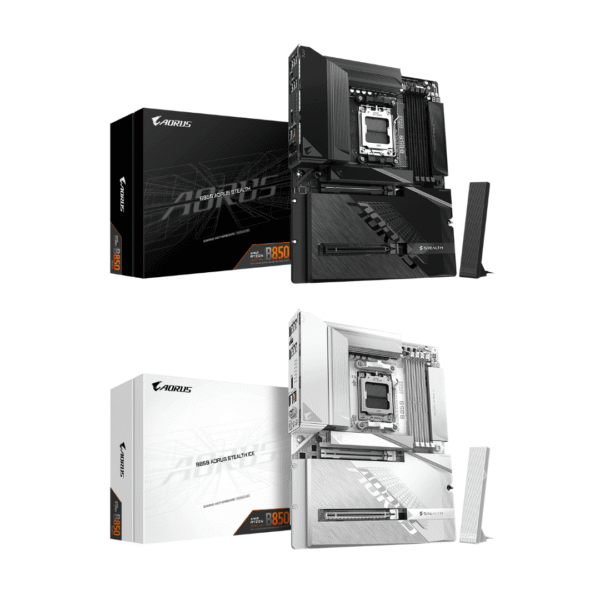

GIGABYTE B850 AORUS STEALTH AMD B850 AM5 ATX Motherboard DDR5 WiFi 7 PCIe 5.0 – GA-B850-A-STEALTH | GA-B850-A-STEALTH-ICE
Price range: ₱14,995.00 through ₱16,895.00
- Stealth Design: Reverse connectors for zero cable clutter (Requires compatible chassis).
- Supports AMD Ryzen™ 9000/8000/7000 Series Processors (AM5).
- Twin 14+2+2 Digital VRM Design (80A SPS) for robust power delivery.
- X3D Turbo Mode & AI Overclocking for superior gaming performance.
- Supports DDR5 memory up to 8200(OC) MT/s.
- 1x PCIe 5.0 x16 slot & 2x PCIe 5.0 x4 M.2 slots.
- Next-Gen Networking: Wi-Fi 7 (802.11be) & 5GbE LAN.
- Advanced Cooling: VRM Thermal Armor, M.2 EZ-Flex, and Thermal Guards.
- DIY Friendly: PCIe EZ-Latch Plus, M.2 EZ-Latch Click, WIFI EZ-Plug.
- SKU (Black): GA-B850-A-STEALTH

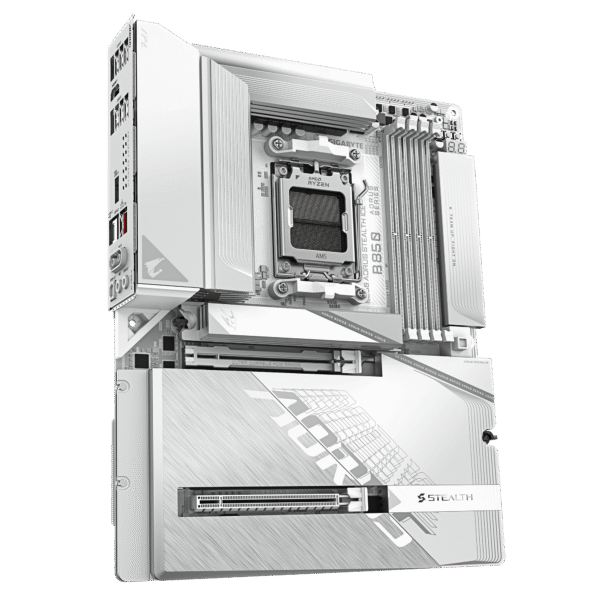

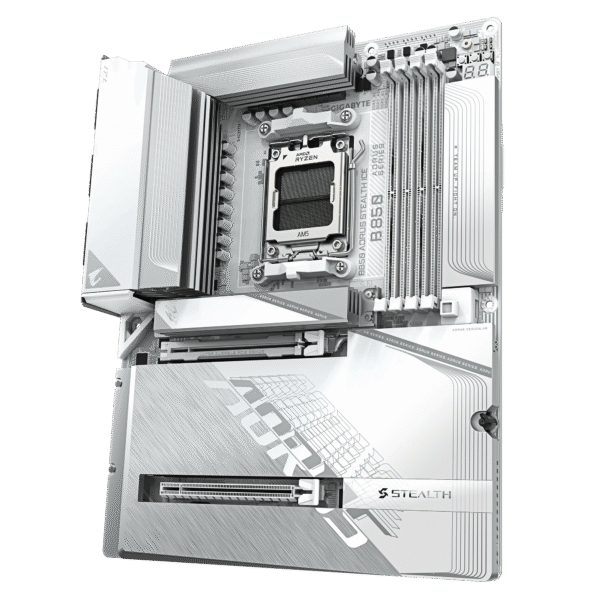

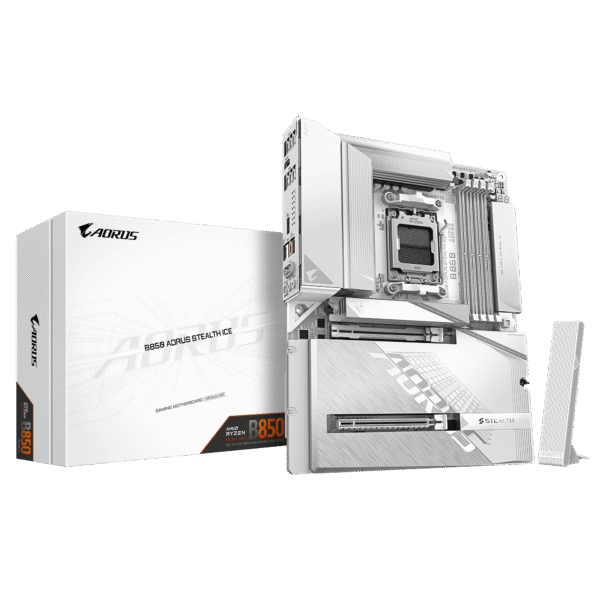

- SKU (White): GA-B850-A-STEALTH-ICE
Restock & Price Alerts
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified

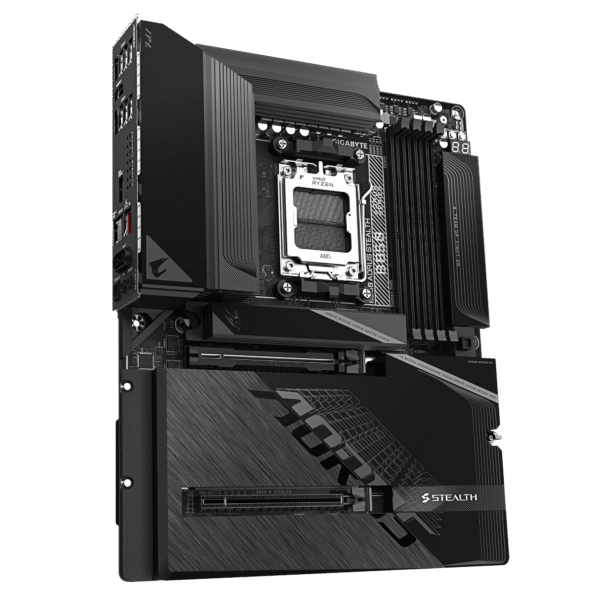

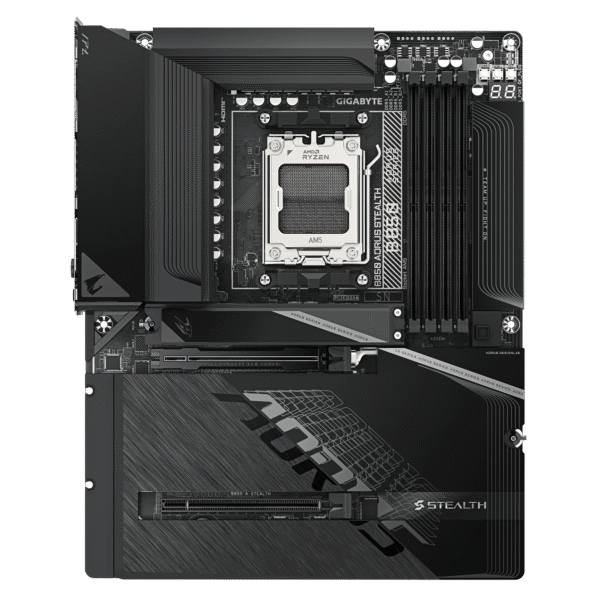

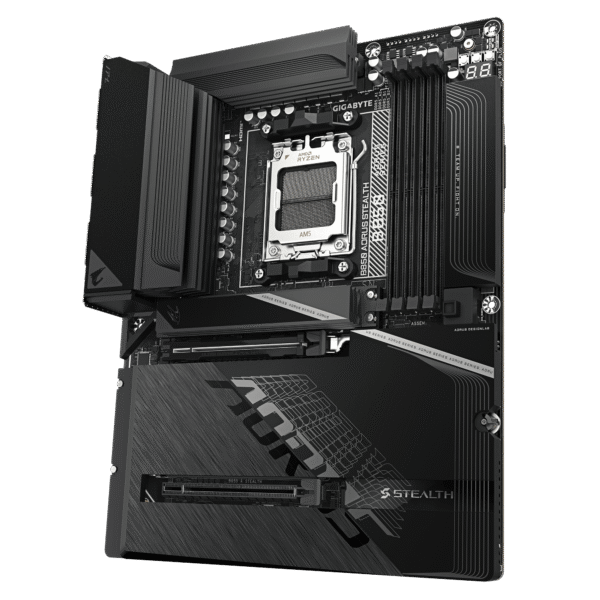

Redefine your gaming setup with the GIGABYTE B850 AORUS STEALTH, a revolutionary ATX motherboard that combines extreme performance with the cleanest aesthetic possible. This board features the innovative “Stealth” reverse-connector design, where nearly all cable connections—including power, storage, and fans—are moved to the back of the PCB. This eliminates cable clutter in the main chamber, improving airflow and showcasing your components in their full glory without obstruction. Optimized for the AMD AM5 platform, it supports the latest Ryzen™ 9000, 8000, and 7000 Series processors and is backed by a powerful Twin 14+2+2 Digital VRM solution with 80A Smart Power Stages, ensuring stability even during intense overclocking.
The AORUS STEALTH is packed with future-proof technologies to maximize your gaming potential. It boasts blazing-fast connectivity with Wi-Fi 7 and 5GbE LAN, alongside a PCIe 5.0 x16 slot reinforced with Ultra Durable armor for heavy graphics cards. Storage performance is unmatched with four M.2 slots, including two running at PCIe 5.0 speeds for instantaneous data transfer. Exclusive features like X3D Turbo Mode deliver up to an 18% boost in gaming performance, while the D5 Bionic Corsa AI technology pushes DDR5 memory speeds up to 8200+ MT/s. With premium DIY-friendly additions like the screwless PCIe EZ-Latch Plus, M.2 EZ-Latch Click, and the magnetic WIFI EZ-Plug, building a high-performance, clutter-free PC has never been easier.
| Platform & Design | |
|---|---|
| Model Name | GIGABYTE B850 AORUS STEALTH |
| Form Factor | ATX (30.5cm x 24.4cm) |

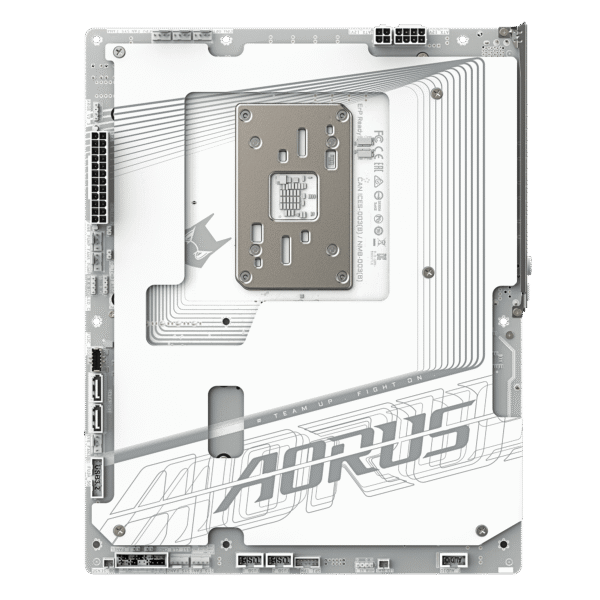

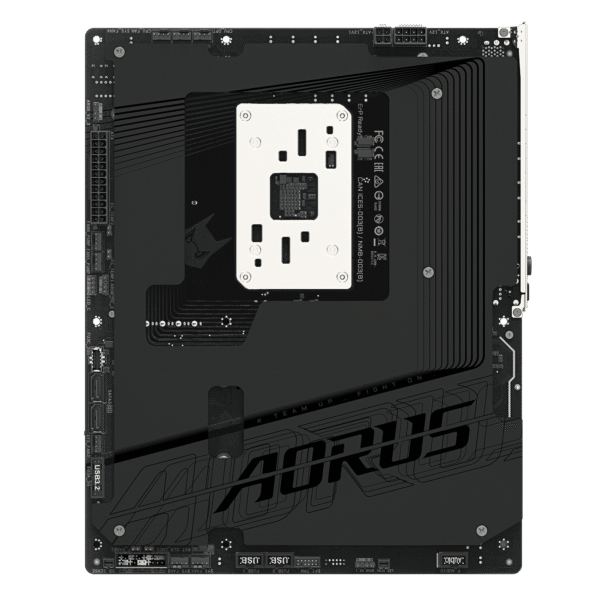

| Design Concept | Stealth / Reverse-Connector Design (Requires Compatible Chassis) |
| Processor Support | AMD Socket AM5: Supports AMD Ryzen™ 9000 / 8000 / 7000 Series Processors |
| Chipset | AMD B850 |
| Power & Performance | |
| VRM Design | Twin 14+2+2 Digital VRM Design (SPS 80A VCORE) |
| PCB Layering | 6-Layer 2X Copper Mid-Loss PCB |
| Memory Support | 4 x DDR5 DIMM Sockets (Dual Channel) |
| Max Memory Capacity | Up to 256 GB |
| Memory Speed (OC) | Up to 8200(OC) MT/s |
| Performance Tech | X3D Turbo Mode, D5 Bionic Corsa, AI Overclocking |
| Expansion & Storage | |
| PCIe x16 Slot (CPU) | 1 x PCIe 5.0 x16 (Supports PCIe 4.0 on Ryzen 8000 Series) with PCIe UD Slot Armor |
| PCIe x16 Slot (Chipset) | 1 x PCIe 4.0 x16 (Running at x4 mode) |
| M.2 Connectors (Gen 5) | 2 x M.2 PCIe 5.0 x4/x2 (M2A_CPU, M2B_CPU) |
| M.2 Connectors (Gen 4) | 2 x M.2 PCIe 4.0 x4/x2 (M2C_SB, M2D_SB) |
| SATA Ports | 2 x SATA 6Gb/s |
| RAID Support | RAID 0, 1, 5, 10 (NVMe) / RAID 0, 1 (SATA) |
| Connectivity & Audio | |
| Ethernet LAN | Realtek® 5GbE LAN (5/2.5/1 Gbps) |
| Wireless | Realtek® Wi-Fi 7 RTL8922AE (802.11be, 320MHz), Bluetooth 5.4 |
| Audio Codec | Realtek® ALC1220 High Definition Audio (2/4/5.1/7.1-channel, DSD support) |

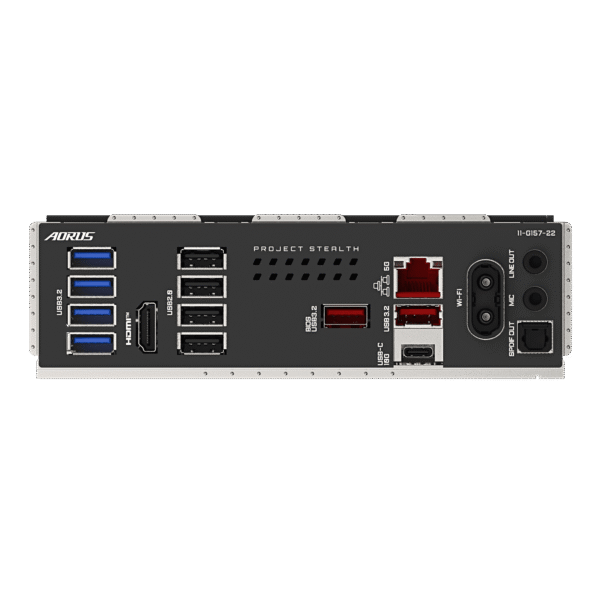

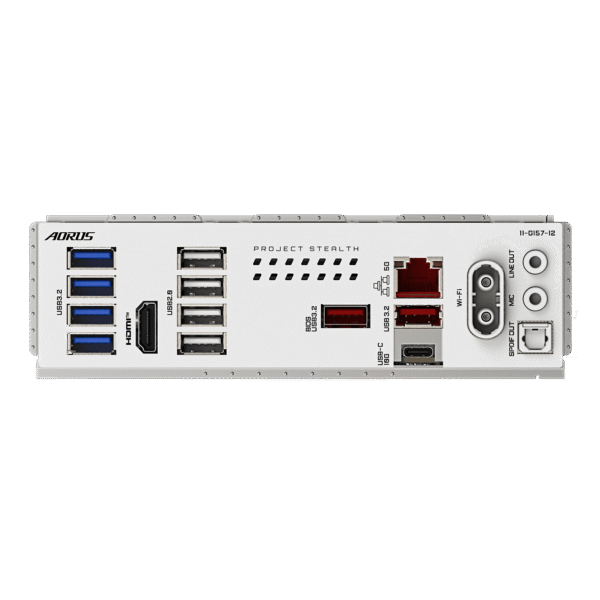

| Rear USB Ports | 1 x USB-C (3.2 Gen 2), 2 x USB-A (3.2 Gen 2), 4 x USB 3.2 Gen 1, 4 x USB 2.0 |
| Internal USB Headers | 1 x USB-C (3.2 Gen 2x2), 1 x USB 3.2 Gen 1, 2 x USB 2.0 (Supports 4 ports) |
| Cooling & DIY Features | |
| Thermal Solution | VRM Thermal Armor Advanced, M.2 Thermal Guard L, M.2 Thermal Guard Ext., M.2 EZ-Flex |
| DIY Friendly | Reverse-Connectors, PCIe EZ-Latch Plus, M.2 EZ-Latch Click/Plus, WIFI EZ-Plug, EZ Debug Zone |
| Fan Headers | 1 x CPU Fan, 1 x CPU/Pump, 4 x Sys Fan, 2 x Sys Fan/Pump |
| RGB Headers | 3 x Addressable RGB Gen2, 1 x RGB LED Strip |
| Packaging Weight | 3.8 kg |
|---|---|
| Packaging Dimensions (L×W×H) | 37 × 34 × 13 cm |
| Brand | Gigabyte |
| Desktop RAM | DDR5 |
| Socket | AM5 CPU |
| Color | Black, Ice |
