Gigabyte B850M FORCE WIFI6E AM5 Micro ATX Motherboard DDR5 9600MT/s PCIe 5.0 Wi-Fi 6E 2.5GbE LAN – GA-B850M-FORCE-WF6E
Out of stock. A new and better alternative is available below.
Check out these alternatives:
Out of stock. A new and better alternative is available below.
Receive instant alert when this product becomes available!
Add to Wishlist
Add to Wishlist
Complete Your Build
This item: Gigabyte B850M FORCE WIFI6E AM5 Micro ATX Motherboard DDR5 9600MT/s PCIe 5.0 Wi-Fi 6E 2.5GbE LAN - GA-B850M-FORCE-WF6E
Out of stock. A new and better alternative is available below.
Original price was: ₱10,500.00.₱8,195.00Current price is: ₱8,195.00.
Original price was: ₱10,500.00.₱8,195.00Current price is: ₱8,195.00.
1 × Crucial T500 1TB Gen4 NVMe M.2 Internal Gaming SSD, Up to 7300MB/s, Laptop & Desktop Compatible - CT1000T500SSD8
In Stock
₱10,495.00
Original price was: ₱21,200.00.₱18,495.00Current price is: ₱18,495.00.
Original price was: ₱24,300.00.₱21,195.00Current price is: ₱21,195.00.
Original price was: ₱12,760.00.₱12,495.00Current price is: ₱12,495.00.
1 × AMD Ryzen 5 7500F 6-core 12-thread Gaming Desktop Processor without Cooler No iGPU Tray Type - 100-000000597
In Stock
Original price was: ₱11,995.00.₱8,795.00Current price is: ₱8,795.00.
- Supports AMD Ryzen 9000/8000/7000 CPUs with DDR5 up to 9600 MT/s
- Wi-Fi 6E, Bluetooth 5.3, and 2.5GbE LAN for high-speed connectivity
- Three M.2 slots with PCIe 5.0 x4 and four SATA 6Gb/s with RAID support
- PCIe 5.0 x16 slot and dual display outputs (HDMI 2.1, DisplayPort 1.4)
- X3D Turbo Mode for up to 18% gaming FPS boost with one-click activation
- Retro orange and white design with 5-year warranty for lasting reliability
Description
Gigabyte B850M FORCE WIFI6E – High-Performance Micro ATX Motherboard for AMD Ryzen Builds
Power up your gaming or professional PC with the Gigabyte B850M FORCE WIFI6E, a Micro ATX motherboard designed for AMD Ryzen 9000, 8000, and 7000 Series processors on the AM5 socket. Built with the AMD B850 chipset, it supports DDR5 memory up to 9600 MT/s (OC) across two DIMM slots, offering up to 128GB capacity for seamless multitasking and high-performance gaming. The distinctive orange and white aesthetic, a revival of Gigabyte’s iconic SOC Force series, adds a bold retro flair to modern builds. Equipped with an 8+2+2 phase digital VRM and advanced thermal design with heatsinks, it ensures stable power delivery and cooling for demanding workloads. Storage is robust with three M.2 slots, including PCIe 5.0 x4 support, and four SATA 6Gb/s connectors with RAID 0, 1, 5, and 10 capabilities for flexible configurations. Connectivity excels with Wi-Fi 6E, Bluetooth 5.3, and 2.5GbE LAN for ultra-fast networking, complemented by USB 3.2 Gen 1 and Gen 2 ports, including Type-C. The PCIe 5.0 x16 slot supports the latest GPUs, while dual display outputs via HDMI 2.1 (4K@60Hz) and DisplayPort 1.4 (4K@144Hz) deliver vibrant visuals. Features like X3D Turbo Mode boost gaming performance by up to 18% with one-click activation, and DIY-friendly additions such as Q-Flash Plus and EZ-Latch simplify setup. Backed by a 5-year warranty, this motherboard combines retro style, modern performance, and reliability for gamers and enthusiasts alike.
[](https://pcpartpicker.com/product/F88Pxr/gigabyte-b850m-force-wifi6e-micro-atx-am5-motherboard-b850m-force-wf6e)[](https://www.techpowerup.com/337906/gigabyte-launches-b850m-force-microatx-motherboards-reviving-orange-force-series-for-amd-am5-processors)
| Specification | Details |
|---|---|
| CPU | AMD Socket AM5, support for: AMD Ryzen 9000 Series Processors / AMD Ryzen 8000 Series Processors / AMD Ryzen 7000 Series Processors (Refer to GIGABYTE's website for the latest CPU support list) |
| Chipset | AMD B850 |
| Memory | Support for DDR5 9600(OC)/9200(OC)/8800(OC)/8600(OC)/8400(OC)/8200(OC)/8000(OC)/7800(OC)/7600(OC)/7200(OC)/7000(OC)/6800(OC)/6666(OC)/6600(OC)/6400(OC)/6200(OC)/6000(OC)/5600(OC)/5200/4800/4400 MT/s memory modules, 2 x DDR5 DIMM sockets supporting up to 128 GB (64 GB single DIMM capacity) of system memory, Dual channel memory architecture, Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules, Support for AMD EXtended Profiles for Overclocking (AMD EXPO) and Extreme Memory Profile (XMP) memory modules (CPU and memory configuration may affect supported memory types, data rate, and number of DRAM modules, refer to GIGABYTE's website for Memory Support List) |
| Onboard Graphics | Integrated Graphics Processor with AMD Radeon Graphics support: 1 x HDMI port, supporting a maximum resolution of 4096x2160@60 Hz (Support for HDMI 2.1 version, HDCP 2.3, and HDR, Support for native HDMI 2.1 TMDS compatible ports), 1 x DisplayPort, supporting a maximum resolution of 3840x2160@144 Hz (Support for DisplayPort 1.4 version) (Graphics specifications may vary depending on CPU support) |
| Audio | Realtek Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel (You can change the functionality of an audio jack using the audio software. To configure 7.1-channel audio, access the audio software for audio settings) |
| LAN | Realtek 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps) |
| Wireless Communication Module | MediaTek Wi-Fi 6E MT7902: WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands, BLUETOOTH 5.3, Support for 11ax 160MHz wireless standard (Actual data rate may vary depending on environment and equipment) |
| Expansion Slots | 1 x PCI Express x16 slot (PCIEX16), integrated in the CPU: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x16 mode, AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x8 mode, AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4 mode (The PCIEX16 slot can only support a graphics card or an NVMe SSD. If only one graphics card is to be installed, be sure to install it in the PCIEX16 slot); Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) |
| Storage Interface | 1 x M.2 connector (M2A_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 5.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x4/x2 SSDs; 1 x M.2 connector (M2B_CPU), integrated in the CPU, supporting Socket 3, M key, type 2280 SSDs: AMD Ryzen 9000/7000 Series Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 1 Processors support PCIe 4.0 x4/x2 SSDs, AMD Ryzen 8000 Series-Phoenix 2 Processors support PCIe 4.0 x2 SSDs; 1 x M.2 connector (M2C_SB), integrated in the Chipset, supporting Socket 3, M key, type 2280 PCIe 4.0 x2 SSDs; 4 x SATA 6Gb/s connectors; RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices (RAID 5 is only available on AMD Ryzen 9000 Series Processors); RAID 0, RAID 1, and RAID 10 support for SATA storage devices |
| USB | CPU: 1 x USB Type-C port on the back panel, with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel, 1 x USB 2.0/1.1 port on the back panel; Chipset: 1 x USB Type-C port with USB 3.2 Gen 1 support, available through the internal USB header, 4 x USB 3.2 Gen 1 ports (2 ports on the back panel, 2 ports available through the internal USB header), 5 x USB 2.0/1.1 ports (1 port on the back panel, 4 ports available through the internal USB headers) |
| Internal I/O Connectors | 1 x 24-pin ATX main power connector, 1 x 8-pin ATX 12V power connector, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 1 x system fan header, 1 x system fan/water cooling pump header, 3 x addressable RGB Gen2 LED strip headers, 1 x RGB LED strip header, 3 x M.2 Socket 3 connectors, 4 x SATA 6Gb/s connectors, 1 x front panel header, 1 x front panel audio header, 1 x USB Type-C header with USB 3.2 Gen 1 support, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI V2 module only), 1 x reset jumper, 1 x Clear CMOS jumper, 1 x Q-Flash Plus button |

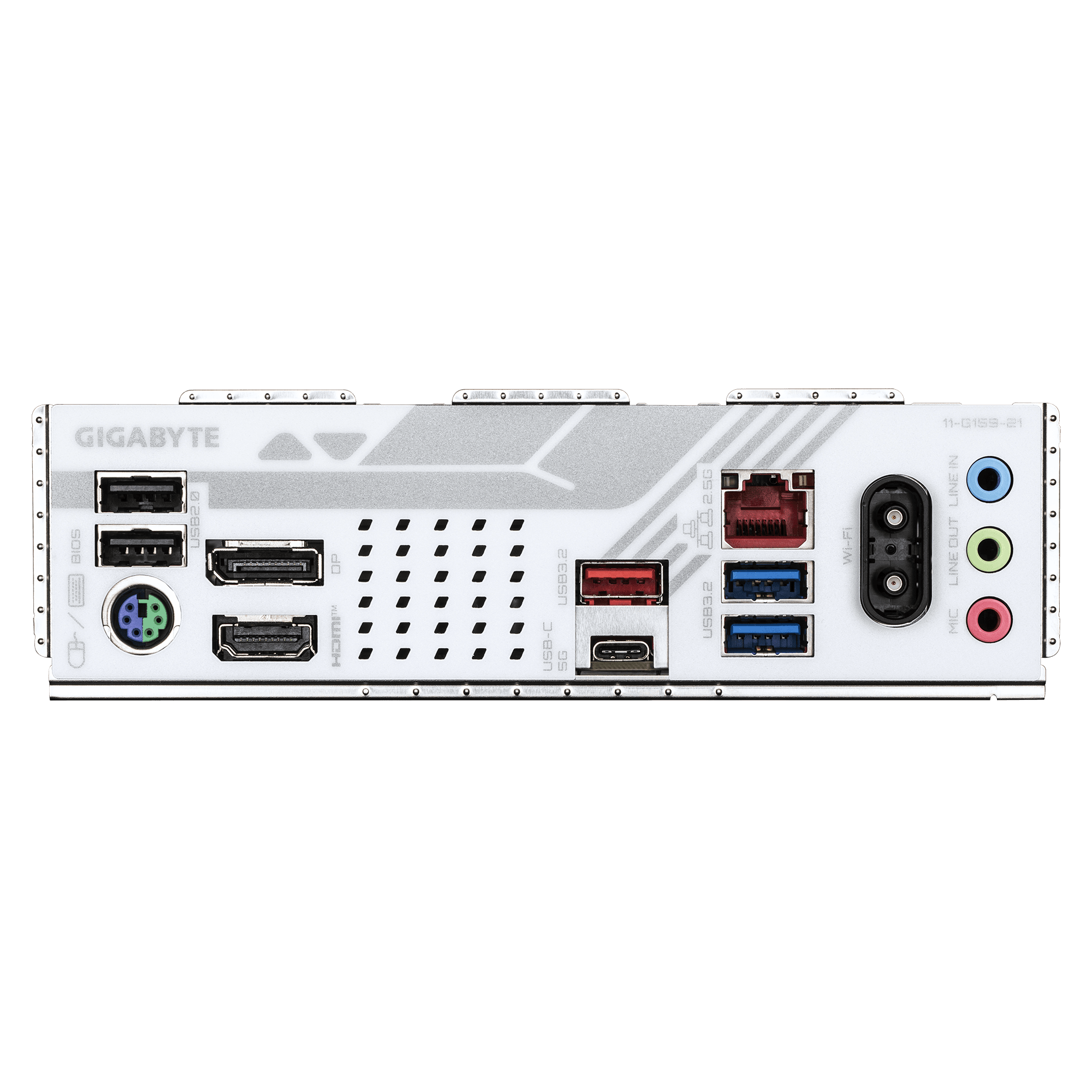

| Back Panel Connectors | 1 x HDMI port (Actual support may vary by CPU), 1 x DisplayPort (Actual support may vary by CPU), 1 x PS/2 keyboard/mouse port, 1 x USB Type-C port with USB 3.2 Gen 1 support, 2 x USB 3.2 Gen 1 ports, 1 x USB 3.2 Gen 2 Type-A port (red), 2 x USB 2.0/1.1 ports, 1 x RJ-45 port, 2 x antenna connectors (1T1R), 3 x audio jacks |
| I/O Controller | iTE I/O Controller Chip |
| H/W Monitoring | Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control (Whether the fan/pump speed control function is supported will depend on the fan/pump you install) |
| BIOS | 1 x 256 Mbit flash, Use of licensed AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0 |
| Unique Features | Support for GIGABYTE Control Center (GCC) (Available applications in GCC may vary by motherboard model. Supported functions of each application may also vary depending on motherboard specifications), Support for Q-Flash, Support for Q-Flash Plus, Support for Smart Backup |
| Bundled Software | Norton Internet Security (OEM version) |
| Operating System | Support for Windows 11 64-bit, Support for Windows 10 64-bit |
| Form Factor | Micro ATX Form Factor; 24.4cm x 24.4cm |
Additional information
| Weight | 1 kg |
|---|---|
| Dimensions | 40 × 30 × 4 cm |
| Brand | Gigabyte |
| Desktop RAM | DDR5 |
| Socket | AM5 CPU |
