₱10,800.00Original price was: ₱10,800.00.₱9,395.00Current price is: ₱9,395.00.
Supports Intel Core Ultra processors (Series 2) with LGA1851 socket
Dual-channel DDR5 up to 9066 MT/s (OC) with D5 Bionic Corsa AI overclocking
PCIe 5.0 x16 slot with Ultra Durable shielding and PCIe 5.0/4.0 M.2 slots
WiFi 6 and 2.5GbE LAN for fast, reliable networking
Comprehensive cooling with VRM heatsinks, M.2 Thermal Guard, and Smart Fan 6
High-end audio with noise guard and premium capacitors
DIY-friendly with WIFI EZ-Plug, M.2 EZ-Latch, and Q-Flash Plus
SKU: GA-B860M-EAGLE-WIFI6-V2
Out of stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
⚠️ That's a steep drop! You might be waiting a while.
We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!
🔓 Sign in to unlock full price history charts and manage your alerts.

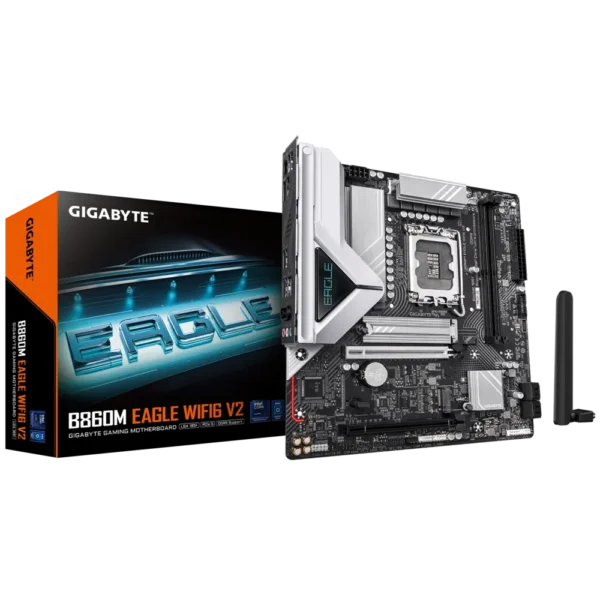

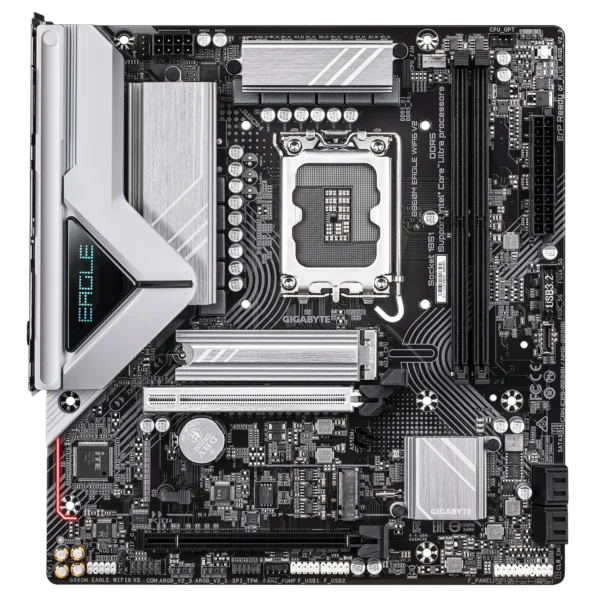

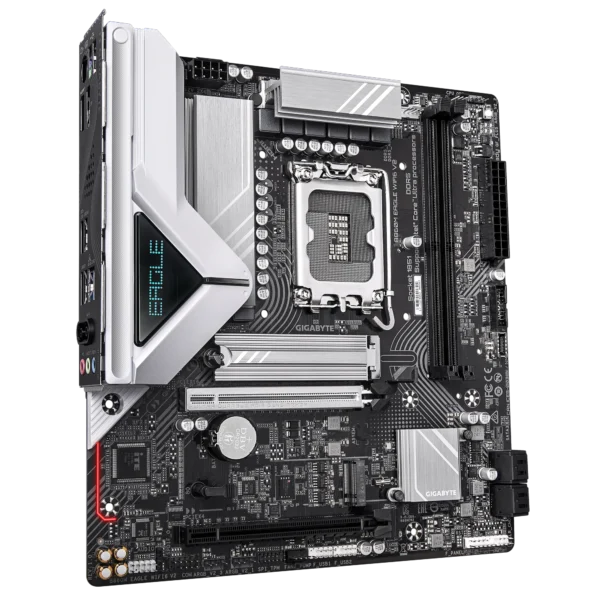

The GIGABYTE B860M EAGLE WIFI6 V2 motherboard offers cutting-edge performance for Intel Core Ultra processors (Series 2), delivering a robust platform for gaming and advanced computing. Its Micro ATX design supports dual-channel DDR5 memory with D5 Bionic Corsa AI-enhanced overclocking, reaching speeds up to 9066 MT/s (OC) for exceptional responsiveness. The motherboard features a PCIe 5.0 x16 slot with Ultra Durable shielding and a PCIe 5.0 M.2 slot for high-speed storage and GPU performance, complemented by a PCIe 4.0 M.2 slot and four SATA 6Gb/s ports. WiFi 6 and 2.5GbE LAN provide fast, reliable networking for seamless online experiences. Comprehensive cooling with large VRM heatsinks, M.2 Thermal Guard, and Smart Fan 6 ensures optimal thermal performance. High-end audio capacitors and noise guard technology deliver immersive sound. DIY-friendly features like WIFI EZ-Plug, M.2 EZ-Latch Click, and Q-Flash Plus simplify assembly and upgrades, while RGB Fusion enables vibrant customization. With a 6+1+2 digital VRM design and AI-driven BIOS optimization, this motherboard combines durability, advanced connectivity, and user-friendly features for high-performance builds.
Specification
GIGABYTE B860M EAGLE WIFI6 V2
CPU
LGA1851 socket: Support for Intel® Core™ Ultra Processors
Chipset
Intel® B860 Express Chipset
Memory
2 x DDR5 DIMM sockets, max. 128GB (64GB single DIMM), Supports DDR5 9066(O.C)/8800(O.C)/8600(O.C)/8400(O.C)/8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400/5600 MT/s, Dual Channel, ECC/Non-ECC Un-buffered DIMM, XMP
Onboard Graphics
1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 1 x DisplayPort (3840x2160@144Hz, DisplayPort 2.1)
Audio
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, Audio Noise Guard, High-End Audio Capacitors, S/PDIF Out
1 x PCIe 5.0 x16 (CPU), 1 x PCIe 4.0 x16 (x4 mode, Chipset)
Storage Interface
1 x M.2 (2280, PCIe 5.0 x4/x2, CPU), 1 x M.2 (2280, PCIe 4.0 x4/x2, Chipset), 4 x SATA 6Gb/s, Supports RAID 0/1/5/10 for SATA
USB
1 x USB 3.2 Gen 1 Type-C (via header), 5 x USB 3.2 Gen 1 (3 back, 2 via header), 3 x USB 2.0/1.1 (back), 4 x USB 2.0/1.1 (via headers)
Internal I/O Connectors
1 x 24-pin ATX power, 1 x 8-pin ATX 12V power, 1 x CPU fan header, 1 x CPU fan/water cooling pump header, 1 x system fan header, 1 x system fan/water cooling pump header, 3 x addressable RGB Gen2 headers, 2 x M.2, 4 x SATA 6Gb/s, 1 x front panel header, 1 x front panel audio header, 1 x S/PDIF Out header, 1 x USB 3.2 Gen 1 Type-C header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 1 x TPM header, 1 x serial port header, 1 x Q-Flash Plus button, 1 x reset jumper, 1 x Clear CMOS jumper

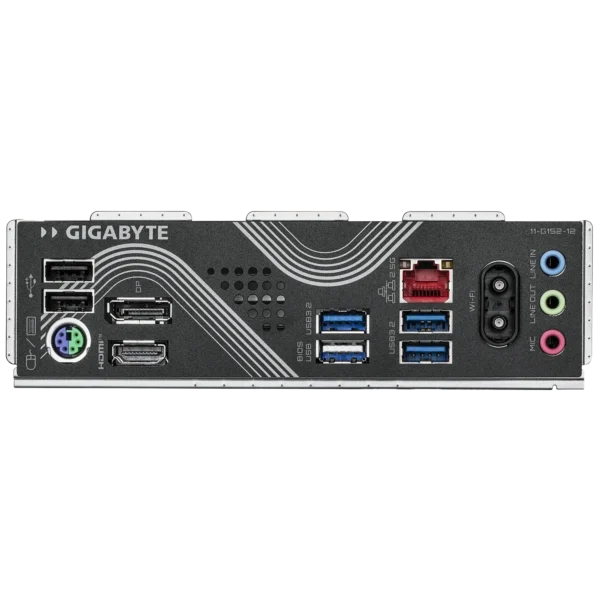

Back Panel Connectors
1 x PS/2 keyboard/mouse, 1 x HDMI, 1 x DisplayPort, 3 x USB 3.2 Gen 1, 3 x USB 2.0/1.1, 2 x antenna connectors (2T2R), 1 x RJ-45, 3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control
BIOS
1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
