- Colorful GTX 1650 NB 4GD6-V
- Specifications
- SKU: PH2120011
- Chip Series GeForce® GTX 1650
- Product Series Colorful Series
- GPU Code Name TU117
- Manufacturing Process 12nm
- CUDA Cores 896
- Core Clock Base:1410Mhz;Boost:1710Mhz
- One-Key OC /
- Memory Speed Grade 12Gbps
- Memory Size 4GB
- Memory Bus Width 128bit
- Memory Type GDDR6
- Memory Bandwidth 192GB/s
- Power Connector 6pin
- Power Supply 3+1
- TDP 75W
- Display Ports DP+HDMI+DVI
- Fans Type FAN
- Heat Pipe Number/Spec N
- Auto Stop Technology N
- Power Suggest 400W
- DirectX 12.1/4.5
- NV technology Support Ansel, GPU Boost
- Custom Backplate Size 22 x 10 x 0.2
- Slot Number 2 slot
- 1 Year Warranty

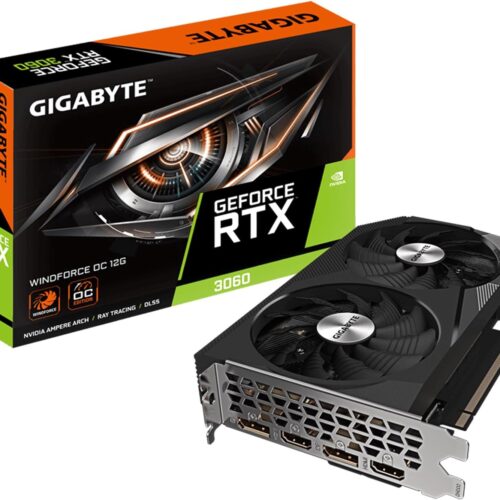

GIGABYTE GeForce RTX 3060 WINDFORCE OC 12G (rev. 2.0) Graphics Card, 2X WINDFORCE Fans, 12GB 192-bit GDDR6, GV-N3060WF2OC-12GD Rev2.0 Video Card
- NVIDIA GeForce RTX 3060 with 12GB GDDR6 memory for top-tier gaming performance
- Core clock speed of 1792 MHz with 3584 CUDA cores for efficient processing
- Supports up to 4 displays with a maximum resolution of 7680×4320
- WINDFORCE cooling system with dual fans for optimal thermal performance
- Compact design suitable for most builds, with PCI-E 4.0 interface
- Requires 550W PSU with a single 8-pin connector
Description
The GIGABYTE GeForce RTX 3060 WINDFORCE OC 12G (Rev. 2.0) Graphics Card delivers powerful gaming performance and exceptional graphics rendering. With 3584 CUDA cores and a core clock of 1792 MHz, this card is designed to handle the latest AAA games and intensive applications. The 12GB GDDR6 memory, coupled with a 192-bit memory bus and 360 GB/s bandwidth, ensures smooth multitasking and high-resolution gameplay.
This graphics card features GIGABYTE’s WINDFORCE cooling system, which uses two fans to maintain optimal temperatures, even during long gaming sessions. The compact design of L=198 W=121 H=39 mm makes it suitable for most gaming builds, while the PCI-E 4.0 interface provides fast data transfer rates. Supporting up to four displays with a maximum resolution of 7680×4320, this card is ideal for immersive gaming experiences and multi-monitor setups.
The RTX 3060 WINDFORCE OC 12G also includes advanced features like DirectX 12 Ultimate and OpenGL 4.6 support, ensuring compatibility with the latest gaming technologies. With a recommended PSU of 550W and a single 8-pin power connector, it is both powerful and energy-efficient, making it a perfect upgrade for your gaming or creative setup.
Specification | Details |
---|---|
Graphics Processing | GeForce RTX™ 3060 |
Core Clock | 1792 MHz (Reference Card: 1777 MHz) |
CUDA® Cores | 3584 |
Memory Clock | 15000 MHz |
Memory Size | 12 GB |
Memory Type | GDDR6 |
Memory Bus | 192 bit |
Memory Bandwidth | 360 GB/s |
Card Bus | PCI-E 4.0 x 16 |
Digital Max Resolution | 7680x4320 |
Multi-view | 4 |
Card Size | L=198 W=121 H=39 mm |
PCB Form | ATX |
DirectX | 12 Ultimate |
OpenGL | 4.6 |
Recommended PSU | 550W |
Power Connectors | 8 pin*1 |
Output | DisplayPort 1.4a *2, HDMI 2.1 *2 |
SLI Support | N/A |
Accessories | Quick guide |
Additional information
Weight | 1 kg |
---|---|
Dimensions | 31 × 22 × 6 cm |
