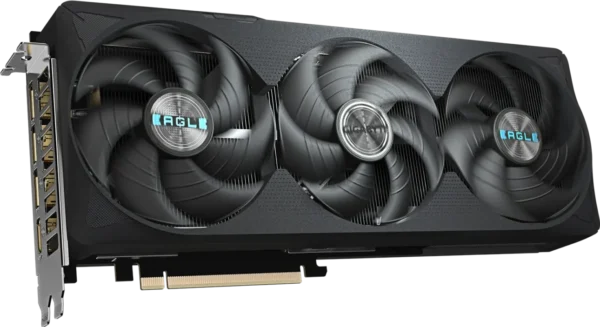

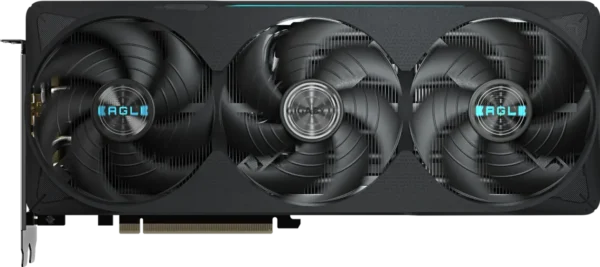

Gigabyte GeForce RTX 5070 Ti EAGLE OC SFF 16G Graphics Card – GV-N507TEAGLE-OC-16GD
Original price was: ₱63,995.00.₱58,795.00Current price is: ₱58,795.00.
- NVIDIA Blackwell Architecture: Powered by GeForce RTX 5070 Ti with DLSS 4 and Ray Tracing.
- SFF-Ready Design: Compact dimensions (304mm length) optimized for small form factor builds.
- Next-Gen Memory: 16GB GDDR7 256-bit memory interface at 28 Gbps.
- Factory Overclocked: Core Clock of 2542 MHz for superior performance.
- WINDFORCE Cooling: Features Bionic Hawk Fans, Large Copper Plate, and Server-Grade Thermal Gel.
- Durability: Ultra Durable components with a reinforced metal backplate.
- Dual BIOS: Physical switch for Performance or Silent operation modes.
- Connectivity: PCIe 5.0 interface with 3x DisplayPort 2.1b and 1x HDMI 2.1b.
- SKU: GV-N507TEAGLE-OC-16GD.
Out of stock. Important Notice: Price and specs may change upon release.
Receive instant alert when this product becomes available!
Complete Your Build:
This item: Gigabyte GeForce RTX 5070 Ti EAGLE OC SFF 16G Graphics Card - GV-N507TEAGLE-OC-16GD
Out of stock. Important Notice: Price and specs may change upon release.
Original price was: ₱63,995.00.₱58,795.00Current price is: ₱58,795.00.
Original price was: ₱63,995.00.₱58,795.00Current price is: ₱58,795.00.
Original price was: ₱26,595.00.₱25,250.00Current price is: ₱25,250.00.
1 × Seasonic Core v2 GX-750 White ATX 3.1 and PCIe 5.1 750W 80 PLUS Gold Fully Modular PSU - SRP-CGX751-A5A32SF White
In stock
Original price was: ₱6,700.00.₱5,849.00Current price is: ₱5,849.00.
1 × GAMDIAS ATLAS HD238IF III 23.8-Inch Gaming Monitor - IPS, FHD, 120Hz, 1ms MPRT - GAMDIAS ATLAS HD238IF III
In stock
Original price was: ₱5,000.00.₱4,395.00Current price is: ₱4,395.00.
1 × Viewplus MH-24HI 24" Full HD 1080p IPS 75hz 1ms VGA HDMI Flat Display Monitor
Only 1 left in stock
₱4,350.00
1 × CORSAIR SF1000 1000W SFX PC Power Supply, 80 PLUS Platinum, Fully Modular - CS-CP-9020257-NA
In stock
Original price was: ₱13,700.00.₱12,550.00Current price is: ₱12,550.00.
Compact Power: NVIDIA SFF-Ready Performance
The Gigabyte GeForce RTX™ 5070 Ti EAGLE OC SFF 16G brings the immense power of the NVIDIA Blackwell architecture to a form factor designed for modern, compact builds. As an NVIDIA SFF-Ready card, it packs high-performance specifications into a streamlined 304mm length and 50mm height, ensuring compatibility with a wider range of small form factor chassis without sacrificing power. This card is equipped with 8960 CUDA Cores and 16GB of lightning-fast GDDR7 memory running at 28 Gbps. With a factory overclock of 2542 MHz, it delivers exceptional frame rates and AI performance, fully supporting NVIDIA DLSS 4 with Multi Frame Generation and Ray Tracing for a truly next-gen gaming experience.
Advanced WINDFORCE Cooling with Server-Grade Tech

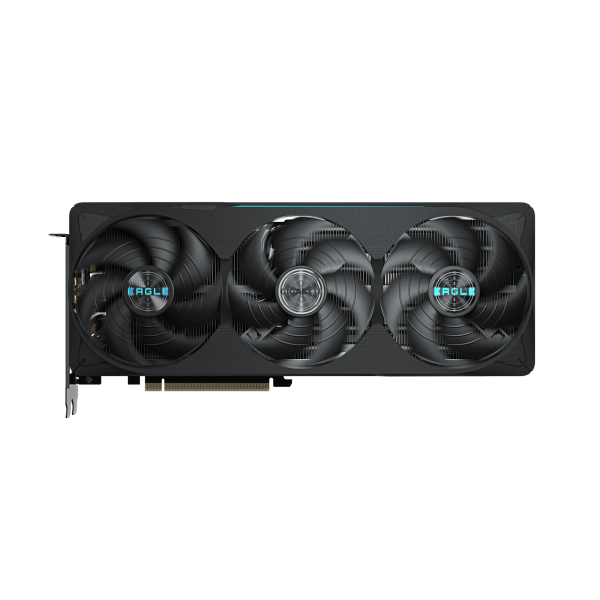

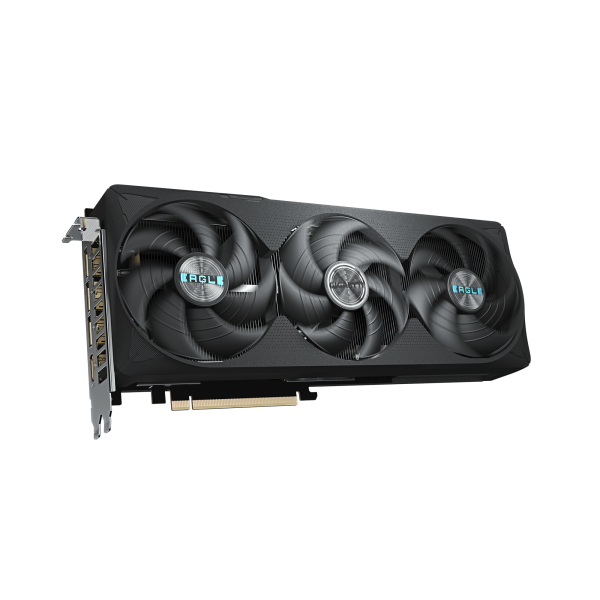

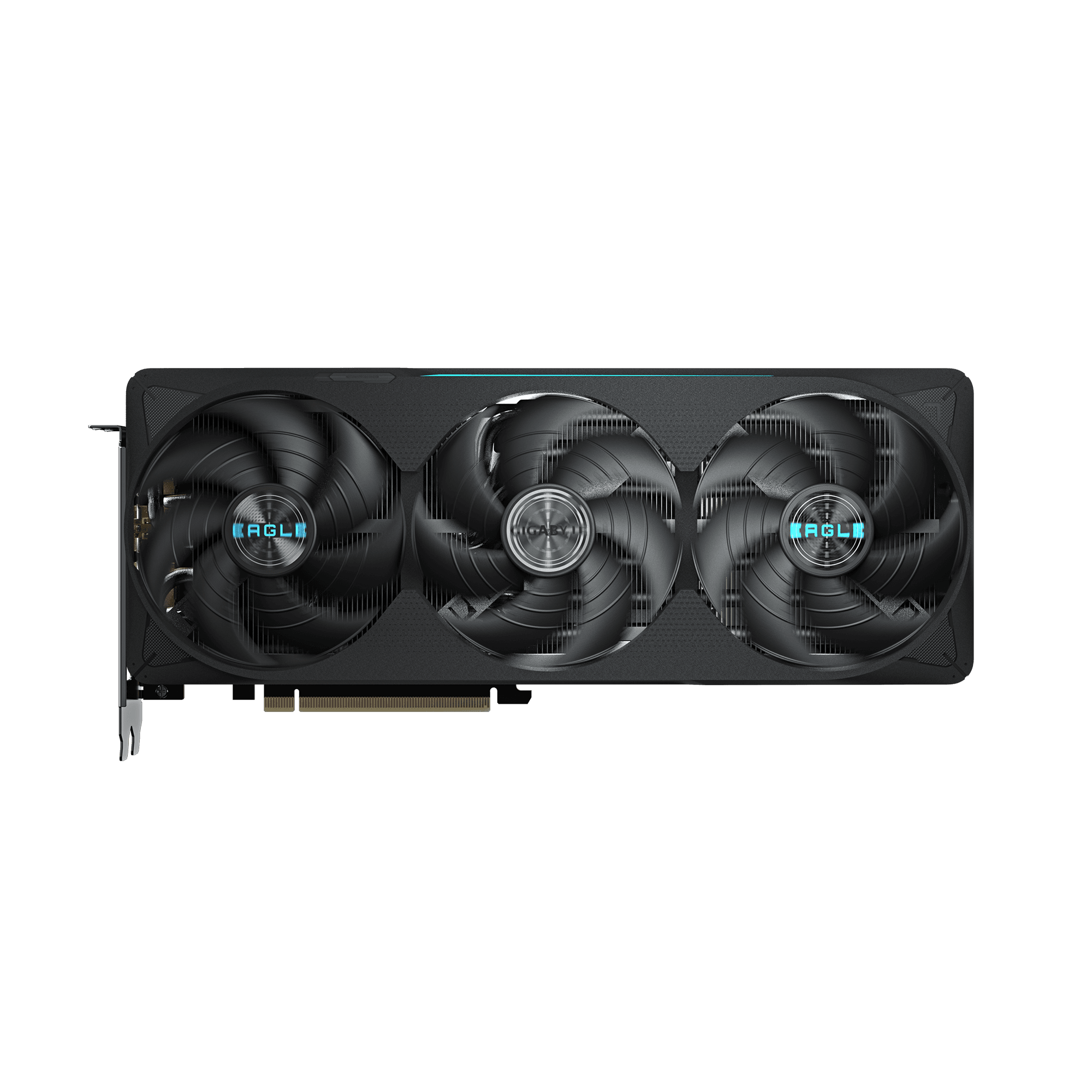

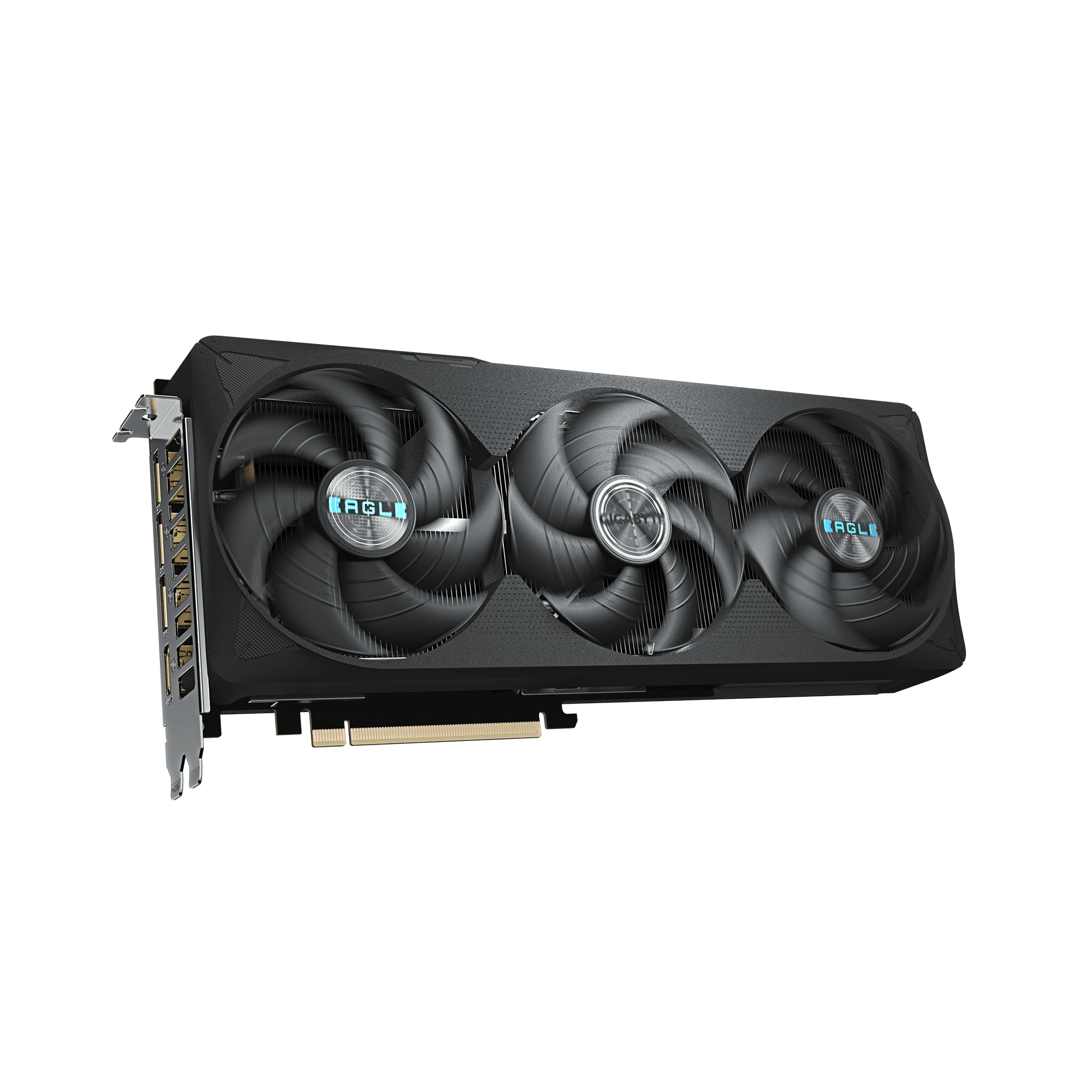

Cooling is critical in compact high-performance cards, and the EAGLE OC SFF excels with the WINDFORCE cooling system. It features three innovative “Hawk” fans with alternate spinning technology to reduce turbulence and maximize airflow pressure. Underneath, a large copper plate directly contacts the GPU and VRAM, transferring heat swiftly via composite copper heat pipes. A standout feature is the use of server-grade thermal conductive gel, which offers superior heat transfer efficiency compared to standard pastes. This, combined with Screen Cooling that allows air to pass through the heatsink, ensures the card remains cool and stable even during intense workloads.
Aerospace-Inspired Design and Durability

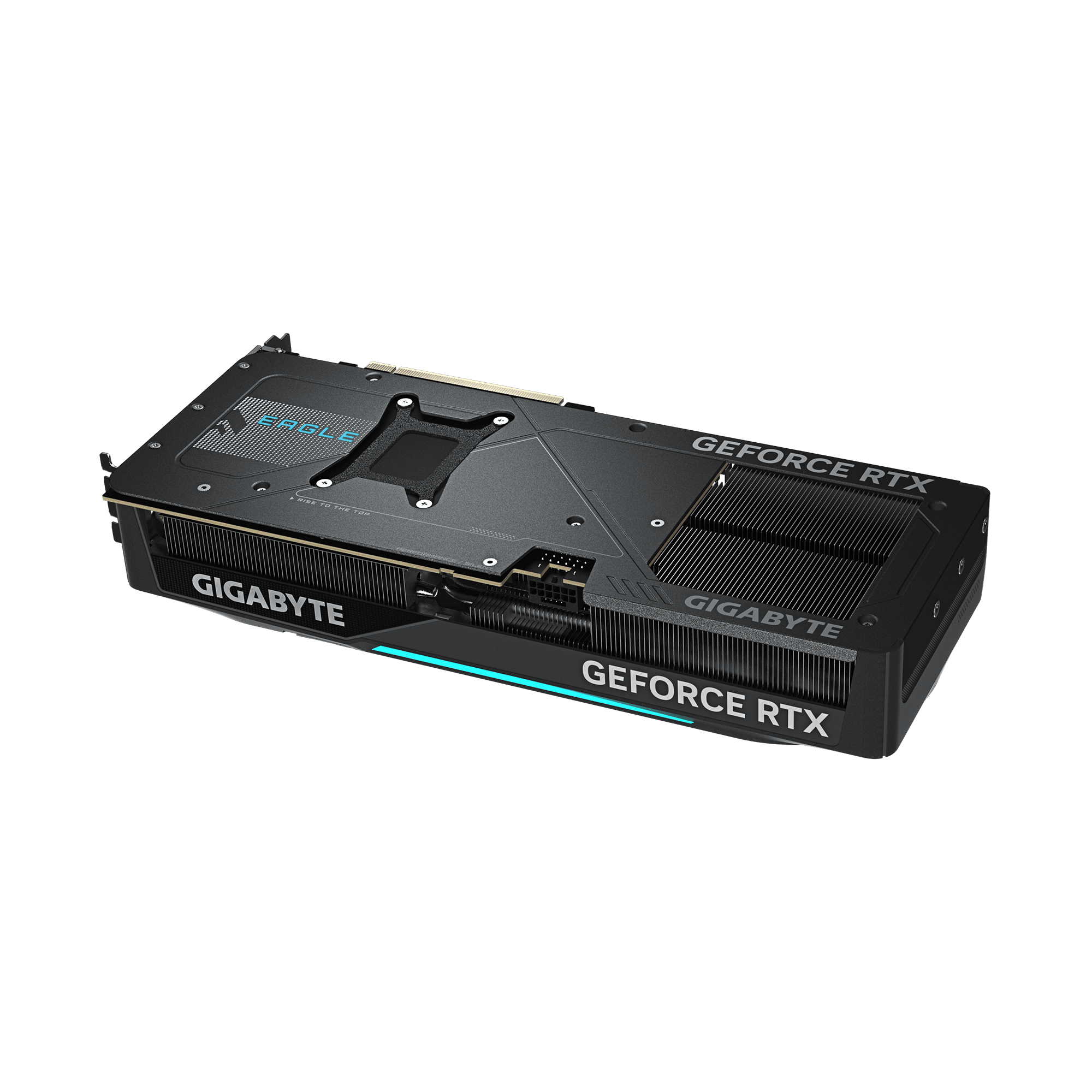

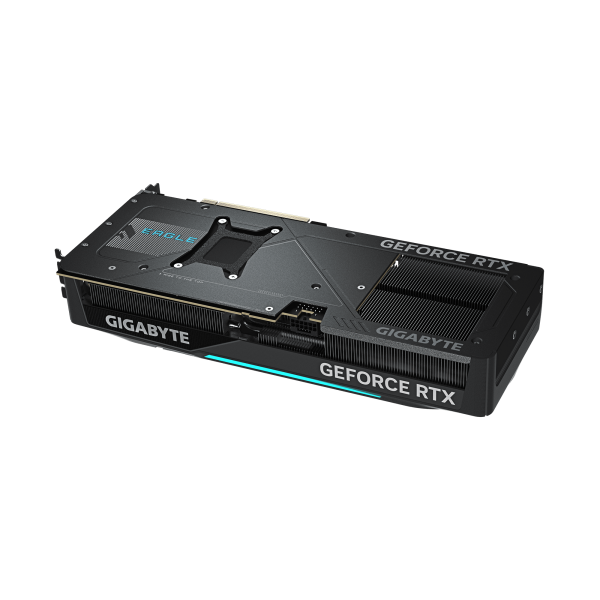

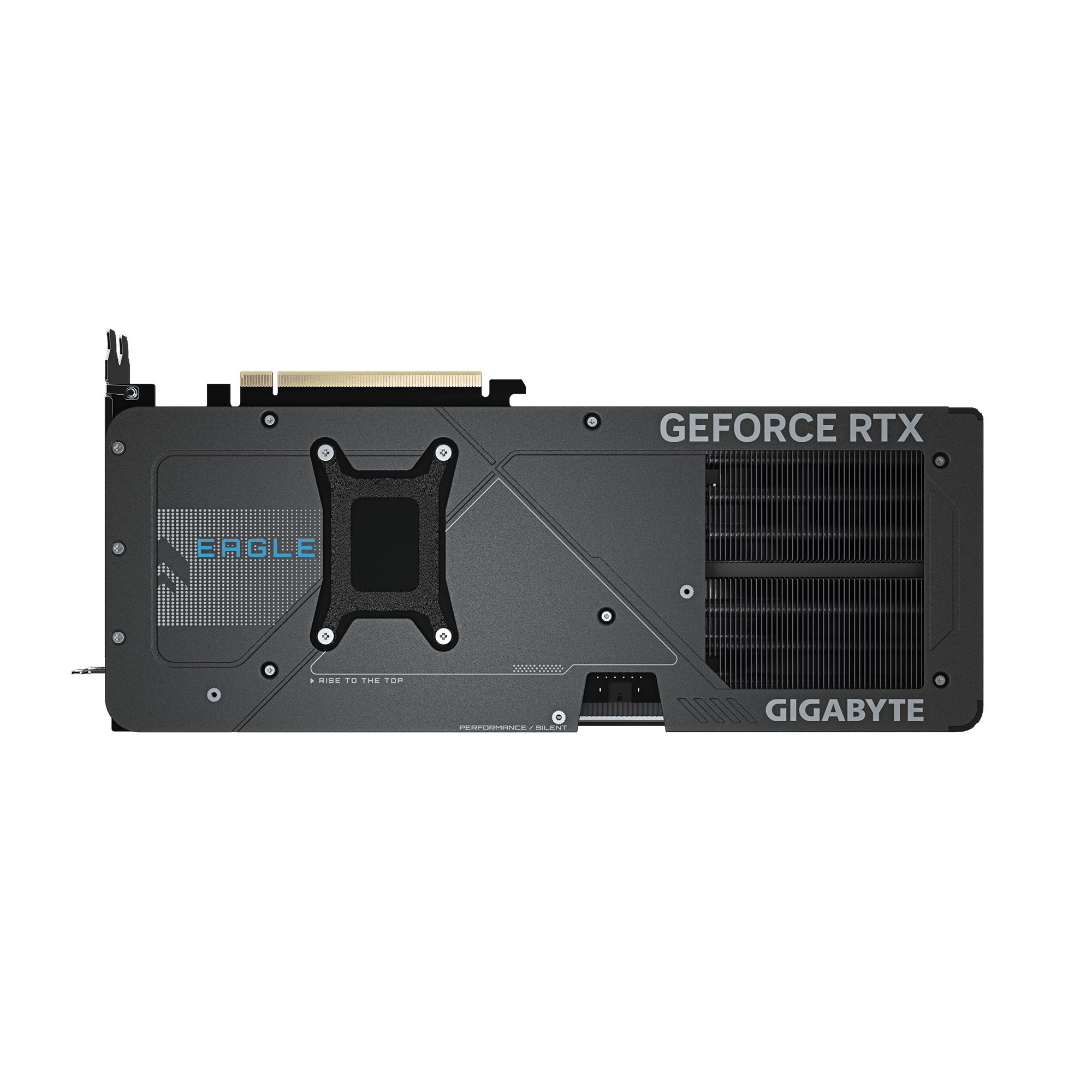

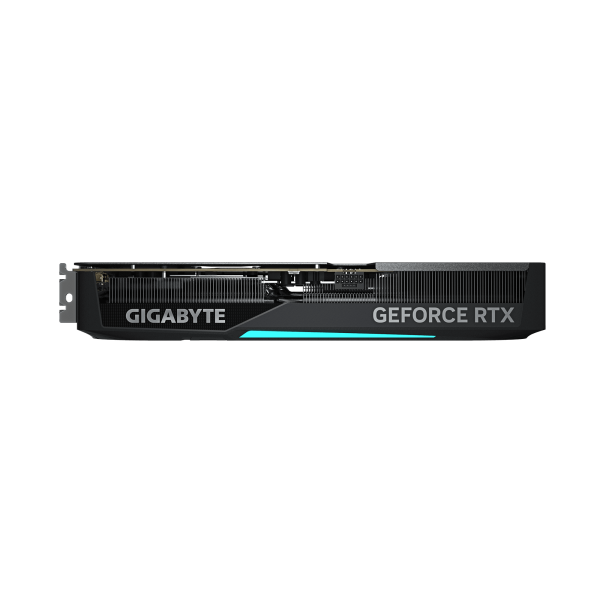

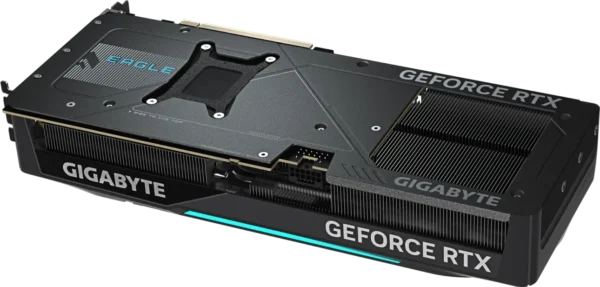

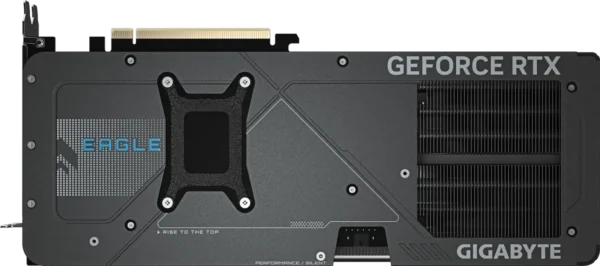

The EAGLE series design draws inspiration from sci-fi aerospace battleships, featuring curved contours and segmented lines that evoke a futuristic aesthetic. The exterior is enhanced by customizable RGB lighting that can be synchronized via the Gigabyte Control Center (GCC). Beyond looks, the card is built with Ultra Durable components, including highest-grade metal chokes, lower ESR solid capacitors, and a 2oz copper PCB. A reinforced metal backplate adds structural integrity, protecting the PCB from bending, while the included Versatile VGA Holder provides additional support against sag in standard installations.
Dual BIOS and Future-Proof Connectivity
Tailor your experience with the onboard Dual BIOS switch, allowing you to easily toggle between the factory default “Performance” mode for maximum cooling and “Silent” mode for a quieter acoustic profile. The card is ready for the future of display technology with three DisplayPort 2.1b outputs and one HDMI 2.1b port, supporting up to 8K resolution at 60Hz. Whether you are building a powerful SFF gaming rig or a compact creative workstation, the GeForce RTX™ 5070 Ti EAGLE OC SFF 16G offers the perfect balance of size, durability, and raw graphical power.
| Feature | Specification |
|---|---|
| Product Name | GeForce RTX™ 5070 Ti EAGLE OC SFF 16G |
| Model Number (SKU) | GV-N507TEAGLE-OC-16GD |
| Graphics Processing | NVIDIA GeForce RTX™ 5070 Ti (Blackwell Architecture) |
| Core Clock | 2542 MHz (Reference Card: 2452 MHz) |
| CUDA® Cores | 8960 |
| Memory Clock | 28 Gbps |
| Memory Size | 16 GB |
| Memory Type | GDDR7 |
| Memory Bus | 256 bit |
| Card Bus | PCI-E 5.0 |
| Form Factor | NVIDIA SFF-Ready (Small Form Factor Compatible) |
| Dimensions | L=304 W=126 H=50 mm |
| Cooling System | WINDFORCE Cooling System Hawk Fans (Alternate Spinning) Large Copper Plate & Composite Heat Pipes Server-Grade Thermal Conductive Gel Screen Cooling |
| Lighting | RGB Fusion (Customizable via GCC) |
| Max Digital Resolution | 7680 x 4320 |
| Multi-View | 4 Displays |
| PCB Form | ATX |
| Software Support | DirectX 12 API, OpenGL 4.6, NVIDIA DLSS 4, Gigabyte Control Center (GCC) |
| Recommended PSU | 750W |
| Power Connectors | 1 x 16-pin (12V-2x6) |

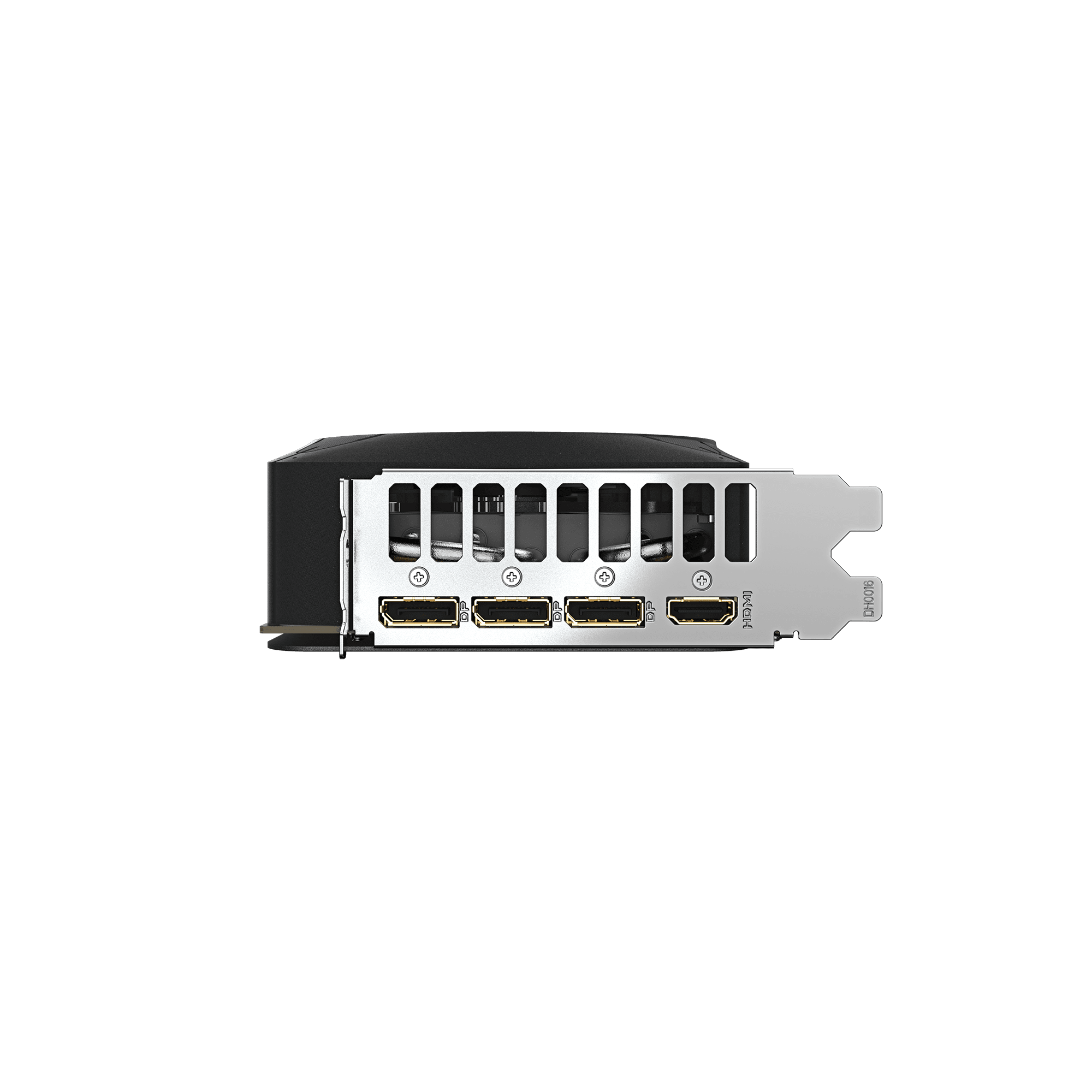

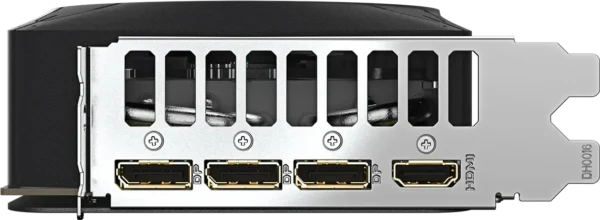

| Output Ports | 3 x DisplayPort 2.1b 1 x HDMI 2.1b |
| Durability Features | Ultra Durable (Metal Chokes, 2oz Copper PCB) Reinforced Metal Backplate Dual BIOS (Performance / Silent) |
| Accessories Included | Versatile VGA Holder, 12V-2x6 to 2x 8pin Adapter, Manuals |
| Weight | 1.9 kg |
|---|---|
| Dimensions | 30 × 20 × 10 cm |
| Brand | Gigabyte |
