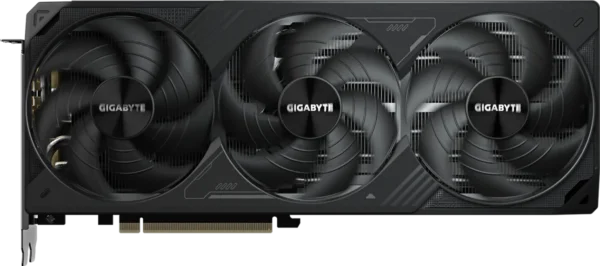

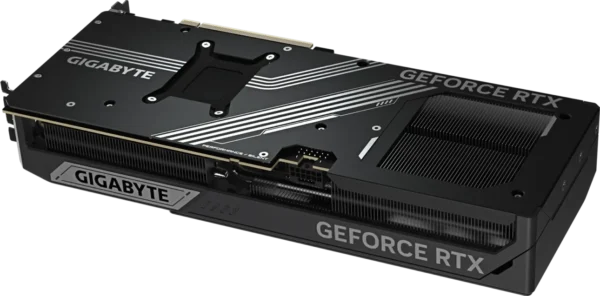

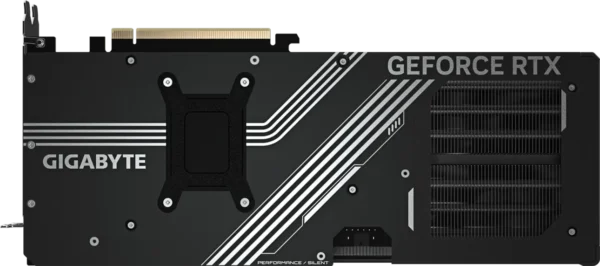

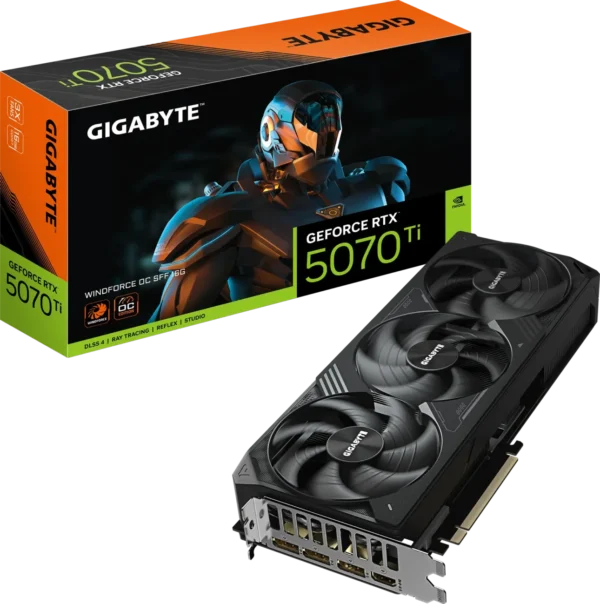

Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G Graphics Card – GV-N507TWF3OC-16GD
- Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF with 16GB GDDR7
- 8960 CUDA cores, overclocked to 2497 MHz for 4K gaming
- 28 Gbps memory clock with PCIe 5.0 for future-proof performance
- Supports 7680 x 4320 resolution with 4-monitor output

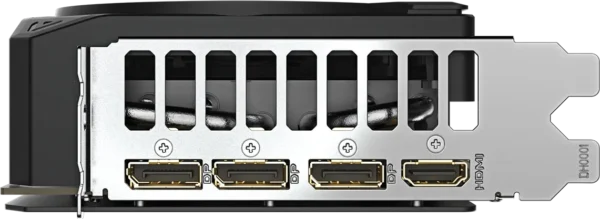

- 3x DisplayPort 2.1b, 1x HDMI 2.1b, compact 304 x 126 x 50 mm design
- 750W PSU required, includes power adapter and versatile VGA holder
Description
Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G Graphics Card
Elevate your gaming and creative workflows with the Gigabyte GeForce RTX 5070 Ti WINDFORCE OC SFF 16G Graphics Card, designed for small form factor builds without sacrificing power. Powered by NVIDIA’s advanced architecture, it features 8960 CUDA cores and a factory-overclocked core clock of 2497 MHz (reference: 2452 MHz), delivering exceptional performance for 4K gaming and beyond. With 16GB of GDDR7 memory on a 256-bit bus running at 28 Gbps, this GPU ensures smooth rendering for ray tracing, AI-driven DLSS, and high-fidelity visuals. Supporting PCIe 5.0, it offers a digital max resolution of 7680 x 4320 and multi-monitor setups with up to 4 displays via 3x DisplayPort 2.1b and 1x HDMI 2.1b. The compact design (304 x 126 x 50 mm) fits ATX builds, requiring a 750W PSU with a 16-pin connector. Accessories include a 12V-2×6 to 2x PCIe 8-pin adapter, a versatile VGA holder, and manuals for easy installation. Perfect for gamers and creators seeking high performance in a smaller footprint.
Specification | Details |
---|---|
Graphics Processing | GeForce RTX™ 5070 Ti |
Core Clock | 2497 MHz (Reference: 2452 MHz) |
CUDA® Cores | 8960 |
Memory Clock | 28 Gbps |
Memory Size | 16GB |
Memory Type | GDDR7 |
Memory Bus | 256 bit |
Card Bus | PCI-E 5.0 |
Digital Max Resolution | 7680 x 4320 |
Multi-view | 4 |
Card Size | L=304 W=126 H=50 mm |
PCB Form | ATX |
DirectX | DirectX 12 API |
OpenGL | OpenGL 4.6 |
Recommended PSU | 750W |
Power Connectors | 16 pin x1 |
Output | DisplayPort 2.1b x3 HDMI 2.1b x1 |
Accessories | 1 x VGA manual 1 x 12V-2x6 to 2x PCIe 8pin adapter 1 x Versatile VGA holder 1 x Versatile VGA holder manual |
Additional information
Weight | 1.9 kg |
---|---|
Dimensions | 30 × 20 × 10 cm |
Brand | Gigabyte |
