Gigabyte GeForce RTX 5080 AERO OC SFF 16G 16GB GDDR7 Graphics Card – GV-N5080AERO-OC-16GD


- 10752 CUDA cores with a 2730 MHz core clock for top-tier performance
- 16GB GDDR7 memory at 30 Gbps for seamless 4K gaming
- Compact 304mm SFF design, perfect for small builds
- PCIe 5.0 and DisplayPort 2.1b x3 for future-ready connectivity
- Overclocked beyond 2617 MHz reference for extra power
- Supports 7680 x 4320 resolution across 4 displays
Description

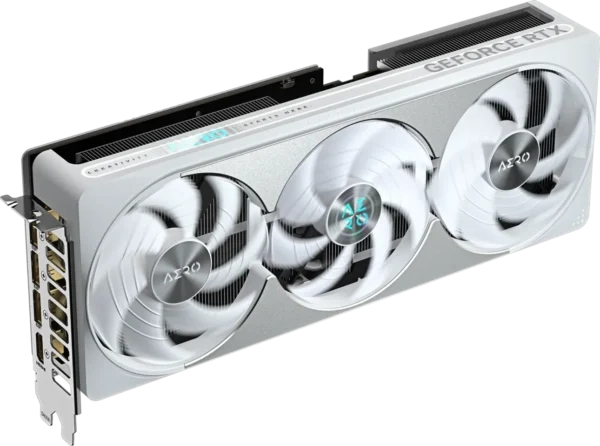

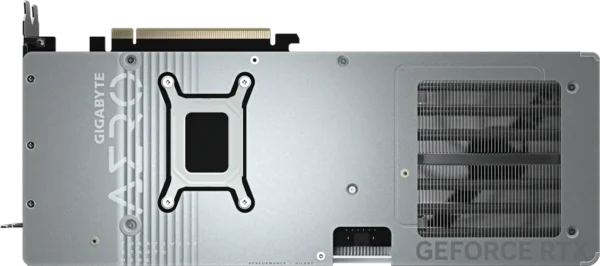

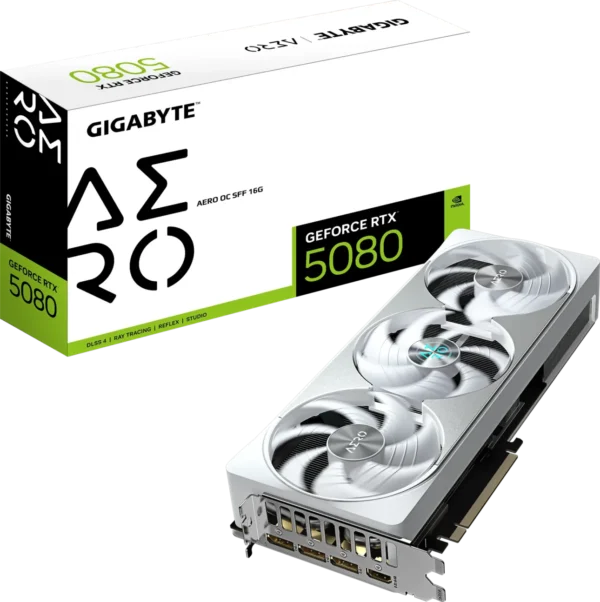

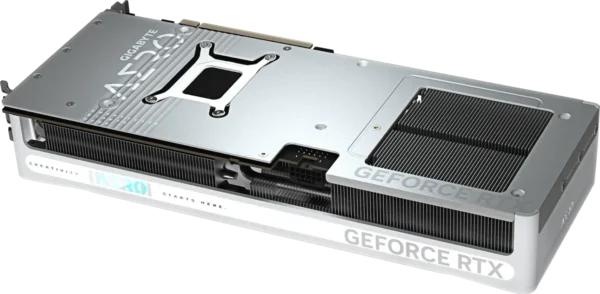

Gigabyte GeForce RTX 5080 AERO OC SFF 16G Graphics Card
Unleash next-level gaming and creative performance with the Gigabyte GeForce RTX 5080 AERO OC SFF 16G graphics card. Powered by NVIDIA’s advanced RTX architecture, this compact powerhouse delivers stunning visuals and blazing-fast frame rates thanks to its 10752 CUDA cores and a boosted core clock of 2730 MHz. With 16GB of cutting-edge GDDR7 memory running at 30 Gbps across a 256-bit bus, it ensures smooth 4K gameplay and effortless multitasking, supporting resolutions up to 7680 x 4320. The small form factor design, measuring just 304mm in length, makes it a standout choice for high-performance builds in tight spaces. Equipped with PCIe 5.0 compatibility, three DisplayPort 2.1b outputs, and one HDMI 2.1b port, this card offers future-proof connectivity for multi-monitor setups. Its overclocked performance outpaces the reference 2617 MHz, giving gamers and creators an edge in demanding applications. Complete with DirectX 12 and OpenGL 4.6 support, plus a versatile VGA holder, this graphics card redefines what’s possible in a compact package.
Specification | Details |
---|---|
Graphics Processing | GeForce RTX 5080 |
Core Clock | 2730 MHz (Reference: 2617 MHz) |
CUDA Cores | 10752 |
Memory Clock | 30 Gbps |
Memory Size | 16GB |
Memory Type | GDDR7 |
Memory Bus | 256 bit |
Card Bus | PCI-E 5.0 |
Digital Max Resolution | 7680 x 4320 |
Multi-view | 4 |
Card Size | L=304 W=126 H=50 mm |
PCB Form | ATX |
DirectX | DirectX 12 API |
OpenGL | OpenGL 4.6 |
Recommended PSU | 850W |
Power Connectors | 16 pin*1 |

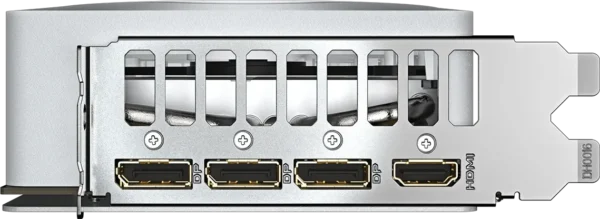

Output | DisplayPort 2.1b x3, HDMI 2.1b x1 |
Accessories | 1. VGA manual, 2. Warranty notice, 3. 1x 12V-2x6 to 3x PCIe 8pin adapter, 4. Versatile VGA holder, 5. Versatile VGA holder manual |
Additional information
Weight | 2.2 kg |
---|---|
Dimensions | 44 × 26 × 11 cm |
Brand | Gigabyte |
