₱7,000.00Original price was: ₱7,000.00.₱6,100.00Current price is: ₱6,100.00.
LGA1851 socket for Intel Core Ultra processors (Series 2)
Up to 128GB DDR5, dual-channel, XMP, up to 6400 MT/s
PCIe 4.0 x16 slot with EZ-Latch and PCIe 4.0 x4 M.2 slot
Realtek GbE LAN with bandwidth management
7.1-channel audio with high-end capacitors and noise guard
Smart Fan 6 with multiple fan headers and temperature sensors
Ultra Durable 4+1+2 phase VRM, Q-Flash Auto Scan, EZ Debug Zone
SKU: GA-H810M-H
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

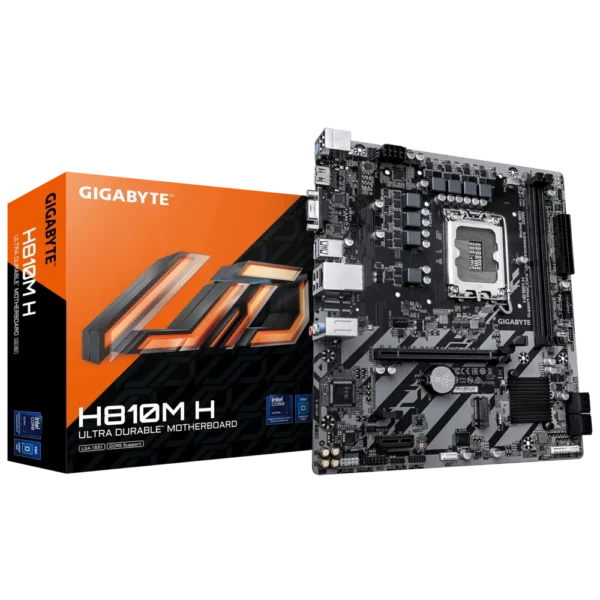

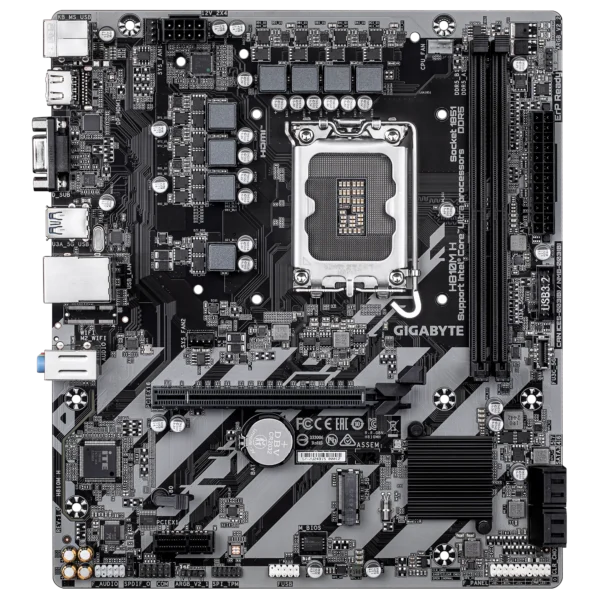

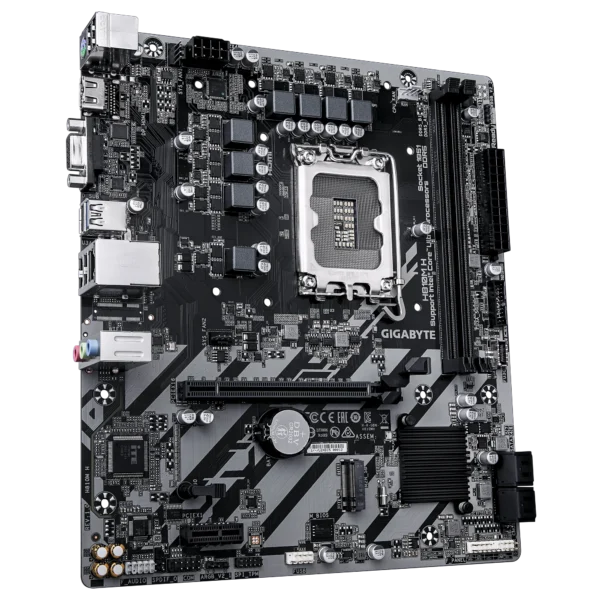

The GIGABYTE H810M H micro-ATX motherboard delivers reliable performance for Intel Core Ultra processors (Series 2) on the LGA1851 socket, ideal for compact builds targeting everyday computing and light gaming. Supporting up to 128GB of dual-channel DDR5 memory with XMP up to 6400 MT/s, it ensures fast and efficient multitasking across two DIMM slots. A PCIe 4.0 x16 slot with EZ-Latch simplifies graphics card installation, complemented by a PCIe 4.0 x4 M.2 slot for high-speed storage and four SATA 6Gb/s ports with RAID support. Realtek GbE LAN with bandwidth management optimizes network performance for low-latency connectivity. The HDMI port supports 4K visuals at 60Hz, paired with a D-Sub port for versatile display options. High-end audio capacitors and noise guard provide immersive 7.1-channel audio. Smart Fan 6 with multiple fan headers and temperature sensors ensures quiet, efficient cooling. Ultra Durable design with a hybrid 4+1+2 phase VRM enhances stability, while features like Q-Flash Auto Scan, UC BIOS, and GIGABYTE Control Center streamline setup and customization. EZ Debug Zone and PCIe EZ-Latch make assembly user-friendly, making this motherboard a durable, feature-rich choice for budget-conscious PC builds.
Specification
H810M H
CPU
LGA1851: Intel® Core™ Ultra Processors (Series 2)
Chipset
Intel® H810 Express Chipset
Memory
2 x DDR5 DIMM sockets, up to 128 GB (64 GB single DIMM), Dual Channel, Supports ECC Un-buffered DIMM (non-ECC mode), Non-ECC Un-buffered DIMM, XMP, Up to 6400 MT/s
Onboard Graphics
1 x HDMI port (4096x2160@60 Hz, HDMI 2.1, HDCP 2.3), 1 x D-Sub port (1920x1200@60 Hz)
Audio
Realtek® Audio CODEC, High Definition Audio, 2/4/5.1/7.1-channel, S/PDIF Out
LAN
Realtek® GbE LAN chip (1 Gbps/100 Mbps/10 Mbps)
Expansion Slots
1 x PCI Express x16 (PCIe 4.0 x16), 1 x PCI Express x1 (PCIe 3.0 x1)
Storage Interface
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD), 4 x SATA 6Gb/s connectors, RAID 0/1/5/10 for SATA
USB
1 x USB Type-C® (internal, USB 3.2 Gen 1), 3 x USB 3.2 Gen 1 ports (1 rear, 2 internal), 7 x USB 2.0/1.1 ports (5 rear, 2 internal)
Internal I/O Connectors
1 x 24-pin ATX main power, 1 x 8-pin ATX 12V, 1 x CPU fan, 2 x system fan, 2 x addressable RGB Gen2 LED strip headers, 1 x M.2 Socket 3, 4 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x S/PDIF Out, 1 x USB Type-C® header (USB 3.2 Gen 1), 1 x USB 3.2 Gen 1 header, 1 x USB 2.0/1.1 header, 1 x TPM header, 1 x serial port header, 1 x Clear CMOS jumper

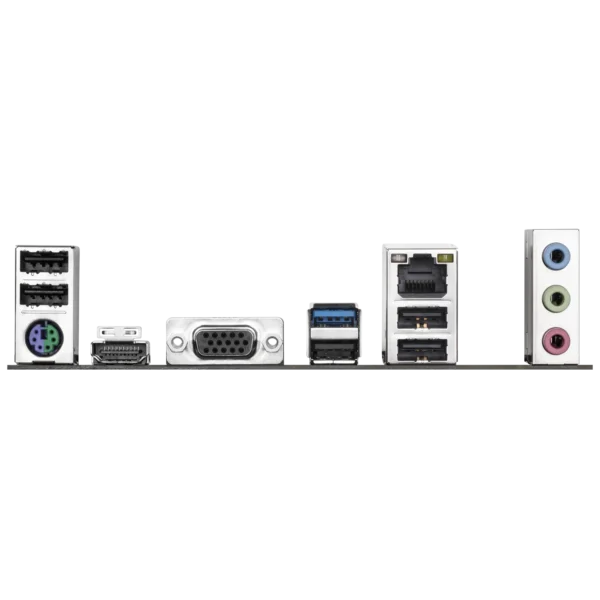

Back Panel Connectors
1 x PS/2 keyboard/mouse port, 1 x HDMI port, 1 x D-Sub port, 1 x USB 3.2 Gen 1 port, 5 x USB 2.0/1.1 ports, 1 x RJ-45 port, 3 x audio jacks
I/O Controller
iTE® I/O Controller Chip
H/W Monitoring
Voltage detection, Temperature detection, Fan speed detection, Water cooling flow rate detection, Fan fail warning, Fan speed control
BIOS
1 x 256 Mbit flash, AMI UEFI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features
GIGABYTE Control Center, Q-Flash, Smart Backup
Bundled Software
Norton® Internet Security (OEM version), LAN bandwidth management software
Operating System
Windows 11 64-bit, Windows 10 64-bit
Form Factor
Micro ATX, 24.4cm x 21.5cm
Product Code (SKU)
GA-H810M-H
Weight
0.86 kg
Dimensions
35 × 27 × 7 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
LGA 1851 CPU
