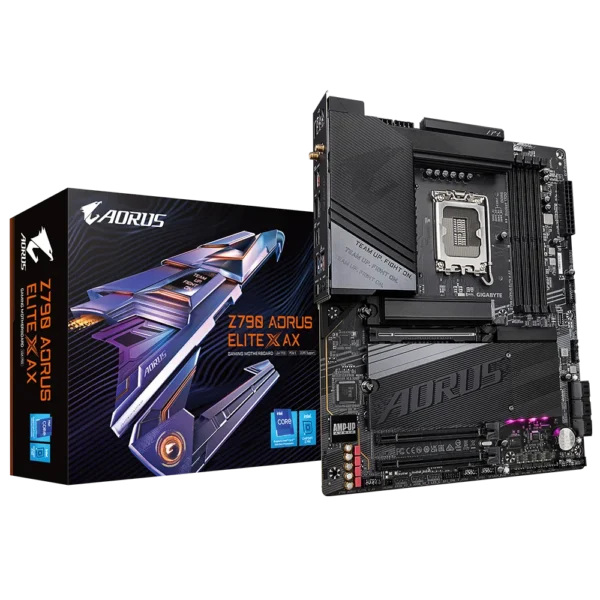

GIGABYTE Z790 AORUS ELITE X AX ATX Intel Z790 LGA1700 DDR5 PCIe 5.0 Motherboard - GA-Z790-AORUS-ELITE-X-AX

GIGABYTE Z790 AORUS ELITE X AX ATX Intel Z790 LGA1700 DDR5 PCIe 5.0 Motherboard – GA-Z790-AORUS-ELITE-X-AX

Original price was: ₱21,400.00.Current price is: ₱18,695.00.

GIGABYTE Z790 AORUS ELITE X AX ATX for Intel® 14th/13th/12th Gen
DDR5 8266(OC), up to 256GB, Intel® Z790 chipset
PCIe 5.0 x16, 4 x M.2 PCIe 4.0, 6 x SATA 6Gb/s
Wi-Fi 6E, 2.5GbE LAN, USB 3.2 Gen 2×2 Type-C
Realtek® ALC1220-VB 7.1 audio, RGB Fusion 2.0
16+2+1 VRM, M.2 Thermal Guard III, Q-Flash Plus

Out of stock

Restock & Price Alerts

We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!

Want to track and manage your alerts? Sign in or create an account.

SKU: GA-Z790-AORUS-ELITE-X-AX Categories: Intel LGA 1700 Motherboards, Motherboards Tag: Gigabyte

Elevate your gaming PC with the GIGABYTE Z790 AORUS ELITE X AX, an ATX motherboard engineered for Intel® 14th, 13th, and 12th Gen Core™ processors. Powered by the Intel® Z790 Express chipset, it supports up to 256GB of DDR5 memory at speeds up to 8266(OC), delivering exceptional performance for gaming, content creation, and multitasking. The PCIe 5.0 x16 slot ensures future-proof compatibility with next-gen GPUs, while four M.2 slots with PCIe 4.0 x4 and M.2 Thermal Guard III provide high-speed storage without throttling. A robust 16+2+1 twin digital VRM with 70A Smart Power Stage ensures stable power delivery for overclocking. Connectivity shines with Wi-Fi 6E and 2.5GbE LAN for low-latency gaming, plus a USB 3.2 Gen 2×2 Type-C port at 20Gbps for rapid data transfers. The Realtek® ALC1220-VB audio delivers immersive 7.1-channel sound with DSD support. RGB Fusion 2.0 with addressable LED headers adds vibrant customization, controlled via GIGABYTE Control Center. Features like EZ-Latch Plus for screwless M.2 and GPU installation, Q-Flash Plus for BIOS updates without components, and a full metal thermal design with 8mm mega-heatpipe ensure ease of use and reliability. Backed by a 256Mbit UEFI BIOS and bundled software like Norton® Internet Security, the GIGABYTE Z790 AORUS ELITE X AX is the ultimate platform for high-performance builds.

Specification	Details
Model	GA-Z790-AORUS-ELITE-X-AX
CPU	LGA1700: 14th, 13th, 12th Gen Intel® Core™, Pentium® Gold, Celeron® Processors; L3 cache varies with CPU
Chipset	Intel® Z790 Express Chipset
Memory	4 x DDR5 DIMM, up to 256GB, 8266(O.C)/8200(O.C)/8000(O.C)/7950(O.C)/7900(O.C)/7800(O.C)/7600(O.C)/7400(O.C)/7200(O.C)/7000(O.C)/6800(O.C)/6600(O.C)/6400(O.C)/6200(O.C)/6000(O.C)/5800(O.C)/5600(O.C)/5400(O.C)/5200(O.C)/4800/4000 MT/s, Dual Channel, ECC/Non-ECC Un-buffered 1Rx8/2Rx8/1Rx16, XMP
Onboard Graphics	1 x HDMI (4096x2160@60Hz, HDMI 2.1, HDCP 2.3), 1 x DisplayPort (4096x2304@60Hz, DP 1.2, HDCP 2.3)
Audio	Realtek® ALC1220-VB, 2/4/5.1/7.1-channel, DSD support, S/PDIF Out
LAN	Intel® 2.5GbE LAN (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication	Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.0) or Intel® Wi-Fi 6E AX211 (PCB rev. 1.1), 2.4/5/6 GHz, Bluetooth 5.3, 11ax 160MHz
Expansion Slots	CPU: 1 x PCIe 5.0 x16 (PCIEX16); Chipset: 2 x PCIe 4.0 x16 (x4 mode, PCIEX4_1/PCIEX4_2)
Storage Interface	CPU: 1 x M.2 (22110/2280, PCIe 4.0 x4/x2); Chipset: 2 x M.2 (22110/2280, PCIe 4.0 x4/x2), 1 x M.2 (22110/2280, SATA & PCIe 4.0 x4); 6 x SATA 6Gb/s; RAID 0/1/5/10 for NVMe/SATA
USB	Rear: 1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1; Front: 1 x USB 3.2 Gen 2 Type-C header, 1 x USB 3.2 Gen 1 header (2 ports), 2 x USB 2.0/1.1 headers (4 ports)
Internal I/O Connectors	1 x 24-pin ATX, 2 x 8-pin ATX 12V, 1 x CPU fan, 1 x CPU fan/water cooling pump, 3 x system fan, 1 x system fan/water cooling pump, 3 x ARGB Gen2 headers, 1 x RGB header, 4 x M.2, 6 x SATA 6Gb/s, 1 x front panel, 1 x front panel audio, 1 x USB 3.2 Gen 2 Type-C header, 1 x USB 3.2 Gen 1 header, 2 x USB 2.0/1.1 headers, 2 x Thunderbolt™ headers, 1 x TPM header, 1 x reset button, 1 x Q-Flash Plus button, 1 x Clear CMOS button, 1 x reset jumper, 1 x Clear CMOS jumper
Back Panel Connectors	1 x USB 3.2 Gen 2x2 Type-C, 2 x USB 3.2 Gen 2 Type-A, 3 x USB 3.2 Gen 1, 4 x USB 2.0/1.1, 2 x SMA antenna (2T2R), 1 x HDMI, 1 x DisplayPort, 1 x RJ-45, 1 x S/PDIF Out, 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
H/W Monitoring	Voltage, temperature, fan speed, water cooling flow rate detection, fan fail warning, fan speed control
BIOS	256 Mbit flash, UEFI AMI BIOS, PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	GIGABYTE Control Center, Q-Flash, Q-Flash Plus, Smart Backup, EZ-Latch Plus, PerfDrive (Optimization, Spec Enhance, E-Core Disable modes)
Bundled Software	Norton® Internet Security (OEM), LAN bandwidth management, RGB Fusion 2.0
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
Form Factor	ATX, 30.5 x 24.4 cm
Notes	Wi-Fi module varies by PCB revision (RTL8852CE for rev. 1.0, AX211 for rev. 1.1); check CPU/Memory support at www.gigabyte.com; M.2/SATA installation details in manual
