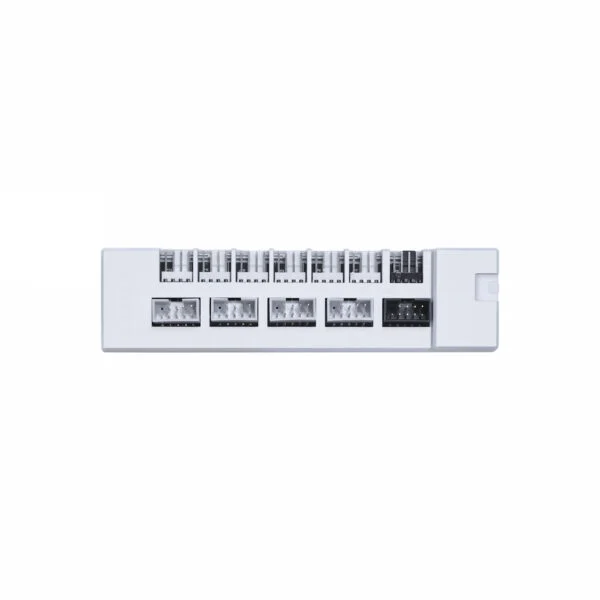

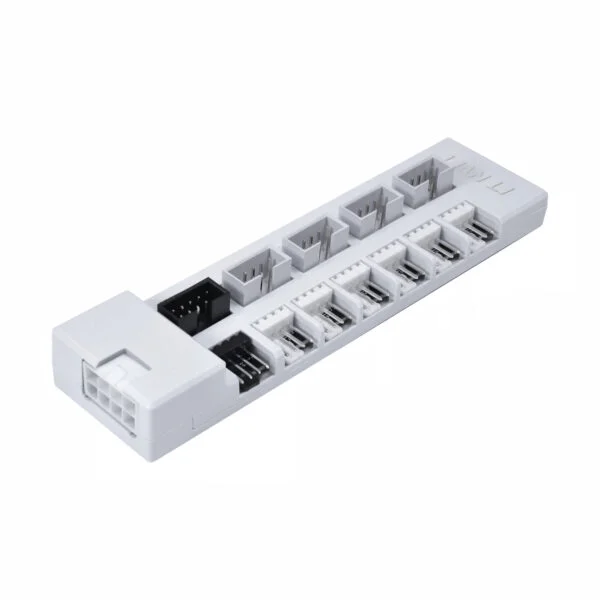

LIAN LI Edge Hub V2 White Internal USB and PWM Fan Controller – EG-HUB04W – G8P.EG-HUB04W.00
₱1,550.00Original price was: ₱1,550.00.₱1,350.00Current price is: ₱1,350.00.
Advanced Expansion Hub: A powerful internal command center wrapped in a clean white finish (SKU: G8P.EG-HUB04W.00 / Model: EG-HUB04W) to match premium themed builds.
Dual-Chip Architecture: Features two parallel 1-to-4 hub chips that distribute connected USB devices across two separate pathways, effectively eliminating bandwidth bottlenecks.
Massive Connectivity: Provides four physical USB ports that support up to eight downstream signals (via 1-to-2 splitting) alongside six powerful 2A PWM fan headers.
Optimized Device Hierarchy: Connects directly to your motherboard via a USB 3.0 header using 2.0 signals, reducing hub layers and ensuring highly stable connections for LCD components.
L-Connect 3 Integration: Unlocks real-time visibility into internal USB traffic, allowing users to accurately track per-port transfer rates and overall hub bandwidth utilization.
Smart Overload Alerts: Built-in software notifications warn you of excessive USB traffic, preventing data loss or accessory disconnects during heavy system usage.
Custom Port Naming: Identify your connected AIOs, fan controllers, and LCDs directly within the L-Connect 3 software—no more opening the case to trace physical cables.
Magnetic Installation: Built-in magnets allow for rapid, tool-free placement anywhere inside your steel chassis or directly onto your power supply unit.
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.
LIAN LI Edge Hub V2 White Internal USB and PWM Fan Controller - EG-HUB04W - G8P.EG-HUB04W.00
Price Drop Alerts & Price History
⚠️ That's a steep drop! You might be waiting a while.
We'll notify you the moment the price hits your target.
Perfectly matching your pristine themed build, the LIAN LI Edge Hub V2 in white completely simplifies the most complicated aspect of modern PC assembly. As enthusiast systems incorporate an increasing number of LCD fans, smart coolers, and RGB controllers, standard motherboards quickly run out of internal USB headers. This hub resolves that limitation through a highly upgraded dual-hub architecture featuring two parallel 1-to-4 hub chips. Rather than forcing all accessory data through a single congested bottleneck, it distributes connected devices across two separate pathways. This ensures a beautifully balanced, ultra-stable connection for high-bandwidth components, effectively eliminating screen freezes and software crashes.
Unrestricted Connectivity for Enthusiasts
Push your system configuration as far as you want without worrying about hardware constraints. The Edge Hub V2 provides massive expansion capabilities immediately out of the box. Through innovative 1-to-2 signal splitting, its four physical USB headers can seamlessly support up to eight downstream USB signals, guaranteeing you will always have room for your next internal accessory. Simultaneously, it serves as a central command station for high-density cooling setups, featuring six powerful 4-pin PWM fan headers. Each fan port is rated for an impressive 2A output, safely delivering stable power to multi-fan clusters without the risk of overloading your motherboard.
Unprecedented Software Control
The hardware is impressive, but its seamless integration with the L-Connect 3 software ecosystem makes the Edge Hub V2 truly exceptional. Users are granted unprecedented real-time visibility into their system’s internal USB traffic. You can actively monitor the transfer rate of individual ports over a one-hour timeline and view the total hub bandwidth utilization to anticipate and prevent system issues. If the software detects excessive data traffic, built-in overload alerts will notify you instantly so you can safely redistribute high-load devices. Furthermore, L-Connect 3 lets you apply custom names to each active port, allowing you to easily identify exactly which header is running your pump, LCD, or lighting controller without tracing cables inside the case.
Effortless, Versatile Installation
Getting your hub mounted and powered is incredibly straightforward. The unit features integrated rear magnets, allowing you to securely attach it anywhere against your steel chassis or right on top of your power supply—no tools or messy double-sided tape required. For an ultra-reliable data connection, the hub bypasses lower-tier ports and taps directly into your motherboard’s USB 3.0 header while utilizing a 2.0 signal path, pushing it higher up the device hierarchy. Power delivery is equally flexible; connect it natively to a compatible EDGE or RS Series PSU for the cleanest routing, or utilize the standard PCIe 8-pin input to power it independently with absolutely any power supply brand.
LIAN LI Edge Hub V2 (White) Specifications
General Information
Brand
LIAN LI
Name
Edge Hub V2 White
Main SKU
G8P.EG-HUB04W.00
Model Numbers
EG-HUB04W (White) / EG-HUB04B (Black)
Categories
Accessories, Others
Tags
2A fan ports, 4-pin PWM, custom port naming, dual-chip USB hub, EDGE Hub V2, high-load alerts, internal USB hub, L-Connect 3, magnetic fan hub, PCIe 8-pin power, per-port transfer monitoring, PWM fan hub, USB bandwidth monitoring, USB expansion
Available Colors
White (Also available in Black)
Design & Architecture
Dimensions
(D) 35mm x (W) 132mm x (H) 17mm
Hub Architecture
Dual 1-to-4 hub chips (Parallel distribution for balanced device management)
Mounting System
Integrated Magnetic mounting (Flexible placement inside the case or on PSU)
Telemetry Protocol
USB HID, L-Connect 3
Power & Connectivity Features
Input Requirements
Fan 12Vdc 12.5A
USB 5Vdc 2.5A
Power Source Options
Direct Edge Series PSU Connector OR independent power via PCIe 8-PIN
USB Signal Source
USB 3.0 header (D+/D- tap) *Connects directly to USB 3.0 header using 2.0 signal path to reduce hub layers
Backward Compatible
USB 2.0 9-pin fallback (Standard USB 2.0 9-pin cable also included)
Downstream USB Ports
8 (4 physical headers with 1-to-2 signal splitting capability)
USB Header Output
4 x header 5Vdc for each 500mA (Total 2.5A)
Fan Header Output
6 x 4-pin PWM fan headers (Rated up to 12Vdc 2A for each)
Monitoring & Software (L-Connect 3)
Bandwidth Monitoring
Real-time per-port transfer monitoring and total hub utilization metrics
Port Management
Custom port naming (Identify controllers, LCDs, AIOs easily in software)
System Alerts
Data loss alerts / Overload (High-load) notifications for excessive USB traffic
Accessories & Warranty
Included Cables
• 1 x USB 3.0 20pin to USB 2.0 9pin / USB 3.0 Type-A header
• 1 x USB 2.0 9pin to USB 2.0 9pin Sync Cable
• 1 x PWM to PWM Sync Cable
Warranty
2-Year
Packaging Weight
0.3 kg
Packaging Dimensions (L×W×H)
18 × 13 × 6 cm
Brand
Lian Li
