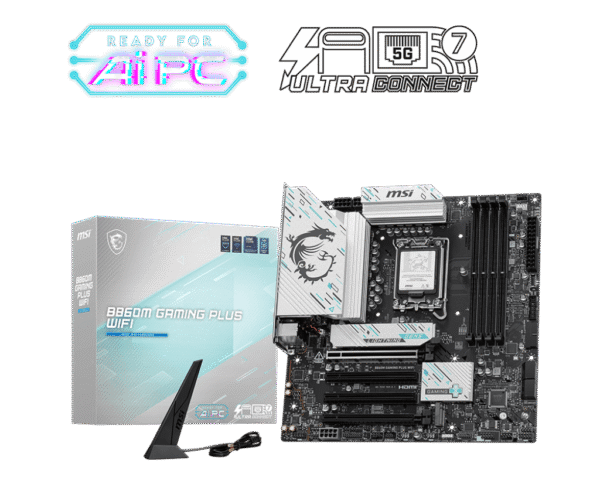

MSI B860M GAMING PLUS WIFI mATX Motherboard for Intel Core Ultra Series 2, DDR5 8800+ MT/s, Wi-Fi 7, Thunderbolt 4, PCIe 5.0 M.2 – B860M GAMING PLUS WIFI
Original price was: ₱14,130.00.₱12,295.00Current price is: ₱12,295.00.
- Silver mATX motherboard for Intel Core Ultra (Series 2) CPUs (SKU: B860M GAMING PLUS WIFI)
- Supports DDR5 up to 8800+ MT/s with Memory Boost and XMP
- Intel Killer Wi-Fi 7, 5Gbps LAN, and Thunderbolt 4 for ultra-fast connectivity
- Frozr AI Cooling with extended heatsink, M.2 Shield Frozr, and 7W/mK thermal pads
- 12+1+1+1 Duet Rail Power System with Core Boost for robust performance
- DIY-friendly with EZ PCIe Clip II, EZ M.2 Clip II, and EZ Antenna
- Audio Boost with 7.1-channel Realtek ALC897 codec
- Mystic Light RGB for customizable lighting effects
In stock
Price Drop Alerts & Price History
We'll notify you the moment the price hits your target.
💡 Suggested alert: ₱11,600 [ Use this ]
Want to track and manage your alerts? Sign in or create an account.
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
The MSI B860M GAMING PLUS WIFI motherboard delivers a sleek silver design tailored for gamers, seamlessly integrating with white or black PC builds. Engineered for Intel Core Ultra processors (Series 2) with the LGA 1851 socket, this mATX motherboard ensures robust performance through a 12+1+1+1 Duet Rail Power System with Core Boost and 8+4-pin connectors. It supports DDR5 memory up to 8800+ MT/s with MSI Memory Boost and XMP for exceptional speed and stability. The Frozr AI Cooling system, featuring an extended heatsink, M.2 Shield Frozr, and 7W/mK thermal pads, maintains optimal temperatures during intense gaming sessions. Connectivity excels with Intel Killer BE1750x Wi-Fi 7, 5Gbps LAN, and Thunderbolt 4, enhanced by AI LAN Manager for low-latency performance. Audio Boost with Realtek ALC897 provides immersive 7.1-channel sound. DIY-friendly features like EZ PCIe Clip II, EZ M.2 Clip II, and EZ Antenna simplify installation, while Mystic Light RGB offers vibrant lighting customization. Built with a 6-layer server-grade PCB and supplemental PCIe power, this motherboard ensures durability for gaming and AI workloads.
| Specification | B860M GAMING PLUS WIFI |
|---|---|
| Brand | MSI |
| Chipset | Intel B860 |
| CPU Support | Intel Core Ultra Processors (Series 2, LGA 1851) |
| Memory | 4x DDR5 UDIMM, up to 256GB, 8800+ MT/s (OC) |
| Graphics | 1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz), 1x Type-C DisplayPort (Thunderbolt 4, 4K 120Hz/8K 60Hz) |
| Expansion Slots | 4x PCIe x16 (1x Gen 5.0 x16, 2x Gen 4.0 x1, 1x Gen 4.0 x4) |
| Storage | 3x M.2 (1x PCIe 5.0 x4, 1x PCIe 4.0 x4, 1x PCIe 4.0 x2), 4x SATA 6G |
| RAID | RAID 0, 1, 5, 10 for SATA storage devices |
| Thunderbolt | 1x Thunderbolt 4 (40Gbps, supports USB4 20Gbps, USB 3.2 10Gbps, 5V/3A charging, up to 8K display) |
| USB | 6x USB 2.0, 6x USB 5Gbps Type A, 1x USB 5Gbps Type C, 1x USB 10Gbps Type A, 1x USB 10Gbps Type C |
| LAN | Intel Killer E5000 5Gbps LAN |
| Wireless | Intel Killer BE1750x Wi-Fi 7 (2.4/5/6GHz, 5.8Gbps), Bluetooth 5.4 |
| Audio | Realtek ALC897, 7.1-Channel High Definition Audio |
| Internal I/O | 1x Thunderbolt5 card connector, 1x ATX_PWR, 2x CPU_PWR, 1x PCIe_PWR 8pin, 1x CPU Fan, 1x Combo Fan, 3x System Fan, 1x EZ Conn-header, 2x Front Panel, 1x Chassis Intrusion, 1x Front Audio, 1x Com Port, 1x Tuning Controller, 2x ARGB V2, 1x RGB, 1x TPM, 9x USB ports |
| Back Panel Ports | DisplayPort, HDMI, Thunderbolt 4 Type-C, 2x USB 2.0, 2x USB 5Gbps Type-A, 1x USB 5Gbps Type-C, 1x USB 10Gbps Type-A, 5G LAN, Wi-Fi/Bluetooth, Audio Connectors, Clear CMOS Button |
| LED Features | 4x EZ Debug LED |
| Form Factor | mATX (243.84mm x 243.84mm) |
| Operating System | Windows 11 64-bit |
| Weight | 1.44 kg |
|---|---|
| Dimensions | 29 × 28 × 8 cm |
| Brand | MSI |
| Desktop RAM | DDR5 |
| Socket | LGA 1851 CPU |
