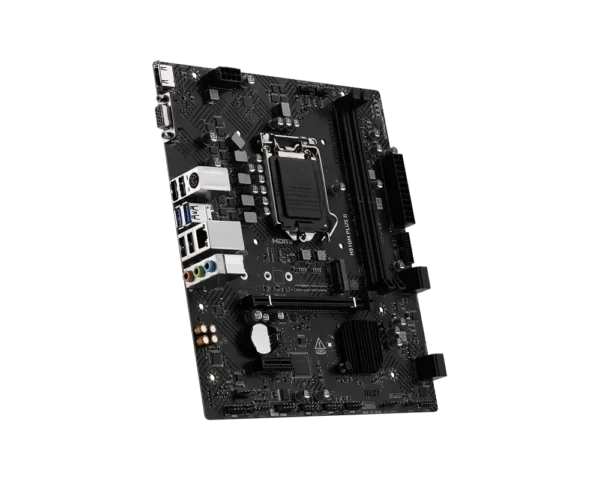

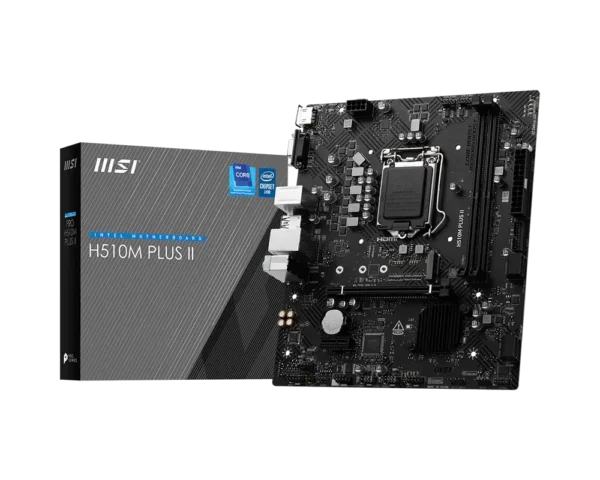

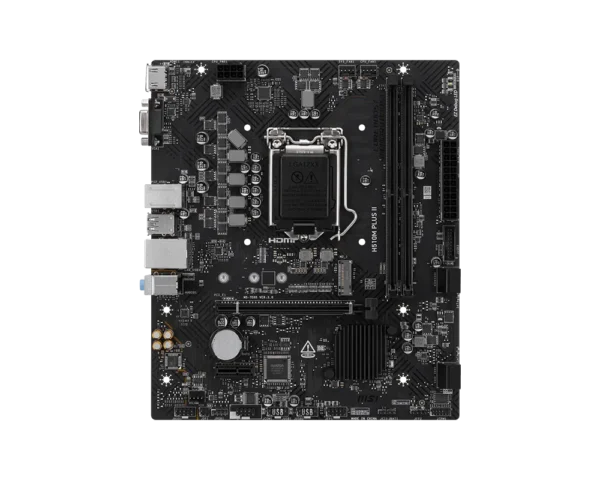

MSI H510M PLUS II Intel LGA 1200 mATX Motherboard – H510M PLUS II

Original price was: ₱4,600.00.Current price is: ₱4,000.00.

Broad CPU Compatibility: Supports 10th and 11th Gen Intel® Core™, Pentium® Gold, and Celeron® Processors for the LGA 1200 socket.
Core Boost Technology: Digital power design and premium layout optimized for high-performance multi-core processors.
Memory Boost: Isolated circuitry to deliver pure data signals for maximum performance, stability, and compatibility.
High-Speed Storage: Includes one M.2 slot supporting PCIe 3.0 x4 and SATA modes for ultra-fast SSD performance.
Reinforced PCI-E Slot: Steel Armor protects heavy graphics cards against bending and provides EMI shielding.
Audio Boost: Studio-grade 7.1-Channel High Definition Audio powered by Realtek® ALC897 codec.
Gigabit Networking: Reliable and fast internet connectivity via Realtek® 8111H Gigabit LAN controller.
Troubleshooting Ready: 4x EZ Debug LEDs provide instant feedback for easy diagnostic of core system components.
Versatile Display Outputs: Features both HDMI™ 1.4 (4K 30Hz) and VGA ports for flexible monitor configurations.
SKU: H510M PLUS II

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱3,800 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

Current: ₱4,000.00 | 90-Day Low: ₱4,000.00 | 90-Day High: ₱4,000.00
View full pricing timeline →

SKU: H510M PLUS II Categories: Intel LGA 1200 Motherboards, Motherboards Tag: MSI

Product Specifications: MSI H510M PLUS II
Basic Information
Brand	MSI
Model Name	H510M PLUS II
SKU	H510M PLUS II
Processor & Chipset
CPU Socket	LGA 1200
Supported Processors	Supports 10th Gen Intel® Core™ Processors Supports 11th Gen Intel® Core™ Processors Pentium® Gold and Celeron® Processors
Chipset	INTEL Z490
Memory Support
DIMM Slots	2x DDR4 Slots
Max Memory Capacity	64GB
Supported Speeds	2933 / 2666 / 2400 / 2133 MHz
CPU Specific Support	Intel® Core™ i9/i7: 1R 2133/2666/2933 MHz Intel® Core™ i5/i3/Pentium/Celeron: 1R 2133/2666 MHz
Memory Features	Dual-Channel Mode Support Non-ECC, Un-buffered Memory Support Intel® Extreme Memory Profile (XMP) Support
Expansion Slots & Onboard Graphics
PCI-E Slots	1x PCI-E x16 Slot (PCI_E1 Gen PCIe 3.0 up to x16 from CPU) 1x PCI-E x1 Slot (PCI_E2 Gen PCIe 3.0 up to x1 from Chipset)
VGA Reinforcement	Steel Armor protection for VGA card stability and EMI shielding
HDMI™ Output	1x HDMI™ 1.4 (Max Resolution: 4K 30Hz)
VGA Output	1x VGA (Max Resolution: 2048×1536 50Hz, 1920×1200 60Hz)
Storage & Connectivity
M.2 Storage	1x M.2 Slot (PCIe 3.0 x4 / SATA mode, supports 2242/2260/2280 devices)
SATA Ports	4x SATA 6G Ports
Wired LAN	Realtek® 8111H Gigabit LAN
Audio	Realtek® ALC897 Codec (7.1-Channel High Definition Audio)
USB Connectivity & I/O
USB (Rear)	2x USB 5Gbps Type-A 4x USB 2.0
USB (Front)	2x USB 5Gbps Type-A ports 4x USB 2.0 ports

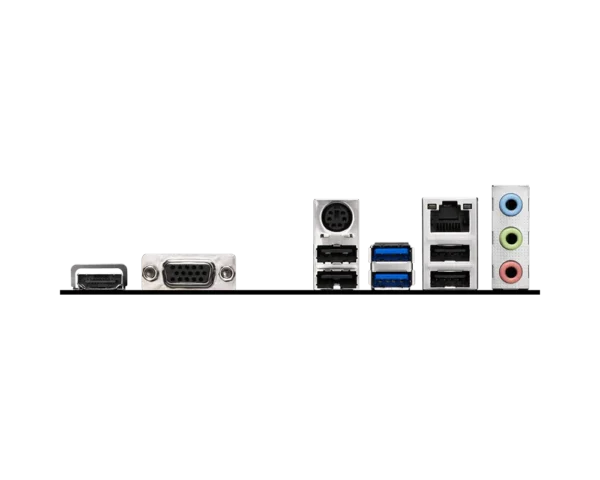

Back Panel Ports	HDMI™, VGA, Keyboard/Mouse Port, USB 5Gbps Type-A, LAN Port, Audio Connectors, USB 2.0 x4
Internal Headers
Power Connectors	1x ATX_PWR (24-pin), 1x CPU_PWR (8-pin)
Fan Headers	1x CPU Fan, 2x System Fan
Misc Headers	2x Front Panel (JFP), 1x Chassis Intrusion (JCI), 1x Front Audio (JAUD), 1x COM Port (JCOM), 1x RGB LED Connector (JRGB), 1x TPM Header (TPM 2.0)
Debug Features	4x EZ Debug LED
Physical & OS Support
Form Factor	Micro-ATX (mATX)
Dimensions	202mm x 236mm
Operating System	Windows® 11 64-bit, Windows® 10 64-bit
