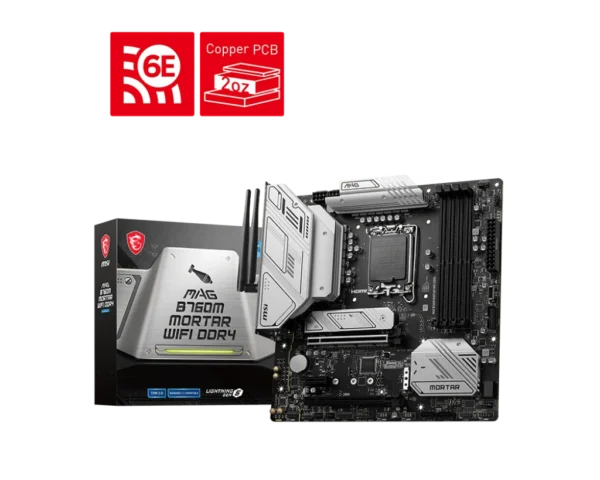

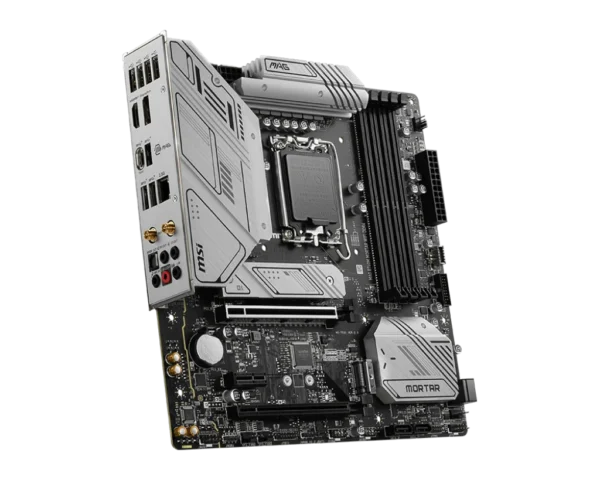

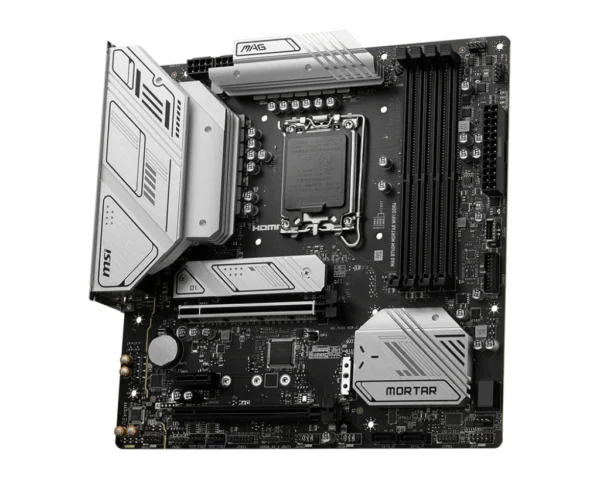

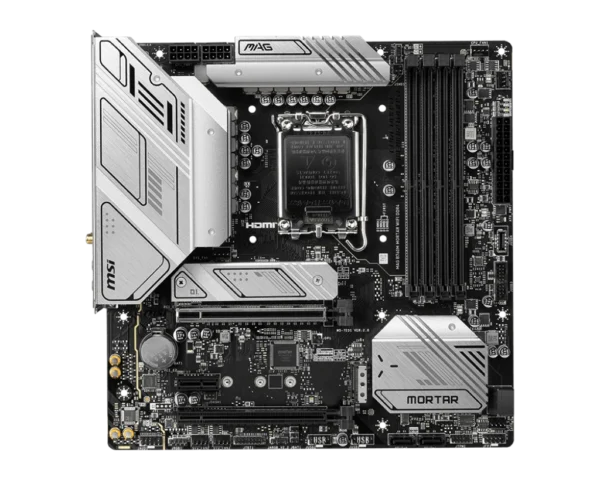

MSI MAG B760M MORTAR WIFI DDR4 Motherboard Intel B760 LGA 1700 DDR4 128GB PCIe 5.0 Wi-Fi 6E HDMI DisplayPort mATX - MAG B760M MORTAR WIFI DDR4

MSI MAG B760M MORTAR WIFI DDR4 Motherboard Intel B760 LGA 1700 DDR4 128GB PCIe 5.0 Wi-Fi 6E HDMI DisplayPort mATX – MAG B760M MORTAR WIFI DDR4

Original price was: ₱12,640.00.Current price is: ₱10,995.00.

Supports 12th/13th/14th Gen Intel Core, Pentium Gold, Celeron (LGA 1700)
4x DDR4 up to 128GB, 5333+ MHz (OC), Dual-Channel, Intel XMP
12+1+1 Duet Rail Power System, Core Boost, Memory Boost
Extended heatsink, 7W/mK thermal pads, M.2 Shield Frozr
2x M.2 (PCIe 4.0 x4), 4x SATA 6Gb/s, RAID 0/1/5/10
Wi-Fi 6E, Bluetooth 5.3, 2.5Gbps LAN, USB 3.2 Gen 2×2
Audio Boost with Realtek ALC897 Codec, 7.1-channel, S/PDIF
PCIe 5.0 x16 slot, HDMI 2.1, DisplayPort, RGB LED support
mATX form factor, SKU: MAG B760M MORTAR WIFI DDR4

Out of stock

Restock & Price Alerts

We'll email you the moment this is back in stock. If you enter a target price, we'll also send you a separate alert if the price drops to your goal later!

🔓 Sign in to unlock full price history charts and manage your alerts.

SKU: MAG B760M MORTAR WIFI DDR4 Categories: Intel LGA 1700 Motherboards, Motherboards Tag: MSI

MSI MAG B760M MORTAR WIFI DDR4 Motherboard

The MSI MAG B760M MORTAR WIFI DDR4 motherboard is built for gamers seeking robust performance, supporting 12th, 13th, and 14th Gen Intel Core, Pentium Gold, and Celeron processors on the LGA 1700 socket. Its mATX form factor supports up to 128GB of DDR4 memory at 5333+ MHz with overclocking, enhanced by Memory Boost and Intel XMP for superior speed and stability. The 12+1+1 Duet Rail Power System with dual 8-pin CPU connectors and Core Boost ensures reliable power delivery for demanding tasks. A premium thermal solution with extended heatsink, 7W/mK MOSFET thermal pads, and M.2 Shield Frozr maintains optimal performance under heavy loads. Two M.2 slots with PCIe 4.0 x4 and four SATA 6Gb/s ports with RAID support deliver fast, versatile storage. Connectivity excels with Intel Wi-Fi 6E, Bluetooth 5.3, 2.5Gbps LAN, and USB 3.2 Gen 2×2 for rapid data transfer. Audio Boost with Realtek ALC897 Codec provides immersive 7.1-channel sound with S/PDIF output, while HDMI 2.1 and DisplayPort support 4K 60Hz displays. The PCIe 5.0 x16 slot with Steel Armor and 6-layer PCB with 2oz thickened copper ensure durability and future-proofing for high-performance gaming builds.

Specification	Details
Chipset	Intel B760
CPU Support	Intel Core 14th/13th/12th Gen, Pentium Gold, Celeron processors for LGA 1700 Socket
Memory	4x DDR4, up to 128GB, 5333(OC)/5200(OC)/5066(OC)/5000(OC)/4800(OC)/4600(OC)/4400(OC)/4266(OC)/4200(OC)/4000(OC)/3800(OC)/3733(OC)/3600(OC)/3466(OC)/3400(OC)/3333(OC)/3200(JEDEC)/2933(JEDEC)/2666(JEDEC)/2400(JEDEC)/2133(JEDEC) MHz, Dual-Channel, non-ECC, un-buffered, Intel XMP
Onboard Graphics	1x HDMI 2.1 (4K 60Hz), 1x DisplayPort 1.4 (4K 60Hz)
Expansion Slots	2x PCIe x16 (1x PCIe 5.0 x16 from CPU, 1x PCIe 4.0 x4 from Chipset), 1x PCIe 3.0 x1 (from Chipset)
Audio	Realtek ALC897 Codec, 7.1-Channel High Performance Audio, S/PDIF output
Storage	2x M.2 (1x PCIe 4.0 x4 from CPU, 1x PCIe 4.0 x4/SATA from Chipset, 2280/2260/2242), 4x SATA 6Gb/s, RAID 0/1/5/10
USB	1x USB 10Gbps Type C (Front), 2x USB 5Gbps Type A (Front), 4x USB 2.0 (Front), 1x USB 20Gbps Type C (Rear), 3x USB 10Gbps Type A (Rear), 4x USB 2.0 (Rear)
LAN	Realtek 2.5Gbps LAN
WiFi & Bluetooth	Intel Wi-Fi 6E, Bluetooth 5.3
Internal I/O	1x ATX_PWR, 2x CPU_PWR, 1x CPU Fan, 1x Pump Fan, 4x System Fan, 2x JFP, 1x JCI, 1x JAUD, 1x JDASH, 2x JARGB_V2, 1x JRGB, 1x TPM 2.0, 4x USB 2.0, 2x USB 5Gbps Type A, 1x USB 10Gbps Type C
LED Features	4x EZ Debug LED, 2x Addressable V2 RGB LED connectors, 1x RGB LED connector

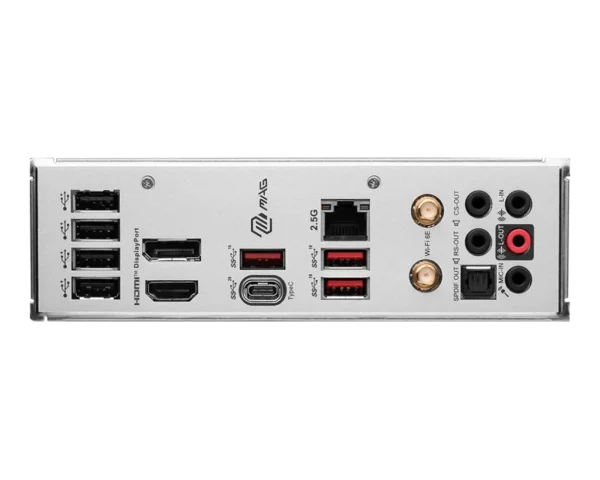

Back Panel Ports	HDMI 2.1, DisplayPort 1.4, 1x USB 20Gbps Type C, 3x USB 10Gbps Type A, 4x USB 2.0, 2.5G LAN, Wi-Fi/Bluetooth, Audio Connectors, Optical S/PDIF Out
Operating System	Windows 11 64-bit, Windows 10 64-bit
Form Factor	mATX, 243.84mm x 243.84mm
