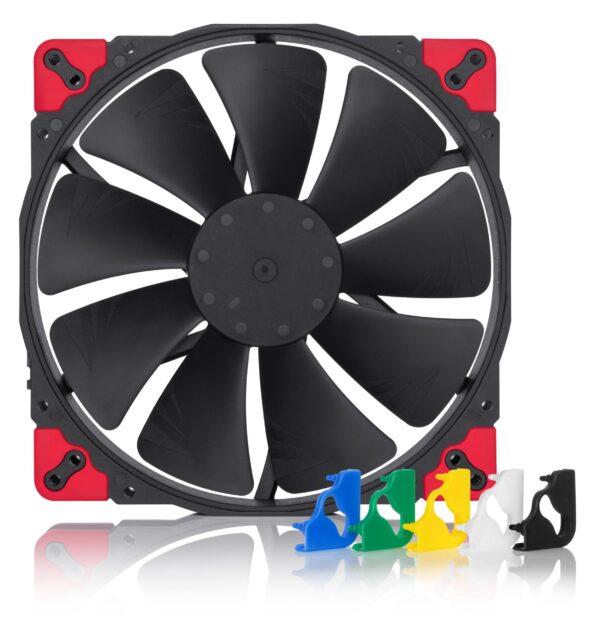

Noctua NF-A20 PWM chromax.black.swap 200mm 4-Pin PWM Fan with AAO Frame – NF-A20 PWM CH.BK.S
Original price was: ₱2,290.00.₱1,995.00Current price is: ₱1,995.00.
- 200mm fan with chromax.black.swap design
- Swappable anti-vibration pads in 6 colors
- Flow Acceleration Channels and AAO frame for efficiency
- SSO2 bearing with >150,000 hours MTTF
- NE-FD1 PWM IC with Smooth Commutation Drive
- Multiple mounting hole spacings (154×154, 110×180, 170×170 mm)
- 6-year warranty
- SKU: NF-A20 PWM CH.BK.S
In stock
Price Drop Alerts & Price History
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
The Noctua NF-A20 PWM chromax.black.swap delivers premium 200mm fan performance with a sleek all-black aesthetic, perfect for enthusiasts seeking both style and efficiency. Featuring Flow Acceleration Channels, Stepped Inlet Design, and Inner Surface Microstructures within an AAO frame, it ensures exceptional airflow and minimal noise for superior case cooling. The custom-designed NE-FD1 PWM IC with Smooth Commutation Drive reduces switching noises for ultra-quiet operation at lower speeds, while the SSO2 bearing with a brass metal shell guarantees precision and durability, exceeding 150,000 hours MTTF. Swappable NA-AVP6 anti-vibration pads in black, red, white, blue, green, and yellow enable seamless color coordination with various build themes. With versatile mounting hole options at 154x154mm, 110x180mm, and 170x170mm, it fits most PC cases, replacing 200mm, 230mm, and 250mm fans. Backed by a 6-year warranty, this fan combines Noctua’s trusted quality with customizable aesthetics, ideal for high-performance, visually striking PC builds.
| Specification | Details |
|---|---|
| Brand | Noctua |
| SKU | NF-A20 PWM CH.BK.S |
| Size | 200x200x30 mm |
| Mounting Hole Spacing | 154x154, 110x180, 170x170 mm |
| Connector | 4-pin PWM |
| Cable Length | 2cm + 30cm NA-EC1 extension cable |
| Bearing | SSO2 |
| Blade Geometry | A-Series with Flow Acceleration Channels |
| Frame Technology | AAO (Advanced Acoustic Optimisation) |
| Rotational Speed | 800 RPM (±10%) |
| Min. Rotational Speed | 350 RPM (@ 20% PWM, ±20%) |
| Airflow | 146.9 m³/h |
| Acoustical Noise | 18.1 dB(A) |
| Static Pressure | 1.08 mm H₂O |
| Input Power (Typical/Max) | 0.82 W / 0.96 W |
| Input Current (Typical/Max) | 0.07 A / 0.08 A |
| Operating Voltage | 12 V |
| Voltage PWM Signal | 5 V |
| MTTF | >150,000 h |
| Scope of Delivery | 8x NA-AVP6 chromax.black anti-vibration pads, 4x NA-AVP6 chromax.blue anti-vibration pads, 4x NA-AVP6 chromax.green anti-vibration pads, 4x NA-AVP6 chromax.red anti-vibration pads, 4x NA-AVP6 chromax.white anti-vibration pads, 4x NA-AVP6 chromax.yellow anti-vibration pads, NA-EC1 chromax.black 30 cm extension cable, 4x fan screws |
| Warranty | 6 years |
| Notes | Check case compatibility list for chassis compatibility due to varying fan size standards. |
| Packaging Weight | 0.676 kg |
|---|---|
| Packaging Dimensions (L×W×H) | 23 × 23 × 5 cm |
| Brand | Noctua |
