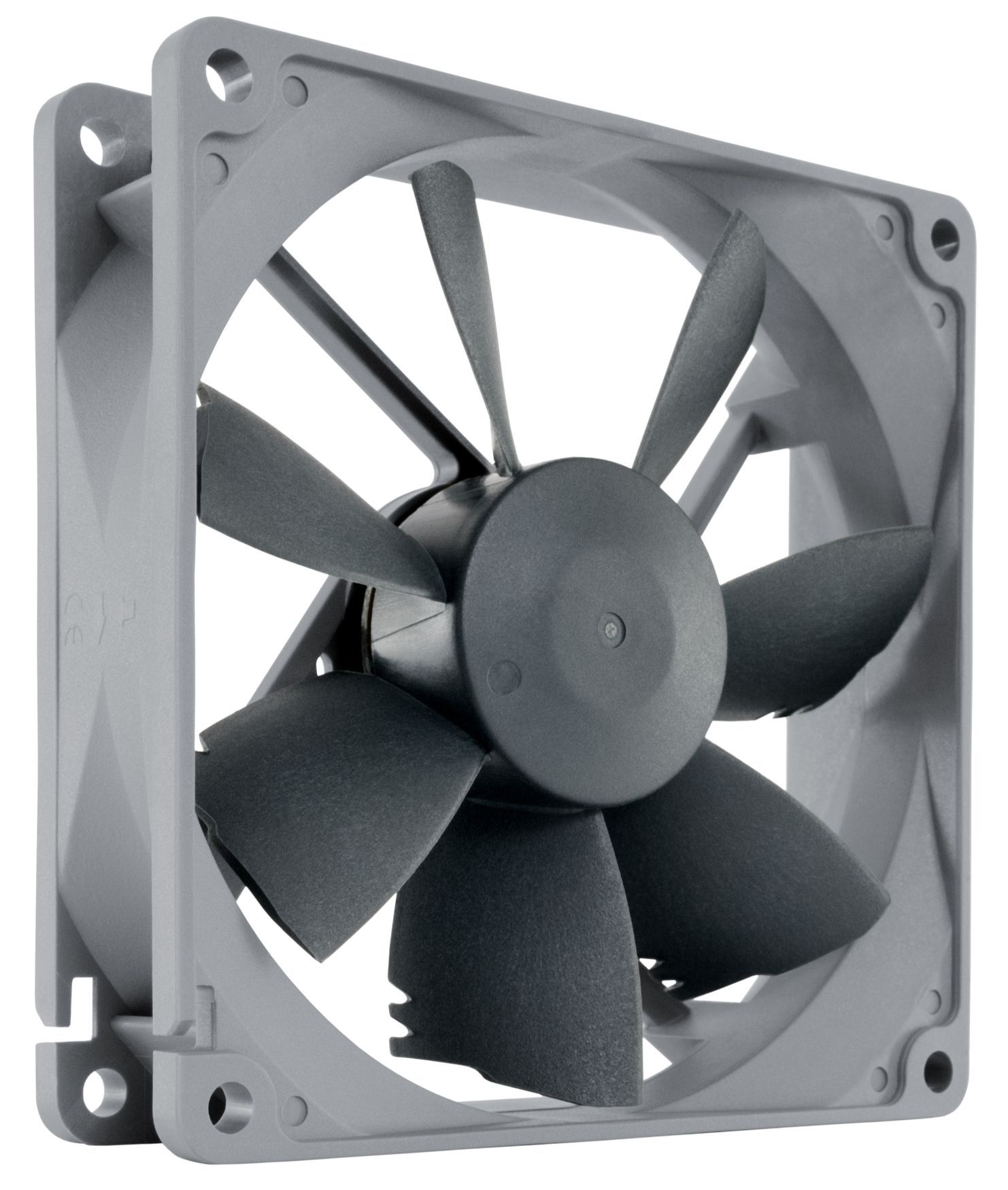

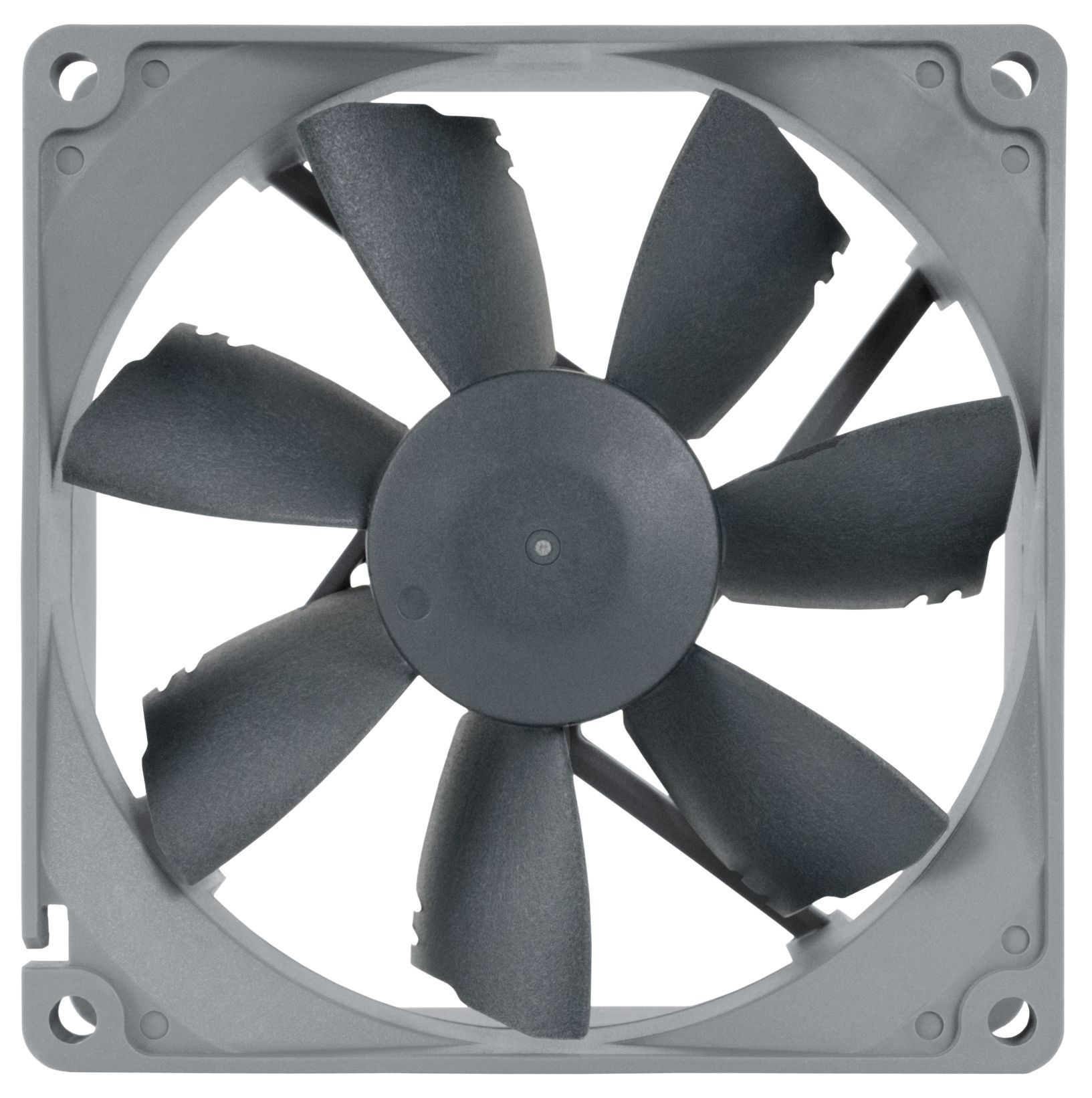

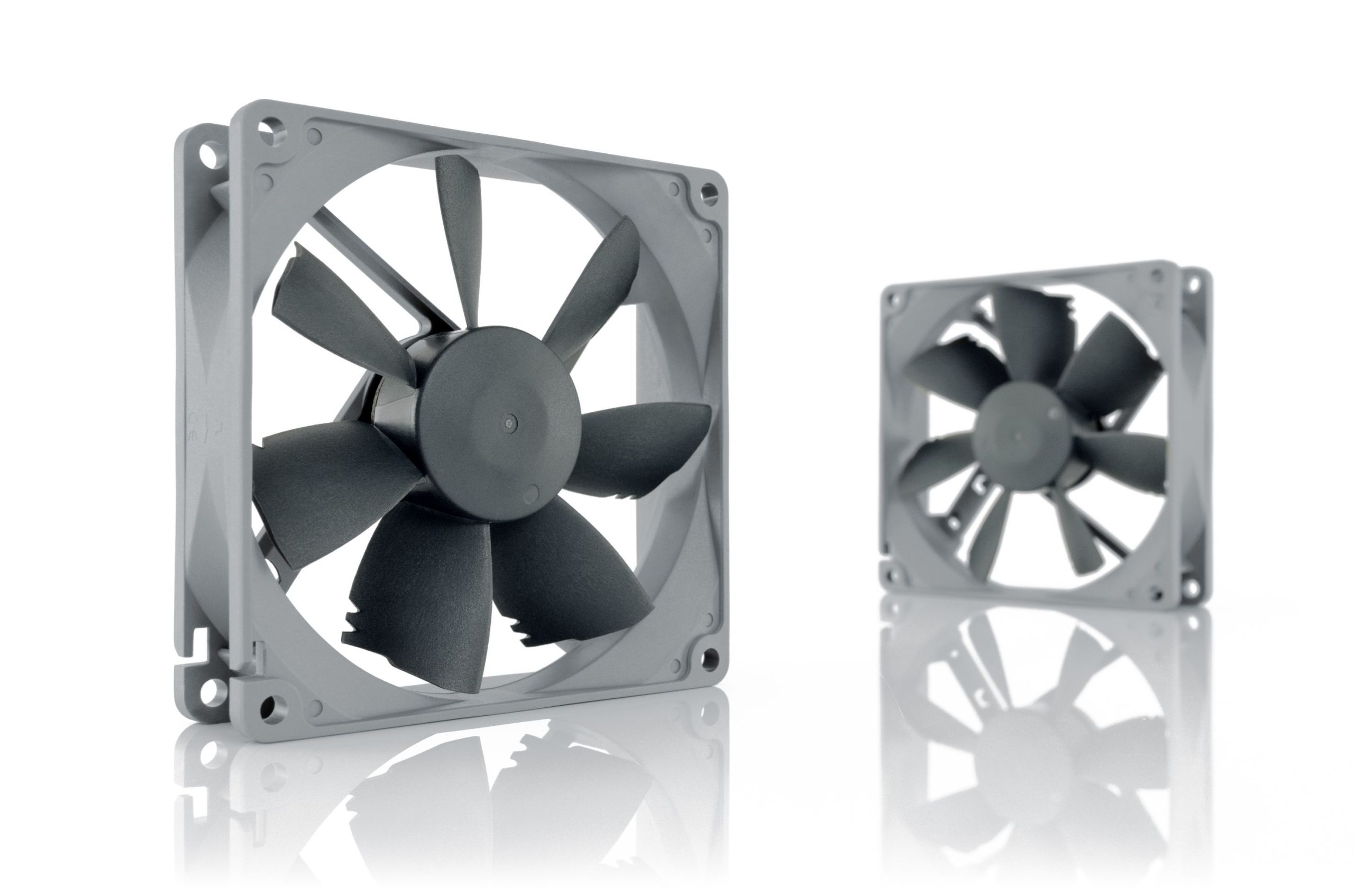

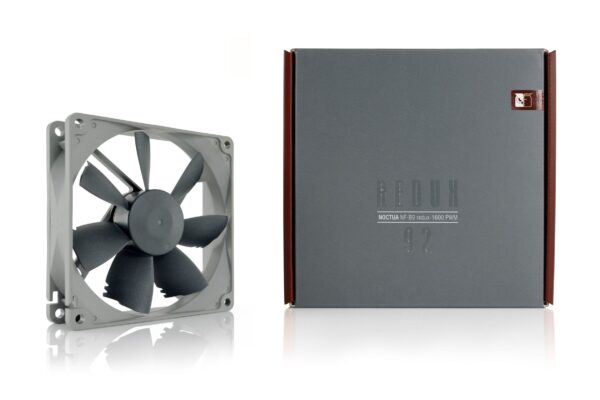

Noctua NF-B9 redux-1600 92mm PWM Fan – NF-B9 redux-1600
- 92mm PWM fan for compact builds
- Vortex-Control Notches for reduced noise
- Bevelled Blade Tips for efficiency
- SSO-Bearing with >150,000 h MTTF
- PWM control with Smooth Commutation Drive
- Ideal for case and heatsink cooling
- 6-year warranty
- SKU: NF-B9 redux-1600
Description
The Noctua NF-B9 redux-1600 fan delivers premium quiet cooling for compact PC builds. This 92mm fan features Vortex-Control Notches and Bevelled Blade Tips to optimize airflow efficiency while minimizing noise, making it ideal for noise-sensitive applications. Equipped with Noctua’s custom-designed NE-FD1 PWM IC with Smooth Commutation Drive, it ensures quiet operation with automatic speed control and exceptional smoothness. The industry-grade SSO-Bearing provides outstanding durability with an MTTF exceeding 150,000 hours. This streamlined redux edition combines Noctua’s renowned quality with an accessible price point, offering reliable performance for case and heatsink cooling. Backed by a 6-year warranty, it provides a trusted solution for enthusiasts seeking a balance of cooling efficiency and low noise in smaller form factors.
| Specification | Details |
|---|---|
| Brand | Noctua |
| SKU | NF-B9 redux-1600 |
| Size | 92x92x25 mm |
| Mounting Hole Spacing | 82.5x82.5 mm |
| Connector | 4-pin PWM |
| Cable Length | 40cm |
| Bearing | SSO-Bearing |
| Max. Rotational Speed | 1600 RPM (±10%) |
| Min. Rotational Speed | 350 RPM (@ 20% PWM, ±20%) |
| Airflow | 64.3 m³/h |
| Acoustical Noise | 17.6 dB(A) |
| Static Pressure | 1.61 mm H₂O |
| Input Power (Typical) | 0.91 W |
| Input Power (Max) | 0.96 W |
| Input Current (Typical) | 0.08 A |
| Max. Input Current | 0.08 A |
| Operating Voltage | 12 V |
| MTTF | >150,000 h |
| Scope of Delivery | Fan, 4 Fan Screws |
| Warranty | 6 years |
Additional information
| Weight | 0.305 kg |
|---|---|
| Dimensions | 20 × 20 × 4 cm |
| Brand | Noctua |
