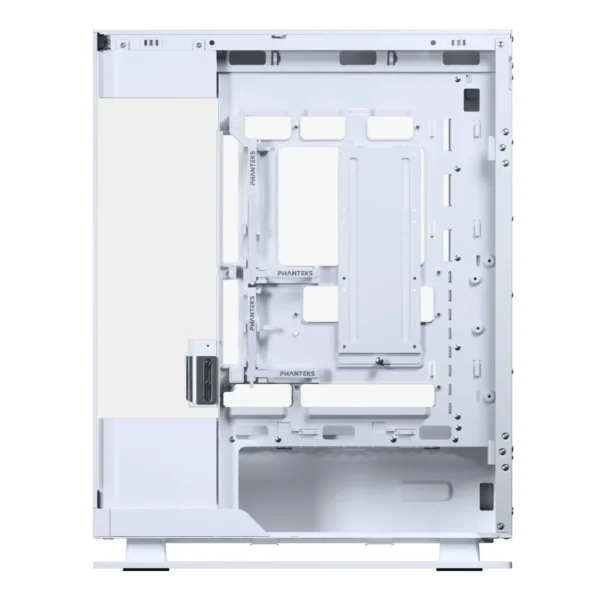

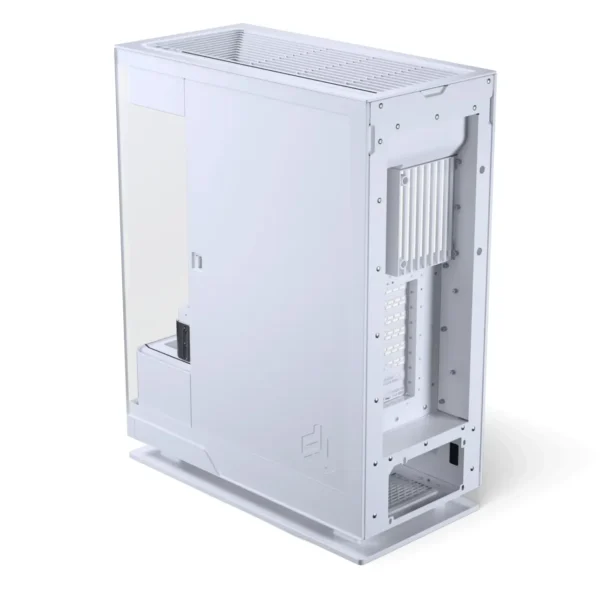

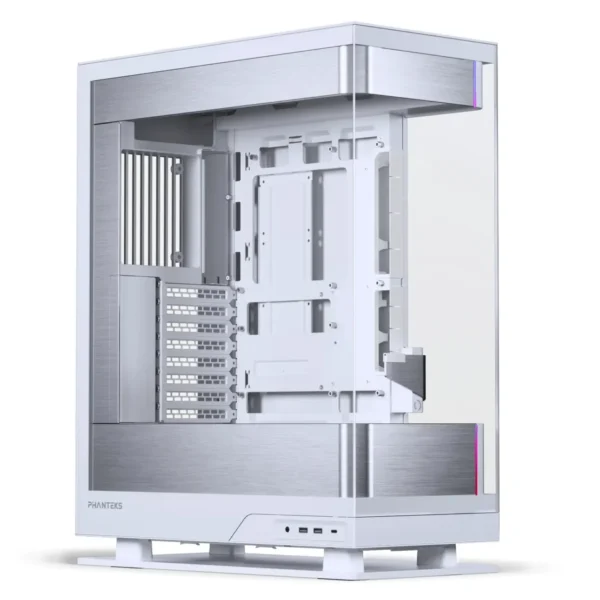

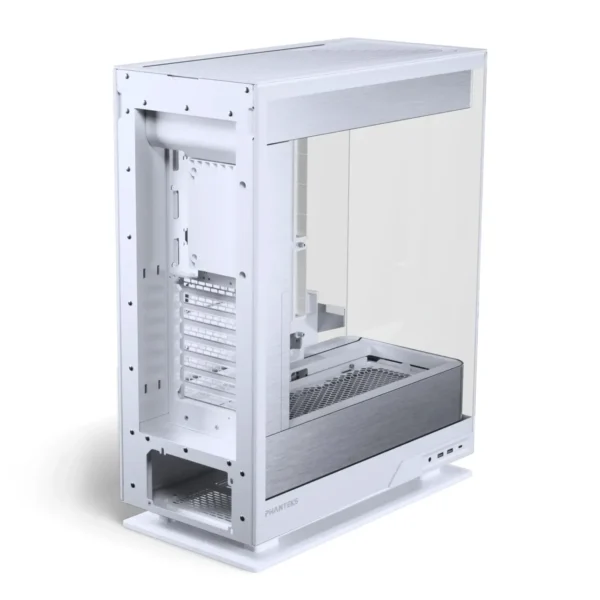

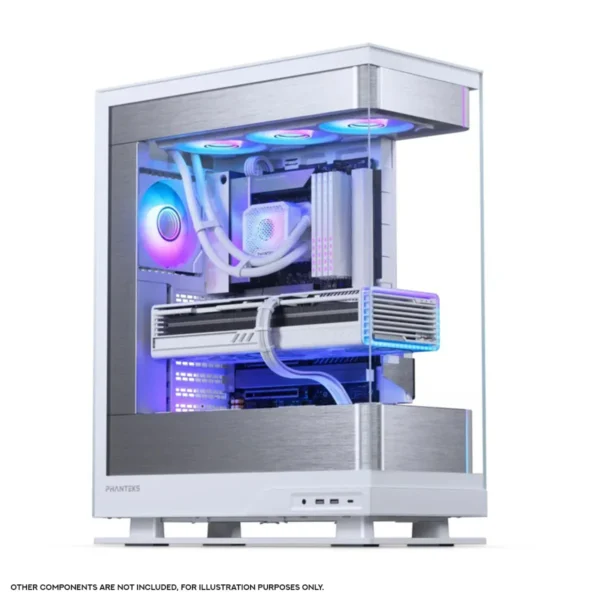

Phanteks Evolv X2 White Mid-Tower Aluminum Tempered Glass Case – PH-ES524XTG_DMW01
Original price was: ₱10,230.00.₱8,900.00Current price is: ₱8,900.00.
- Premium Floating Design: Elevated chassis for maximized bottom air intake and superior vertical cooling performance.
- High-End Materials: Built with a heavy-duty steel frame and finished with brushed silver-white aluminum and tempered glass.
- Zero-Cable Compatibility: Supports rear-connect motherboards (ASUS BTF, MSI Project Zero) for an ultra-clean interior.
- Optimized Thermal Flow: Features a 360mm top radiator support and a total of seven 120mm fan positions.
- Integrated D-RGB Lighting: Includes three pre-installed diffuse D-RGB strips for vibrant, customizable lighting effects.
- Ample Clearance: Supports GPUs up to 380mm in length and 170mm CPU coolers for maximum hardware flexibility.
- Smart Storage: Flexible mounting for up to five SSDs or a combination of HDDs and SSDs via modular brackets.
- SKU: PH-ES524XTG_DMW01
In stock
Price Drop Alerts & Price History
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
Phanteks Evolv X2: Redefining the Modern Desktop
The Phanteks Evolv X2 White is a masterpiece of engineering designed to redefine the desktop computer. Featuring a breathtaking see-through glass design and a premium silver-white brushed aluminum interior, this chassis is built to showcase your high-end hardware like never before. The Evolv X2 is not just a case; it is a sophisticated floating chassis that prioritizes both aesthetics and high-performance thermal management. By elevating the entire body above its base, the Evolv X2 creates a massive intake zone for surrounding air, ensuring that your GPU and CPU receive a constant stream of fresh, cool air for peak performance during intensive tasks.
Efficient Vertical Cooling Architecture
Unlike traditional layouts, the Evolv X2 utilizes a powerful vertical cooling solution. Fresh air is drawn efficiently from the bottom positions and channeled directly through the core components. Heat is then naturally expelled through the top ventilation, which features a unique slanted grill design that directs hot air away from the user. This intelligent thermal design ensures that even the most demanding builds remain cool and stable under heavy workloads or extreme gaming sessions. The top and base are designed so that radiators and fans sit flush, creating a seamless and integrated appearance that hides the bulk of cooling components.
Zero-Cable Aesthetics and Clean Internal Design
Achieving a professional, “zero-cable” look is effortless with the Evolv X2. The chassis is fully compatible with modern rear-connect motherboards, including the MSI Project Zero, ASUS BTF, and Gigabyte Project Stealth series. A massive rear cover door is integrated to completely hide all cables behind the mainboard tray, ensuring that only your main components are visible through the crystal-clear glass. Whether you are building a workstation or a flagship gaming PC, the Evolv X2 keeps your motherboard and graphics card front and center without the distraction of messy wiring or exposed mounting brackets.
Premium Build Quality and Integrated D-RGB Lighting
Constructed from a super-strong steel and aluminum C-frame, the Evolv X2 offers unrivaled structural integrity. The interior is wrapped in brushed aluminum panels that complement high-end hardware, while smooth and diffuse D-RGB lighting lines run from top to bottom. Three built-in D-RGB LED strips come pre-installed and are ready to sync with your Phanteks controller or any A-RGB equipped motherboard. This combination of premium materials and sophisticated lighting makes the Evolv X2 White the ultimate choice for enthusiasts who demand a clean, high-performance, and visually stunning computer build.
| Product Specifications: Phanteks Evolv X2 White | |
|---|---|
| General Information | |
| Brand | Phanteks |
| Model Name | Evolv X2 White |
| Model Number | PH-ES524XTG_DMW01 |
| UPC Code | 886523303695 |
| Form Factor | Mid-Tower Chassis |
| Color / Finish | Silver White / Brushed Aluminium |
| Physical Dimensions & Materials | |
| Chassis Dimensions | 454 x 228 x 588 mm (17.87 x 8.98 x 23.15 in) |
| Net Weight | 14.2 kg (31.3 lbs) |
| Gross Weight | 16.5 kg (36.4 lbs) |
| Materials | High-strength Steel Chassis, Premium Aluminium Panels, Tempered Glass Window, ABS Plastic |
| Mainboard & Compatibility | |
| Mainboard Support | E-ATX (up to 280 mm wide), ATX, Micro-ATX, Mini-ITX |
| Rear-Connect Support | Fully Compatible with MSI Project Zero, ASUS BTF, and Gigabyte Project Stealth |
| Expansion Slots | 8 Slots |
| Vertical GPU Support | Yes (Riser cable sold separately) |
| Storage & Drive Bays | |
| Internal 2.5" Positions | Up to 5x 2.5" SSD (3x via Side Bracket + 2x via Bottom Bracket) |
| Internal 3.5" Positions | Up to 2x 3.5" HDD (via Bottom Storage Bracket) |
| Storage Configuration | Flexible: 5x 2.5" OR (3x 2.5" + 2x 3.5") OR (4x 2.5" + 1x 3.5") |
| Cooling & Thermal Solutions | |
| Total Fan Support | Up to 7x 120 mm Fans |
| Top Fan Positions | 3x 120 mm |
| Bottom Fan Positions | 3x 120 mm |
| Rear Fan Positions | 1x 120 mm |
| Radiator Support (Top) | Up to 360 mm (Max dimensions: 415 x 130 x 32 mm) |
| Airflow Design | Efficient Vertical Airflow; Intake from bottom, exhaust through top slanted grill |
| Front I/O & Lighting Control | |
| USB Connectivity | 1x USB-C 3.2 Gen2x2, 2x USB 3.0 |
| Audio | 1x Microphone / Headphone Combo Jack |
| Integrated Lighting | 3x Pre-installed D-RGB LED strips; Smooth diffuse lighting lines |
| Lighting Compatibility | Phanteks D-RGB Controller or A-RGB equipped Motherboards |
| Component Clearances | |
| CPU Cooler Height | 170 mm (6.69 in) |
| GPU Length | 380 mm (14.96 in) |
| GPU Width | 170 mm (14.96 in) |
| PSU Length | 250 mm (9.84 in) |
| Scope of Delivery & Warranty | |
| Included in Box | Evolv X2 Chassis, Storage & SSD Brackets (Pre-installed), Accessory Box (Screws, Zip ties, Stand-off tool), D-RGB MB Adapter (500mm), Microfiber Cloth |
| Warranty | 5 Years Limited Warranty |
| Brand | Phanteks |
|---|
