SALE NEW

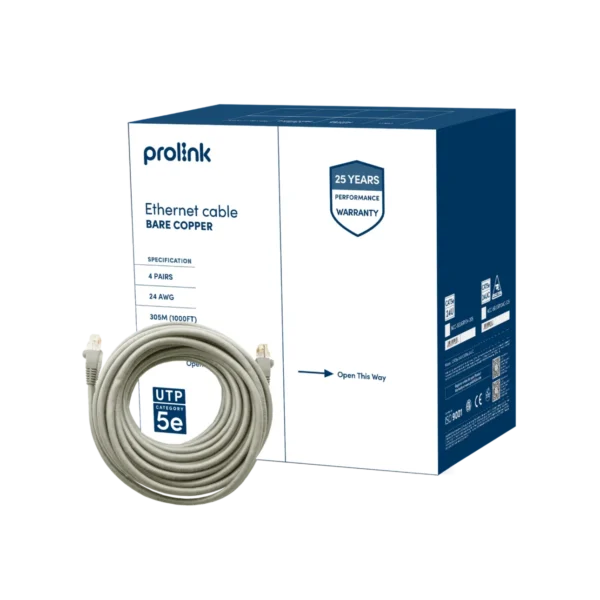

Prolink Cat 5e UTP Bare Solid Copper 24AWG Network Cable – CAT5e 24UC

Original price was: ₱6,310.00.Current price is: ₱5,495.00.

Premium Conductor: 24 AWG Bare Solid Copper for maximum conductivity and signal stability.
CCTV Specialized: Specifically engineered for high-speed data transmission in security surveillance systems.
Fluke Tested: Rigorously verified for high signal-to-noise ratio and performance reliability.
Gigabit Ready: Full support for 10/100/1000 Base-T network standards with 100 MHz bandwidth.
Industrial Build: Durable PVC jacket with High-Density Polyethylene (HDPE) insulation.
Tangle-Free Deployment: Packaged in an easy-to-pull box for professional and convenient installation.
Safety Features: Integrated rip cord for easy stripping and damage-free assembly.
Product SKU: CAT5e 24UC

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱5,200 [ Use this ]

🔓 Sign in to unlock full price history charts and manage your alerts.

SKU: CAT5e 24UC Categories: Cables/Adapters, Computer Accessories Tag: Prolink

Product Specifications: Prolink CAT5E 24UC Bare Copper Cable
Cable Identification
Brand	Prolink
Model Name	CAT5E 24UC Series Bare Copper Cable
Product SKU	CAT5e 24UC
Category	UTP Category 5e (Cat 5e)
Conductor Characteristics
Conductor Material	Bare Solid Copper Conductor (Pure Copper)
Conductor Gauge	24 AWG
Conductor Construction	1 / 0.450 ± 0.008 mm
Number of Pairs	4 Pairs (8 Insulated Conductors twisted together)
Insulation & Color Coding
Insulation Material	High-Density Polyethylene (HDPE)
Average Thickness	0.19 mm (REF)
Inner-Assemble OD	3.70 mm (REF)
Pair Color Coding	Pair 1: Brown & White / Brown Stripe Pair 2: Blue & White / Blue Stripe Pair 3: Orange & White / Orange Stripe Pair 4: Green & White / Green Stripe
Outer Jacket & Filler
Jacket Material	Polyvinyl Chloride (PVC)
Jacket Diameter	4.7 mm ± 0.30 mm
Jacket Thickness	0.55 mm (REF Average)
Jacket Colour	Grey (with Black marking colour)
Filler / Rip Cord	Rip Cord Construction: 3 * 250D
Transmission Performance
Bandwidth	Up to 100 MHz
Network Standard Support	Supports Gigabit Ethernet: 10 Base-T, 100Base-TX, 1000Base-TX
Compliance & Testing	Fluke Tested for high signal-to-noise ratio and performance warranty
Environmental & Logistics
Operating Temperature	-10°C to 40°C
Humidity Range	0% ~ 90% RH (Non-condensing)
Packaging	Easy-to-pull box for convenience installation

Product Specifications: Prolink CAT5E 24UC Bare Copper Cable
Cable Identification
Brand	Prolink
Model Name	CAT5E 24UC Series Bare Copper Cable
Product SKU	CAT5e 24UC
Category	UTP Category 5e (Cat 5e)
Conductor Characteristics
Conductor Material	Bare Solid Copper Conductor (Pure Copper)
Conductor Gauge	24 AWG
Conductor Construction	1 / 0.450 ± 0.008 mm
Number of Pairs	4 Pairs (8 Insulated Conductors twisted together)
Insulation & Color Coding
Insulation Material	High-Density Polyethylene (HDPE)
Average Thickness	0.19 mm (REF)
Inner-Assemble OD	3.70 mm (REF)
Pair Color Coding	Pair 1: Brown & White / Brown Stripe Pair 2: Blue & White / Blue Stripe Pair 3: Orange & White / Orange Stripe Pair 4: Green & White / Green Stripe
Outer Jacket & Filler
Jacket Material	Polyvinyl Chloride (PVC)
Jacket Diameter	4.7 mm ± 0.30 mm
Jacket Thickness	0.55 mm (REF Average)
Jacket Colour	Grey (with Black marking colour)
Filler / Rip Cord	Rip Cord Construction: 3 * 250D
Transmission Performance
Bandwidth	Up to 100 MHz
Network Standard Support	Supports Gigabit Ethernet: 10 Base-T, 100Base-TX, 1000Base-TX
Compliance & Testing	Fluke Tested for high signal-to-noise ratio and performance warranty
Environmental & Logistics
Operating Temperature	-10°C to 40°C
Humidity Range	0% ~ 90% RH (Non-condensing)
Packaging	Easy-to-pull box for convenience installation
