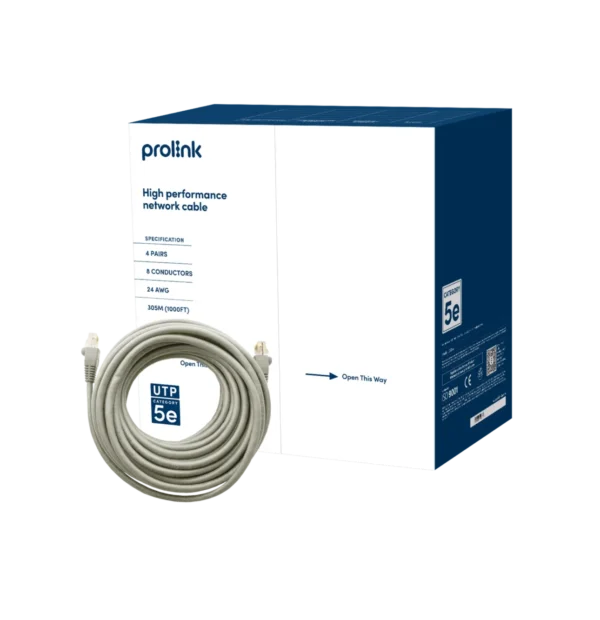

Prolink CAT5E 24P Plus Series 4-Pair UTP 24AWG Network Cable 305m – CAT5e 24P

Professional Grade LAN Connectivity with Prolink CAT5E 24P Plus

The Prolink CAT5E 24P Plus Series represents a premier solution for modern local area network requirements. Engineered as a 4-pair unshielded twisted pair cable, this high-performance networking medium is specifically designed to handle the rigorous demands of high-speed data transmission. Whether deployed in residential environments or commercial office infrastructures, the Plus Series provides the structural integrity and electrical precision necessary to maintain stable, low-latency connections for critical internet and intranet applications.

Superior 24AWG Conductor and High-Density Insulation

At the core of the Prolink CAT5E 24P cable is a high-quality 24 AWG conductor, featuring a precise 0.51mm construction. This thick conductor diameter is vital for ensuring minimal signal attenuation over long distances. To further protect signal integrity, each conductor is insulated with high-density polyethylene, which effectively mitigates electromagnetic interference between the twisted pairs. This robust internal architecture ensures that the cable meets and exceeds the stringent requirements of Fluke testing, delivering a high signal-to-noise ratio that is essential for error-free data packets.

Optimized 100MHz Bandwidth for Gigabit Networking

Data-intensive tasks require significant throughput capacity, and the Prolink CAT5E 24P Plus Series delivers a consistent transmission bandwidth of up to 100 MHz. This ensures full support for standard networking protocols including 10 Base-T and 100Base-TX, as well as Gigabit Ethernet via 1000Base-TX support. By providing a reliable 100-ohm characteristic impedance across a wide frequency range, this cable provides the necessary overhead for seamless streaming, gaming, and large-scale file transfers without the bottlenecks associated with inferior grade cabling.

Reliable Performance and Electrical Precision

Electrical stability is a hallmark of the Prolink Plus Series. With a maximum conductor resistance of 18 ohms per 100 meters and a high insulation resistance of at least 150 megaohms per kilometer, the cable is built to handle sustained network activity. The careful twisting of the 4 pairs minimizes mutual capacitance and resistance unbalance, ensuring that each data stream is shielded from crosstalk. This technical precision results in a superior networking experience, reducing the need for re-transmissions and enhancing the overall efficiency of your network equipment.

Effortless Installation with Easy-to-Pull Box Design

Understanding the challenges of field installation, Prolink packages the CAT5E 24P cable in a specialized 305-meter easy-to-pull box. This design allows for a smooth, tangle-free deployment of the cable through conduits, ceilings, and wall cavities. The convenience of the pull-box significantly reduces installation time and minimizes the risk of conductor kinks or jacket damage during the setup process. This professional packaging, combined with the industry-standard color coding for all four pairs, makes it the ideal choice for network technicians and DIY enthusiasts alike.
