Scythe Wonder Snail PWM Chassis Fan 120mm 77.23 CFM 2400 RPM White – WS1225FD24W-P
In Stock
In Stock
Add to Wishlist
Add to Wishlist
- 7.68 to 77.23 CFM airflow with 3.59 mm H₂O static pressure
- Focus channel design for concentrated airflow
- Sealed precision FDB for 120,000-hour lifespan
- PWM control for 300 to 2400 RPM speed adjustment
- Anti-vibration pads for quiet operation
- Sleek white finish with 200mm extension cable
- SKU: WS1225FD24W-P
Description

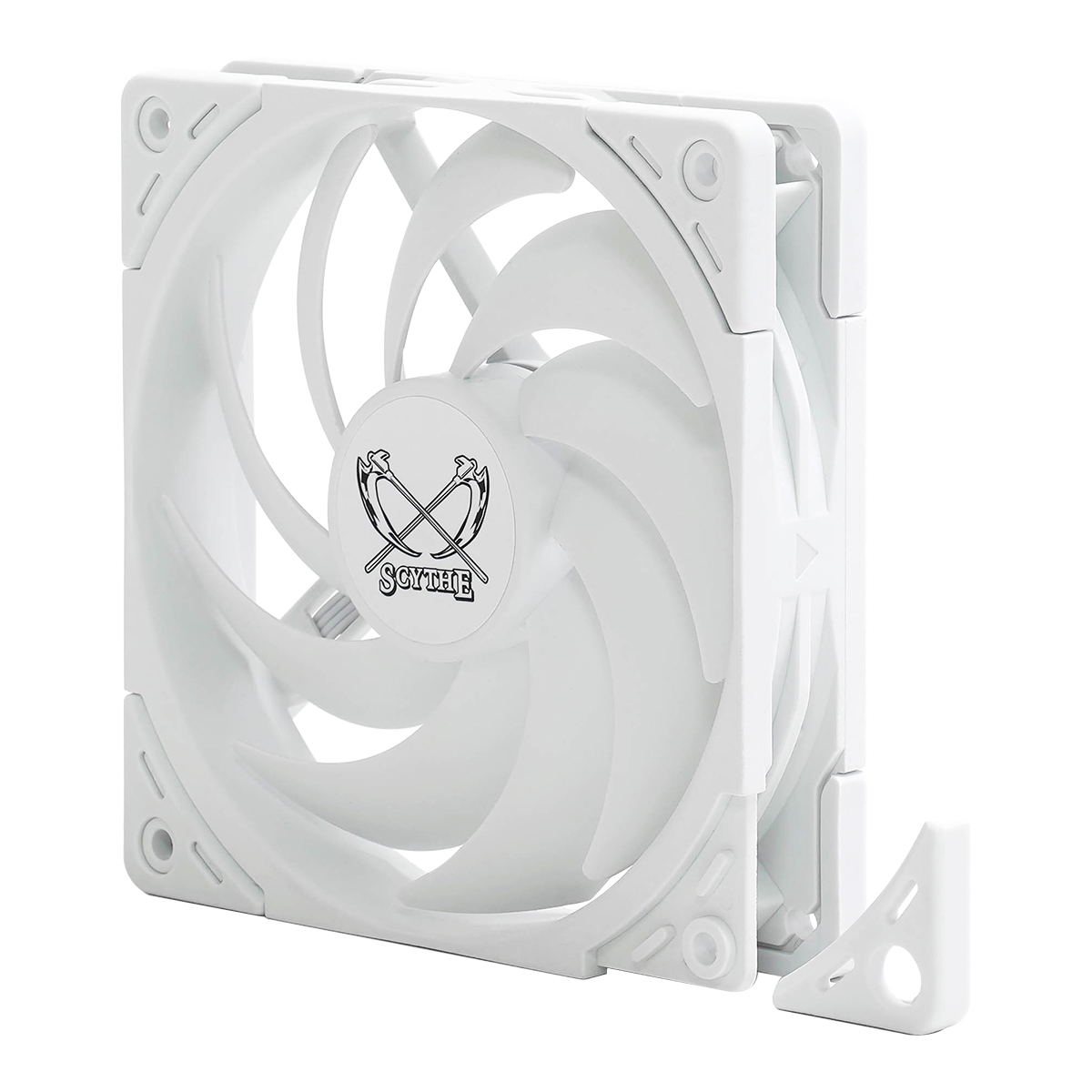

Elevate your PC cooling with the Scythe Wonder Snail 120 PWM Fan, engineered for high-pressure applications and quiet performance. This 120mm fan delivers an airflow range of 7.68 to 77.23 CFM and static pressure up to 3.59 mm H₂O, optimized for heatsinks and water-cooling radiators. The focus channel design ensures straight and concentrated airflow, enhancing cooling efficiency. Equipped with a sealed precision fluid dynamic bearing, it offers a 120,000-hour lifespan and silent operation from 3.0 to 29.3 dB(A). The PWM control adjusts speeds from 300 to 2400 RPM, balancing performance and noise for various workloads. Anti-vibration pads minimize resonance, ensuring stable and quiet operation. The sleek white frame, paired with a 300mm cable and a 200mm extension, simplifies installation. Ideal for high-performance gaming builds, this fan combines robust cooling with reliable durability.
| Feature | Specification |
|---|---|
| Brand | Scythe |
| Model | Wonder Snail 120 PWM |
| SKU | WS1225FD24W-P |
| Dimension | 120 x 120 x 26 mm |
| Fan Speed | 300 ±200 ~ 2400 ±10% RPM |
| Airflow | 7.68 ~ 77.23 CFM / 13.04 ~ 131.21 m³/h |
| Static Pressure | 0.05 ~ 3.59 mm H₂O / 0.49 ~ 35.25 Pa |
| Noise Level | 3.0 ~ 29.3 dB(A) |
| Bearing Type | Sealed Precision Fluid Dynamic Bearing |
| MTTF | 120,000 hours |
| Rated Voltage | 12 VDC |
| Rated Current | 0.15 A |
| Connector | 4-Pin PWM |
| Cable Length | 300 mm (additional 200 mm extension cable included) |
Additional information
| Weight | 0.2 kg |
|---|---|
| Dimensions | 14 × 5 × 14 cm |
| Brand | Scythe |
