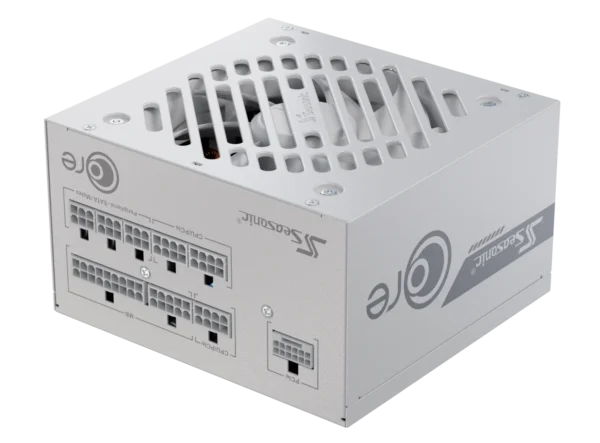

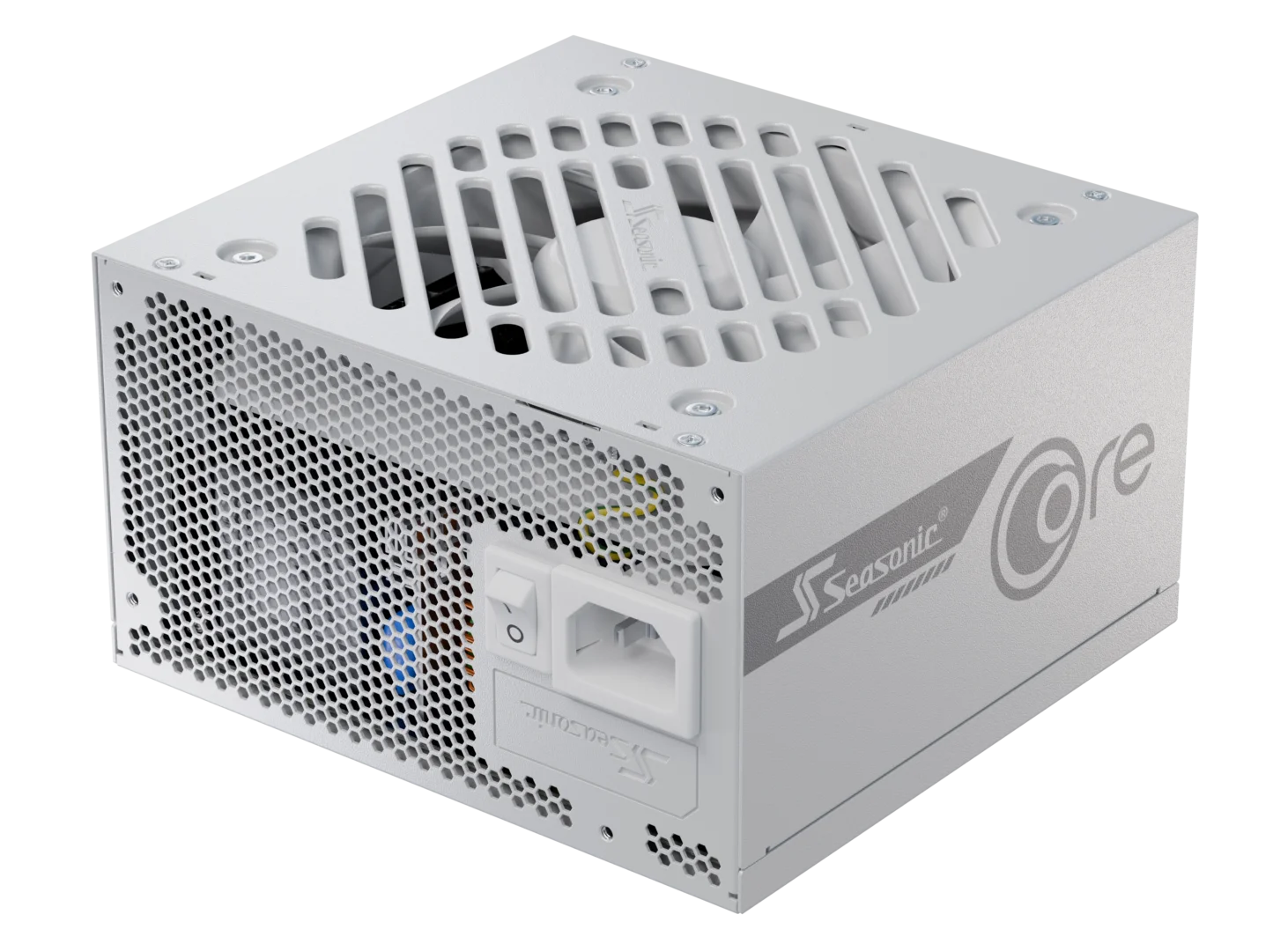

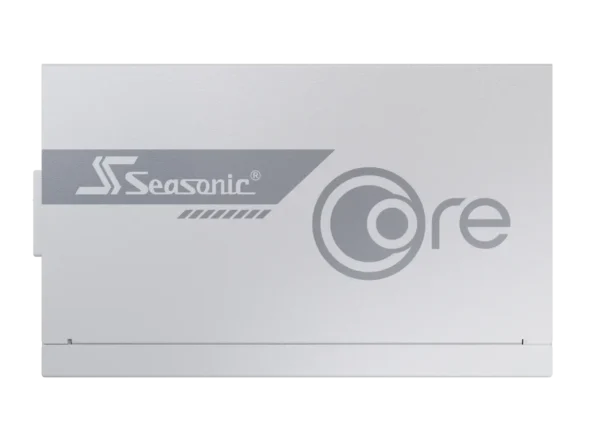

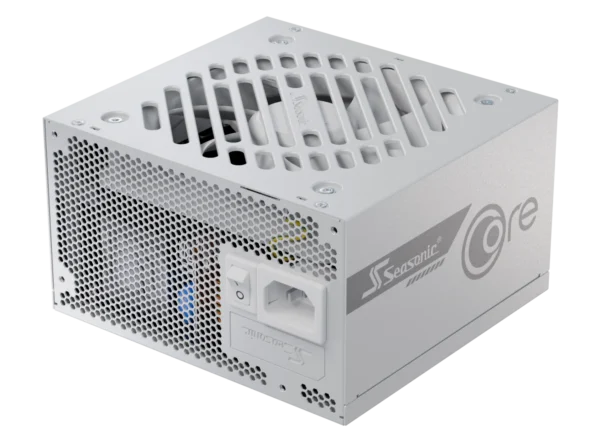

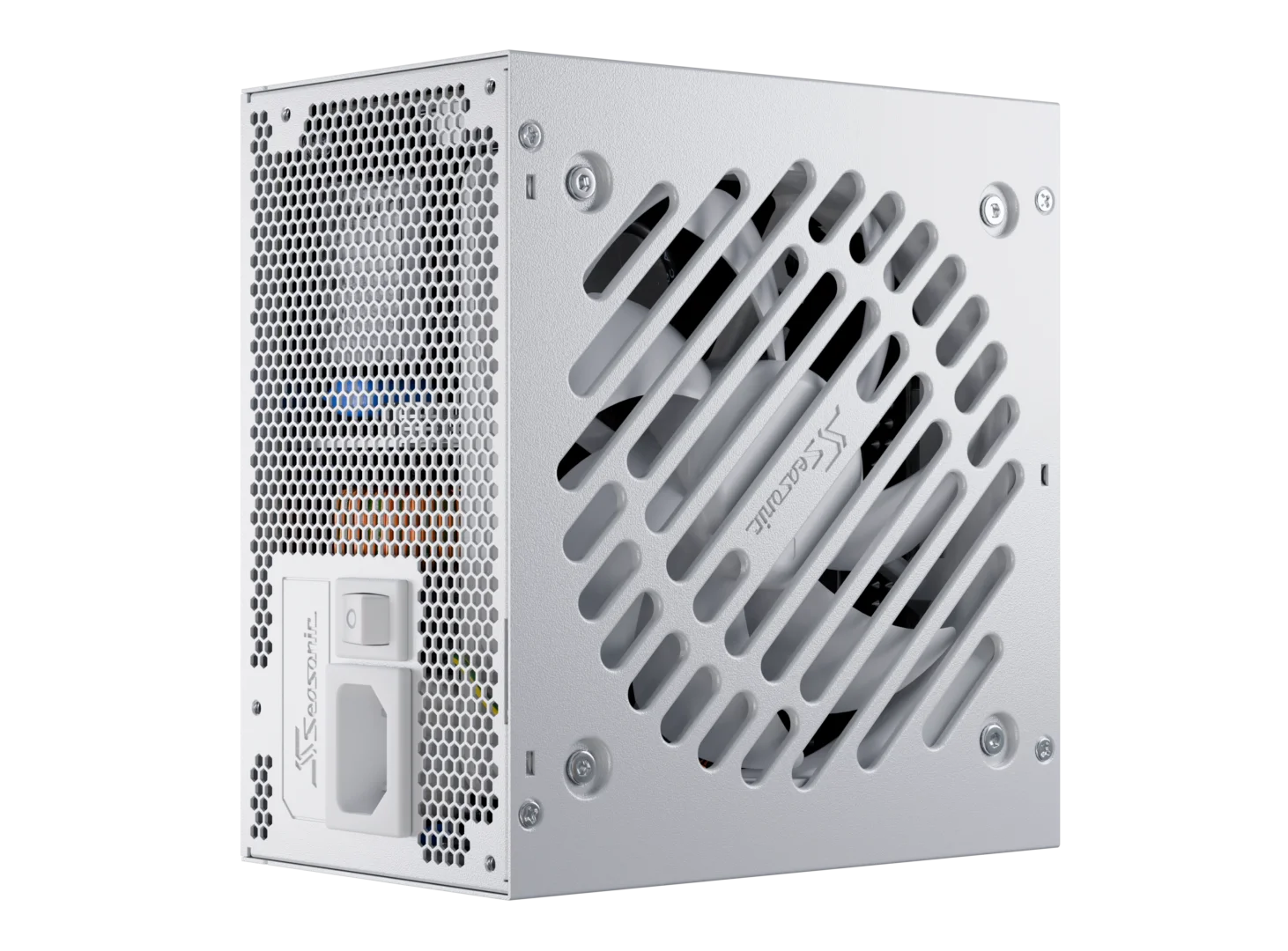

Seasonic CORE GX-850 ATX 3.1 and PCIe 5.1 V2 White 80 PLUS Gold Fully Modular ATX Power Supply – SRP-CGX851-A5A32SF White
- 850W continuous power with 80 PLUS Gold 90% efficiency
- Fully modular with white braided cables for stylish builds

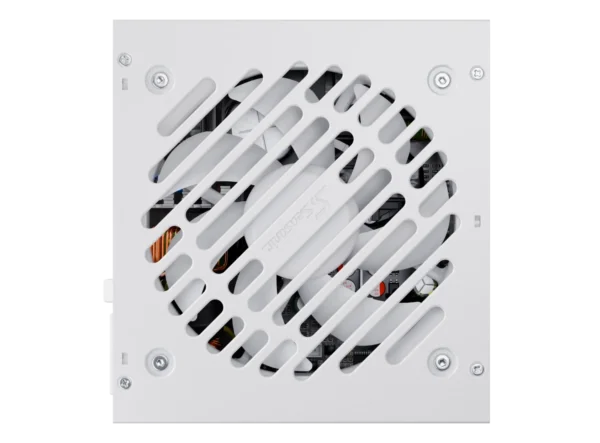

- 120mm HDB fan with S2FC for quiet operation
- 70A +12V rail with 4 PCIe and 2 EPS connectors for multi-GPU
- ATX 3.1 and PCIe 5.1 compliant with 16-pin PCIe Gen 5 cable
- 7-year warranty with 100,000-hour MTBF
Description
Seasonic CORE GX-850 V2 (2024) White SRP-CGX851-A5A32SF White Power Supply: Gold Efficiency for Stylish High-Performance PCs
Power your high-performance gaming or workstation PC with the Seasonic CORE GX-850 V2 (2024) White SRP-CGX851-A5A32SF White, a fully modular power supply delivering 850 watts of continuous power with 80 PLUS Gold certification for 90 percent efficiency at 50 percent load. Designed with a sleek white aesthetic, it features a robust 70A single +12V rail and high-quality Japanese capacitors to support multi-GPU setups with four PCIe 6+2 pin connectors and two EPS connectors, ideal for GPUs like the NVIDIA RTX 4070. The 120mm hydro dynamic bearing fan with Smart and Silent Fan Control ensures quiet operation under varying loads with a 25,000-hour lifespan, optimizing cooling for compact ATX systems. Tight voltage regulation with 3 percent deviation delivers stable power, while comprehensive protections including OCP, OPP, OTP, OVP, UVP, and SCP safeguard your components. Fully modular individual white cables with a braided pattern enhance cable management for a clean and stylish build. A SMD technology design with active PFC reduces line resistance and improves efficiency, while ATX 3.1 and PCIe 5.1 compliance, including a 16-pin PCIe Gen 5 cable, ensures future-proof compatibility with next-gen hardware. Supporting a full-range 100-240V AC input, it’s suitable for global use in demanding systems. With a 100,000-hour MTBF and compliance with Energy Star, RoHS, and ErP Lot 6 standards, this PSU guarantees reliable performance. Backed by a 7-year warranty, the Seasonic CORE GX-850 V2 White delivers exceptional efficiency, quietness, and style for your high-performance PC build.
| Specification | Details |
|---|---|
| Model | SRP-CGX851-A5A32SF White |
| Total Continuous Power | 850 W |
| 80 PLUS Certification | Gold |
| Cybenetics Efficiency Level | TBA |
| Cybenetics Noise Level | TBA |
| Form Factor | ATX/EPS |
| Dimensions | 140 mm (L) x 150 mm (W) x 86 mm (H) |
| AC Input | Voltage: 100 V - 240 V, Current: 11 - 5.5 A, Frequency: 50 Hz - 60 Hz |
| DC Output | +3.3V: 20 A (100 W combined); +5V: 20 A (100 W combined); +12V: 70 A (840 W); -12V: 0.3 A (3.6 W); +5VSB: 3 A (15 W) |

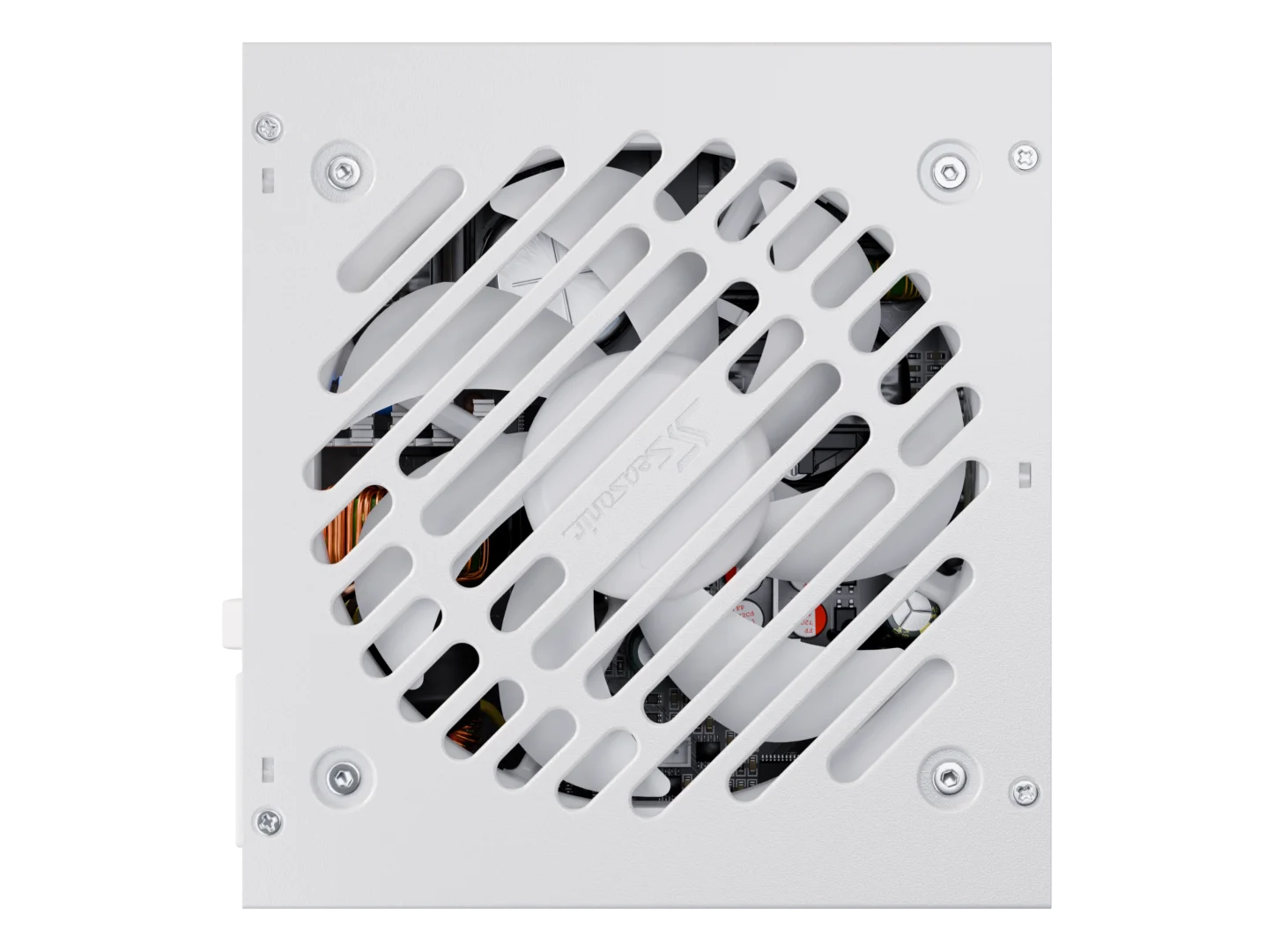

| Fan Information | Fan Size: 120 mm, Fan Control: Smart and Silent Fan Control (S2FC), Fan Bearing: Hydro Dynamic Bearing, Life Expectancy: 25,000 hours at 40 °C, 15 % - 65 % RH |

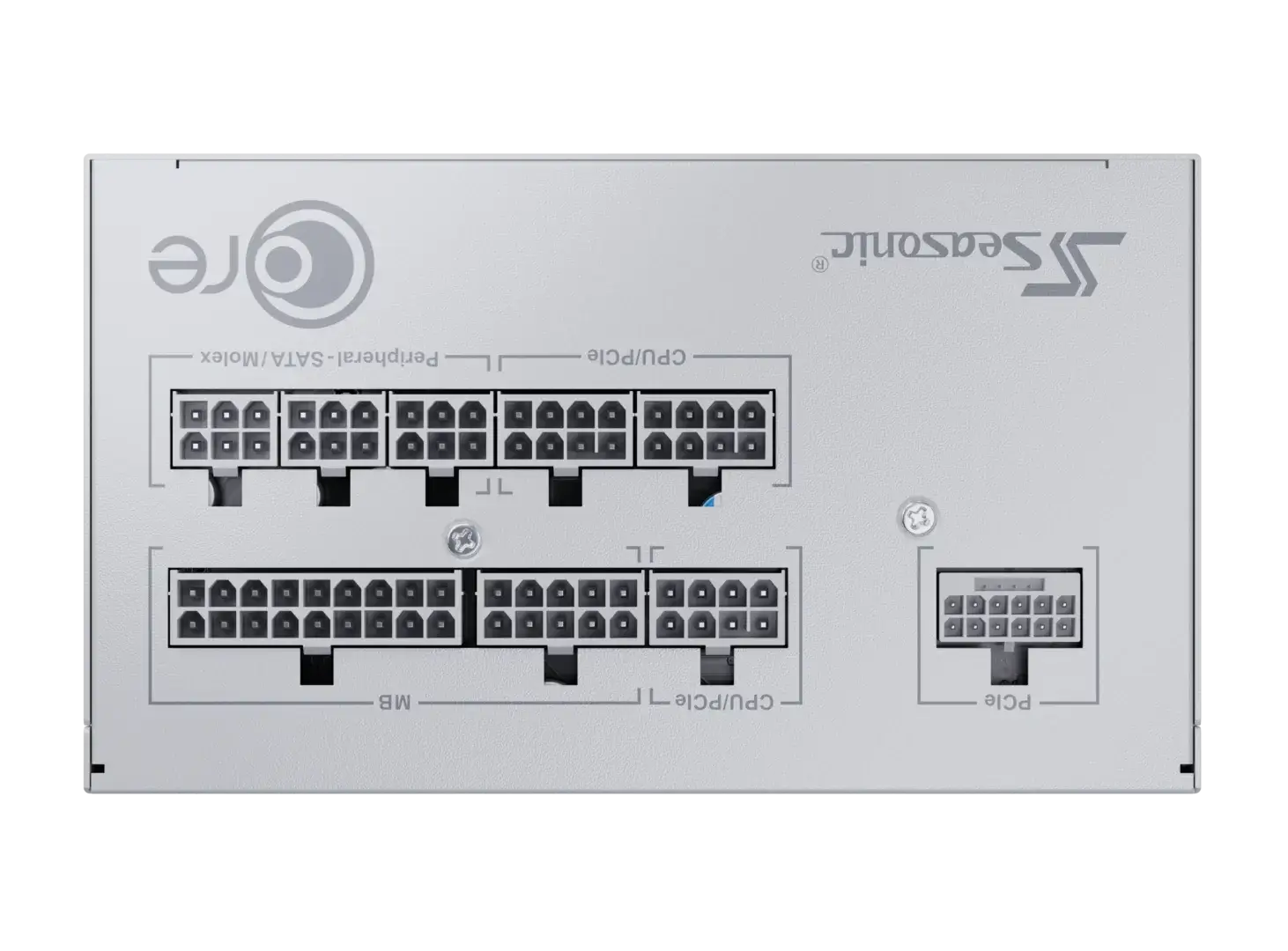

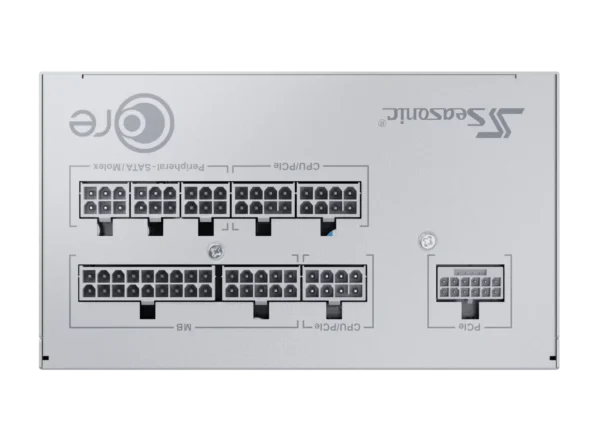

| Cable Information | Modularity: Fully Modular, Cable Type: Individual white cables with braided pattern |
| Electrical Features | Operating Temperature: 0 - 50 °C (derating from 100 % to 80 % from 40 °C to 50 °C), MTBF @ 25 °C (excl. fan): 100,000 hours, AC Input: Full Range, Active PFC |
| Protection | OCP, OPP, OTP, OVP, UVP, SCP |
| Safety and EMC | BSMI, C-tick, CB, CCC, CE, cTUVus, EAC, FCC, TUV, UKCA |
| Environmental Compliance | Energy Star, ErP Lot 6, REACH, RoHS, WEEE |
| Warranty | 7 Years |
| Additional Features | 90% efficiency at 50% load, Multi-GPU support, High-quality Japanese capacitors, Tight voltage regulation (±3%), 4 PCIe 6+2 pin connectors, 2 EPS connectors, ATX 3.1 and PCIe 5.1 compliant, 16-pin PCIe Gen 5 (12V-2x6) cable included, SMD technology for reduced line resistance |
| In The Box | CORE GX-850 V2 (2024) White PSU, Modular white cables with braided pattern, AC power cable, Mounting screws, Cable ties, Velcro straps, Nylon pouch for cables, User manual |
Additional information
| Weight | 3.5 kg |
|---|---|
| Dimensions | 35 × 23 × 14 cm |
| Brand | Seasonic |
