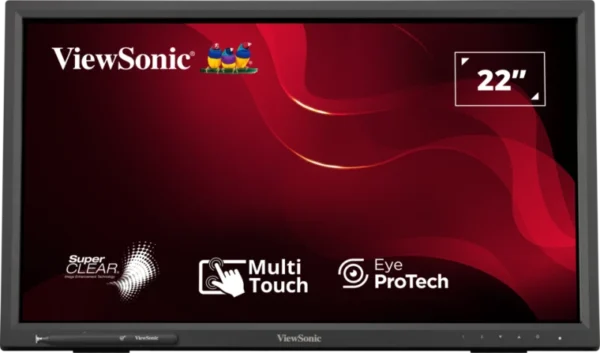

ViewSonic TD2223 22-Inch Full HD VA IR Touch Monitor with 10-Point Multi-Touch and HDMI VGA DVI USB Connectivity – TD2223-2
Original price was: ₱20,100.00.₱17,499.00Current price is: ₱17,499.00.
- 22-inch Full HD (1920×1080) VA panel with 10-point IR touch for precise, multi-touch interactions
- Supports finger, stylus, and gloved input for hygienic and versatile use in high-traffic settings
- 7H hardness scratch-resistant screen ensures durability for kiosks and POS systems
- Adjustable tilt up to 40 degrees and VESA-compatible for ergonomic and flexible setups
- HDMI, VGA, DVI-D, and USB connectivity for broad device compatibility
- Dual 2W speakers deliver clear audio for multimedia applications
- Flicker-free technology and blue light filter reduce eye strain for prolonged use
- Energy-efficient with 18.5W typical consumption, certified for Energy Star and EPEAT
In stock
Price Drop Alerts & Price History
We'll notify you the moment the price hits your target.
💡 Suggested alert: ₱16,600 [ Use this ]
Want to track and manage your alerts? Sign in or create an account.
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
ViewSonic TD2223 22-Inch Full HD IR Touch Monitor: Precision and Durability for Interactive Excellence
Elevate your interactive experience with the ViewSonic TD2223, a 22-inch Full HD touch monitor engineered for precision and durability in professional and commercial settings. Featuring advanced infrared (IR) touch technology, this monitor supports up to 10 simultaneous touch points, offering seamless and accurate interactions for tasks like presentations, retail kiosks, and educational applications. Unlike optical touchscreens, the TD2223 responds to fingers, styluses, and even gloved hands, ensuring hygienic and versatile operation ideal for high-traffic environments. Its vibrant VA panel delivers crisp 1920×1080 resolution with wide 178-degree viewing angles and a 3,000:1 static contrast ratio for stunning visuals. The 7H hardness scratch-resistant screen withstands daily wear, making it perfect for demanding settings like POS systems or public displays. With a 75Hz refresh rate and 6.5ms response time, visuals remain smooth and responsive. The adjustable stand tilts up to 40 degrees for ergonomic comfort, while VESA compatibility allows flexible mounting options. Connectivity is robust, with HDMI, VGA, DVI-D, and USB ports, ensuring compatibility with Windows, macOS, Android, Chrome OS, Linux, and Raspberry Pi. Dual 2W speakers enhance multimedia experiences, and flicker-free technology with a blue light filter reduces eye strain during extended use. A magnetic pen placeholder adds convenience for precise input tasks like annotations or signatures. Energy-efficient with a typical power consumption of 18.5W and Energy Star certification, the TD2223 combines performance, durability, and eco-conscious design, making it an exceptional choice for interactive solutions in any professional environment.
| Category | Specification |
|---|---|
| Display Size | 22 in. |
| Viewable Area | 21.5 in. |
| Panel Type | VA Technology |
| Resolution | 1920 x 1080 |
| Resolution Type | FHD (Full HD) |
| Static Contrast Ratio | 3,000:1 (typ) |
| Dynamic Contrast Ratio | 20M:1 |
| Light Source | LED |
| Brightness | 250 cd/m² (typ) |
| Colors | 16.7M |
| Color Space Support | 8 bit true |
| Aspect Ratio | 16:9 |
| Response Time (Typical GTG) | 6.5ms |
| Response Time (GTG w/OD) | 6.5ms |
| Viewing Angles | 178º horizontal, 178º vertical |
| Backlight Life | 30000 Hrs (Min) |
| Curvature | Flat |
| Refresh Rate | 75 Hz |
| Low Blue Light | Software solution |
| Flicker-Free | Yes |
| Color Gamut | NTSC: 72% size (Typ), sRGB: 104% size (Typ) |
| Pixel Size | 0.249 mm (H) x 0.241 mm (V) |
| Touch Screen | IR, 10-point multi-touch |
| Surface Treatment | Glossy, Hard Coating (7H) |
| Cover Glass Thickness | 2mm |
| Compatibility: PC Resolution (max) | 1920x1080 |
| Compatibility: Mac Resolution (max) | 1920x1080 |
| Compatibility: PC Operating System | Windows 10/11 certified; macOS tested |
| Compatibility: Mac Resolution (min) | 1920x1080 |
| Connector: VGA | 1 |
| Connector: USB 2.0 Type A | 2 |
| Connector: USB 2.0 Type B | 1 |
| Connector: 3.5mm Audio In | 1 |
| Connector: 3.5mm Audio Out | 1 |
| Connector: HDMI 1.4 | 1 |
| Connector: DVI-D | 1 |
| Connector: Power In | 3-pin Socket (IEC C14 / CEE22) |
| Audio: Internal Speakers | 2Watts x2 |
| Power: Eco Mode (Conserve) | 13W |
| Power: Eco Mode (optimized) | 16W |
| Power: Consumption (typical) | 18.5W |
| Power: Consumption (max) | 21.8W |
| Power: Voltage | AC 100-240V |
| Power: Stand-by | 0.5W |
| Power: Power Supply | Internal Power Supply |
| Additional Hardware: Kensington Lock Slot | 1 |
| Additional Hardware: Cable Organization | Yes |
| Controls: Physical Controls | 1, 2, Up, Down, Power |
| Controls: On Screen Display | Auto Image Adjust, Contrast/Brightness, Input Select, Audio Adjust, Color Adjust, Information, Manual Image Adjust, Setup Menu, Memory Recall |
| Operating Conditions: Temperature | 32°F to 104°F (0°C to 40°C) |
| Operating Conditions: Humidity (non-condensing) | 20% to 90% |
| Wall Mount: VESA Compatible | 100 x 100 mm |
| Input Signal: Frequency Horizontal | RGB Analog: 24 ~ 82KHz, DVI-D: 24 ~ 82KHz, HDMI (v1.4): 25 ~ 85KHz |
| Input Signal: Frequency Vertical | RGB Analog: 50 ~ 75Hz, DVI-D: 50 ~ 75Hz, HDMI (v1.4): 50 ~ 75Hz |
| Video Input: Digital Sync | TMDS - DVI-D, TMDS - HDMI (v1.4) |
| Video Input: Analog Sync | Separate/Composite/SOG - RGB Analog |
| Ergonomics: Tilt (Forward/Back) | 20º / 40º |
| Weight (imperial): Net | 9.3 lbs |
| Weight (imperial): Net Without Stand | 8 lbs |
| Weight (imperial): Gross | 12.6 lbs |
| Weight (metric): Net | 4.2 kg |
| Weight (metric): Net Without Stand | 3.7 kg |
| Weight (metric): Gross | 5.7 kg |
| Dimensions (imperial): Packaging | 22.8 x 15.9 x 6.4 in. |
| Dimensions (imperial): Physical | 20.4 x 12.9 x 4 in. |
| Dimensions (imperial): Physical Without Stand | 20.4 x 12.1 x 2.4 in. |
| Dimensions (metric): Packaging | 580 x 405 x 162 mm |
| Dimensions (metric): Physical | 519 x 329 x 101 mm |
| Dimensions (metric): Physical Without Stand | 519 x 308 x 61 mm |
| General: Regulations | cTUVus, FCC-B, ICES003, Energy Star, EPEAT, CEC, NOM, Mexico Energy, CE, CE EMC, CB, RoHS, ErP, REACH, WEEE, EAC, UkrSEPRO, BSMI, RCM, GEMS, VCCI, PSE, KC, K-MEPS, BIS, CCC, China RoHS, China Energy Label, CECP |
| General: Package Contents | TD2223-2 x1, 3-pin Plug (IEC C13 / CEE22) x1, HDMI Cable (v1.4; Male-Male) x1, USB A/B Cable (v2.0; Male-Male) x1, Audio Cable (Male-Male) x1, Quick Start Guide x1 |
| General: Recycle/Disposal | Please dispose of in accordance with local, state or federal laws. |
| General: Warranty | Warranty offered may differ from market to market |
| General: Power Management | Energy Star standards, EPEAT |
| Weight | 5.8 kg |
|---|---|
| Dimensions | 59 × 41 × 17 cm |
| Brand | Viewsonic |
