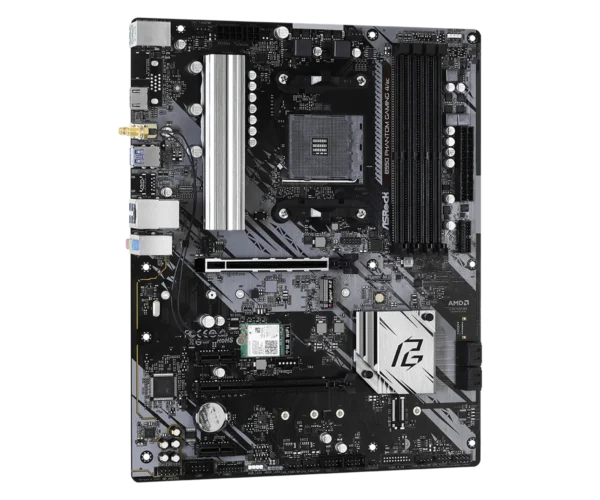

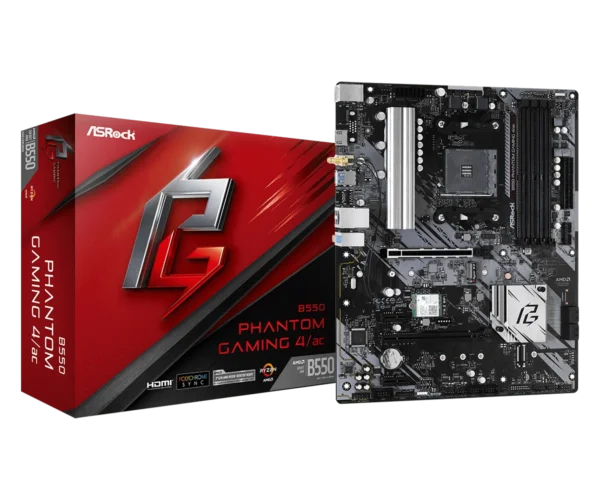

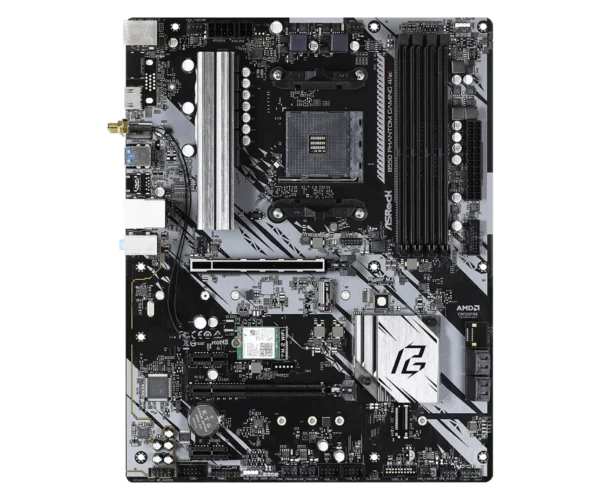

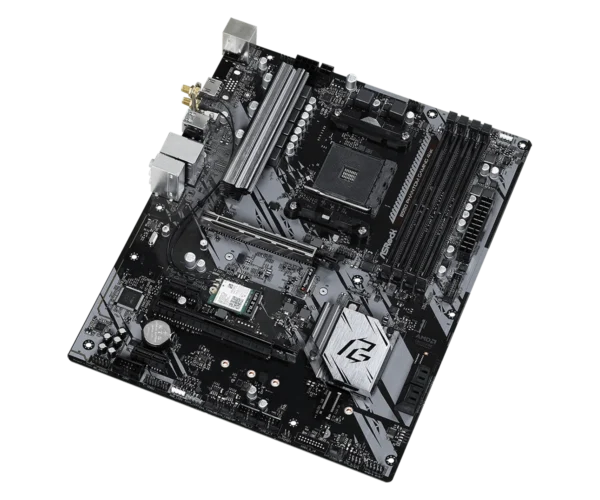

ASRock B550 Phantom Gaming 4/ac AM4 ATX Motherboard with WiFi and Bluetooth - ASROCK B550 PHANTOM GAMING 4/AC (Wifi)

ASRock B550 Phantom Gaming 4/ac AM4 ATX Motherboard with WiFi and Bluetooth – ASROCK B550 PHANTOM GAMING 4/AC (Wifi)

Original price was: ₱9,140.00.Current price is: ₱7,955.00.

SKU: ASROCK B550 PHANTOM GAMING 4/AC (Wifi)
Processor Support: Optimized for AMD AM4 Socket Ryzen™ 3000, 4000 G-Series, and 5000 Series Desktop Processors.
Power Phase Design: 8-Power Phase Design with Digi Power and Premium 50A Power Chokes for superior overclocking stability.
PCIe 4.0 Ready: Includes a Hyper M.2 slot and a Reinforced Steel Slot supporting the latest Gen4 x4 SSDs and Graphics Cards.
Integrated Wireless: Onboard Intel® 802.11ac Dual-Band WiFi (2.4/5 GHz) and Bluetooth 4.2 for versatile connectivity.
High-Fidelity Audio: Nahimic Audio with 7.1 CH HD Realtek ALC1220/1200 codec and Sound Tracker visual indicator.
Memory Performance: Supports Dual Channel DDR4 memory with extreme overclocking speeds up to 4733+(OC).
Advanced Visuals: HDMI output supporting 4K resolution at a smooth 60Hz for fluid motion.
Smart Troubleshooting: ASRock Post Status Checker (PSC) for fast identification of startup hardware issues.
RGB Synchronization: Polychrome RGB Sync headers for fully customizable and synchronized lighting effects.
Enhanced Durability: 2oz Copper PCB, Sapphire Black aesthetics, and XXL Aluminum Alloy Heatsinks.

In stock

Price Drop Alerts & Price History

We'll notify you the moment the price hits your target.

💡 Suggested alert: ₱7,500 [ Use this ]

Want to track and manage your alerts? Sign in or create an account.

SKU: ASROCK B550 PHANTOM GAMING 4/AC (Wifi) Categories: AMD AM4 Motherboards, Motherboards Tag: ASROCK

Relentless Performance: The ASRock B550 Phantom Gaming 4/ac

The ASRock B550 Phantom Gaming 4/ac is meticulously designed by gamers, for gamers, serving as a powerful foundation for AMD Ryzen™ 3000, 4000 G-Series, and 5000 Series desktop processors. Featuring a robust 8-power phase design with Digi Power technology, this motherboard provides sturdy components and completely smooth power delivery to the CPU. This results in unmatched overclocking capabilities and enhanced system performance while maintaining the lowest possible temperatures for advanced gaming setups. The addition of Premium 50A Power Chokes ensures saturation current is up to three times better than traditional chokes, providing a more stable Vcore voltage for the most demanding workloads.

Next-Gen Speed and Cutting-Edge Connectivity

Step into the future of data transfer with the Hyper M.2 socket, which supports the next generation of PCI Express 4.0 M.2 SSDs. This technology is capable of performing at twice the speed of the 3rd generation, ensuring lightning-fast boot times and application loading. Connectivity is further bolstered by integrated Dual Band 802.11ac WiFi and Bluetooth 4.2, allowing you to maintain high-speed wireless networks without the clutter of extra cables. To ensure your gaming signal remains stable, the motherboard includes a reinforced steel slot that provides extra anchor points and a stronger latch for heavy, high-end graphics cards, maintaining signal integrity under the PCIe 4.0 standard.

Immersive Audio and Visual Customization

Sound quality is paramount in competitive gaming, and the B550 Phantom Gaming 4/ac delivers with Nahimic Audio. Whether you prefer headsets, external speakers, or USB audio, Nahimic offers a rich, detailed listening experience. The integrated Sound Tracker provides a visual radar that points out the direction of predominant in-game sounds, offering full 360° immersion. For visual flair, ASRock Polychrome RGB allows you to synchronize your lighting way. With onboard RGB and addressable RGB headers, you can connect and sync LED strips, CPU fans, and chassis lighting to create a truly unique aesthetic that reflects your personal gaming style.

Rock-Solid Durability and Intelligent Tools

Built with a 2oz Copper PCB and Sapphire Black finish, this motherboard offers higher energy efficiency and lower temperatures for extreme overclocking performance. The high-density glass fabric PCB protects against electrical shorts caused by humidity, ensuring long-term reliability. For enthusiasts and builders, the ASRock Post Status Checker (PSC) provides an easy troubleshooting tool that identifies issues with the CPU, DRAM, VGA, or BOOT sequence during startup. Combined with AMD Smart Access Memory and AMD StoreMI technology, this board removes data bottlenecks and fuses the speed of SSDs with the capacity of HDDs for an optimized, fast-managed storage environment.

Product Specifications: ASRock B550 Phantom Gaming 4/ac
Core Platform & CPU Support
CPU Socket	AMD AM4 Socket
Supported Processors	AMD Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors
Chipset	AMD B550
Power Phase Design	8 Power Phase Design with Digi Power technology
Voltage Adjustments	CPU, CPU VDDCR_SOC, DRAM, VPPM, 1.05V_PROM_S5, 2.5V_PROM, +1.8VSB, VDDP
Memory Performance
Memory Slots	4 x DDR4 DIMM Slots (Dual Channel Technology)
Max Capacity	128GB (Supports un-buffered ECC & non-ECC memory)
OC Frequency Support	Supports up to DDR4 4733+(OC) / 4666(OC) / 4600(OC) / 4533(OC) / 4466(OC) / 4400(OC) / 4333(OC) / 4266(OC) / 4200(OC) / 4133(OC) / 4000(OC) / 3866(OC) / 3800(OC) / 3733(OC) / 3600(OC) / 3466(OC)
Advanced Features	Supports Extreme Memory Profile (XMP) and 15μ Gold Contacts in DIMM Slots
Storage & Expansion Slots
M.2 Storage	1 x Hyper M.2 Socket (M2_1: PCIe Gen4x4 up to 64 Gb/s or Gen3x4 up to 32 Gb/s)*
SATA Ports	4 x SATA3 6.0 Gb/s (Support RAID 0, RAID 1 and RAID 10)
PCI Express Slots	1 x PCIe 4.0 x16 Slot (PCIE1: Gen4x16 mode) 1 x PCIe 3.0 x16 Slot (PCIE3: Gen3 x4 mode) 2 x PCIe 3.0 x1 Slots
Multi-GPU Support	Supports AMD Quad CrossFireX™ and CrossFireX™
Audio, LAN & Wireless
Audio Codec	7.1 CH HD Audio (Realtek ALC1220/ALC1200 Codec) with Nahimic Audio
Wired LAN	Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H)
Wireless LAN	Intel® 802.11ac WiFi Module (Dual-Band 2.4/5 GHz); Bluetooth 4.2

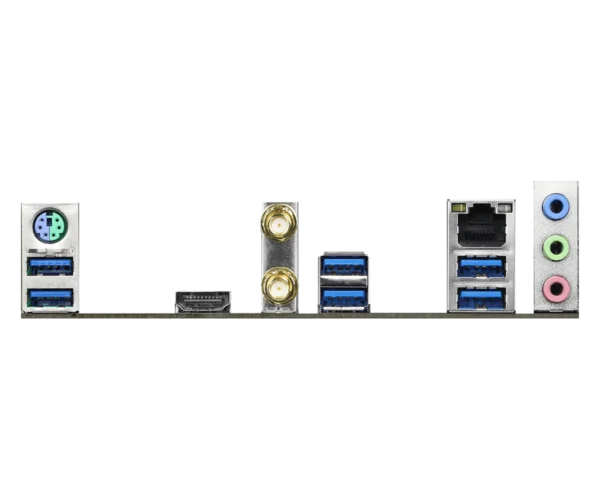

Rear Panel I/O
USB Ports	6 x USB 3.2 Gen1 Ports (Supports ESD Protection)
Video Output	1 x HDMI (Supports 4K x 2K @ 60Hz)
Other Ports	2 x Antenna Ports; 1 x PS/2 Mouse/Keyboard; 1 x RJ-45 LAN; HD Audio Jacks
Internal Connectivity
USB Headers	2 x USB 2.0 (4 ports); 1 x USB 3.2 Gen1 (2 ports)
RGB Headers	2 x RGB LED Headers; 2 x Addressable LED Headers
Specialized Headers	1 x COM Port; 1 x SPI TPM; 1 x Front Panel Audio; 1 x Chassis Intrusion
Premium Build Features
Super Alloy Components	XXL Aluminum Alloy Heatsink, Premium 50A Power Choke, Sapphire Black PCB, High Density Glass Fabric PCB
Protection	ASRock Full Spike Protection (USB, Audio, LAN Ports)
PCB Technology	2oz Copper PCB; ATX Form Factor (12.0-in x 9.6-in)
