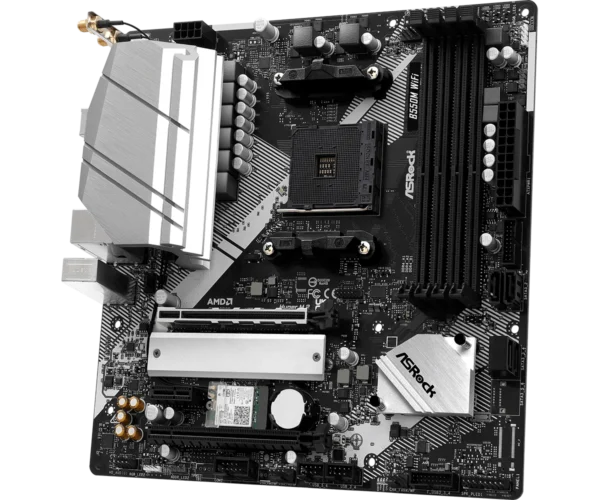

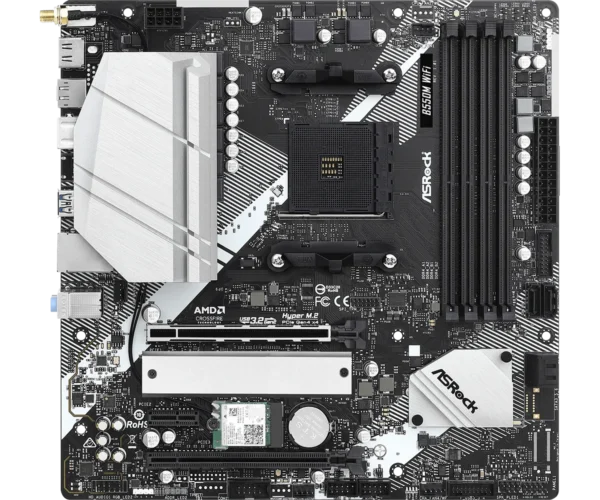

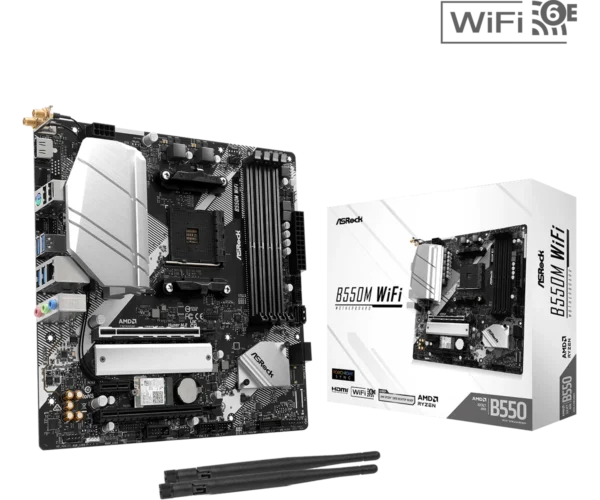

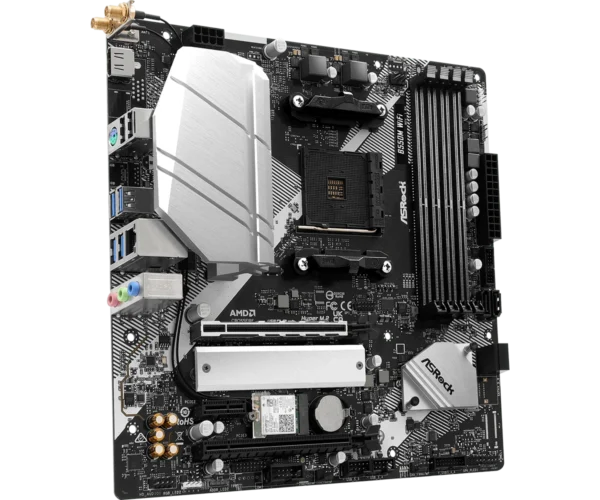

ASRock B550M WIFI Motherboard – AMD B550, DDR4, PCIe 4.0, WiFi 6E, Micro-ATX – ASROCK B550M WIFI
Original price was: ₱8,450.00.₱7,350.00Current price is: ₱7,350.00.
- SKU: ASROCK B550M WIFI
- Supports AMD AM4 Socket Ryzen 3000/4000/5000 Series Processors
- Ultra-fast Wi-Fi 6E Module with Bluetooth 5.2 and MU-MIMO
- PCIe 4.0 Support for advanced NVMe SSDs and high-speed GPUs
- Dual Channel DDR4 Memory support up to 128GB
- High-fidelity 7.1 CH HD Audio with Nahimic Audio
- Robust Power Delivery with 2oz Copper PCB design
- Comprehensive RGB/Addressable LED Headers for customization
- Integrated HDMI 2.1 and DisplayPort 1.4 for versatile display output
In stock
Price Drop Alerts & Price History
-
Authorized
Dealer -
Nationwide
Shipping -
Store &
RMA HUB -
Expert
Support -
7-Day DOA
Protection -
Community
Trusted -
Turnstile
Protected -
reCAPTCHA
Secured -
Tested &
Verified
Exceptional Performance and Durability
The ASRock B550M WIFI motherboard is engineered for users who demand reliability and performance without compromise. Built under ASRock’s stringent quality control standards, this Micro-ATX board features a 2oz Copper PCB, ensuring efficient heat dissipation and enhanced signal integrity for stable system operation. Whether you are building a professional workstation or a high-end gaming rig, this motherboard provides the robust foundation necessary for endurance and long-term stability.
Next-Generation Connectivity with Wi-Fi 6E
Stay connected at blazing speeds with the integrated 802.11axe Wi-Fi 6E module. This board supports dual-band 2×2 Wi-Fi with an extended 6GHz band, providing lower latency and higher throughput in crowded network environments. Bluetooth 5.2 integration ensures seamless connectivity with your peripherals, offering low energy consumption and reliable pairing for a modern, cable-free desktop experience.
AMD Ryzen Support and PCIe 4.0
Unlock the true potential of your AMD AM4 processor. The ASRock B550M WIFI supports a wide array of Ryzen CPUs, from the 3000 series up to the powerful 5000 and 5000 G-series. With a dedicated Hyper M.2 socket supporting PCIe Gen4x4 technology, you can experience lightning-fast boot times and rapid data transfers, essential for modern gaming and creative workflows. The PCIe 4.0 x16 slot ensures your graphics card runs at full bandwidth, maximizing frame rates and rendering performance.
Premium Audio and Expandability
Immerse yourself in high-fidelity sound with the Realtek ALC1220 Audio Codec, featuring 7.1 CH HD Audio and Nahimic Audio support. This setup provides crystal-clear acoustics whether you are gaming, watching movies, or editing audio. With extensive headers for RGB and Addressable LED strips, you can fully customize the aesthetic of your PC. The board also includes the Post Status Checker (PSC) for easy troubleshooting, making it a user-friendly choice for both novice builders and experienced enthusiasts.
| ASRock B550M WIFI Specifications | |
|---|---|
| Platform | Micro ATX Form Factor, 2oz Copper PCB |
| Chipset | AMD B550 |
| CPU Support | AMD AM4 Socket Ryzen™ 3000, 3000 G-Series, 4000 G-Series, 5000 and 5000 G-Series Desktop Processors |
| Memory | |
| Technology | Dual Channel DDR4 Memory Technology; 4 x DDR4 DIMM Slots |
| Max Capacity | 128GB; Supports Extreme Memory Profile (XMP) |
| Features | 15μ Gold Contact in DIMM Slots; Supports ECC & non-ECC, un-buffered memory |
| Expansion & Graphics | |
| Expansion Slots | 1 x PCIe 4.0 x16, 1 x PCIe 3.0 x16 (x4 mode), 1 x PCIe 3.0 x1; Supports AMD CrossFire™ |
| M.2 Socket | 1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module |
| Graphics Output | HDMI 2.1 (4K @ 60Hz), DisplayPort 1.4 (5K @ 120Hz) |
| Audio & LAN | |
| Audio | 7.1 CH HD Audio (Realtek ALC1220 Audio Codec), Nahimic Audio |
| LAN | Gigabit LAN 10/100/1000 Mb/s (Realtek RTL8111H) |
| Wireless | 802.11axe Wi-Fi 6E Module, Bluetooth 5.2, MU-MIMO |
| Storage & Connectivity | |
| Storage | 1 x Hyper M.2 (PCIe Gen4x4), 4 x SATA3 6.0 Gb/s; RAID 0, 1, 10 support |

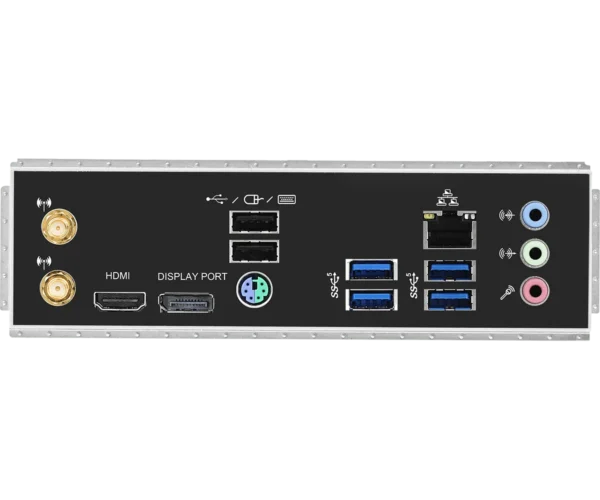

| USB Ports | Rear: 4 x USB 3.2 Gen1, 2 x USB 2.0; Front: 2 x USB 3.2 Gen1, 4 x USB 2.0 |
| OS Compatibility | Microsoft® Windows® 10 64-bit / 11 64-bit |
| Packaging Weight | 1.26 kg |
|---|---|
| Packaging Dimensions (L×W×H) | 30 × 29 × 10 cm |
| Brand | ASROCK |
| Desktop RAM | DDR4 |
| Socket | AM4 CPU |
