₱16,000.00Original price was: ₱16,000.00.₱14,450.00Current price is: ₱14,450.00.
Supports AMD Ryzen 9000, 8000, 7000 series processors on AM5 socket
4 x DDR5 DIMM slots, up to 7200+(OC), max 256GB, with XMP/EXPO support
PCIe 4.0 x16 slot and Gen5x4 M.2 for high-performance GPU and SSD
WiFi 6E and 2.5G LAN for fast, low-latency networking
14+2+1 power phase with SPS and heatsinks for reliable overclocking
Realtek ALC897 7.1 CH audio with Nahimic for immersive sound
BIOS Flashback and Auto Driver Installer for easy setup and updates
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

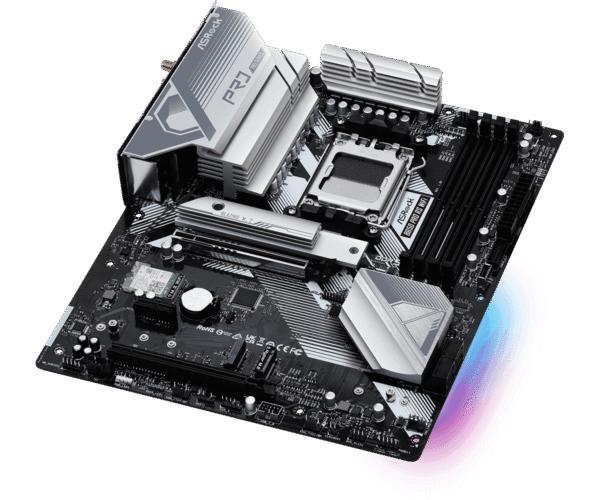

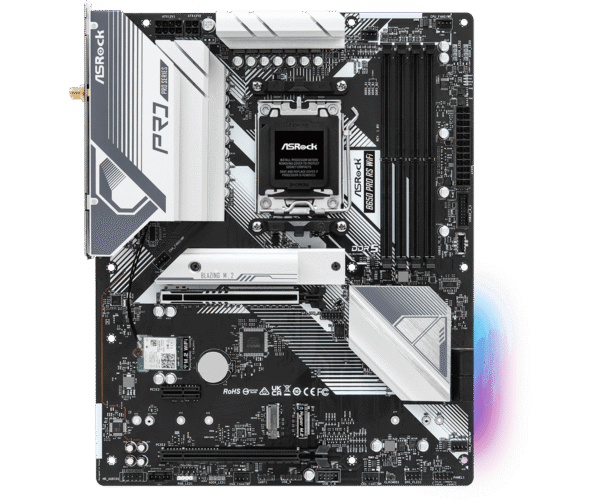

The ASRock B650 Pro RS WiFi ATX motherboard is a versatile choice for AMD Ryzen 9000, 8000, and 7000 series processors, leveraging the AMD B650 chipset for a balance of performance and affordability. Its 14+2+1 power phase design with SPS and enlarged heatsinks supports stable overclocking, while four DDR5 DIMM slots enable up to 256GB at 7200+(OC) speeds with XMP/EXPO profiles. The board features a PCIe 4.0 x16 slot for GPUs and a Blazing M.2 (Gen5x4) slot for ultra-fast NVMe SSDs, ideal for gaming and productivity. Connectivity shines with WiFi 6E, 2.5G LAN, and a robust USB setup, including a front USB 3.2 Gen2x2 Type-C (20 Gb/s). Realtek ALC897 audio with Nahimic delivers solid 7.1 CH sound, though it’s basic for audiophiles. BIOS Flashback and Auto Driver Installer simplify setup, but the lack of PCIe 5.0 for the GPU slot and only four SATA ports may limit some builds. Priced at around $149.99-$169.00, it’s a strong value for mainstream AM5 systems.
Specification
Details
Model
B650 Pro RS WiFi
SKU
B650-PRO-RS-WIFI
CPU
Supports AMD Socket AM5 Ryzen 9000, 8000, 7000 Series Processors
Chipset
AMD B650
Memory
4 x DDR5 DIMM Slots, Dual Channel, up to 7200+(OC), Max 256GB, Supports Intel XMP 3.0, AMD EXPO
Dragon RTL8125BG 2.5 Gigabit LAN (10/100/1000/2500 Mb/s), Dragon 2.5G LAN Software
Wireless LAN
802.11axe Wi-Fi 6E, Dual-Band 2x2, Bluetooth 5.2, MU-MIMO, 6GHz band (Windows 11 only)
Slots
1 x PCIe 4.0 x16 (PCIE1, x16 mode), 1 x PCIe 3.0 x16 (PCIE3, x4 mode), 1 x PCIe 4.0 x1 (PCIE2), 1 x M.2 Key E (type 2230 WiFi/BT), Supports AMD CrossFire
Storage
1 x Blazing M.2 (PCIe Gen5x4, 128 Gb/s, 2280), 1 x M.2 (SATA3/PCIe Gen3x2, 16 Gb/s, 2242/2260/2280), 1 x Hyper M.2 (PCIe Gen4x4, 64 Gb/s, 2260/2280), 4 x SATA3 6.0 Gb/s, Supports RAID 0/1 (SATA), RAID 0/1/10 (M.2 NVMe)
USB
Rear: 1 x USB 3.2 Gen2 Type-C (10 Gb/s), 1 x USB 3.2 Gen2 Type-A (10 Gb/s), 2 x USB 3.2 Gen1, 6 x USB 2.0; Front: 1 x USB 3.2 Gen2x2 Type-C (20 Gb/s), 2 x USB 3.2 Gen1, 3 x USB 2.0
Connector
1 x SPI TPM Header, 1 x Power LED/Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 1 x CPU Fan (4-pin), 1 x CPU/Water Pump Fan (4-pin), 4 x Chassis/Water Pump Fan (4-pin), 1 x 24-pin ATX, 1 x 8-pin 12V, 1 x 4-pin 12V, 1 x Front Panel Audio, 1 x Thunderbolt AIC (5-pin), 2 x USB 2.0 Headers, 1 x USB 3.2 Gen1 Header, 1 x USB 3.2 Gen2x2 Type-C Header
Rear Panel I/O

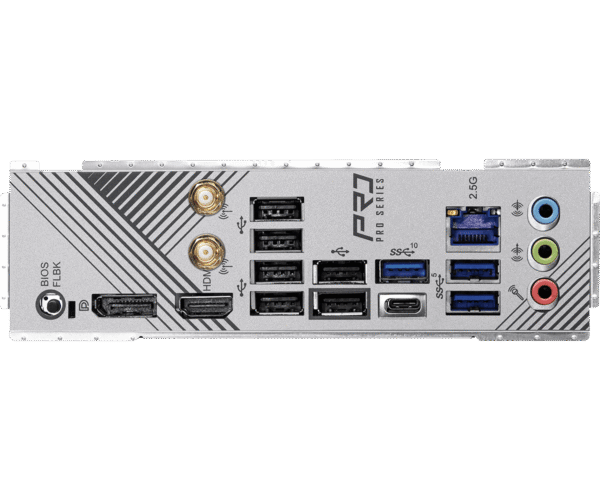

2 x Antenna Ports, 1 x HDMI, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen1, 6 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks (Line in, Front Speaker, Microphone)
Form Factor
ATX, 12.0 x 9.6 in (30.5 x 24.4 cm), 8 Layer PCB
OS
Windows 10 64-bit, Windows 11 64-bit
Certifications
FCC, CE, ErP/EuP ready
Accessories

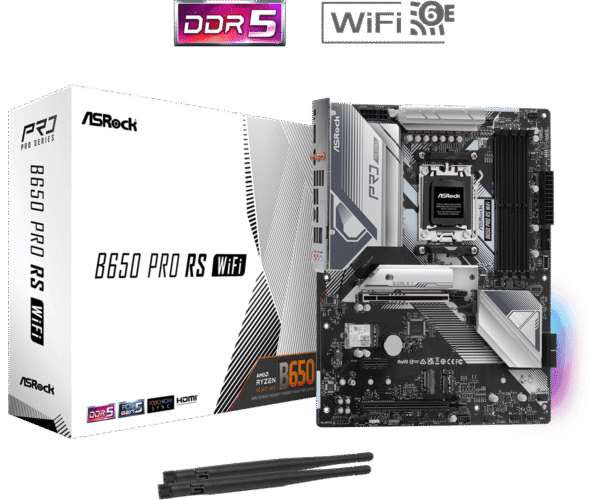

1 x User Manual, 2 x SATA Data Cables, 2 x WiFi 2.4/5/6 GHz Antennas, 2 x Screws for M.2 Sockets
Weight
2 kg
Dimensions
40 × 30 × 5 cm
Brand
ASROCK
Desktop RAM
DDR5
Socket
AM5 CPU
