WiFi 6E and 2.5G LAN for seamless, low-latency networking
6+2+1 power phase with 50A Dr.MOS for reliable power delivery
Realtek ALC897 7.1 CH audio with Nahimic for immersive sound
BIOS Flashback and Auto Driver Installer for effortless setup
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

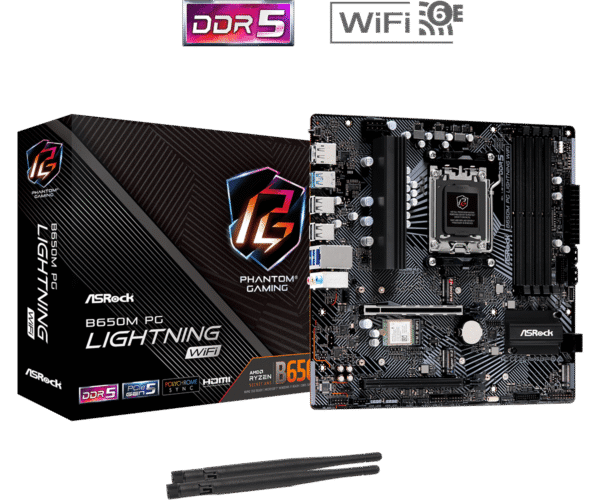

The ASRock B650M PG Lightning WiFi Micro ATX motherboard is a high-performance platform tailored for AMD Ryzen 9000, 8000, and 7000 series processors, leveraging the AMD B650 chipset for exceptional value and capability. Its 6+2+1 power phase design with 50A Dr.MOS ensures reliable power delivery for demanding tasks, ideal for gamers and PC builders seeking stability without complexity. With support for up to 256GB of DDR5 memory at 7200+(OC) speeds across four DIMM slots, it delivers seamless multitasking and overclocking potential through XMP and EXPO profiles. The Blazing M.2 slot with PCIe Gen5x4 offers lightning-fast 128 Gb/s storage speeds, perfect for next-gen NVMe SSDs, while WiFi 6E and Phantom Gaming 2.5G LAN provide ultra-low latency for online gaming and streaming. Enhanced by Realtek ALC897 audio with Nahimic for immersive 7.1 CH sound, this motherboard ensures crisp audio for gaming and content creation. Features like BIOS Flashback and Auto Driver Installer simplify setup and updates, making it a standout choice for compact, powerful builds at a price point around $129.99-$149.99. Its robust connectivity, including USB 3.2 Gen2 Type-C, and AMD CrossFire support further elevate its appeal for enthusiasts building high-performance systems on a budget.
Specification
Details
Model
B650M PG Lightning WiFi
SKU
B650M-PG-LIGHTNING-WIFI
CPU
Supports AMD Socket AM5 Ryzen 9000, 8000, 7000 Series Processors
Chipset
AMD B650
Memory
4 x DDR5 DIMM Slots, Dual Channel, up to 7200+(OC), Max 256GB, Supports Intel XMP 3.0, AMD EXPO
Dragon RTL8125BG 2.5 Gigabit LAN (10/100/1000/2500 Mb/s), Phantom Gaming LAN Software
Wireless LAN
802.11ax Wi-Fi 6E, Dual-Band 2x2, Bluetooth 5.2, MU-MIMO, 6GHz band (Windows 11 only)
Slots
1 x PCIe 4.0 x16 (PCIE1, x16 mode), 1 x PCIe 3.0 x16 (PCIE2, x4 mode), 1 x M.2 Key E (type 2230 WiFi/BT), Supports AMD CrossFire
Storage
1 x Blazing M.2 (PCIe Gen5x4, 128 Gb/s, 2260/2280), 1 x Hyper M.2 (PCIe Gen4x4, 64 Gb/s, 2260/2280), 1 x M.2 (PCIe Gen4x2, 32 Gb/s, 2260/2280), 4 x SATA3 6.0 Gb/s, Supports RAID 0/1/10 (SATA), RAID 0/1/10 (M.2 NVMe)
USB
Rear: 1 x USB 3.2 Gen2 Type-C (10 Gb/s), 1 x USB 3.2 Gen2 Type-A (10 Gb/s), 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0; Front: 1 x USB 3.2 Gen1 Type-C, 4 x USB 3.2 Gen1 Type-A, 4 x USB 2.0
Connector
1 x SPI TPM Header, 1 x Power LED/Speaker Header, 1 x RGB LED Header, 3 x Addressable LED Headers, 1 x CPU Fan (4-pin), 1 x CPU/Water Pump Fan (4-pin), 3 x Chassis/Water Pump Fan (4-pin), 1 x 24-pin ATX, 1 x 8-pin 12V, 1 x Front Panel Audio, 1 x Thunderbolt AIC (5-pin), 2 x USB 2.0 Headers, 2 x USB 3.2 Gen1 Headers, 1 x USB 3.2 Gen1 Type-C Header

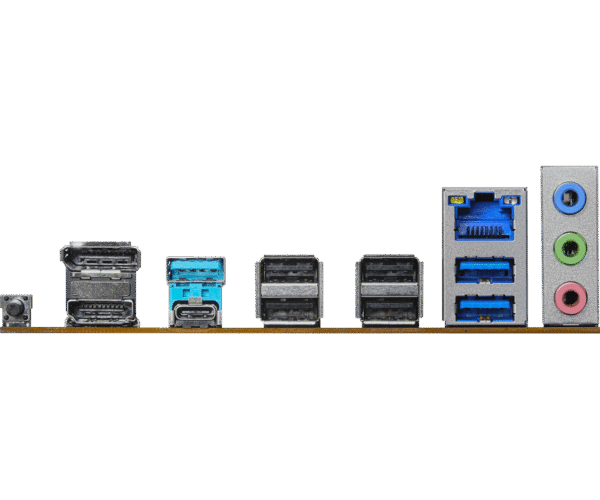

Rear Panel I/O
2 x Antenna Ports, 1 x HDMI, 1 x DisplayPort 1.4, 1 x USB 3.2 Gen2 Type-A, 1 x USB 3.2 Gen2 Type-C, 2 x USB 3.2 Gen1 Type-A, 4 x USB 2.0, 1 x RJ-45 LAN, 1 x BIOS Flashback Button, HD Audio Jacks (Line in, Front Speaker, Microphone)
Form Factor
Micro ATX, 9.6 x 9.6 in (24.4 x 24.4 cm)
OS
Windows 10 64-bit, Windows 11 64-bit
Certifications
FCC, CE, ErP/EuP ready
Accessories
1 x User Manual, 1 x I/O Shield, 2 x SATA Data Cables, 2 x SMA WiFi Antenna Cables, 2 x WiFi 2.4/5/6 GHz Antennas, 1 x Plastic Cover for Wi-Fi Module, 3 x Screws for M.2 Sockets
