₱13,220.00Original price was: ₱13,220.00.₱11,500.00Current price is: ₱11,500.00.
SKU: ASROCK Z690 STEEL LEGEND
Processor Compatibility: Robust support for 14th, 13th & 12th Gen Intel Core Processors (LGA1700).
Optimized VRM: 13 Power Phase Design utilizing 50A Dr.MOS technology on a 6-layer 2oz copper PCB.
High-Speed Memory: Dual-channel DDR4 support, easily overclockable up to an impressive 5333+ MHz.
Next-Gen Graphics: Features an SMT-designed PCIe 5.0 x16 slot delivering a massive 128GBps of GPU bandwidth.
Expansive Storage: Equipped with 2x Hyper M.2 (PCIe Gen4x4), 1x Ultra M.2, and 8x SATA3 ports.
Elite Networking: Dragon 2.5 Gigabit LAN with smart bandwidth control for uninterrupted online gaming.
Ultra-Fast USB: Includes a Front Panel USB 3.2 Gen2x2 Type-C header for blistering 20 Gb/s transfer speeds.
Immersive Sound: 7.1 CH HD Audio featuring Realtek ALC897 and Nahimic Audio enhancements.
DIY-Friendly Extras: Includes an Auto Driver Installer, Polychrome RGB, and an ASRock Graphics Card Holder.
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

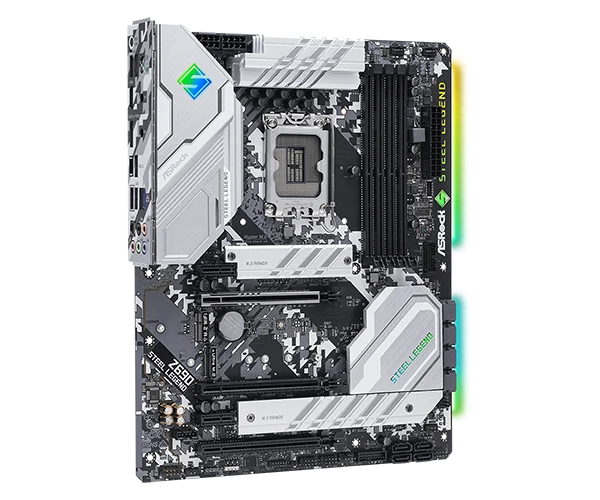

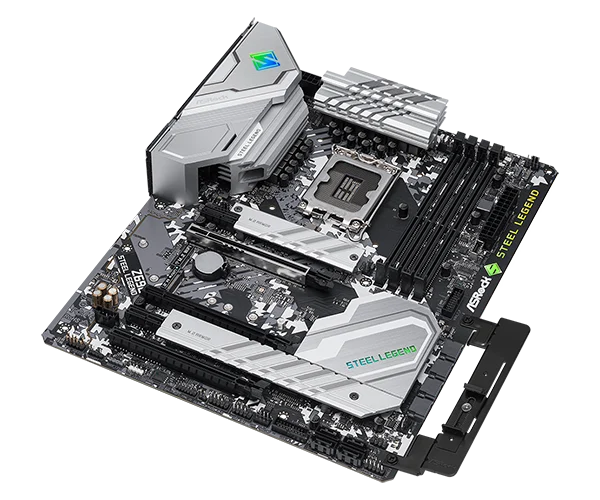

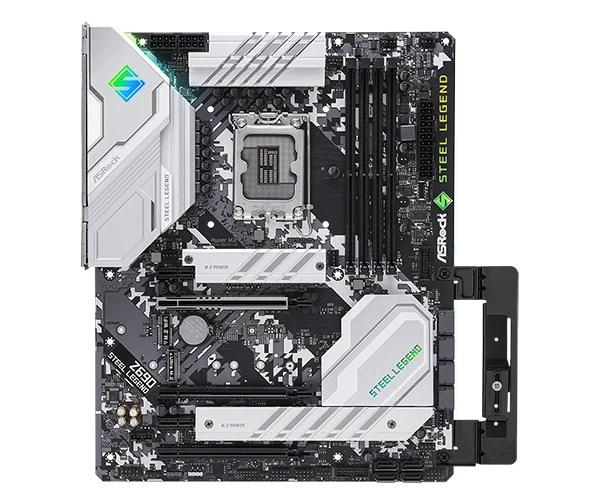

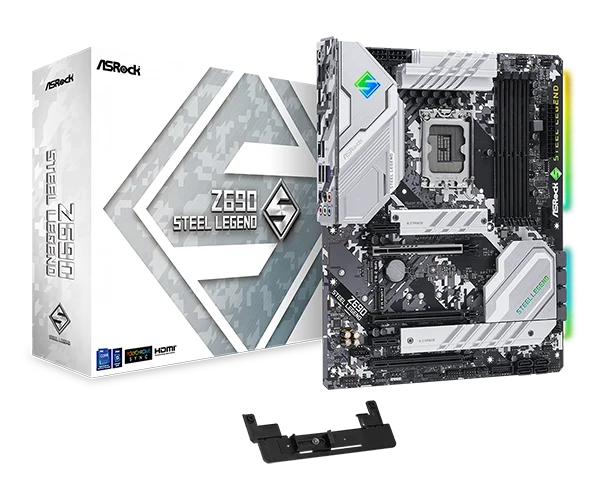

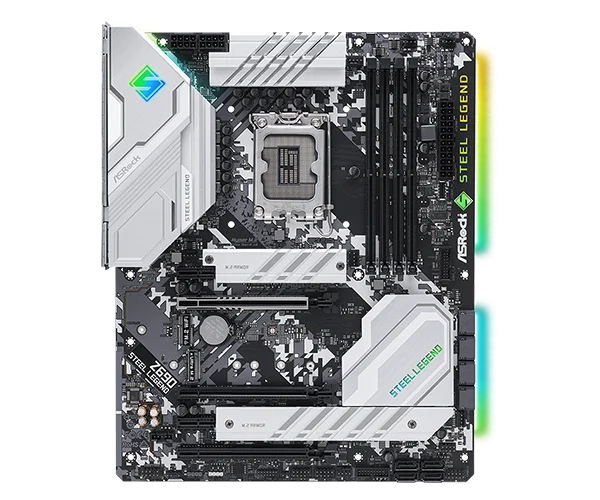

Representing the philosophical state of rock-solid durability and irresistible aesthetics, the ASRock Z690 Steel Legend stands ready to anchor your next high-performance PC build. Engineered for demanding daily users and mainstream enthusiasts, this ATX motherboard provides an unwavering foundation for 14th, 13th, and 12th Generation Intel Core Processors (LGA1700). Constructed on a premium 6-layer, 2-ounce Copper PCB, the Steel Legend guarantees excellent thermal dissipation, enhanced signal routing, and the structural integrity required to support massive cooling solutions and heavy graphics cards without breaking a sweat.
Intelligent Power Delivery and Cooling
Push your CPU to its limits with absolute confidence. The motherboard is equipped with a heavily optimized 13 Power Phase Design featuring advanced 50A Dr.MOS technology. Unlike traditional discrete MOSFETs, this integrated Smart Power Stage solution meticulously monitors and balances the current and temperature of each individual phase. This results in smoother, neater power delivery directly to the processor, significantly lowering thermal output while drastically improving overclocking capabilities and overall system longevity. Combined with XXL Aluminum Alloy Heatsinks, the Z690 Steel Legend stays ice-cold under the most intense workloads.
Unleash Next-Gen Bandwidth: PCIe 5.0 and DDR4
Embrace the future of graphics performance with the inclusion of a reinforced PCIe 5.0 x16 slot. ASRock utilizes an advanced Surface-Mount Tech (SMT) manufacturing process for this slot, completely replacing conventional DIP styling. This breakthrough design improves electrical signal flow and maximizes stability at ultra-high speeds, delivering a breathtaking 128GBps of bandwidth to fully unleash upcoming elite graphics cards. For system memory, the board supports highly stable Dual Channel DDR4 architecture, giving users the flexibility to install widely available kits and push them to extreme overclocked speeds of 5333+ MHz using Intel XMP 2.0.
Massive Storage and Ultra-Fast Connectivity
Never bottleneck your workflow with slow loading times or limited capacity. The Z690 Steel Legend features an expansive storage ecosystem, boasting two Hyper M.2 sockets running at PCIe Gen4x4 (64 Gb/s), alongside a highly versatile Ultra M.2 socket and eight SATA3 ports for massive raid arrays. Getting your data on and off the board is incredibly fast thanks to a front-panel USB 3.2 Gen2x2 Type-C header capable of 20 Gb/s data transfer rates. For online connectivity, the integrated Dragon 2.5 Gigabit LAN platform intelligently manages bandwidth prioritization to deliver uncompromised, lag-free gaming and streaming.
Immersive Audio and Intelligent DIY Architecture
Experience your favorite media the way it was meant to be heard. The onboard Realtek ALC897 7.1 Channel HD Audio Codec is fully enhanced by Nahimic Audio, providing a vibrant, richly detailed, and spatially accurate listening experience across any output device. ASRock also makes system building a breeze. The motherboard includes an exclusive Auto Driver Installer that safely fetches necessary drivers directly from the BIOS, a flexible integrated I/O shield, Polychrome RGB syncing, and a heavy-duty ASRock Graphics Card Holder to completely eliminate GPU sag in your chassis.
ASRock Z690 Steel Legend Specifications
General Information
Brand
ASRock
Model Name
Z690 Steel Legend
SKU
ASROCK Z690 STEEL LEGEND
Form Factor
ATX Form Factor (12.0-in x 9.6-in, 30.5 cm x 24.4 cm) Built with a 6-Layer, 2oz Copper PCB
1 x HDMI 2.1: TMDS Compatible, max resolution up to 4K x 2K (4096x2160) @ 60Hz 1 x DisplayPort 1.4: with DSC (compressed), max resolution up to 8K (7680x4320) @ 60Hz / 5K (5120x3200) @ 120Hz Supports Dual Independent Displays and HDCP 2.3
Audio Codec
7.1 CH HD Audio (Realtek ALC897 Audio Codec)
Nahimic Audio Support
1 x 2.5 Gigabit LAN: 10/100/1000/2500 Mb/s (Dragon RTL8125BG) Supports Dragon 2.5G LAN Software with Smart Auto Adjust Bandwidth Control
LAN Enhancements
Supports Wake-On-LAN, Lightning/ESD Protection, Energy Efficient Ethernet 802.3az, PXE
Expansion Slots & Storage
PCIe Slots
1 x PCIe 5.0 x16 Slot (PCIE2): Supports x16 mode, Surface-Mount Tech (SMT), 15μ Gold Contact 1 x PCIe 4.0 x16 Slot (PCIE3): Supports x4 mode 1 x PCIe 3.0 x16 Slot (PCIE5): Supports x4 mode 2 x PCIe 3.0 x1 Slots (PCIE1 and PCIE4) Supports AMD CrossFire
Wireless Module Socket
1 x M.2 Socket (Key E), supports type 2230 WiFi/BT PCIe WiFi module and Intel CNVi
M.2 Storage Sockets
1 x Hyper M.2 (M2_1, CPU): Type 2260/2280 PCIe Gen4x4 (64 Gb/s) 1 x Hyper M.2 (M2_3, Chipset): Type 2242/2260/2280/22110 PCIe Gen4x4 (64 Gb/s) 1 x Ultra M.2 (M2_2, Chipset): Type 2230/2242/2260/2280 SATA3 & PCIe Gen3x4 (32 Gb/s) Supports Intel VMD, Intel Optane H Series, and ASRock U.2 Kit
SATA Storage
8 x SATA3 6.0 Gb/s Connectors
Supports RAID 0, RAID 1, RAID 5, and RAID 10 *If M2_2 is occupied by a SATA-type M.2 device, SATA3_7 will be disabled.
Rear I/O & Internal Connectors

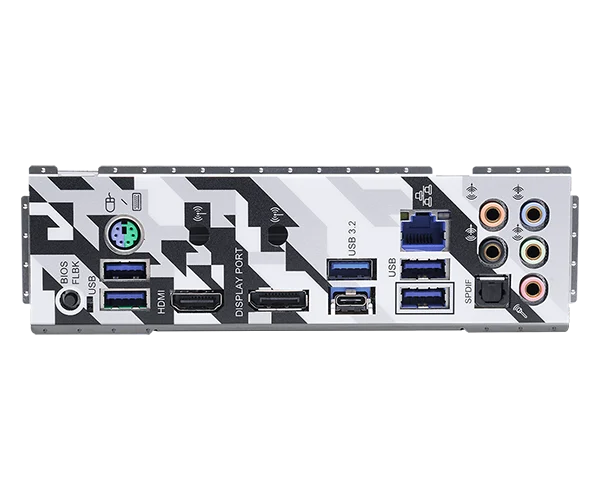

Rear Panel I/O
2 x Antenna Ports
1 x PS/2 Mouse/Keyboard Port
1 x HDMI Port
1 x DisplayPort 1.4
1 x Optical SPDIF Out Port 1 x USB 3.2 Gen2 Type-C Port (10 Gb/s) 1 x USB 3.2 Gen2 Type-A Port (10 Gb/s) 4 x USB 3.2 Gen1 Ports
1 x RJ-45 LAN Port (With LED indicators)
1 x BIOS Flashback Button
HD Audio Jacks (Gold)
Internal USB Headers
1 x Front Panel Type C USB 3.2 Gen2x2 Header (20 Gb/s)
2 x USB 3.2 Gen1 Headers (Supports 4 ports)
2 x USB 2.0 Headers (Supports 4 ports)
Cooling Connectors
1 x CPU Fan Connector (4-pin, 12W)
1 x CPU/Water Pump Fan Connector (4-pin, 24W)
5 x Chassis/Water Pump Fan Connectors (4-pin, 24W)
Other Headers & RGB
1 x Thunderbolt AIC Connector (5-pin)
1 x SPI TPM Header
1 x Power LED and Speaker Header
1 x RGB LED Header (12V/3A)
3 x Addressable LED Headers (5V/3A)
Additional Features & Accessories
ASRock Super Alloy
XXL Aluminum Alloy Heatsink, Premium Power Choke, 50A Dr.MOS, Nichicon 12K Black Caps, I/O Armor, Matte Black PCB, High Density Glass Fabric PCB
Included Accessories
2 x SATA Data Cables, 1 x ASRock Graphics Card Holder, 3 x Screws for M.2 Sockets, 2 x Standoffs for M.2 Sockets
Weight
1.85 kg
Dimensions
39 × 34 × 9 cm
Brand
ASROCK
Desktop RAM
DDR4
Socket
LGA 1700 CPU
