Connectivity: Rear USB 10Gbps Type-A, Front USB 5Gbps Type-C
Power Design: 6+1+1+1 Phase Digital Power with Digi+ VRM
Special Features: PCIe Slot Q-Release, M.2 Q-Latch, Pre-mounted I/O Shield, AI Advisor
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

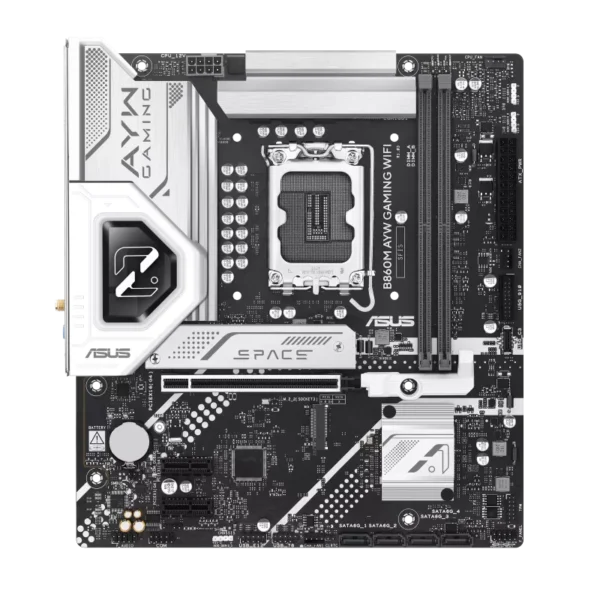

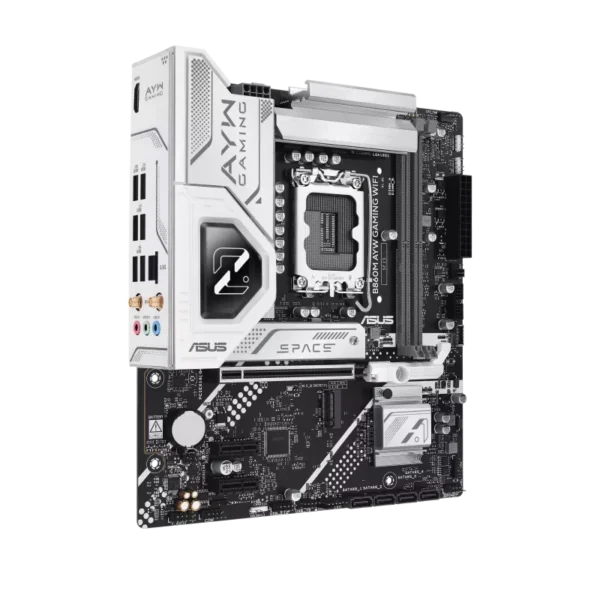

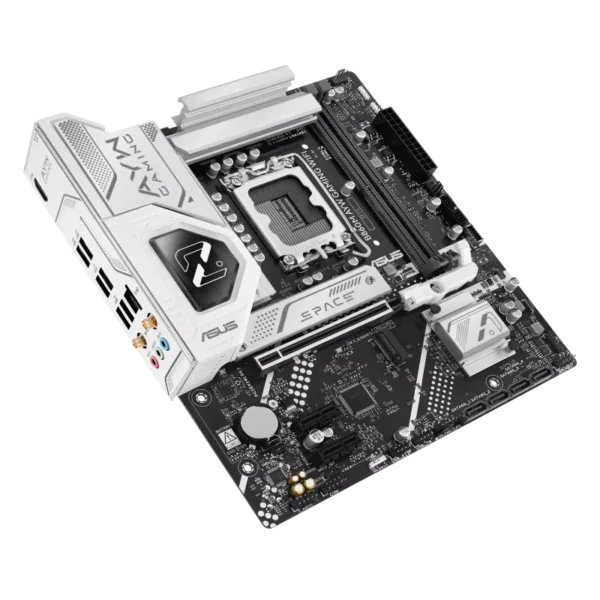

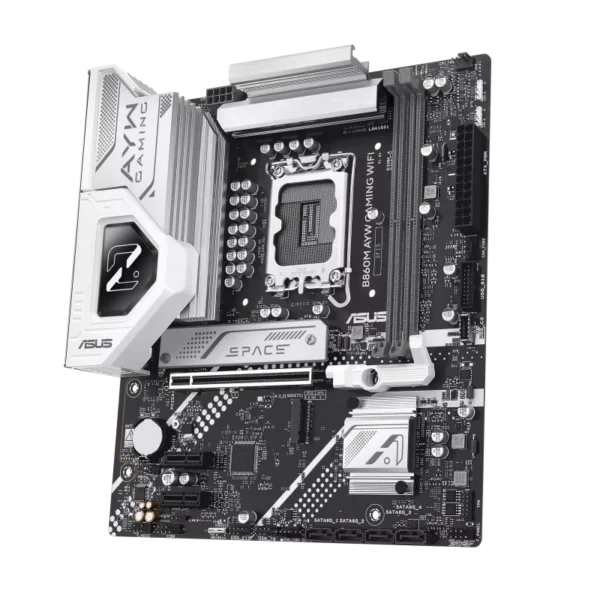

ASUS B860M AYW GAMING WIFI: The Foundation for Advanced AI PCs
The ASUS B860M AYW GAMING WIFI is expertly engineered to serve as the backbone for the latest Intel® Core™ Ultra Processors (Series 2). Built on the efficient B860 chipset and utilizing the new LGA1851 socket, this micro-ATX motherboard is “Advanced AI PC-ready,” offering the precise power delivery and connectivity required for demanding AI applications and next-generation gaming. The board features a robust 6+1+1+1 phase digital power design equipped with discrete MOSFETs and high-quality components to ensure stable power delivery to the CPU, maximizing performance for both daily tasks and intensive workloads. The inclusion of a ProCool solid-pin power connector further enhances stability by ensuring a flush and secure connection to the PSU.
Unleashing Memory and Storage Speed
Memory performance is a standout feature of the B860M AYW GAMING WIFI. It introduces ASUS Enhanced Memory Profile III (AEMP III), an advanced firmware feature specifically designed to optimize the performance of cutting-edge CUDIMM (Clocked Unbuffered DIMM) memory. Through a two-phase tuning process, AEMP III balances clock drivers and frequency to support blazing-fast speeds of up to DDR5-8800+ MT/s (OC), significantly boosting bandwidth for AI and gaming tasks. For storage, the motherboard is future-proofed with a PCIe 5.0 M.2 slot capable of data transfer speeds up to 128Gbps, ensuring near-instant boot times and application loading. A secondary PCIe 4.0 M.2 slot and four SATA ports provide ample room for mass storage expansion.
Intelligent Cooling and Connectivity

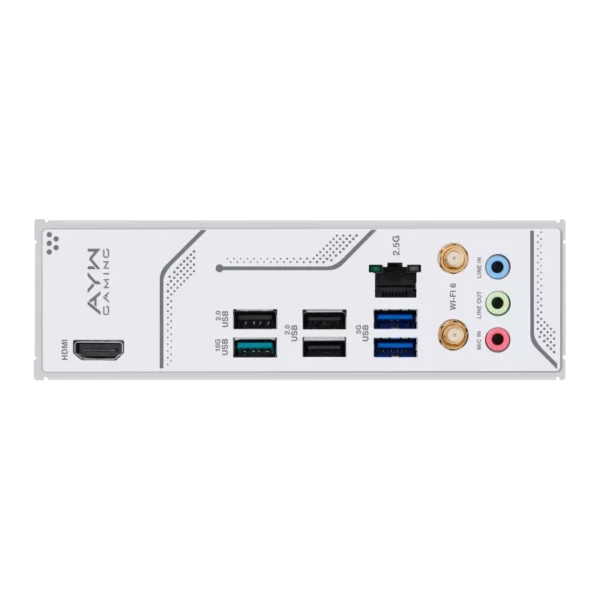

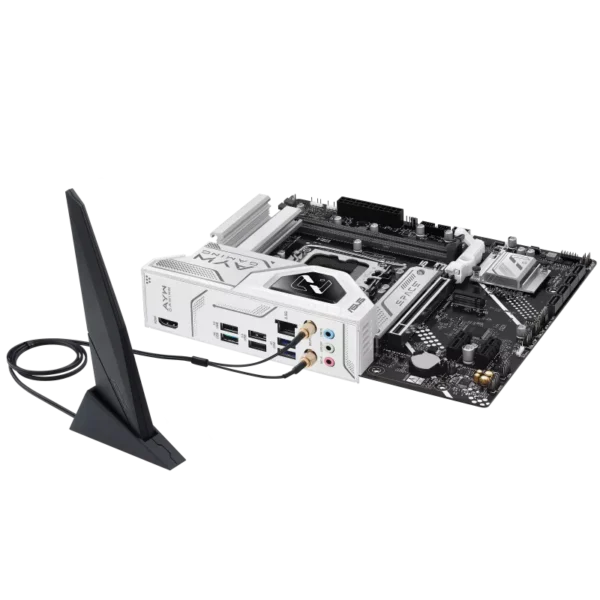

To maintain peak performance, the B860M AYW GAMING WIFI employs a comprehensive cooling solution. It features dedicated VRM heatsinks with high-conductivity thermal pads and a designated M.2 heatsink to prevent throttling during sustained data transfers. Connectivity is equally impressive, with onboard Wi-Fi 6 providing stable, low-latency wireless networking perfect for crowded environments. Wired connections are handled by a Realtek 2.5Gb Ethernet port for rapid data throughput. The rear I/O panel includes a USB 10Gbps Type-A port for high-speed peripherals, while the front panel supports a USB 5Gbps Type-C connector for modern case compatibility.
DIY-Friendly Design and Personalization
Building your dream PC is simplified with ASUS Q-Design features. The innovative PCIe Slot Q-Release allows for the effortless removal of graphics cards with a simple lever press, while the M.2 Q-Latch mechanism enables tool-free SSD installation. The board also comes with a pre-mounted I/O shield, adding to the aesthetic appeal and making installation safer and easier. For personalization, the motherboard supports Aura Sync with three Addressable Gen2 RGB headers, allowing you to synchronize lighting effects across compatible hardware for a unified and stunning visual experience. The inclusion of ASUS AI Advisor acts as a technical expert, guiding users through advanced features using natural language, making high-end performance accessible to everyone.
Product Specifications
Brand
ASUS
Model Name
B860M AYW GAMING WIFI
SKU
B860M AYW GAMING WIFI
Form Factor
Micro-ATX (mATX) - 9.6 inch x 8.75 inch (24.4cm x 22.2cm)
Processor & Chipset
Socket
LGA1851
Supported CPUs
Intel® Core™ Ultra Processors (Series 2)
Chipset
Intel® B860 Chipset
Turbo Boost
Supports Intel® Turbo Boost 2.0 and Turbo Boost Max 3.0
Memory
Memory Slots
2 x DIMM, Max. 128GB, DDR5
Memory Speed
Up to 8800+ MT/s (OC)
Memory Features
Dual Channel Architecture
Supports CUDIMM (Clocked Unbuffered DIMM)
ASUS Enhanced Memory Profile III (AEMP III)
DIMM Fit
Supports Intel® XMP
Graphics
Output
1 x HDMI™ Port (Supports 4K@60Hz as specified in HDMI 2.1)
Expansion Slots
PCIe x16
1 x PCIe 4.0 x16 slot (Supports x16 mode) - SafeSlot Core+ with Q-Release
PCIe x1
2 x PCIe 4.0 x1 slots
Storage
M.2 Slots (Total 2)
M.2_1: PCIe 5.0 x4 mode (Key M, Type 2280) - High Speed 128GbpsM.2_2: PCIe 4.0 x4 mode (Key M, Type 2280)
SATA Ports
4 x SATA 6Gb/s ports (Supports RAID 0/1/5/10)
Networking
Ethernet
1 x Realtek 2.5Gb Ethernet (ASUS LANGuard)
Wireless
Wi-Fi 6 (802.11ax), 1x1, 2.4/5GHz
Bluetooth
Bluetooth® v5.3
USB Connectivity
Rear USB (6 Total)
1 x USB 10Gbps port (Type-A)
2 x USB 5Gbps ports (Type-A)
3 x USB 2.0 ports (Type-A)
Front USB (7 Total)
1 x USB 5Gbps connector (Supports USB Type-C®)
1 x USB 5Gbps header (Supports 2 ports)
2 x USB 2.0 headers (Supports 4 ports)
Audio
Codec
Realtek 7.1 Surround Sound High Definition Audio CODEC
