₱11,090.00Original price was: ₱11,090.00.₱9,650.00Current price is: ₱9,650.00.
SKU: GA-B860M-DS3H-WIFI6E
Socket: LGA1851 for Intel® Core™ Ultra Processors (Series 2)
Chipset: Intel® B860 Express Chipset
Memory: 4 x DDR5 DIMM, supports up to 9066 MT/s (OC), Max 256GB
Graphics Slot: 1 x PCIe 5.0 x16 with EZ-Latch Quick Release
Storage: 1 x PCIe 5.0 M.2, 1 x PCIe 4.0 M.2, 4 x SATA 6Gb/s
Networking: Wi-Fi 6E (802.11ax), Realtek® 2.5GbE LAN, Bluetooth 5.3
Connectivity: HDMI 2.1, DisplayPort 2.1, USB 3.2 Gen 2 Type-A, USB-C Header
Cooling: M.2 Thermal Guard, Hybrid Fan Headers, Smart Fan 6
Form Factor: Micro ATX (24.4cm x 24.4cm)
Special Features: Q-Flash Plus, WIFI EZ-Plug, D5 Bionic Corsa AI Optimization
In stock
ℹ️
For walk-in customers: please always INQUIRE FIRST before visiting as not all items are displayed in our physical store. As an online-first store, most of our inventory is held in our online warehouse and is transferred to the store upon request.

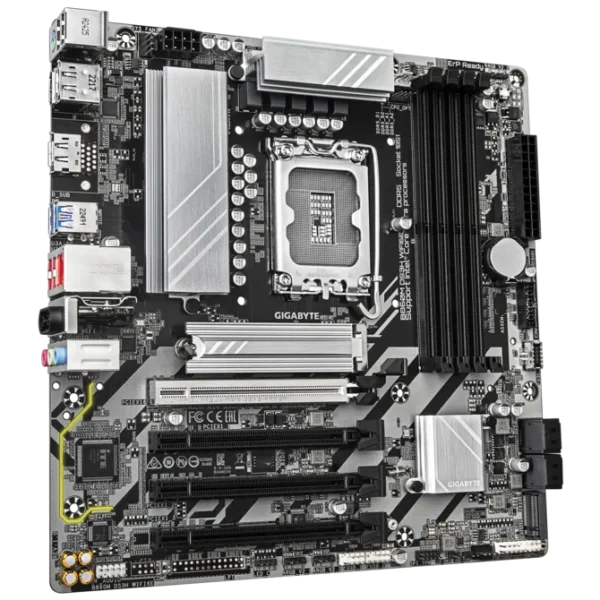

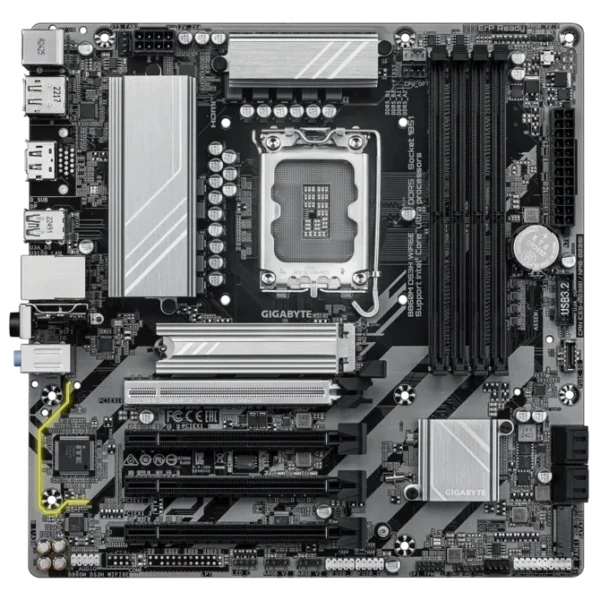

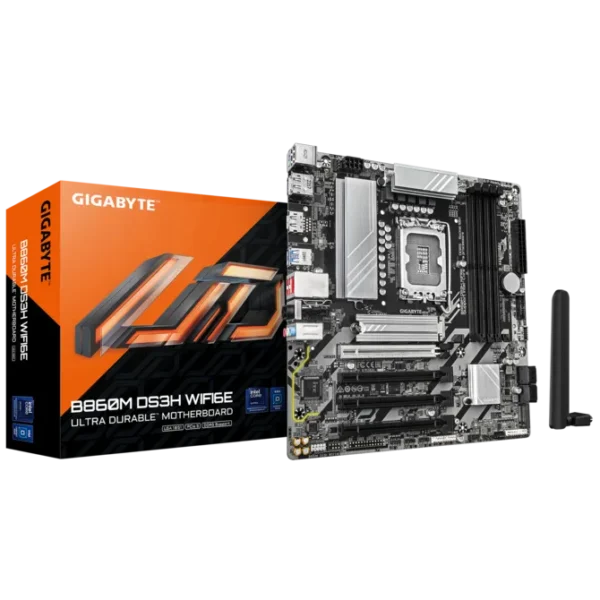

GIGABYTE B860M DS3H WIFI6E: The Ultra Durable Foundation for AI Computing
The GIGABYTE B860M DS3H WIFI6E is meticulously engineered to unlock the full potential of Intel® Core™ Ultra Processors (Series 2) on the LGA1851 socket. Designed with GIGABYTE’s renowned Ultra Durable™ technology, this micro-ATX motherboard combines a hybrid 5+1+2 phase VRM solution with high-quality components to ensure stable power delivery and long-term reliability. Whether you are building a dedicated AI workstation or a high-performance gaming rig, the DS3H provides the robust platform you need, featuring advanced thermal designs like the M.2 Thermal Guard to prevent throttling during intense data transfers.
Infinite Memory Performance with D5 Bionic Corsa
Step into the next generation of speed with GIGABYTE’s Infinite Memory Performance technology. The motherboard features four DDR5 DIMM slots capable of supporting overclocked speeds up to 9066 MT/s. Enhanced by D5 Bionic Corsa and AI-driven PCB design, the board optimizes signal integrity to deliver top-notch compatibility and stability. The exclusive HyperTune BIOS and AI Snatch engine (coming soon) leverage artificial intelligence to automatically tune your memory for peak performance, ensuring that your system handles bandwidth-heavy applications and multitasking with ease.
Future-Ready Connectivity and Speed
The B860M DS3H WIFI6E is built for the future with a PCIe 5.0 x16 slot, ready to accommodate the latest graphics cards with superior bandwidth. Storage options are equally impressive, featuring a PCIe 5.0 M.2 slot for blazing-fast NVMe SSDs and an additional PCIe 4.0 M.2 slot for expanded capacity. Networking is supercharged with Realtek® 2.5GbE LAN for lag-free wired gaming and the latest Wi-Fi 6E (802.11ax) technology, providing a dedicated 6GHz band for ultra-low latency wireless connections and gigabit-class throughput. The back panel I/O ensures you stay connected with USB 3.2 Gen 2 Type-A, HDMI 2.1, and DisplayPort 2.1 outputs.
DIY-Friendly Design for Easy Assembly
Building your PC is smoother than ever with GIGABYTE’s EZ-Latch designs. The PCIe EZ-Latch allows for the quick release of graphics cards with a single click , while the WIFI EZ-Plug integrates antenna connectors into a single block for hassle-free installation. The motherboard also features Q-Flash Plus, enabling you to update the BIOS without installing a CPU, memory, or graphics card. With the EZ Debug Zone providing centralized troubleshooting LEDs and the user-centered UC BIOS interface, the B860M DS3H WIFI6E offers a streamlined and intuitive building experience for users of all skill levels.
Integrated Graphics Processor - Intel® HD Graphics support
DisplayPorts
2 x DisplayPort (Max 3840x2160@144 Hz, Support for DisplayPort 2.1)
HDMI Port
1 x HDMI port (Max 4096x2160@60 Hz, Support for HDMI 2.1 and HDCP 2.3)
Multi-Display
Support for up to triple-display at the same time
Expansion Slots
CPU Slot
1 x PCI Express x16 slot (PCIe 5.0, running at x16)
Chipset Slots
3 x PCI Express x16 slots (PCIe 4.0, running at x1)
Features
PCIe EZ-Latch (Quick Release Design)
Storage Interface
CPU M.2 Slot
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 5.0 x4/x2 SSD support) (M2A_CPU)
Chipset M.2 Slot
1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2N_SB)
SATA Ports
4 x SATA 6Gb/s connectors
RAID Support
RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
Networking & Wireless
LAN
Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wi-Fi Module
Intel® Wi-Fi 6E AX211 (PCB rev. 1.0) OR Realtek® Wi-Fi 6E RTL8852CE (PCB rev. 1.1)
Supports 2.4/5/6 GHz carrier frequency bands, 11ax 160MHz
Bluetooth
Bluetooth 5.3
USB Connectivity
Back Panel Ports
1 x USB 3.2 Gen 2 Type-A (Red)
2 x USB 3.2 Gen 1
3 x USB 2.0/1.1
Internal Headers
1 x USB Type-C® (USB 3.2 Gen 1)
1 x USB 3.2 Gen 1 header (Supports 2 ports)
2 x USB 2.0/1.1 headers (Supports 4 ports)
Audio
Codec
Realtek® Audio CODEC, High Definition Audio
Channels
2/4/5.1/7.1-channel
Features
High-End Audio Capacitors, Audio Noise Guard
Internal I/O Connectors
Power
1 x 24-pin ATX, 1 x 8-pin ATX 12V (UD Solid Pin)
Cooling
1 x CPU fan, 1 x CPU/Water Pump, 1 x System fan, 1 x System fan/Water Pump
Lighting
3 x Addressable RGB Gen2 headers, 1 x RGB LED strip header
Others
1 x TPM header (SPI), Q-Flash Plus button, Reset jumper, Clear CMOS jumper

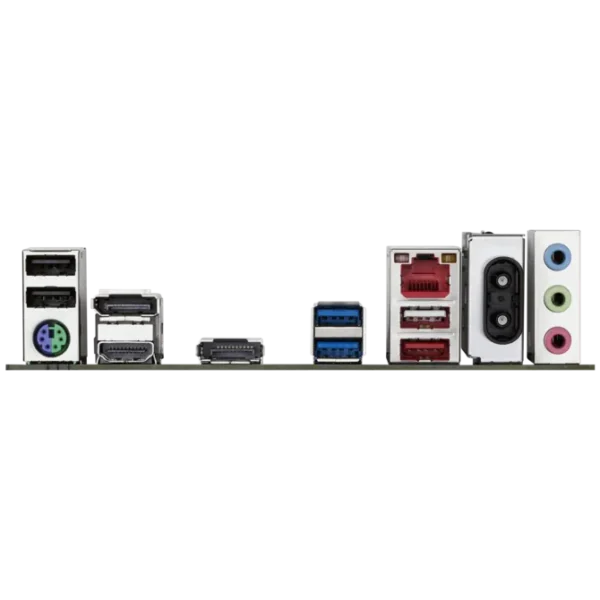

Back Panel I/O Connectors
Ports
1 x PS/2 keyboard/mouse
1 x HDMI
2 x DisplayPorts
1 x USB 3.2 Gen 2 Type-A
2 x USB 3.2 Gen 1
3 x USB 2.0/1.1
1 x RJ-45
2 x Antenna connectors (2T2R)
3 x Audio jacks
BIOS & Software
BIOS
1 x 256 Mbit flash, AMI UEFI BIOS
Unique Features
GIGABYTE Control Center (GCC), Q-Flash, Q-Flash Plus, Smart Backup
Operating System
Windows 11 64-bit, Windows 10 64-bit
Packaging Weight
2 kg
Packaging Dimensions (L×W×H)
26 × 21 × 10 cm
Brand
Gigabyte
Desktop RAM
DDR5
Socket
LGA 1851 CPU
